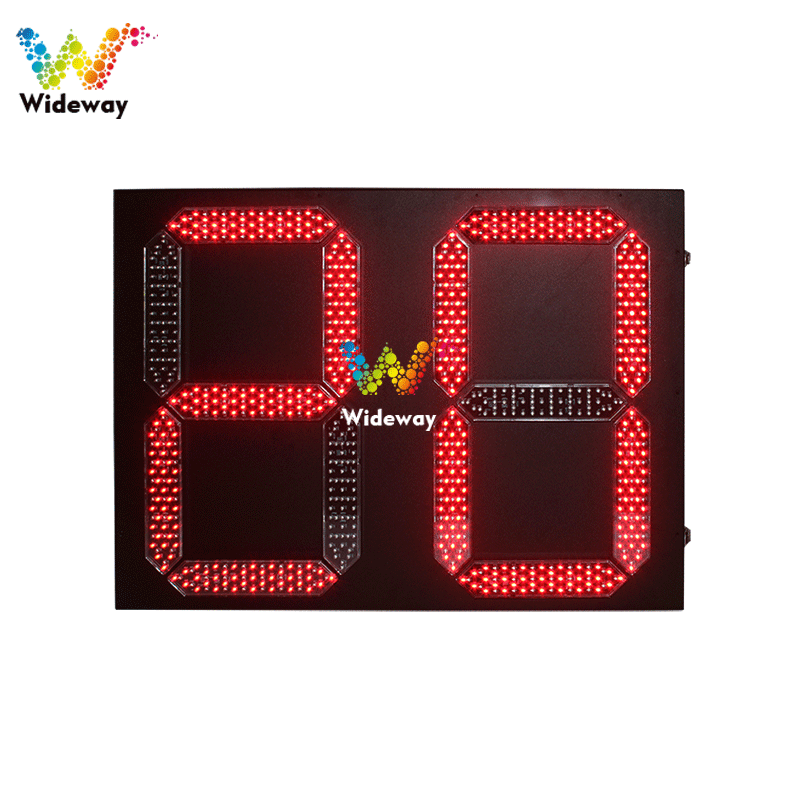

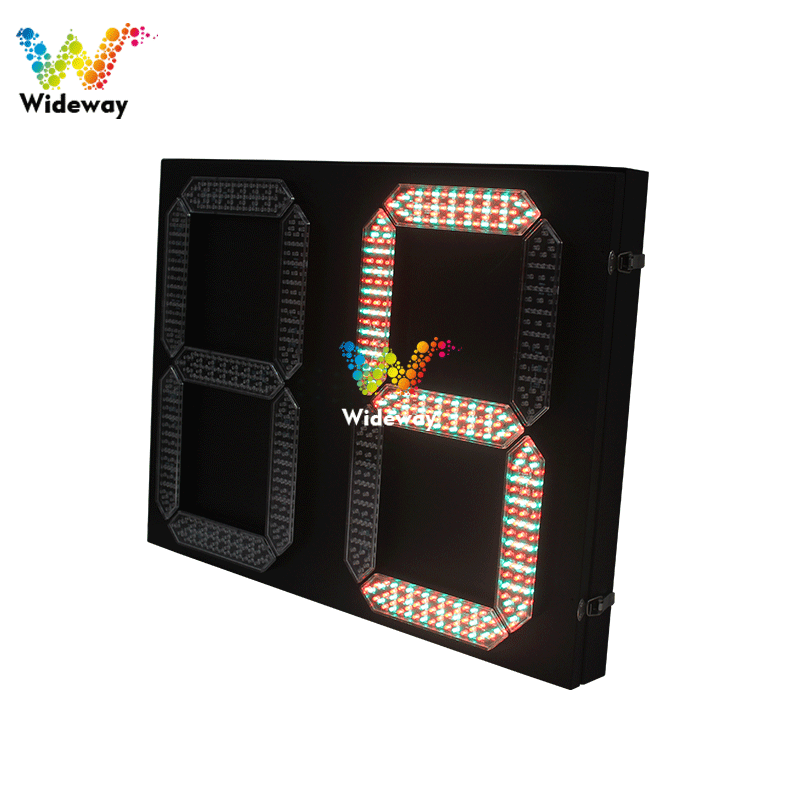

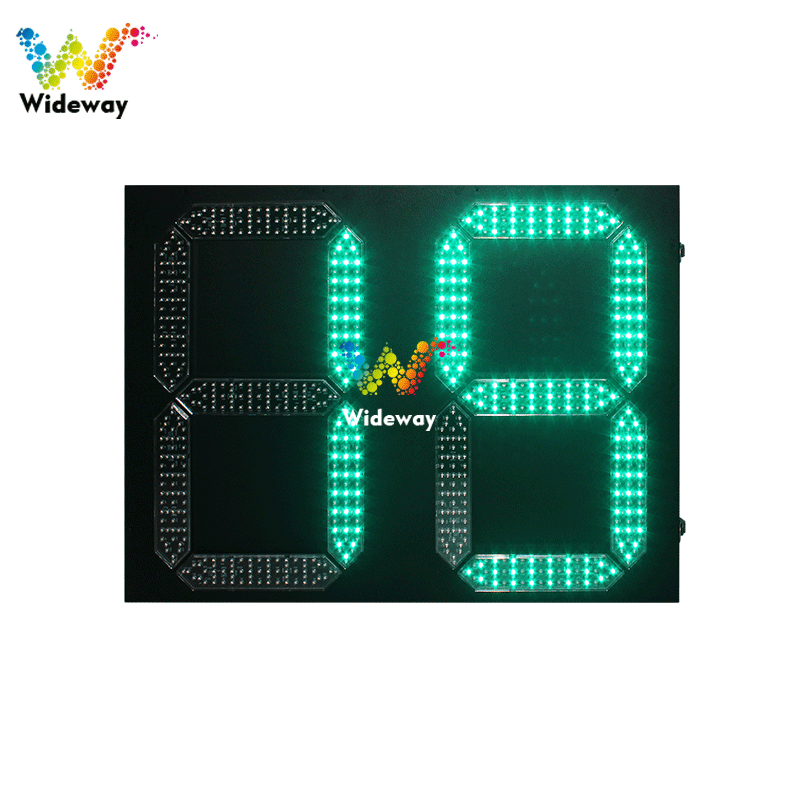

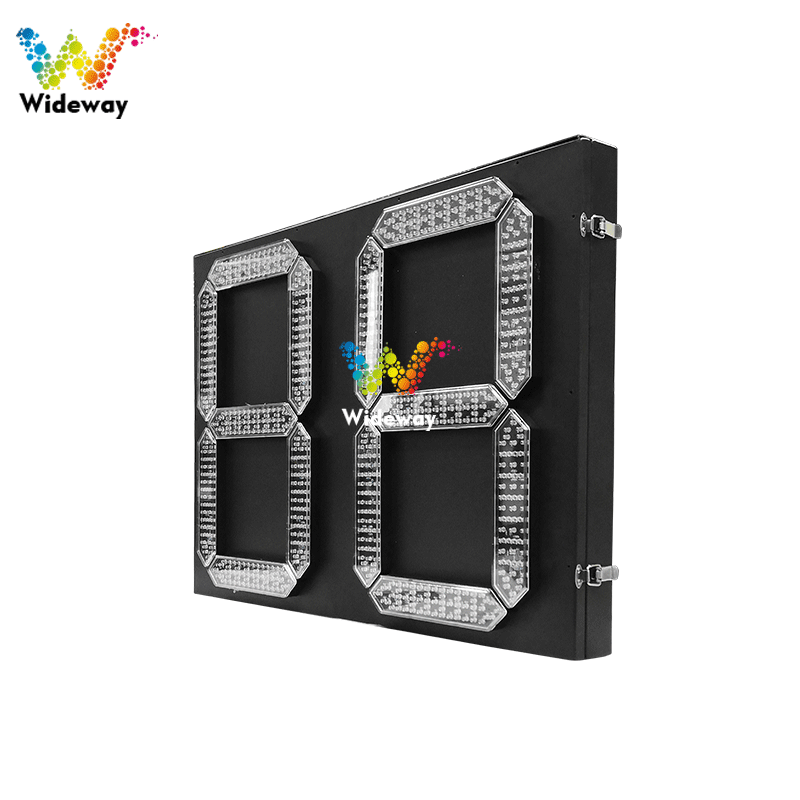

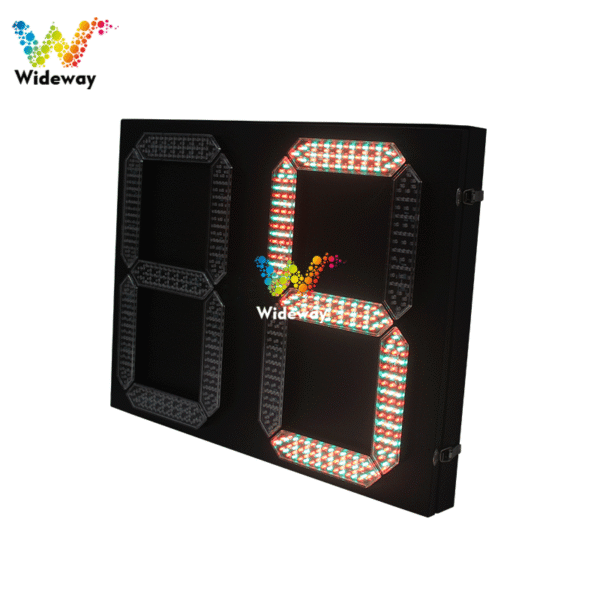

600 x 800 mm Traffic Light Countdown Timer
1.The 600 x 800 mm Traffic Light Countdown Timer utilizes green energy, making it economical and environmentally friendly; it contains no harmful substances and emits no pollutants.
2.The 600 x 800 mm Traffic Light Countdown Timer features LEDs powered by Epistar chips from Taiwan, with a service life of ≥100,000 hours. It offers high brightness, a unique optical system, uniform color distribution, excellent warning effectiveness, and slow light decay.
3. The 600 x 800 mm Traffic Light Countdown Timer features low power consumption, a wide viewing angle, ultra-high brightness, long visibility distance, and extended operating time.
4. The 600 x 800 mm Traffic Light Countdown Timer is rugged and durable. It is stable and reliable, with a high protection rating. It is impact-resistant, resistant to aging, and corrosion-resistant.
5. The 600 x 800 mm Traffic Light Countdown Timer is waterproof and easy to install.
6. The 600 x 800 mm Traffic Light Countdown Timer complies with GB/14887-2003 and relevant international standards.
The 600×800 mm Traffic Light Countdown Timer is a vital component of traffic management. This countdown display, also known as a remaining time display, operates independently of traffic signals but synchronizes with them to show the remaining time for each signal phase. It alerts vehicles and pedestrians to prepare for crossing or stopping in advance, thereby promoting smooth traffic flow at intersections and enabling vehicles and pedestrians to pass through quickly and safely. It plays a crucial role in maintaining good traffic order and reducing the incidence of traffic accidents. Based on their operating modes, they can be classified into learning-type countdown displays and communication-type countdown displays. Featuring high-brightness LED bulbs with vivid, distinct colors, they offer excellent visibility from a distance, ensuring clear visibility both during the day and at night.
Parameter
| Product Model | WDM-DJS600*800-88-RG-T |
|---|---|
| Product Name | 600 x 800 mm Traffic Light Countdown Timer |
| Product Dimensions | 600 x 800 mm |
| Number of LEDs | 546 red, 336 green |
| LED Color | Red/Green |
| LED Type | Taiwan Epistar chip LEDs |
| Red Wavelength | 620-625 nm |
| Green Wavelength | 520-525 nm (Emerald Green) |
| Service Life | 100,000 hours |
| Beam Angle | 30° |
| Housing Material | Electrostatic spray coating, sheet metal enclosure |
| Operating Temperature | -40°C to 65°C |
| Protection Rating | IP53 |
| Operating Voltage | AC 220V |
| Visibility Distance | ≥1000 m |
| Operating Mode | Traffic signal controller |
| Mounting Method | Clamp mounting |
