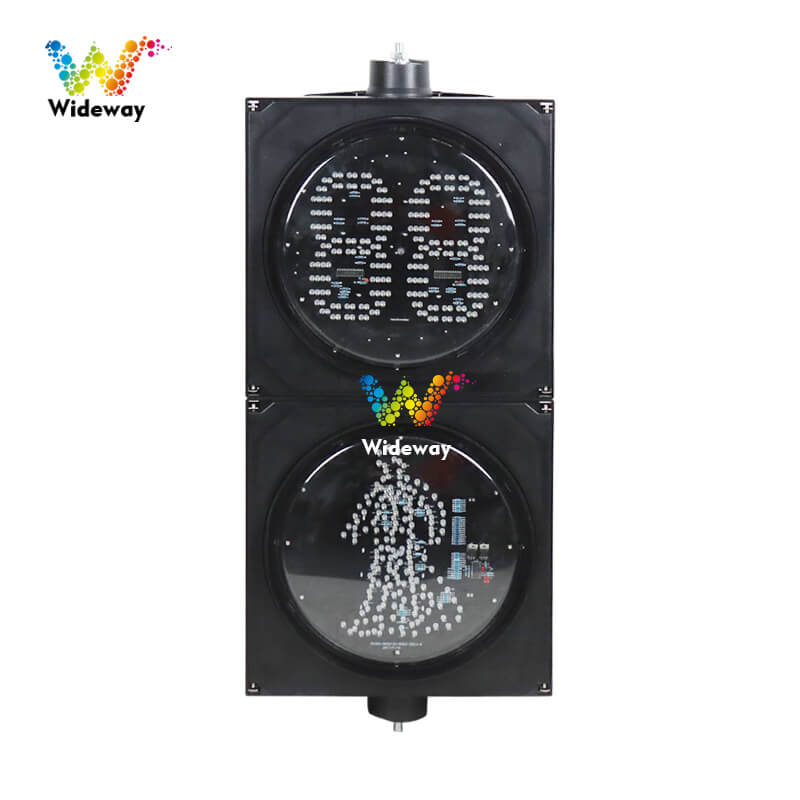

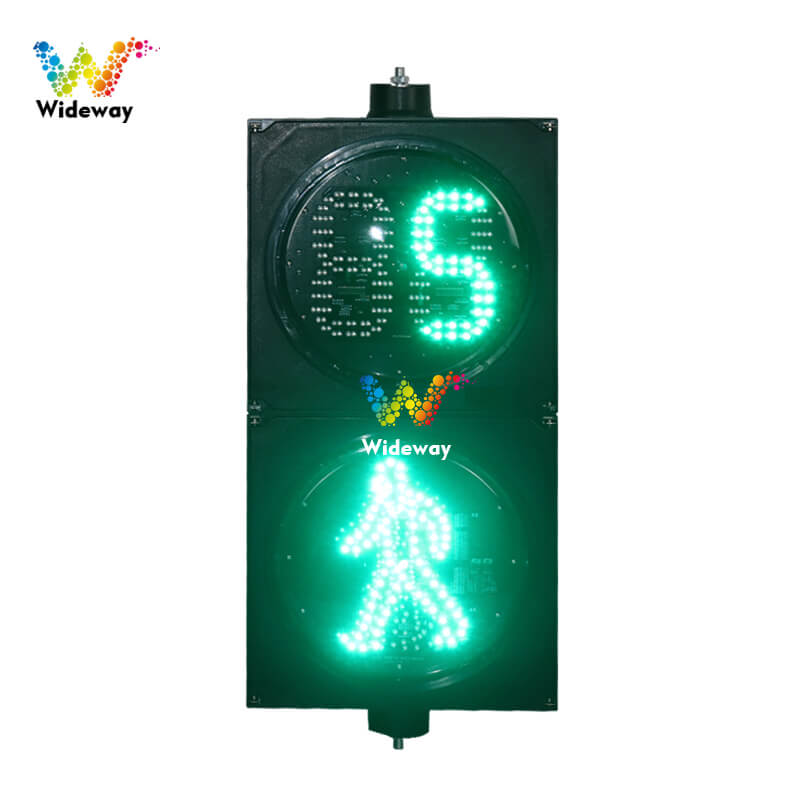

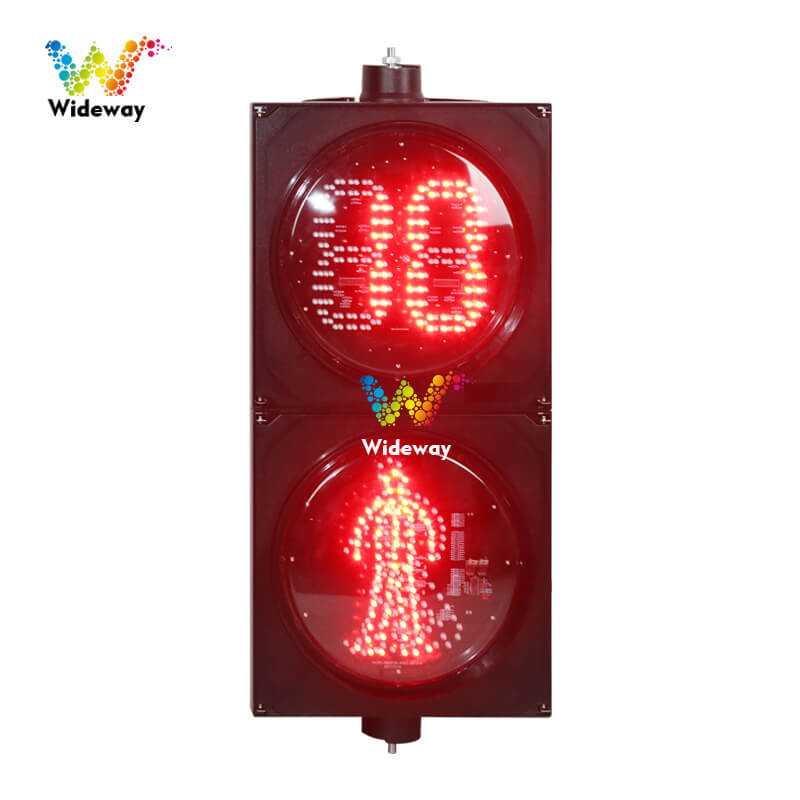

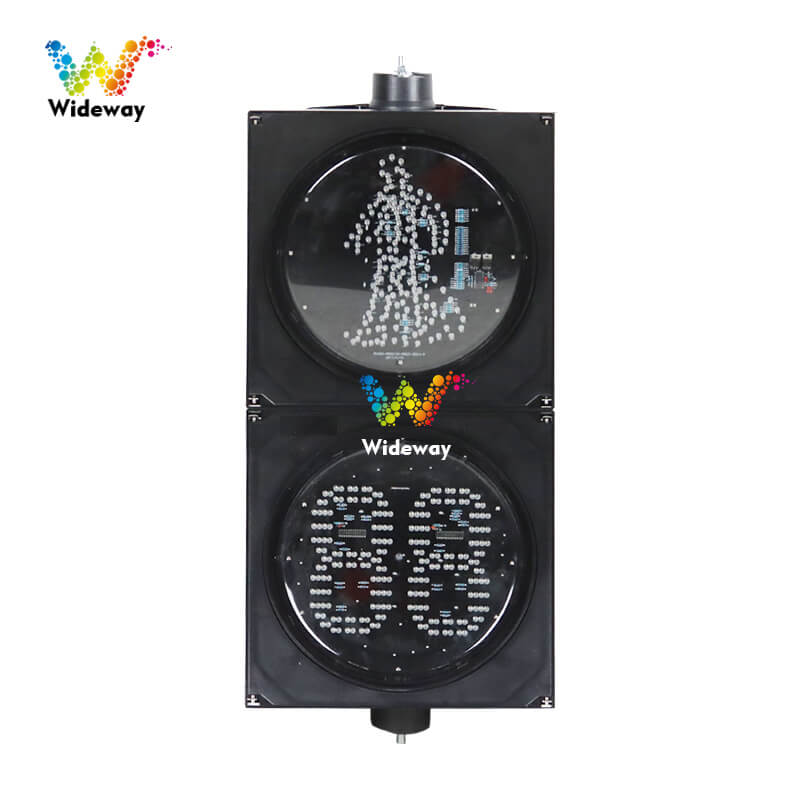

300mm traffic light with two pedestrian countdown timers

1. The 300mm two-light pedestrian countdown traffic signal uses green energy, making it economical and environmentally friendly; it contains no harmful substances and emits no pollutants.
2. The LED lights in the 300mm two-light pedestrian countdown traffic signal use Epistar chips from Taiwan, with a service life of ≥100,000 hours. They feature high brightness, a unique optical system, uniform color distribution, excellent warning effectiveness, and slow light decay.
3. The 300mm pedestrian countdown traffic light (two-lamp) features low power consumption, a wide viewing angle, ultra-high brightness, long visibility distance, and extended operational life.
4. The 300mm pedestrian countdown traffic light (two-lamp) is robust and durable. It is stable and reliable, with a high protection rating. It is impact-resistant, resistant to aging, and corrosion-resistant.
5. The 300mm pedestrian countdown traffic light (two-lamp) has an IP53 protection rating and is easy to install.
6. The 300mm pedestrian countdown traffic light (two-lamp) complies with GB/14887-2003 and relevant international standards.

The 300mm traffic light with two-tier pedestrian countdown is a type of traffic signal and the most commonly used pedestrian crossing signal device at intersections in China. It strictly complies with the national standard GB 14887-2011 and is installed vertically. The unit consists of a top tier displaying red and green countdown lights and a bottom tier displaying red and green pedestrian signals, with each tier integrating a dual display unit featuring both a pedestrian symbol and a digital countdown.

Parameter

Product modelWDM-RX300-88-2-PC-RG
Product size700*350*130mm
Lamp diameter300mm
LED QTYR:65 pcs G:120pcs
Countdown112 each for red and green
Lamp beadTaiwan wafer lamp beads
Lifespan100,000H
Working temperature-40°C-60°C
Working voltageAC85-265V
Shell materialPC
Visual distance1-800
MInstallationVertical installation
