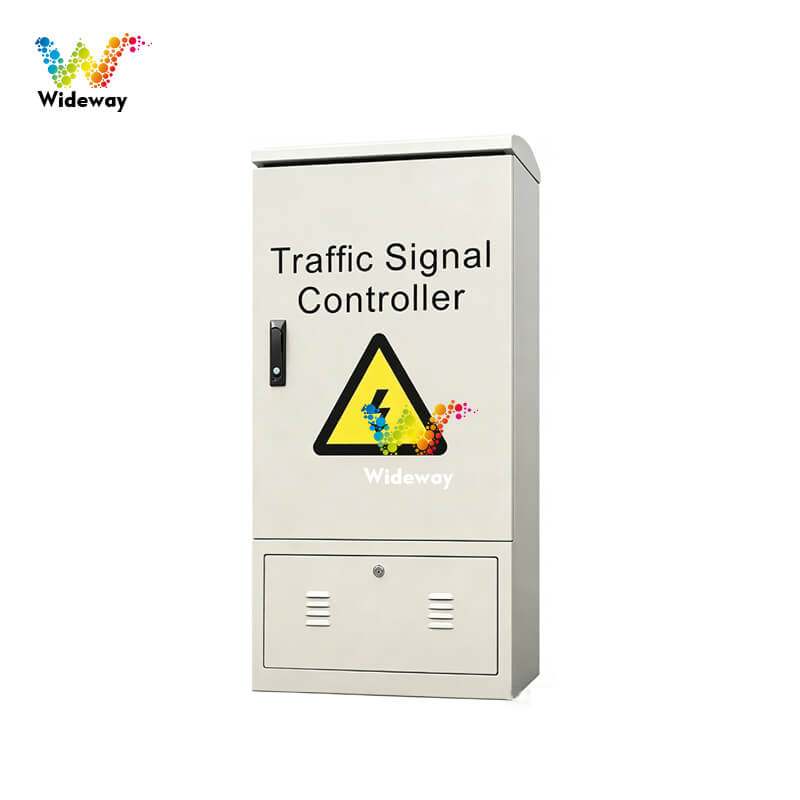

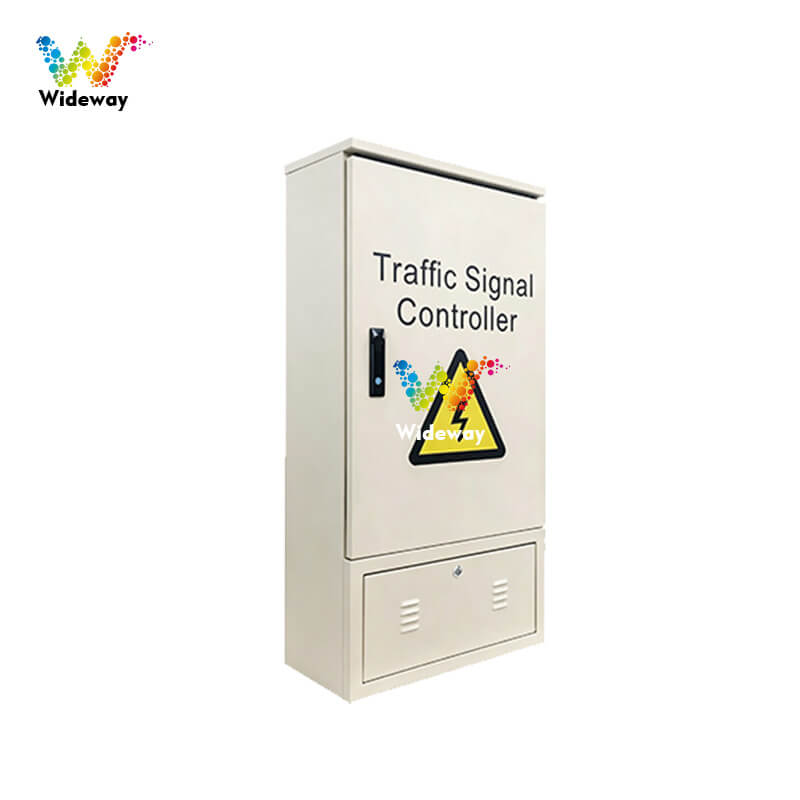

22-Channel Traffic Signal Controller
1. The 22-channel Traffic Signal Controller features an embedded central control system for more stable and reliable operation.

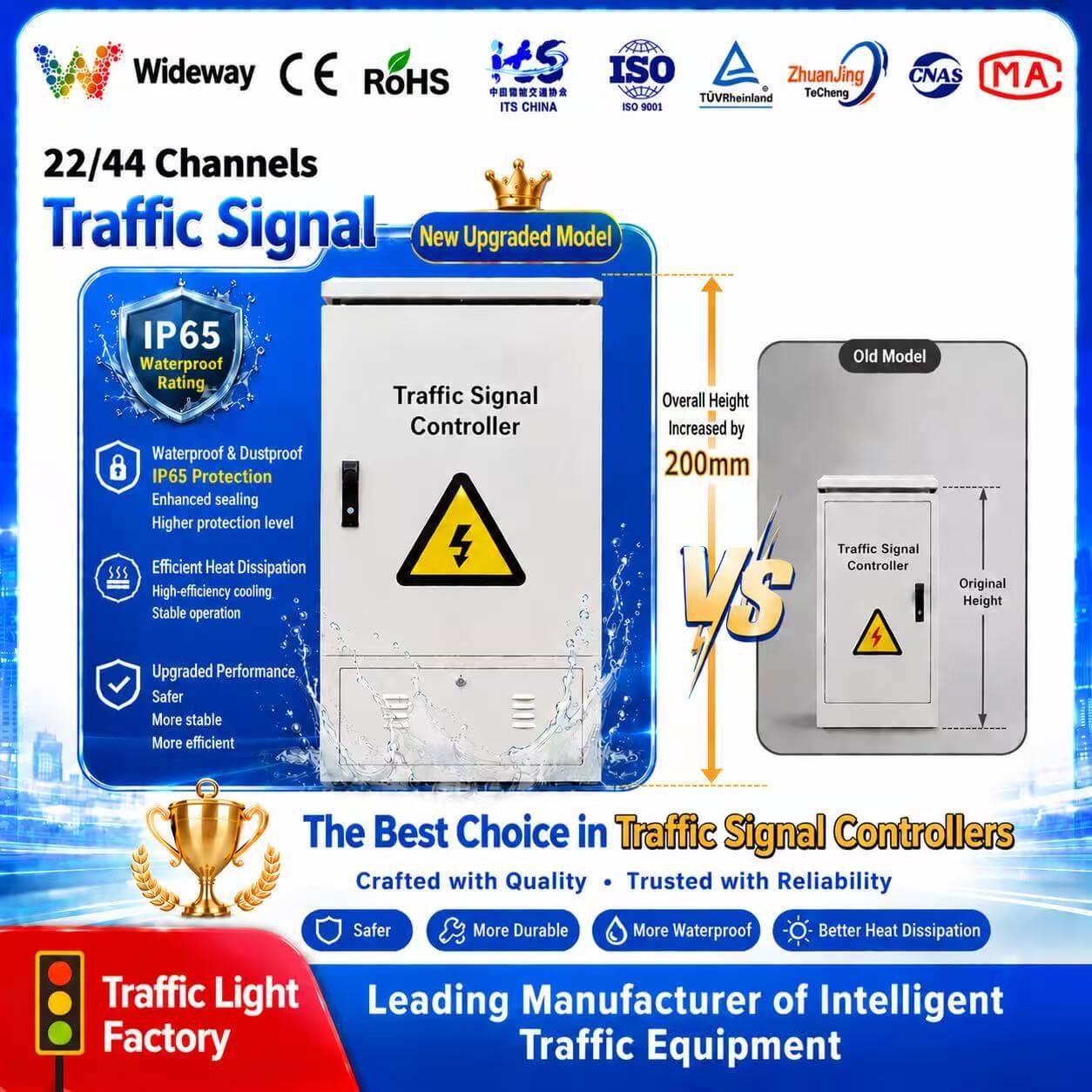

2. The 22-channel Traffic Signal Controller is housed in an all-weather outdoor enclosure equipped with lightning protection and power filtering devices.
3. The entire 22-channel Traffic Signal Controller is designed with a modular architecture, facilitating maintenance and functional expansion.
4. The 22-Channel Traffic Signal Controller provides 44 independent control outputs for 16 groups of lights, with a typical operating current of 10A.
5. The 22-Channel Traffic Signal Controller features 99 operating time slots, allowing separate scheduling for weekdays and holidays.
6. The 22-Channel Traffic Signal Controller has 32 operating menus that can be called up multiple times during any time slot.
7. Each programmable menu on the 22-Channel Traffic Signal Controller supports 99 steps, with each step timed from 1 to 255 seconds.
8. The flashing status of each traffic signal on the 22-Channel Traffic Signal Controller is configurable, with adjustable flashing frequency and duration.
9. The 22-channel Traffic Signal Controller allows for arbitrary setting of the nighttime yellow flashing duration, with adjustable frequency.
10. The 22-channel Traffic Signal Controller can enter emergency yellow flashing mode at any time.
11. Manual control of the 22-channel Traffic Signal Controller supports step-by-step operation under both random and specified menus.
The Route 22 Traffic Signal Controller, also known as a traffic signal controller, is the core hardware device of an urban traffic signal control system. Its primary function is to control the timing sequences of traffic light color changes at intersections based on preset control schemes or real-time traffic flow data, regulate right-of-way for different directions, ensure the orderly organization of traffic flow at intersections, and guarantee road safety and traffic efficiency.

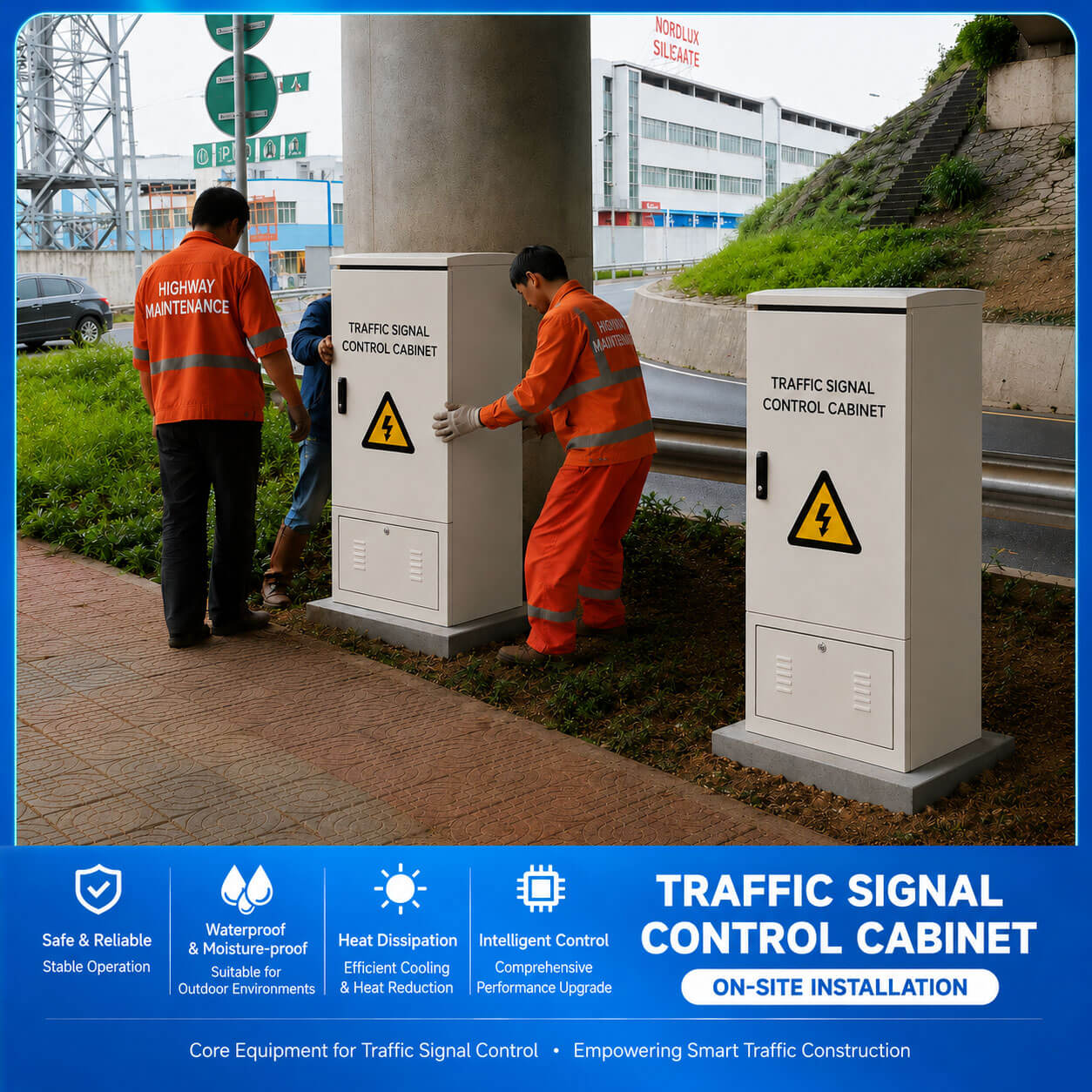

The 22-Channel Traffic Signal Controller is located at the forefront of the intersection signal control system. It interfaces with the regional traffic control center system at the upper level and connects to peripheral devices such as traffic light assemblies, countdown timers, and pedestrian push buttons at the lower level. It serves as the critical node linking upper-level control strategies with lower-level signal outputs.
Parameter

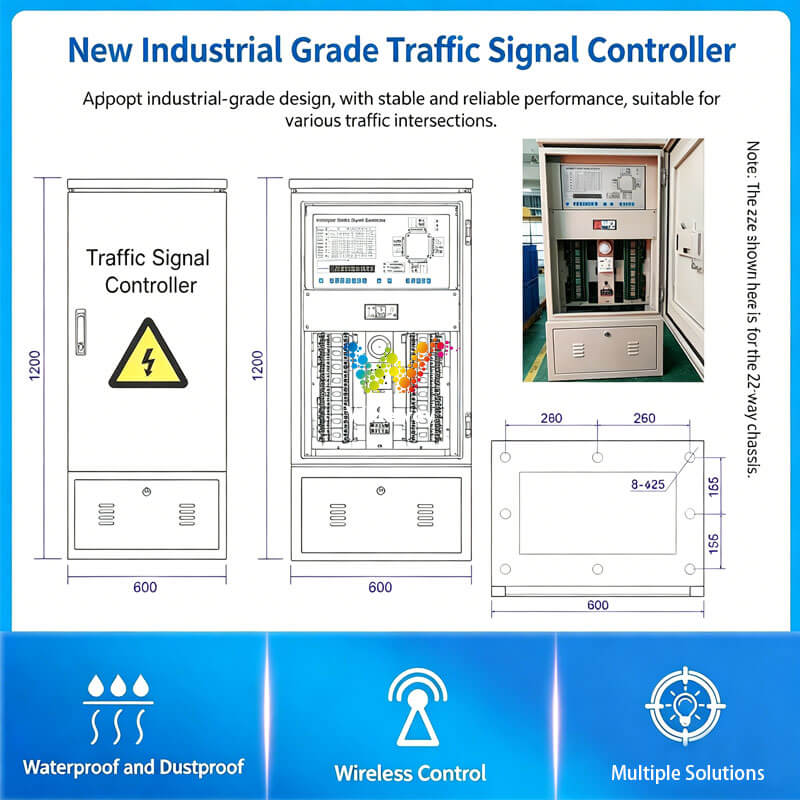

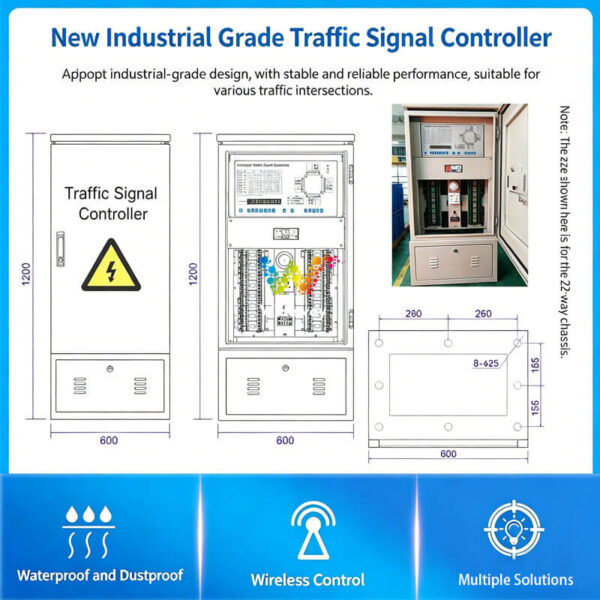

| External Cabinet Size | 600*400*1200mm |
|---|---|
| Model | WDM-XHJ-22 |
| Internal Cabinet Size | 425*220*250mm |
| Timekeeping Accuracy | +1s |
| Power per Channel | 1300W |
| Operating Frequency | 50Hz~60Hz |
| Power-off Data Retention | 180 Days |
| Operating Temperature Range | -40°C~+75°C |
| Operating Voltage | AC85V~265V |
| Configuration Storage | 10 Years |
