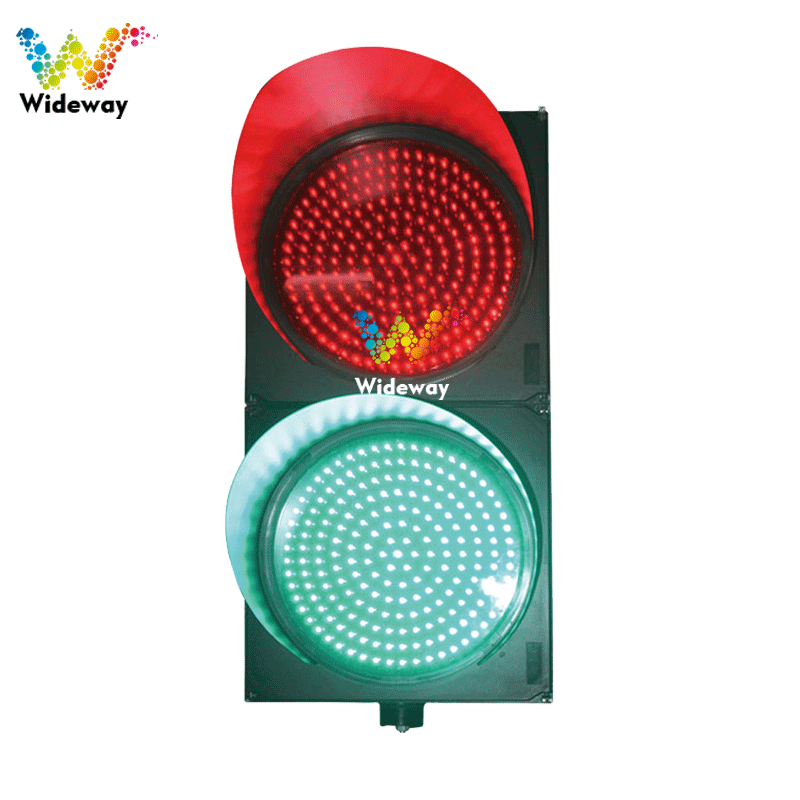

400mm Traffic Signal Red and Green Lights
The 400mm Traffic Signal (red and green lights) consists of two units: a red unit and a green unit. Widely used at intersections and other locations, it is designed to guide the movement of pedestrians and vehicles, effectively managing traffic flow to ensure safety and order. Featuring high-brightness LEDs, the lights offer striking, distinct colors and are highly visible from a distance, ensuring excellent visibility both day and night. By switching between different colors, this road infrastructure conveys instructions such as “proceed,” “stop,” and “caution” to road users. Its primary functions include scientifically allocating right-of-way, regulating the flow of vehicles and pedestrians, improving traffic efficiency, and reducing traffic accidents at intersections.
Share This Products :
1. The 400mm traffic signal (red and green lights) utilizes green energy, making it economical and environmentally friendly; it contains no harmful substances and emits no pollutants.
2. The LED lights in the 400mm traffic signal (red and green lights) use Epistar chips from Taiwan, with a service life of ≥100,000 hours. They feature high brightness, a unique optical system, uniform color distribution, excellent warning effectiveness, and slow light decay.
3. The protective coating on the housing and connecting components of the 400mm traffic signal (red and green lights) is uniform in color, free of scratches, cracks, or exposed substrate defects, and its physical and chemical performance indicators comply with relevant national and industry standards;
4. The front and back of the 400mm traffic signal (red and green lights) housing feature a snap-fit design, allowing for easy access to the unit for maintenance and inspection;
5. The 400mm traffic signal (red and green lights) features low power consumption, a wide viewing angle, ultra-high brightness, long visibility distance, and extended operational life.
6. The 400mm traffic signal (red and green lights) is robust and durable. It is stable and reliable, with a high protection rating. It is impact-resistant, resistant to aging, and corrosion-resistant. It is waterproof and easy to install.
7. The 400mm Traffic Signal (red and green lights) complies with GB/14887-2003 and relevant international standards;
8. Product warranty: ≥2 years;
9. The 400mm Traffic Signal (red and green lights) features an elegant appearance;
400MM traffic light two aspect
Red Light Warning · High Penetration
High-brightness LED chip with strong light penetration – ideal for high-visibility warning scenarios such as no-entry signs or equipment malfunction alerts, offering exceptional long-distance visibility.
Green light – More friendly
The soft yet clear lighting is specifically designed for traffic signal control and monitoring the normal operating status of equipment. 400MM traffic light two aspect offers a visually friendly design with high recognizability, ensuring safe traffic flow guidance.
product function
Traffic Signal Function

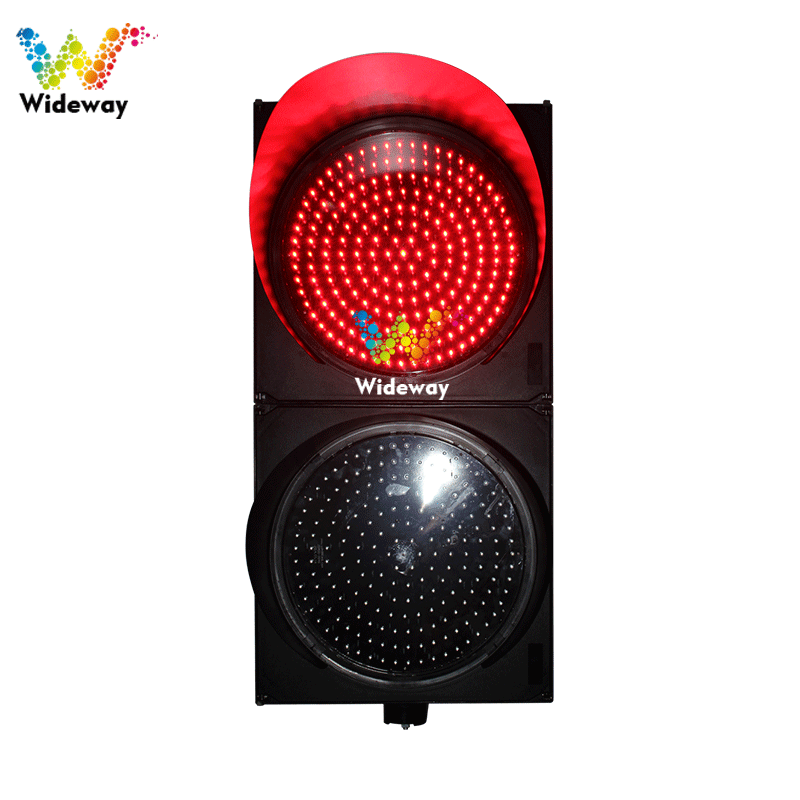

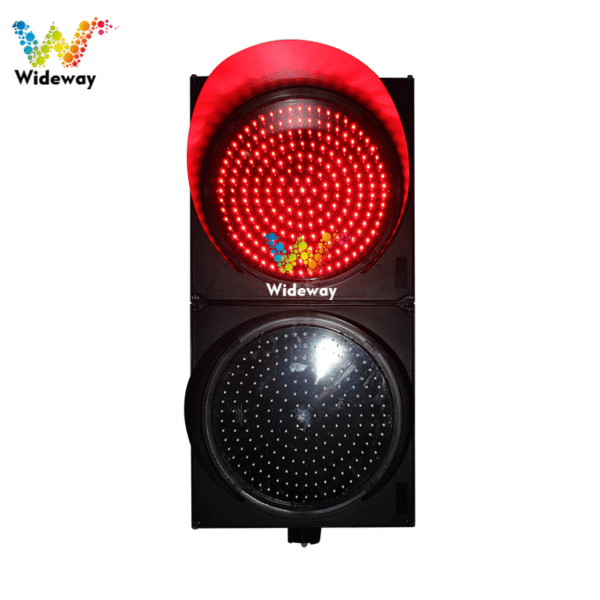

Red light (No Entry): When illuminated, 400MM traffic light two aspect indicates that vehicles or equipment are prohibited from entering the lane; this serves to intercept and restrict traffic flow.

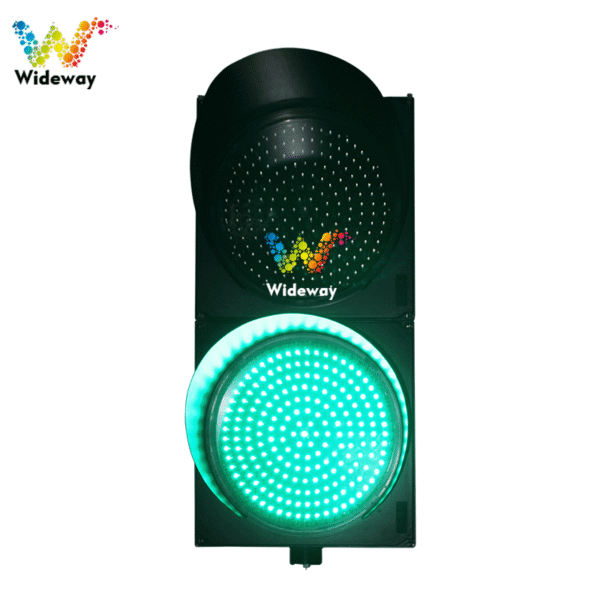

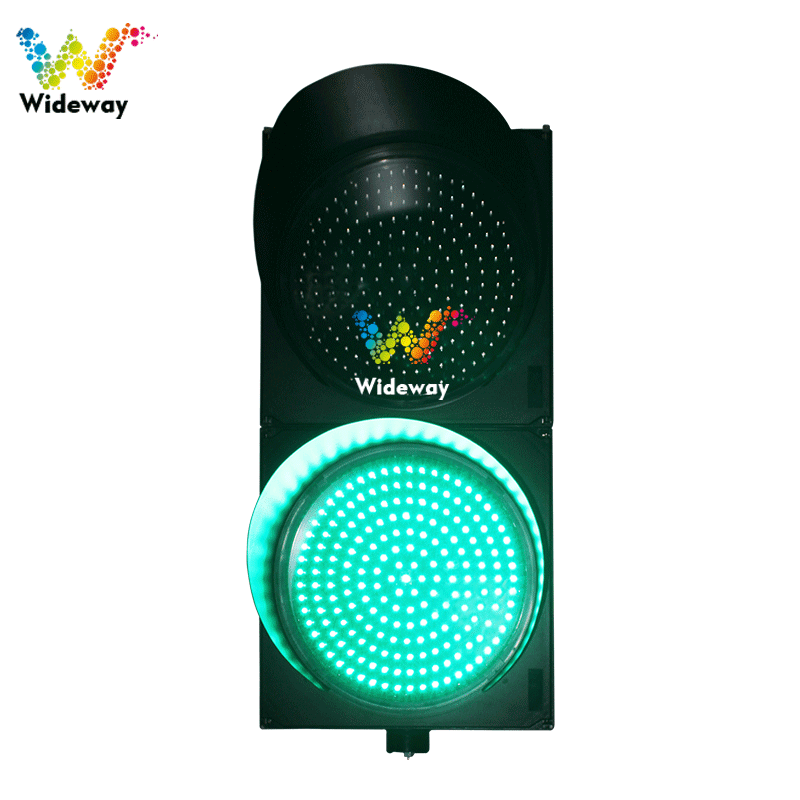

Green light (Authorized passage): When illuminated, 400MM traffic light two aspect indicates that vehicles are permitted to enter or proceed through this lane normally.
Long-distance outdoor visual inindication
400 mm illuminated surface with high-brightness LEDs; maximum visible range exceeds 300 meters – ensuring clear visibility even under strong light, backlighting, or rainy/misty conditions; ideal for long-distance observation scenarios such as highways, main roads, and tunnels.

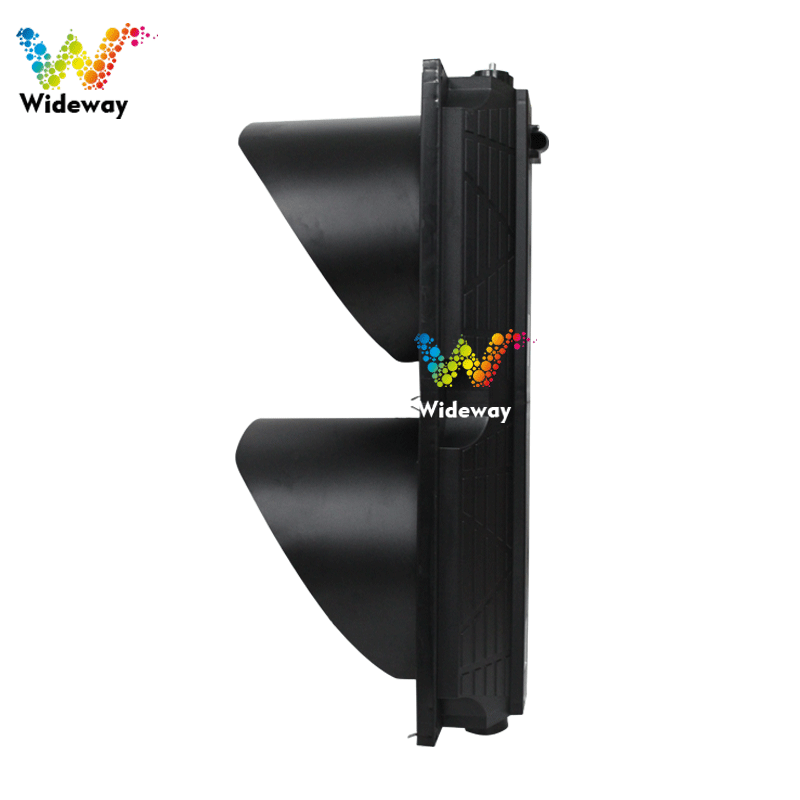

The sun-shading brim (the red and green outer circles in the diagram) reduces glare caused by direct sunlight, preventing misinterpretation of the traffic light's on/off status during the day.
All-weather stable illumination
Operates on a wide voltage range of 85–265 V AC, suitable for extreme temperature environments ranging from –40°C to 80°C; features IP53 dust-and splash-proof rating, enabling long-term stable operation both indoors and outdoors even in harsh weather conditions.
Flexible installation and adaptation
Supports both horizontal and vertical installation methods; when paired with an L-shaped bracket, 400MM traffic light two aspect can be quickly secured to structural members, making 400MM traffic light two aspect suitable for a variety of installation scenarios.
Simple power-on control
Simply connect the neutral and live wires to turn 400MM traffic light two aspect on; it supports external switches or controllers for on/off control and can be seamlessly integrated with any complete signaling system, offering simple and convenient operation.
Engineering Application Scenarios and Supporting Functions
Lane Control (tunnels, toll stations, elevated ramps): Replaces the red cross and green arrow signs to indicate lane opening or closing; red light = lane closed; green light = lane open.
Solves core pain points for customers
• Solution: With only red and green dual lighting, the unnecessary yellow light unit has been removed, resulting in lower equipment procurement costs and a more compact device size – making 400MM traffic light two aspect perfectly suited for scenarios where pole-mounted installation space is limited.
• Solution: 400 mm large-lighting-area LED lamp disc with built-in sunshade to reduce glare; high-brightness LEDs ensure long-range visibility and clear signal recognition even in rainy or foggy conditions, thereby reducing the risk of driver misjudgment.
• Solution: IP65 protection rating – dust-and water-resistant; wide operating temperature range – resistant to direct sunlight, rain, and snow – enables long-term stable operation in outdoor environments, reducing equipment downtime due to malfunctions.
• Solution: LED light sources feature a long service life and low power consumption, helping to reduce electricity costs; the modular lamp panel allows individual lamps to be replaced when faulty, eliminating the need to disassemble the entire fixture, thereby lowering spare parts procurement and high-altitude maintenance costs.
• Solution: Direct integration with traffic signal controllers and turnstile control systems is supported; the nighttime flashing warning mode eliminates the need for additional warning light equipment, simplifying control system configuration.
• Solution: Dual-unit design reduces the overall machine height, minimizes installation space requirements, and makes 400MM traffic light two aspect ideal for installation in confined spaces.
• Solution: A red light indicates that the lane is closed and vehicles are prohibited from entering; a green light indicates that the lane is open for traffic. This provides drivers with an intuitive indication of the lane status, preventing vehicles from mistakenly entering closed lanes and reducing the risk of traffic accidents.
400MM traffic light two aspectWiring Instructions
Red line
The Red Light Line provides power input to the red LED module, ensuring proper illumination of the red light.
Green line
Green light line – independently controls the green LED module, enabling individual switching of the green light source.
Black line
The public neutral conductor, which serves as the common terminal for the circuit loop, must be reliably connected to the power supply neutral conductor.
Wide-range voltage
Supports a wide input voltage range of AC 85–265 V, compatible with power grid voltage standards worldwide.
Product Installation (Vertical Installation Example)
Nut Assembly – Disassembly
The lamp features built-in screws at both ends; first, remove the screw and its nut.
Fixed L-shaped bracket
Align the flat ends of the two L-shaped brackets with the luminaire mounting holes, then insert the screws into the slots. Tighten the nuts.
Whole-unit component installation
Drill holes in the signal light pole; insert the matching screw through the pole; secure the assembled L-shaped bracket to the pole; tighten the lock nut to complete installation. Tighten the nut.
Usage Precautions
This product features a PC plastic casing; avoid applying excessive pressure to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
400MM traffic light two aspectAfter-Sales Warranty Terms and Conditions
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer Return
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items for repair shall be borne by the sender in a one-way manner.
| outline dimension | 940*470*140MM |
|---|---|
| LED bead configuration | 204 red LED beads and 204 green LED beads |
| LED bead category | Taiwan-based Epistar LED beads |
| Red wavelength | 620-625NM |
| Green wavelength | 500–505 nm (blue-green); 520–525 nm (emerald green) |
| life length | 100000H |
| Shell material | PC plastic casing |
| working temperature | -40°C to 80°C – suitable for outdoor environments with extreme temperatures |
| levels of protection | IP53 – dust and splash protection |
| working voltage | AC85–265V – Wide voltage range AC power supply |
| visual range | ≥1-800M |
| way to install | Supports horizontal or vertical installation. |
| Quality Assurance | 3 years |
| fittings of a machine | quantity | Note: |
| lamps and lanterns | 1 unit | Available in red, yellow, or green – to meet various warning requirements across different scenarios. |
| L-shaped bracket | 2 | High-strength cold-rolled steel sheet – used to securely fix the luminaire body. |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation steps, and a safety and maintenance guide. |
