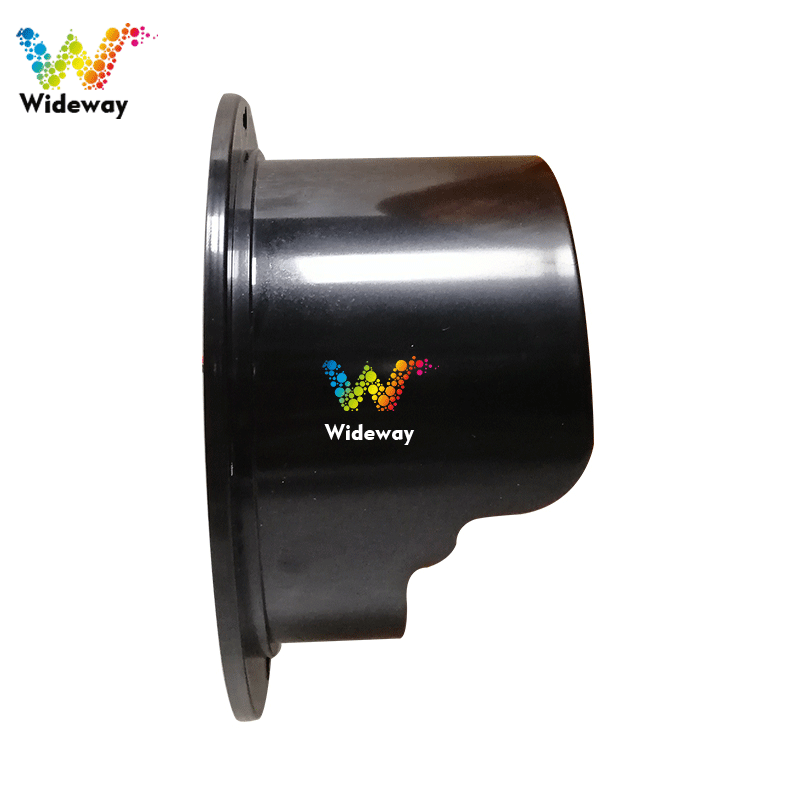

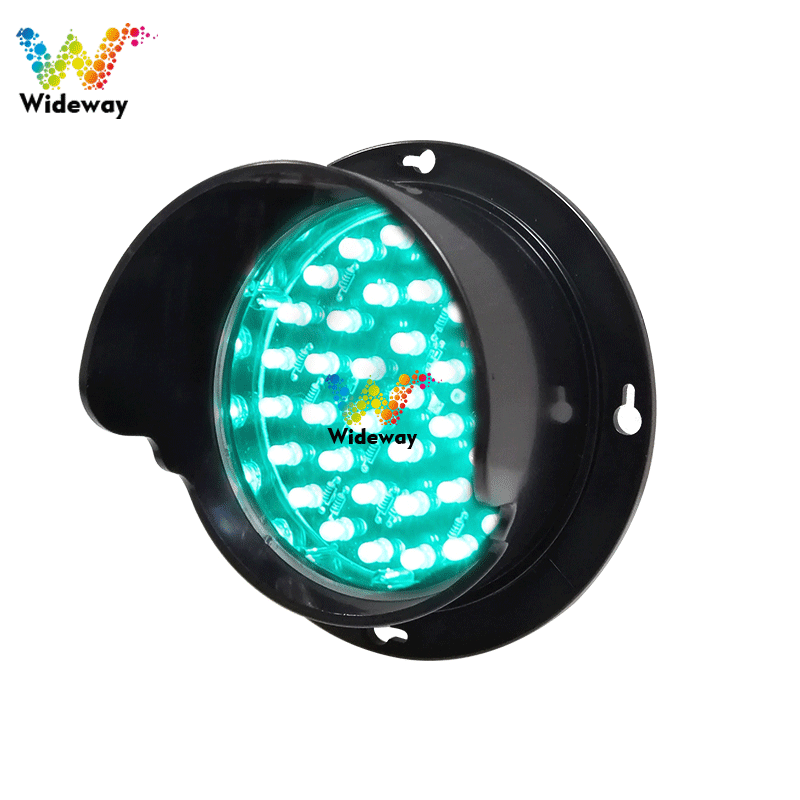

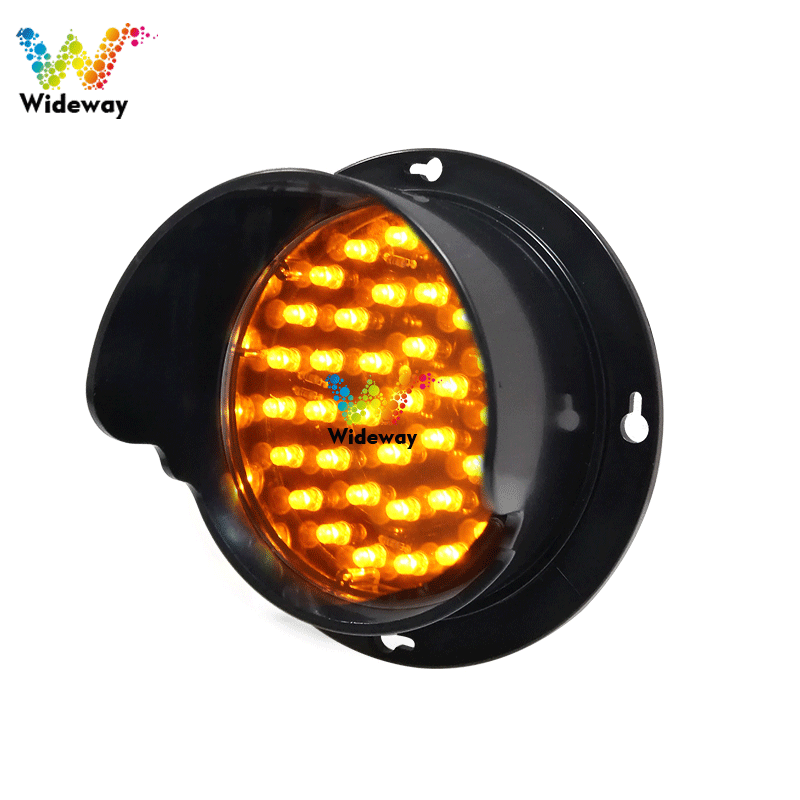

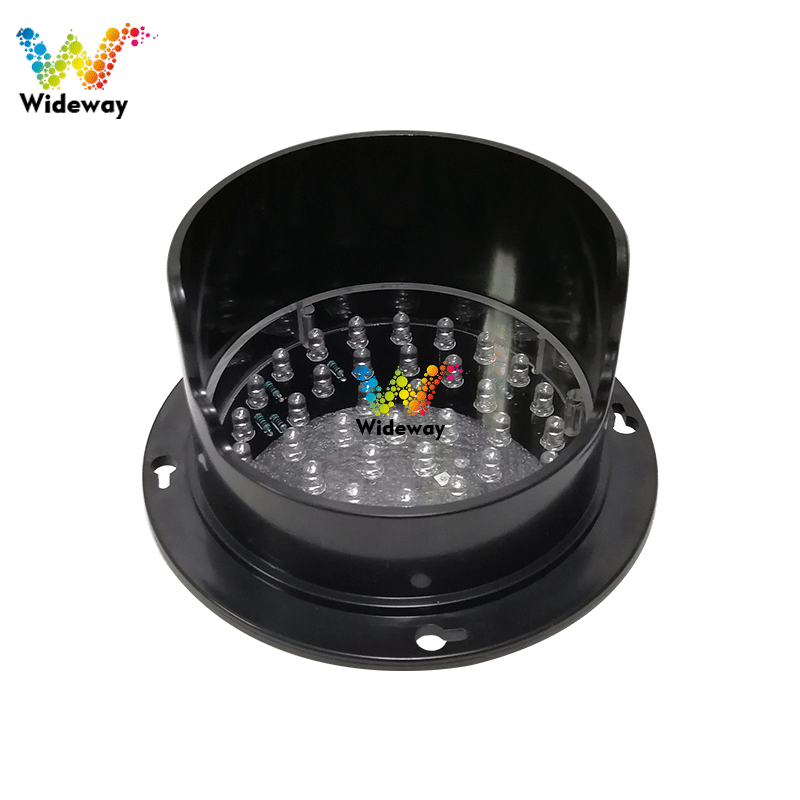

100MM Led Traffic Light Module
1.100MM Led Traffic Light Module Green energy, environmentally friendly, free of harmful substances, and does not emit pollutants.
2.100MM Led Traffic Light Module LED uses Taiwan semiconductor chips, with a lifespan of ≥ 100,000 hours, high brightness, a unique optical system, uniform color, good warning effect, and slow light attenuation.
3.100MM Led Traffic Light Module Low power consumption, wide viewing angle, extremely high brightness, long viewing distance, and long working time.
4.100MM Led Traffic Light Module Robust and durable. Stable and reliable, with a high protection level. Resistant to impact, aging, and corrosion.
5.100MM Led Traffic Light Module The appearance looks very exquisite and the design is novel.
6.100MM Led Traffic Light Module Waterproof. Easy to install.
The 100MM LED Traffic Light Module is a key component of 100MM traffic lights and typically comes in three colors: red, yellow, and green. The 100MM LED Traffic Light Module can also be used in the arrow lights of vehicle-mounted directional signs, as well as in car wash equipment, among other applications.
Parameter
| Product Model | WDM-C100-R/Y/G |
|---|---|
| Product Name | 100-Type Monochromatic Lamp Tube |
| Product Dimensions | 135*135*70MM |
| Number of Light Chips | 40 |
| Light Chip Type | Taiwan Crystal Chip Light Chips |
| Yellow Wavelength | 590-595NM |
| Red Wavelength | 620-625NM |
| Green Wavelength | 500-505NM (Blue-Green) / 520-525NM (Turquoise Green) |
| Service Life | 100,000 Hours |
| Shell Material | PC |
| Operating Temperature | -40℃ – 60℃ |
| Protection Grade | IP53 |
| Operating Voltage | DC12V/DC24V |
| Visible Distance | ≥ 400M |
