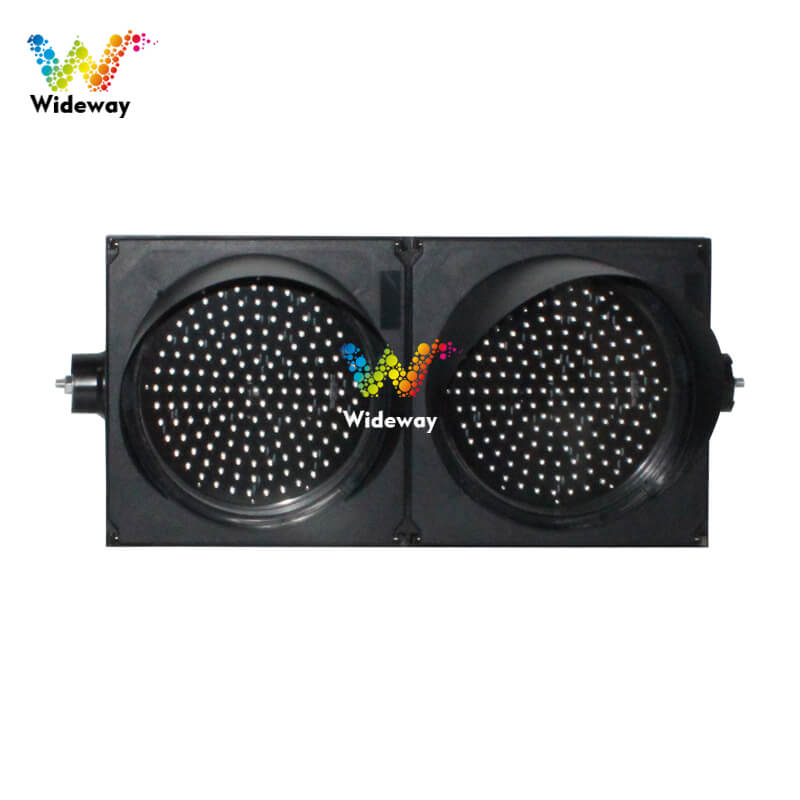

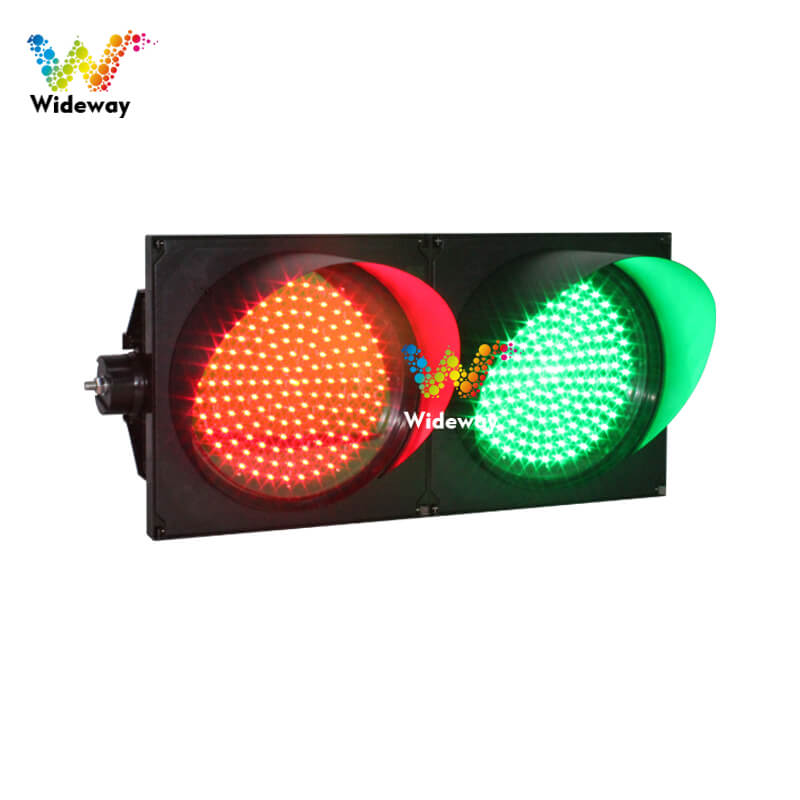

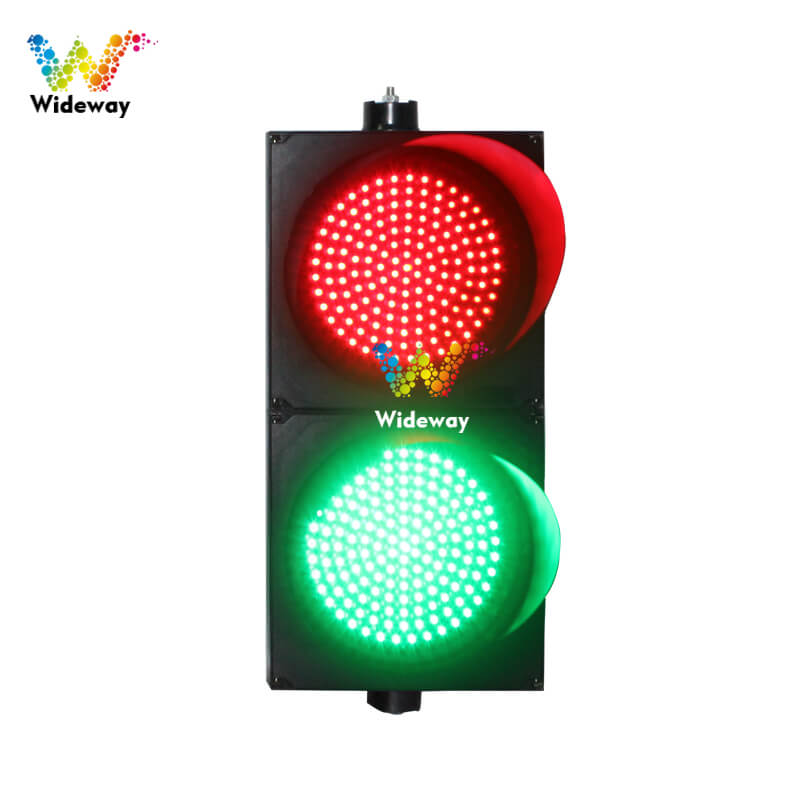

300mm Traffic Light Red and Green Lights
300MM Traffic Light Red And Green Lights a red unit and a green unit. It is widely used at entrances and exits of residential communities, parking lots, industrial plants, airports, and corporate and government facilities to guide the flow of pedestrians and vehicles, effectively managing traffic in a safe and orderly manner. Featuring high-brightness LEDs, these lights offer striking, vivid colors and are highly visible from a distance, ensuring excellent visibility both day and night. By switching between different colors, this road infrastructure conveys instructions such as “proceed,” “stop,” and “caution” to road users. Its primary functions include scientifically allocating right-of-way, regulating the flow of vehicles and pedestrians, improving traffic efficiency, and reducing traffic accidents at intersections.
Share This Products :
300MM traffic light two aspect

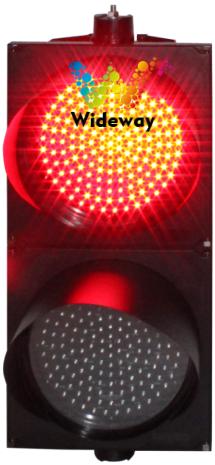

Red light warning – High penetration
High-brightness LED chip with strong light penetration. Suitable for high-warning scenarios such as no-entry indication and equipment fault alarm.
Delivering excellent long-distance visibility.

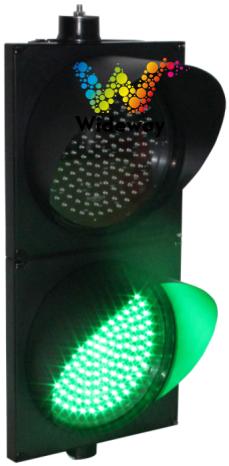

Green light – More friendly
Soft and clear light, specially designed for passage permission and normal-operation status of equipment.
Vision-friendly with high recognizability,it guides safe passage.
300MM traffic light two aspect function

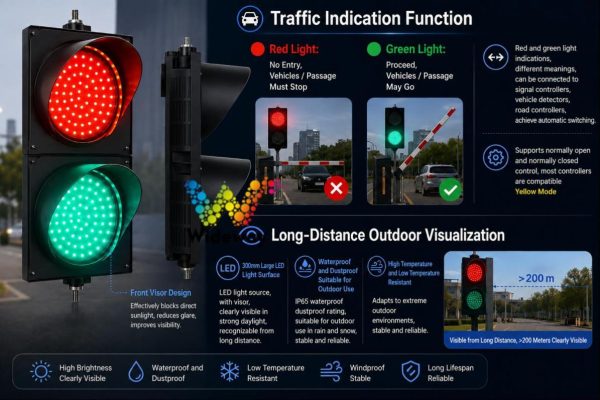

Traffic Signal Function
Red light ON: No entry. Vehicles shall stop entering the lane.
Green light ON: Passage permitted. Vehicles are allowed to enter the lane.
Red and green lights are mutually-exclusive and will not light up simultaneously. Automatic switching can be realized by connecting to an external signal controller, ground-sensor detector or barrier-gate controller.
Steady-on and dry-contact control are supported.
Long-distance outdoor visual indication

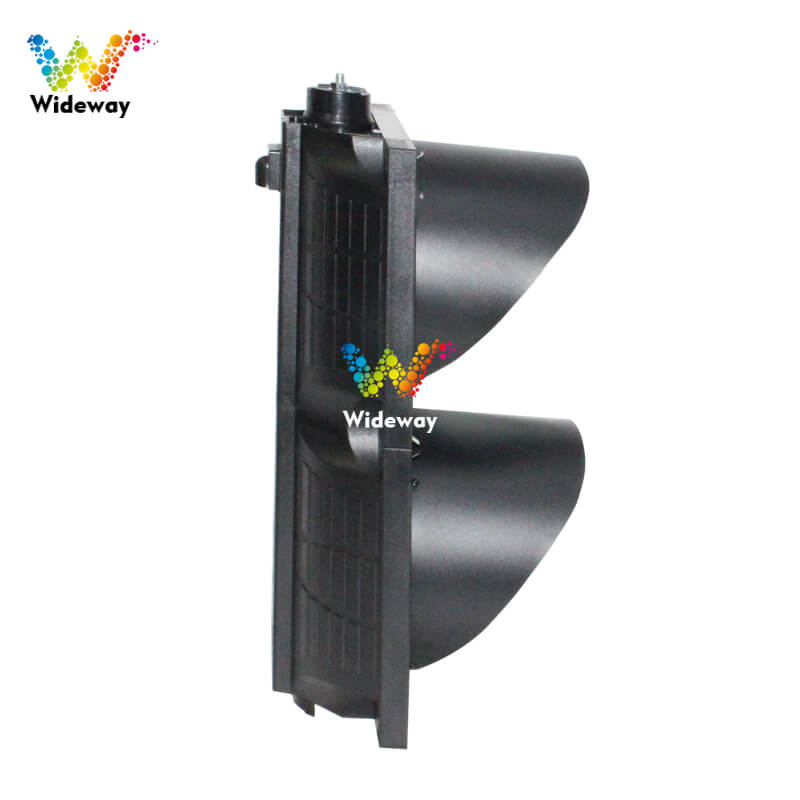

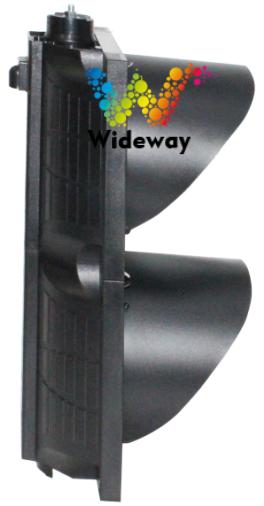

300 mm large-size light-emitting surface, equipped with LED light source and sunshade hood. The signal is clearly visible under strong daylight, enabling long-distance recognition of passage status. The waterproof and dust-proof housing adapts to outdoor exposure under sun and rain.
All-weather stable illumination
Operates on a wide voltage range of AC 85–265 V; suitable for extreme temperature environments ranging from –40°C to 80°C; features IP53 dust-and splash-proof rating; enables long-term, stable operation both indoors and outdoors, even in harsh weather conditions.
Flexible installation and adaptation

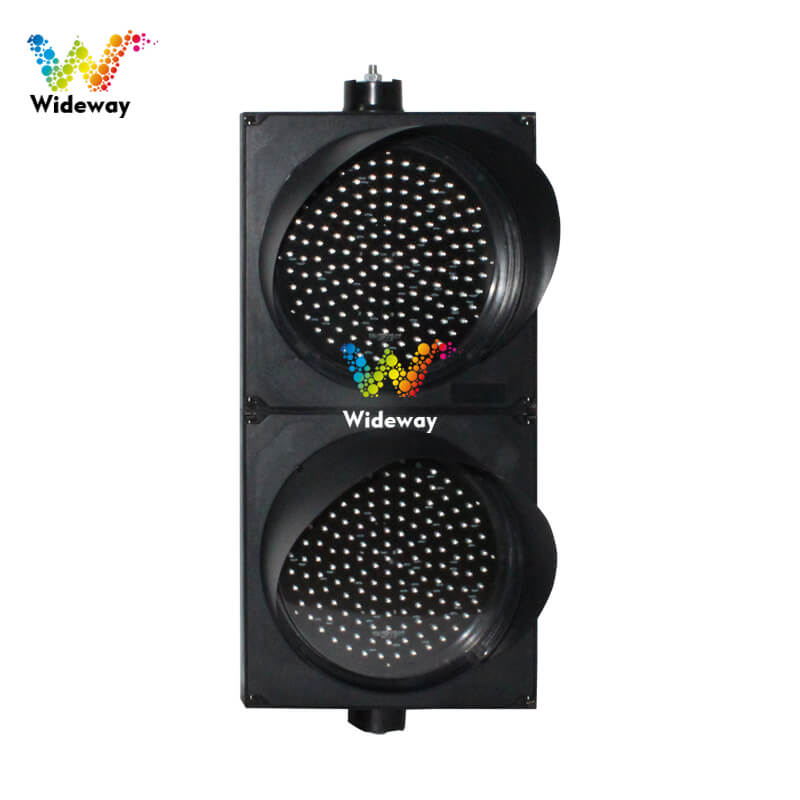

Supports both horizontal and vertical installation methods; when paired with an L-shaped bracket, 300MM traffic light two aspect can be quickly secured to structural members, making 300MM traffic light two aspect suitable for a variety of installation scenarios.
Simple power-on control
Simply connect the neutral and live wires to turn the device on; 300MM traffic light two aspect supports external switches or controllers for on/off control and can be seamlessly integrated with any complete signaling system – making operation simple and convenient.
Equipment Interconnection Signal Output
Can be interfaced with barrier gate controllers, weighbridge systems, PLCs, ground induction sensors, or simple signal controllers to implement an automatic logic: Vehicle arrives → Green light for passage; Lane occupied/Barrier gate closed → Red light for prohibition of passage.
Solves core pain points for clients

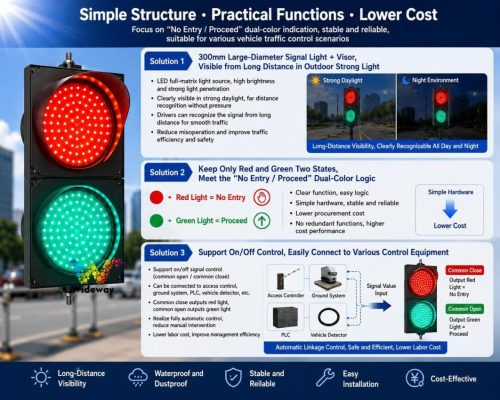

• Solution: 300 mm large-diameter light panel + sunshade; full LED illumination across the entire panel ensures a long visibility range in strong outdoor light conditions, enabling drivers to clearly identify red lights (indicating stop) and green lights (indicating proceed) from a distance, thereby reducing misoperation.
• Solution: Only retain the red and green states to implement the “Prohibited/Allow” binary logic; this simplifies the hardware design, reduces procurement costs, and eliminates unnecessary features.
• Solution: Supports discrete signal control; can be directly integrated with gate systems, weighbridge systems, PLCs, and vehicle detectors. The gate closure output activates a red light, while the gate opening output activates a green light, enabling fully automated operation and reducing the need for manual vehicle control, thereby lowering labor costs.

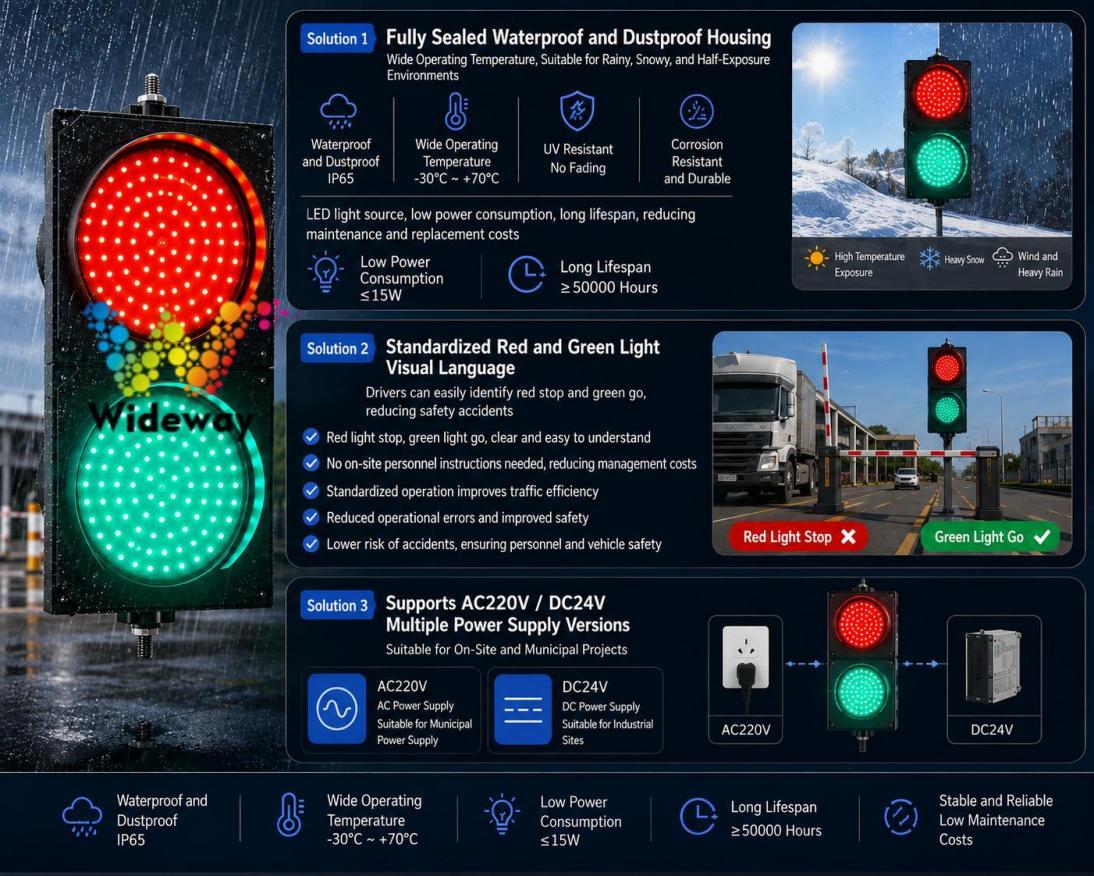

• Solution: Fully enclosed waterproof and dustproof housing with wide operating temperature range, suitable for outdoor and semi-outdoor applications; low power consumption and long service life of the LED light source reduce subsequent maintenance and replacement costs.
• Solution: By employing a standardized traffic light visual language, drivers can instinctively recognize red lights (stop) and green lights (go), eliminating the need for on-site personnel to give verbal instructions; this standardizes vehicle traffic flow and reduces the incidence of safety accidents.
• Solution: Supports multiple power supply options (AC220V/DC24V), compatible with both industrial control environments and mains power supply environments.
300MM traffic light two aspect Wiring Instructions
Red line
The Red Light Line provides power input to the red LED module, ensuring proper illumination of the red light.
Green line
Green light line – independently controls a green LED module, enabling individual switching of the green light source.
Black line
The neutral conductor, which serves as the common terminal for the circuit loop, must be reliably connected to the power supply neutral conductor.
Wide-range voltage
Supports a wide input voltage range of AC 85–265 V, compatible with power grid voltage standards worldwide.
300MM traffic light two aspect Product Installation (Vertical Installation Example)
Nut components
The lamp fixture is equipped with screws at both ends; first, remove the screw and its nut.
Fixed L-shaped bracket
Align the flat ends of the two L-shaped brackets with the luminaire mounting holes, then insert the screws into the slots. Tighten the nuts.
Whole-unit component installation
Drill holes in the signal light pole; insert the matching screw through the pole; secure the assembled L-shaped bracket to the pole; tighten the lock nut to complete installation. Tighten the nut.
300MM traffic light two aspectUsage Precautions
This product features a PC plastic casing; avoid applying excessive pressure to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
After-Sales Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; customized products are excluded.
• Return Method: Customer Return
• Scope of Exemption: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The return shipping cost shall be borne solely by the shipper.
| outline dimension | 700*350*135MM |
|---|---|
| LED pixel configuration | 156 red LED beads and 156 green LED beads |
| LED beads category | Taiwan Semiconductor – LED beads |
| Red wavelength | 620-625NM |
| Green wavelength | 500–505 nm (blue-green); 520–525 nm (emerald green) |
| life length | 100000H |
| Shell material | PC plastic casing |
| working temperature | -40°C to 80°C – suitable for outdoor environments with extreme temperatures |
| levels of protection | IP53 – dust and splash protection |
| working voltage | AC85–265V – Wide voltage range AC power supply |
| visual range | ≥1-800M |
| way to install | Supports horizontal or vertical installation |
| Quality Assurance | 3 years |
| fittings of a machine | quantity | Note: |
| lamps and lanterns | 1 unit | Available in red, yellow, or green – to meet various warning requirements across different scenarios. |
| L-shaped bracket | 2 | High-strength cold-rolled steel sheet – used to securely fasten the luminaire body. |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation steps, and a safety and maintenance guide. |
