Pedestrian Audio Warning Post

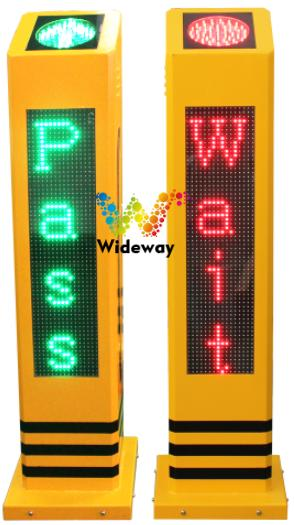

The Pedestrian Voice Guidance Column is an intelligent traffic safety warning device designed for use with smart zebra crossings. Pedestrian Audio Warning Post is deployed in pairs at both ends of a zebra crossing and is synchronized with the pedestrian traffic light signals at the intersection. This model features an English-language display: on the green-light side, the vertical display shows “Pass,” while on the red-light side, Pedestrian Audio Warning Post shows “Wait.” The device integrates four core functions – a top circular signal light, a vertical LED dot-matrix display screen, voice announcements, and an infrared human motion sensor – providing dual visual and auditory guidance to help pedestrians cross the road safely. Pedestrian Audio Warning Post is ideal for use in international tourist attractions, border crossings, and overseas road projects. (As shown in the figure below)
Pedestrian Voice Prompt Column Product Features
Green light status:The round green light on top turns on, and the vertical LED screen shows ‘Pass’ in green vertically.
Red light, no entry:The top circular red light is illuminated; the vertical LED display shows “Wait” in red.
Signal light synchronized display：The device Pedestrian Audio Warning Post is synchronized with the pedestrian traffic signal at the intersection, ensuring real-time signal synchronization. When the green light is on, the top section lights up green, and the vertical screen displays “Pass”; when the red light is on, the top section lights up red, and the vertical screen displays “Wait”. The screen features an automatic light sensitivity adjustment function:remains clearly visible under bright daylight conditions and reduces brightness at night to prevent glare.
All-weather outdoor protection operation：
The entire device features comprehensive sealing for water and dust protection, meeting IP65 protection standards; Pedestrian Audio Warning Post comes with a yellow impact-resistant metal casing adorned with black warning stripes on the bottom, providing resistance to scratches and impacts – making it ideal for long-term use at intersections exposed to sunlight and rain; powered by 85–265 V mains electricity, Pedestrian Audio Warning Post is directly compatible with existing traffic signal system upgrades.
Scalable customization capabilities：
Text content and voice audio can be customized; external flashlights or pedestrian capture devices can be connected; supports remote debugging and automatic fault self-diagnosis reporting.
The pedestrian voice prompt pole addresses a key pain point for customers.
Traditional traffic lights offer limited visual cues; smartphone users may not be able to see the traffic signal lights.
Vertical low-profile LED display screen (Pass/Wait) combined with a top-mounted signal light – providing dual visual cues positioned at eye level – offers an intuitive, close-range display of traffic status, specifically alerting pedestrians who are looking down.
Insufficient crosswalk guidance for persons with visual impairments and foreign nationals.
English-language display interface + intelligent English voice announcement system; provides accessible crosswalk guidance, tailored to the needs of foreign trade, port operations, and tourist intersections involving international traffic.
Insufficient intersection warning measures; lack of proactive mechanisms to deter drivers from running red lights.
(Optimal configuration) – Incorporates infrared sensing technology; when a pedestrian enters the stop zone under a red light, the system automatically issues an audio alert to deter the violation, providing proactive warning to reduce both accident risks and management workload.
Urban areas are establishing smart transportation demonstration intersections, but there is a lack of visual implementation equipment.
Directly interfaces with existing traffic signal controllers, powered by an AC 85–265 V supply; the retrofitting process is simple and does not require extensive roadwork; its distinctive and aesthetically pleasing design makes Pedestrian Audio Warning Post an ideal benchmark device for smart intersection systems.

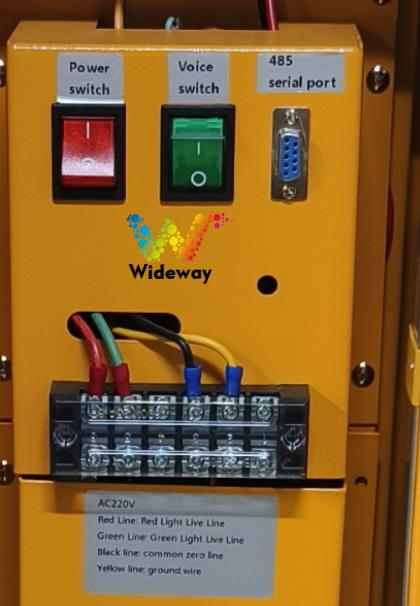

Pedestrian Voice Prompt Column Wiring Instructions
1.Power switch (red)
2.Voice Switch (Green Switch)
3.gorge line, serial port
4.Power cord (AC 85–265 V)
1.Red line / Red light line
2Green line – Green light line
3.Black line: Neutral wire
4.Yellow ground wire

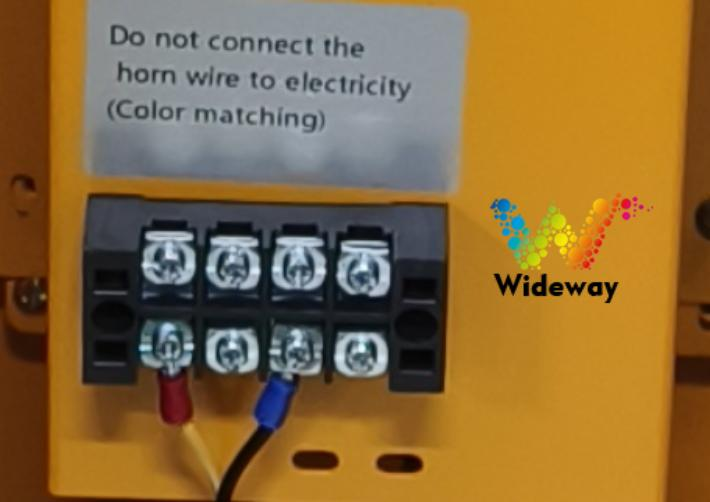

The horn cable must not be powered on (ensure color alignment between the main and auxiliary panels).
Pedestrian Audio Warning Post Product Installation
Product Installation：
The installation location is typically the safety island at the pedestrian crossing. During installation, ensure that the display screen faces the zebra crossing; if the sensing grating is located on the same-side safety island, position the device so that Pedestrian Audio Warning Post faces the pedestrian crossing directly.

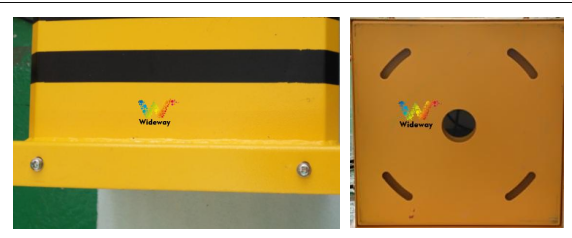

Easy installation: simply cut a slot and connect the power cable to the nearby pedestrian light.Loosen the small screw on the base，The wire passes through the outlet hole on the base, as shown in the figure.Install the base on the safety platform and secure it with four screws.Once the base is securely in place, place the column on top and tighten it with the small screw.
Upon leaving the factory, a wiring label will be attached to the terminal block inside the column; simply connect the wires according to the label. Note: disconnect the power supply before wiring.

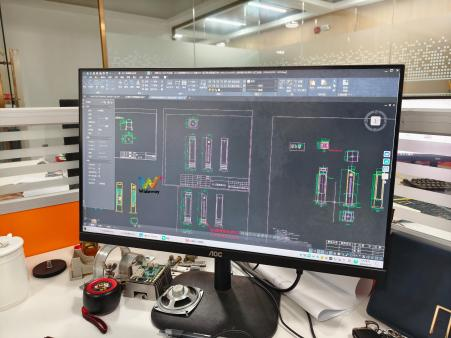

Pedestrian Audio Warning Post Production Details

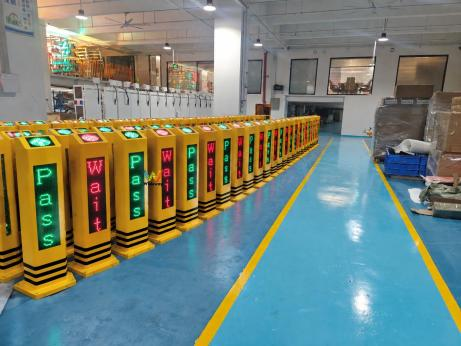

Pedestrian Audio Warning Post Batch Aging
Pedestrian Audio Warning Post Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
Pedestrian Audio Warning Post Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Name | Red Tube LED Chip Model: Jingyuan Chip Wavelength: 625±2 nm Luminous Flux: 4500 mcd |
|---|---|
| Name | Yellow Tube LED Chip Model: Jingyuan Chip Wavelength: 595±2 nm Luminous Flux: 4500 mcd |
| Name | Green Tube LED Chip Model: Jingyuan Chip Wavelength: 525±2 nm Luminous Flux: 10,000 mcd |
| Dimensions | 1200 × 320 × 320 mm |
| Operating Temperature | -40°C to +65°C |
| Housing Material | Electrostatic spray-coated sheet metal enclosure |
| Number of LEDs | 1 × 2 P10 dual-color SMD modules, 52 red LEDs × 2, 34 green LEDs × 2 |
| Voltage | AC 85–265 V |
| Weight | 22.4 kg × 2 |
| Protection Rating | IP65 |
| Beam Angle | 30° |
| Operating Temperature | -40°C to +65°C |
| Relative Humidity | 10%–95% |
| Service Life | ≥100,000 hours |
| Visibility Distance | 20–300 m |
| Uniformity | Uniform brightness |
| Applications | Intersections, school crossings, residential communities, etc. |
| Accessory | Quantity | Notes |
| Lighting fixtures | 1 unit | Red/green dual colors, meeting warning needs for different scenarios |
| Certificate of Qualification | 1 serving | As a certificate for material approval |
| Product Manual | 1 serving | Includes product technical specifications, illustrated installation steps, and safety maintenance guide |
