1000×1000MM Ground Traffic Light
The front of the 1-meter pavement traffic light features a white polycarbonate panel, with a stainless steel housing. The interior uses transparent adhesive, and the bottom is completely filled with adhesive, ensuring that rainwater cannot penetrate the product—it is absolutely sealed and waterproof. The internal soft rubber is elastic, highly adhesive, and resistant to shock and pressure; it provides a certain degree of cushioning when vehicles drive over it. The LED lights on the panel use F5 round-head large-chip LEDs designed for direct insertion into traffic signal lights, offering excellent heat dissipation;
The 1-meter ground-mounted traffic light is a type of signal used at pedestrian crossings. It displays red and green indicators and is installed at ground level, primarily on crosswalks or on traffic islands—specifically in front of the first crosswalk. This allows pedestrians who are looking down while walking to see the traffic status at all times, thereby reducing the occurrence of traffic accidents!
Share This Products :
1000×100 mm pedestrian walkway floor tiles – Traffic Light Product Functionality

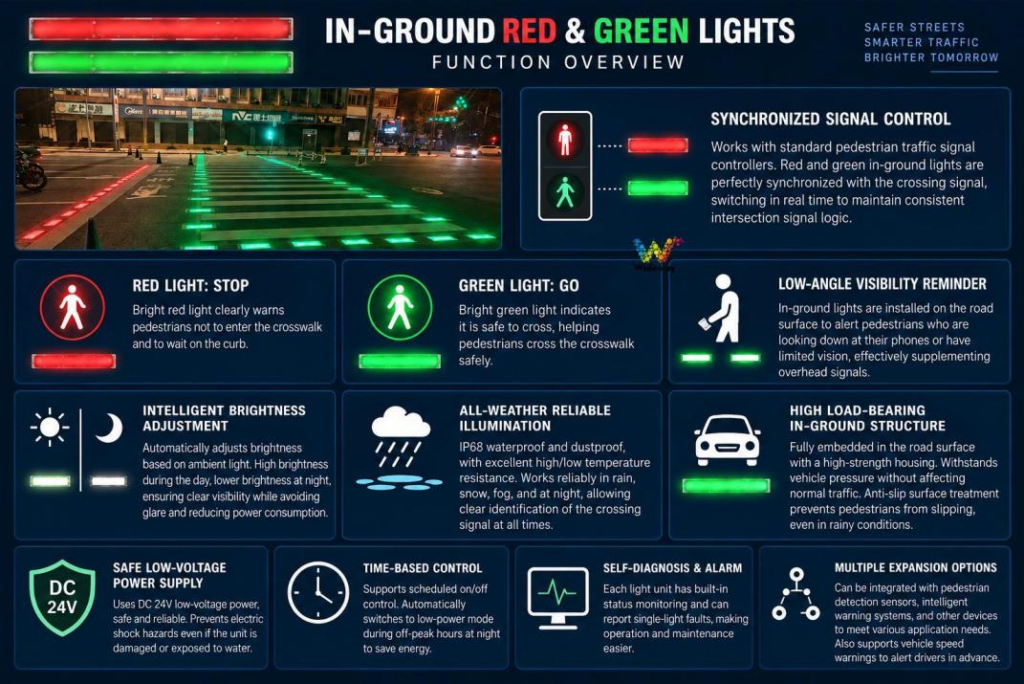

All-weather stable illumination:
Equipped with waterproof and dustproof protection, as well as resistance to extreme temperatures, 1000×100MM Floor Tile Light ensures clear visibility of light signals even during heavy rain, water accumulation, dense fog, or at night.
High-pressure underground structure:
The entire surface is embedded into the pavement; the shell is compression-resistant, capable of withstanding vehicle traffic without disrupting normal motor vehicle flow; the surface features a non-slip treatment to prevent pedestrians from slipping or falling during rainy weather.
Safe low-voltage power supply:
Powered by a DC24V low-voltage supply, 1000×100MM Floor Tile Light eliminates the risk of electric shock even in outdoor environments with damaged surfaces or accumulated water.
Fault Self-Inspection Reporting:
The lighting fixture is equipped with built-in status feedback; the control host can detect individual lamp faults, facilitating maintenance and repair operations.
Multi-mode extension:
It can be integrated with pedestrian detection devices to activate lighting on demand; 1000×100MM Floor Tile Light can also be paired with a yield-warning system to simultaneously alert passing motor vehicles to slow down and yield to pedestrians.

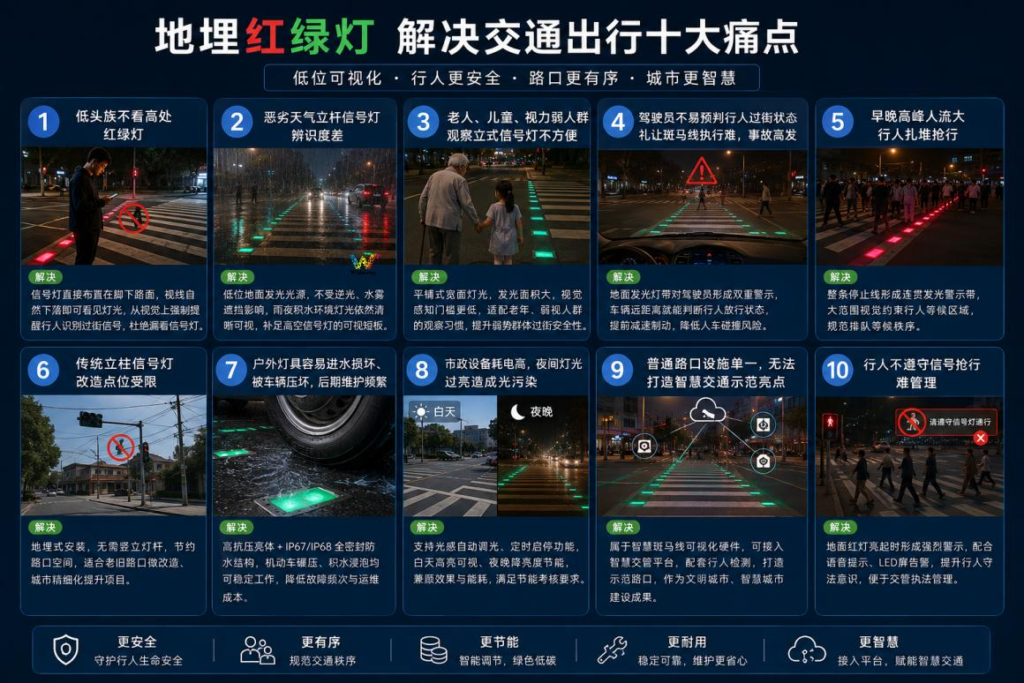

1000×100 mm pedestrian pavement tiles with traffic lights – effectively addressing the core pain points for customers.
For smartphone users who constantly look down at their phones, they may overlook the traffic lights located at elevated poles.
The traffic light is directly installed on the ground level, allowing pedestrians to see 1000×100MM Floor Tile Light naturally as their line of sight falls downward – without having to look up – thereby providing a clear visual reminder to recognize the crossing signal and preventing the possibility of overlooking it.
In adverse weather conditions (heavy rain, dense fog, backlighting, or nighttime), the visibility of pole-mounted signal lights is reduced.
The low-profile ground-mounted light source is unaffected by backlighting or water mist; even in rainy nights with water accumulation, the illumination remains clear and visible, effectively compensating for the visibility limitations of high-altitude signal lights.
For elderly individuals, children, or people with limited vision, observing vertical traffic signals can be inconvenient.
Flat-plate wide-area lighting provides a large illuminated surface area and lowers the visual perception threshold, aligning with the viewing habits of older adults and individuals with visual impairment, thereby enhancing the safety of these groups when crossing roads.
Drivers often struggle to anticipate pedestrians' crossing intentions, making it difficult to yield at zebra crossings, which leads to a high incidence of accidents at intersections.
The ground-mounted luminous light strip provides drivers with dual warning signals; 1000×100MM Floor Tile Light enables the vehicle to detect the pedestrian’s clearance status from a distance, allowing for proactive deceleration and braking, thereby reducing the risk of pedestrian-vehicle collisions.
Address the high pedestrian traffic during morning and evening peak hours, when pedestrians crowd together and rush through the streets, leading to chaotic traffic flow.
The entire stop line forms a continuous illuminated warning strip, providing extensive visual guidance for pedestrian waiting areas and helping to standardize the queuing order.
Installation Instructions for 1000×100 mm Pedestrian Sidewalk Floor Tiles and Traffic Light Wirin

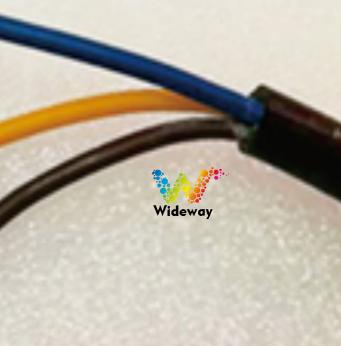

DC12V：
1.Blue line: Public cathode
2.Yellow line: Green negative pole
3.Red line: Red light negative terminal
(Note: This is the wiring diagram for a single floor tile traffic light; for a traffic light system covering an entire intersection, simply connect the junctions between the two floor tile traffic lights; once all connections are made, connect the control box.)
1000×100MM Floor Tile Light Product Installation
6.Clear debris:
Clear away all the construction waste that has just been cut out; then level the surface to facilitate the installation of the steel troughs and the illuminated crosswalk tiles. Finally, remove all generated waste.
Floor tile traffic light installation:

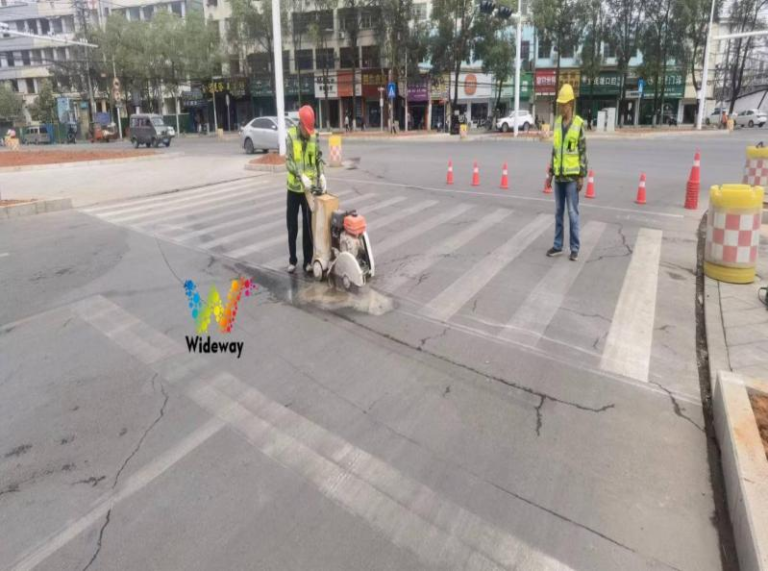

1. Close the road and enclose the area with a fence – ensure the fence is securely installed and that construction warning signs are properly displayed to safeguard the safety of all personnel working at the site.
2. Confirm the installation position, orientation, and distance of the floor tile traffic lights. 3. Mark the slotting dimensions and cut out a straight slot (as shown in the figure below).
3. Slotting dimensions: Suitable for mounting a lower through-base (the slotting dimensions are larger than those of the standard through-base to facilitate installation and surface alignment).

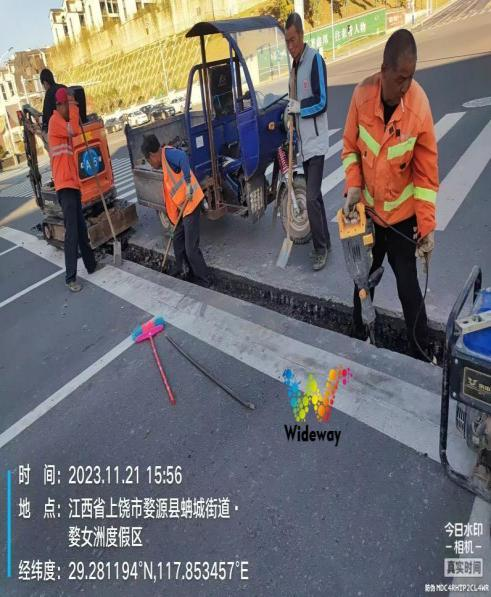

4.Cutting routing grooves: The routing cutting process involves identifying the optimal routing position from the traffic light location to the steel trough position, then cutting a routing groove for the PPR hot-melt round pipe; the depth from the top of the PPR round pipe to the ground should be approximately 10 cm.
The incision width is 5 cm (this is determined based on the actual conditions at the intersection and
the number of power cables in each direction).
Primary requirement: The main low-voltage power supply line (DC24V) from the controller's output port to the floor tiles must have a seamless connection; no interfaces are permitted.
Traditional installation: 15–20 days
All-in-one installation: 5 days
Integrated: fewer processes, pre-finished at the factory
Traditional: many processes, complicated on-site work
no extra parts to buy

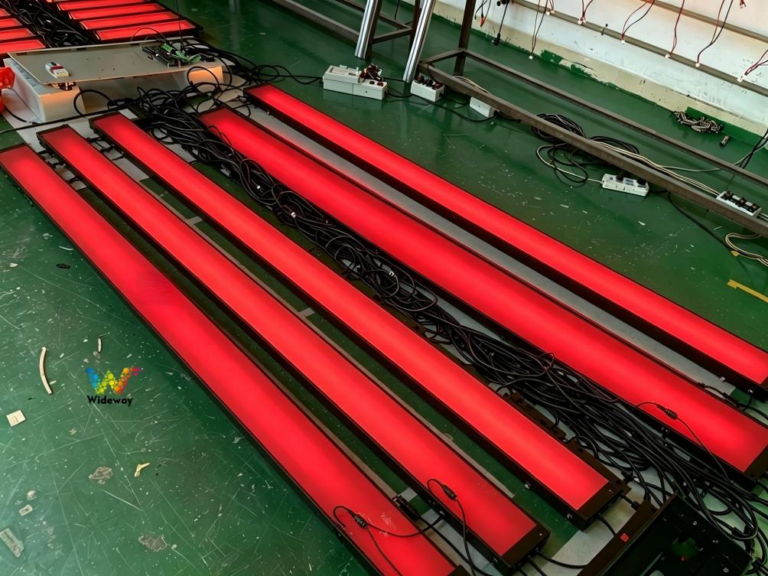

1000×100MM Floor Tile Light Batch Aging
Instructions for Using 1000×100MM Floor Tile Light
The outer casing of this illuminated floor tile is made of polymer composite material; the base is made of sheet metal with an electrostatic spray coating. Do not subject it to heavy pressure to prevent damage to the casing. It must be powered on and used under the guidance of a professional; do not disassemble or reassemble the fixture without authorization.
| Red Tube | Epistar chip 625±2nm 4500mcd 140 pieces |
|---|---|
| Green Tube | Epistar chip 525±2nm 10000mcd 140 pieces |
| LED Configuration | 5mm diameter round tube |
| Product Dimensions | 1000*100*60mm |
| Housing Material | Polymer composite material, stainless steel housing |
| Rated Power | R: 7.68W, G: 9.6W |
| Operating Voltage | DC 24V |
| Operating Current | 160mA |
| Average Luminous Intensity | ≥8000 cd/m² |
| Visibility Range | 20–300 m |
| Operating Temperature | -40°C to +65°C |
| Relative Humidity | 10%–95% |
| Insulation Rating | >1500 V |
| Leakage Current | ≤3 mA |
| Mean Time Between Failures (MTBF) | ≥10,000 hours |
| Service Life | ≥100,000 hours |
| Uniformity | Uniform brightness |
| Protection Rating | IP65 |
| Installation Method | Underground |
| fittings of a machine | quantity | Note: |
| ground tile | 1 unit | Red/Green dual-color display – meets various warning requirements across different scenarios. |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation steps, and a safety and maintenance guide. |
