1200*500MM Smart-Crosswalk-Controller
The 1200×500 mm Smart Crosswalk Controller is one of the key components of the Smart Crosswalk product series. It synchronizes the pedestrian traffic signals at an intersection with the smart crosswalk pavers or illuminated road studs to display red and green lights. It also converts the operating voltage of the pedestrian traffic signals from AC 220V to low-voltage DC 24V, thereby more effectively
Share This Products :
Smart Zebra Crossing Control Box

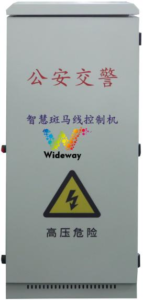

The Smart Zebra Crosswalk Control Box is the core main control device for the Smart Luminescent Zebra Crosswalk System; Smart Zebra Crossing Control Box is classified as an intelligent intersection management and control device for public security and traffic police authorities. Installed in an outdoor cabinet beside the road, Smart Zebra Crossing Control Box centrally manages luminescent floor tiles, road studs, voice prompts, and pedestrian detection modules, enabling intelligent coordination between zebra crosswalk lighting and pedestrian traffic signals to enhance crosswalk safety and reduce the incidence of conflicts between pedestrians and vehicles. This cabinet features an outdoor rainproof sheet metal enclosure equipped with high-voltage safety protection and dust-proof/heat dissipation design, making Smart Zebra Crossing Control Box suitable for all-weather outdoor operation at urban intersections. (As shown in the figure below)
Smart Zebra Crossing Control Box – Product Features

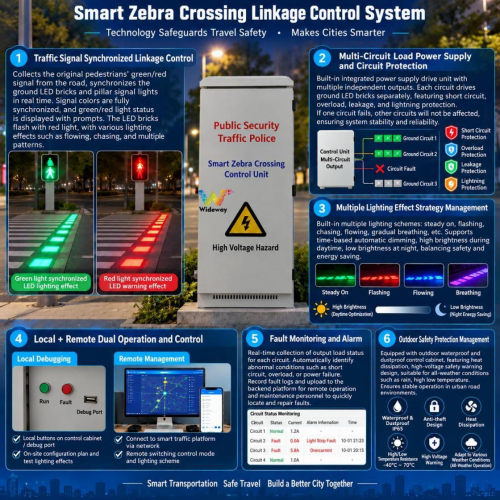

Signal Light Synchronized Linkage Control：Capture the existing pedestrian traffic light signals at the intersection; ensure that the timing and color of the ground-mounted illuminated tiles and pillar-mounted pedestrian lights are fully synchronized; display a green light indication for allowing traffic flow and a red light for issuing a red warning; supports various lighting effects including flashing, flowing, and gradient lighting.
Multiple load power supply and circuit protection：An internally integrated power drive unit featuring multiple independent outputs to separately drive multiple sets of illuminated floor tiles; equipped with short-circuit, overload, leakage current, and lightning protection; a failure in a single circuit block will not cause the entire zebra crossing to fail, thereby enhancing equipment stability.
Local + Remote Dual Operations and Maintenance Management：
- Local debugging: Cabinet local buttons / Debugging port; on-site configuration scheme; test lighting
- Remote Control and Management: Connects to the Traffic Police Smart Transportation Platform over the network to remotely switch control modes or deploy lighting schemes.
Fault Monitoring and Alerting：Real-time collection of the status of each output load; automatic detection of lamp open-circuit, short-circuit, or power supply anomalies; recording of fault logs and uploading them to the backend system, enabling maintenance personnel to quickly locate and troubleshoot issues.
Outdoor Safety Protection Management：The entire unit is housed in an outdoor waterproof and anti-theft cabinet featuring heat dissipation and ventilation systems, as well as high-voltage safety warning mechanisms, making Smart Zebra Crossing Control Box suitable for urban road applications subject to sun exposure, rain, and extreme temperatures, thereby ensuring stable operation in all weather conditions.
The Smart Zebra Crossing Control Box helps customers address their core pain points.

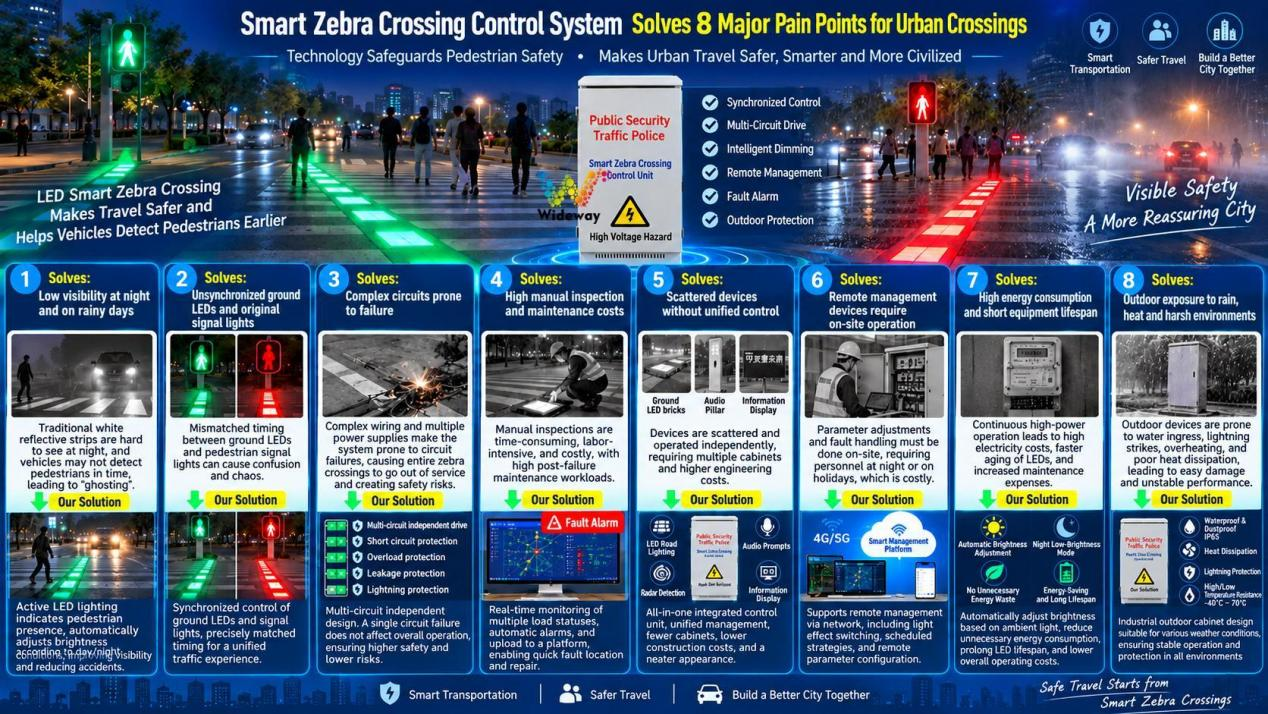

During nighttime or rainy/misty conditions, zebra crossings have low visibility, making it difficult for vehicles to detect pedestrians crossing the road.
The control unit drives the ground-mounted illuminated tiles to provide active lighting-based warning signals; Smart Zebra Crossing Control Box automatically adjusts the brightness based on ambient light conditions, offering drivers high-visibility alerts during rainy or nighttime conditions – addressing the limitations of traditional white road markings (e.g., weak reflectivity and poor visibility) and thereby reducing “ghost head-on” collision incidents.
The floor tile lighting system cannot synchronize with the existing traffic signal system, resulting in an irregular lighting sequence.
The control unit captures the phase of the pedestrian signal lights at the intersection intersection signalizer, ensuring precise synchronization between the ground-level traffic lights and pedestrian signal lights, preventing any logical conflicts in lighting operations, guaranteeing unified and standardized crossing guidance rules, and complying with traffic management requirements.
Complex troubleshooting of on-site lighting fixtures, high costs associated with manual inspections, and delayed fault detection.
The control unit features a built-in fault self-diagnosis function that collects the status of each load channel in real time; Smart Zebra Crossing Control Box also provides automatic fault alerts that can be uploaded to the traffic management platform, enabling precise identification of the faulty circuit and allowing maintenance personnel to perform targeted repairs – thereby reducing the workload associated with extensive manual inspection efforts and shortening fault resolution time.
When equipment operates at full power around the clock over an extended period, it results in high energy consumption and reduced service life.
The control unit supports an adaptive energy-saving strategy: Smart Zebra Crossing Control Box automatically reduces power consumption during periods of strong daylight, wakes up only when needed at night, and enters sleep mode when no person is present on the street; this helps lower overall power consumption, extend the service life of underground tile lights, and reduce long-term electricity costs.
Smart Zebra Crosswalk Control Box Wiring Instructions

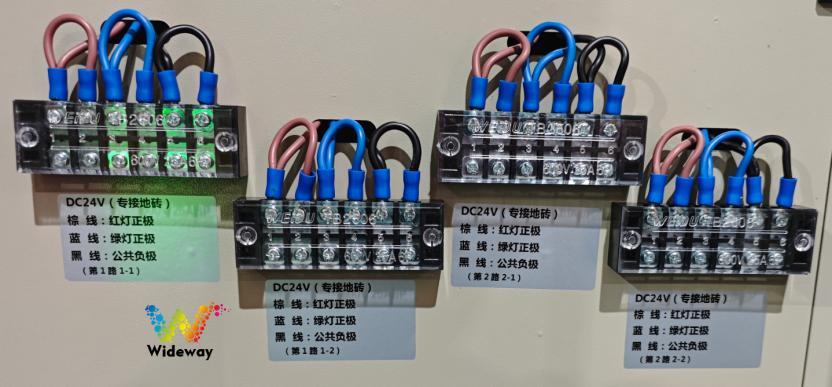

DC 24V (for specialized floor tiles)
1.Brown wire: Positive terminal of the red light bulb
2.Blue line: Positive terminal of the green light
3.Black line – Public Negative Terminal
installation instructions
Control Box Installation
1.Site selection: Determine the appropriate location for installing the control box.
2.Excavate a foundation pit：Excavate a foundation pit with dimensions greater than the external outline of the control box.
3.concrete placing ：Cast a C25 concrete base layer for the foundation pit to create a foundation platform.
4.install, erect, fix, mount, build in ：Install and secure the control box onto the base plate.
5.Power-on test：After connecting the power cord, power on the device to test whether the red and green lights on the floor tiles are functioning correctly; if everything is working properly, then the test is complete.

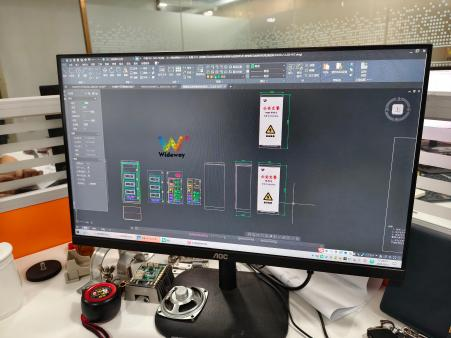

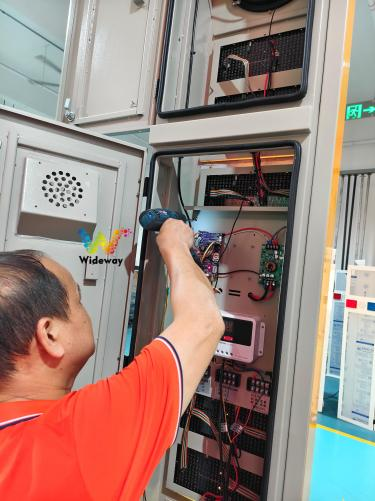

Smart Zebra Crossing Control Box Production Details

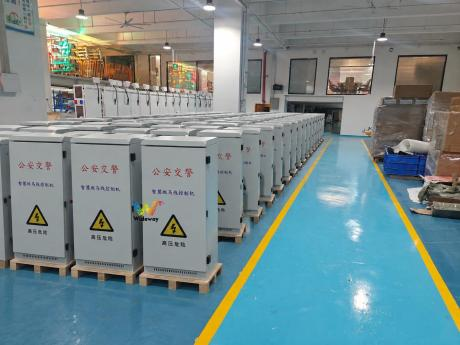

Smart Zebra Crossing Control Box Batch Aging
Smart Zebra Crossing Control Box Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
Smart Zebra Crossing Control Box Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Product Name | 1200×500 mm Smart Crosswalk Controller |
|---|---|
| Product Model | WDM-DZKZQ-1 |
| Output Power | 350 W |
| Input Voltage | AC 85–265 V, 50/60 Hz |
| Output Voltage | DC 24V |
| Output Current | 9A |
| Enclosure Material | Electrostatic-spray-coated sheet metal enclosure |
| Enclosure Dimensions | 1200 × 500 × 394 mm |
| Operating Temperature | -40°C to +80°C |
| Relative Humidity | 10% to 95% |
| Enclosure Color | Customizable |
| Detection Range | ≥300 m |
| Service Life | 100,000 hours |
| Accessory | Quantity | Notes |
| Control box | 1 unit | control floor tiles |
| Certificate of Qualification | 1 serving | As a certificate for material approval |
| Product Manual | 1 serving | Includes product technical specifications, illustrated installation steps, and safety maintenance guide |
