Features of the Tri-Light With Iron Shell 100mm Traffic Light Series:
1. The Tri-Light With Iron Shell 100mm Traffic Light Series features an integrated housing that is dustproof, waterproof, and easy to install, enhancing product quality and extending service life.
2. The Tri-Light With Iron Shell 100mm Traffic Light Series uses high-brightness, through-hole Epistar LED chips from Taiwan, producing eye-catching and vivid colors.
3. The Tri-Light With Iron Shell 100mm Traffic Light Series is mounted on light poles via an L-shaped bracket on the back, making installation easy.
4. The side-mounted latches on the Tri-Light With Iron Shell 100mm Traffic Light Series make disassembly and inspection more convenient.
5. The Tri-Light With Iron Shell 100mm Traffic Light Series has an IP53 protection rating, making it water- and dust-resistant, with a service life of 100,000 hours. The iron shell ensures robustness and durability.
6. The Tri-Light With Iron Shell 100mm Traffic Light Series supports a wide range of AC voltages (85–265 V) and DC voltages (12 V/24 V), allowing it to be connected to the mains power supply or used in conjunction with a battery and controller.

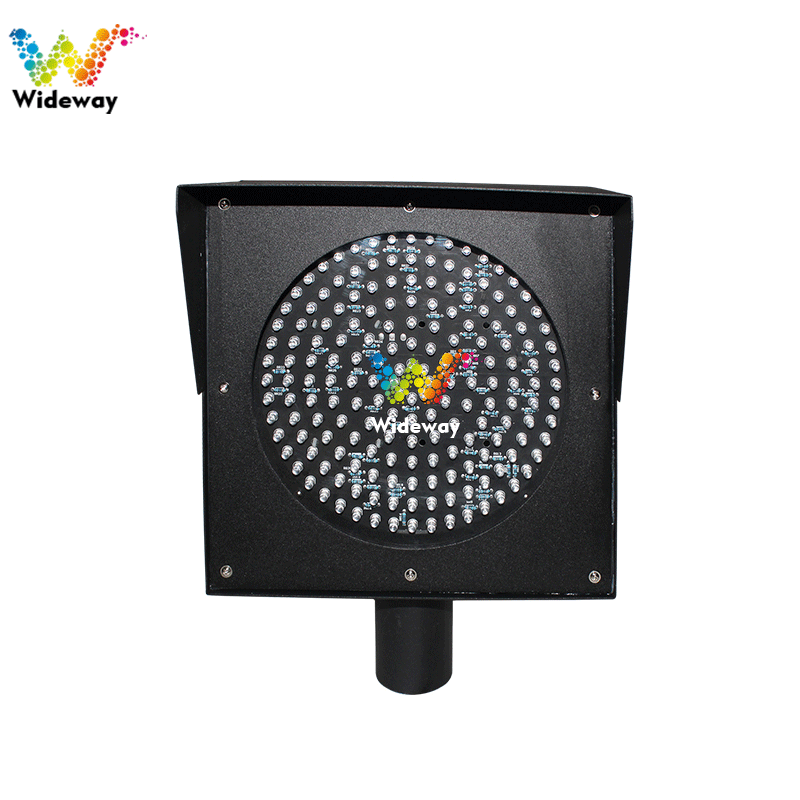

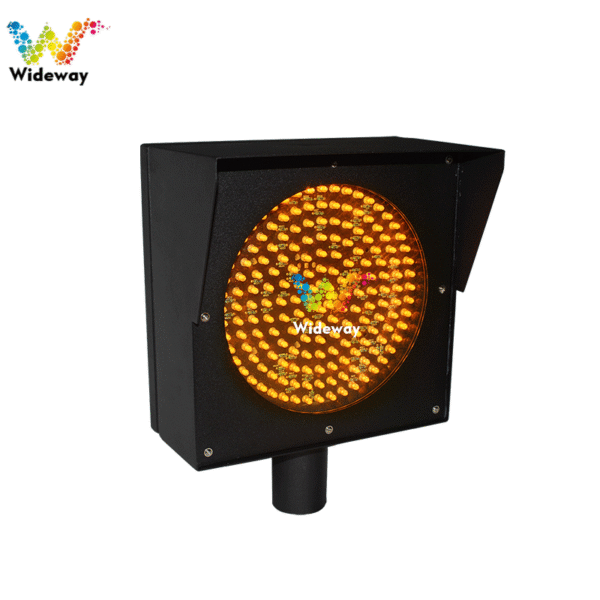

| Product Name | Model 200 Metal-Cased Fog Light |
|---|---|
| Product Model | WDM-SG200-1-Y-T |
| Number of LEDs | 180 yellow LEDs |
| LED Type | Epistar chips from Taiwan |
| Yellow Wavelength | 590–595 nm |
| Operating Voltage | 24 V DC |
| Rated Power | ≤15 W |
| Housing Material | Electrostatic spray-coated sheet metal enclosure |
| LED Beam Angle | Horizontal -30°, Vertical -30° |
| Operating Current | ≤250 mA |
| Luminance | ≥8,000 mcd/m² |
| Dimensions | 235 × 235 × 120 mm |
| Operating Temperature | -40°C to +80°C |
| Relative Humidity | 10%–95% |
| Housing Color | Black |
| Visibility Distance | ≥300 m |
| Service Life | 100,000 hours |
| Protection Rating | IP65 |
| Light Emitting Diameter | 200 mm |
| Applications | Toll booths, traffic islands, highways, etc. |
| Installation Method | Pole-mounted |
| Warranty Period | 2 years |
| Brand | Weimei |
