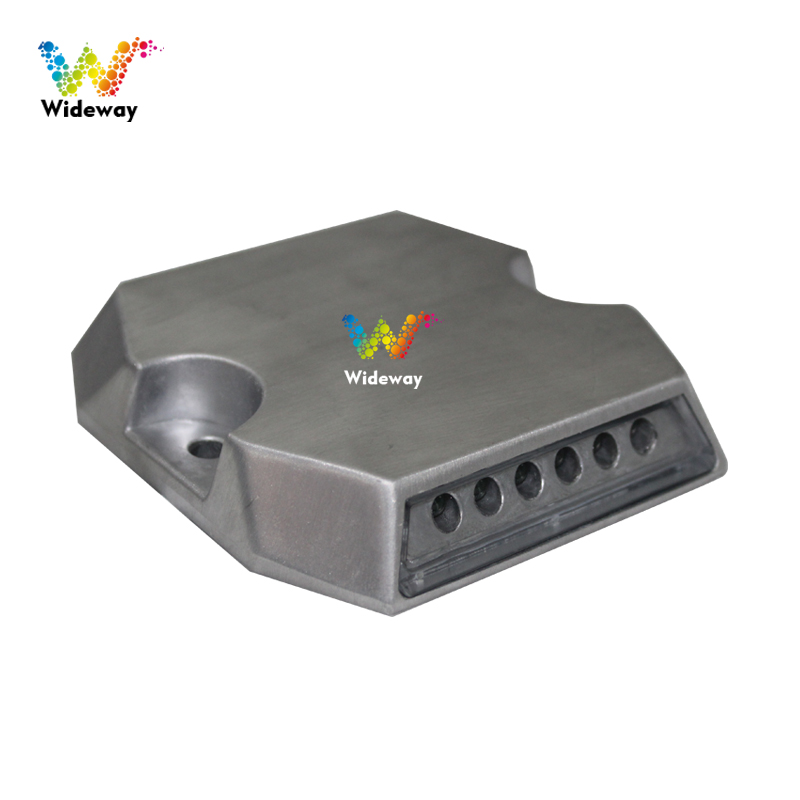

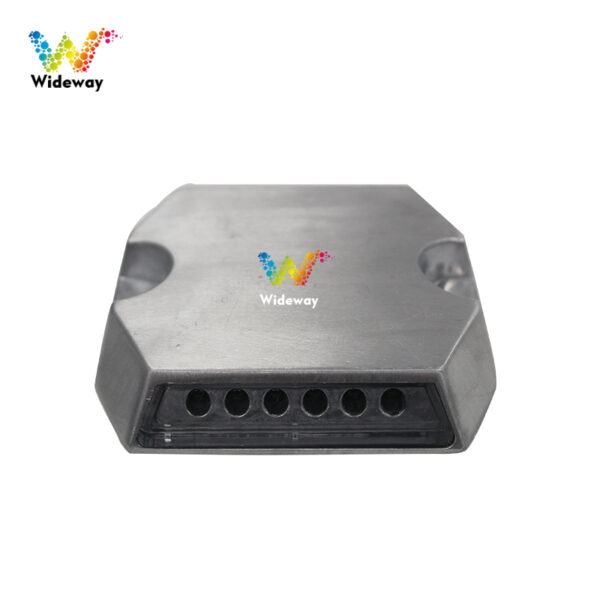

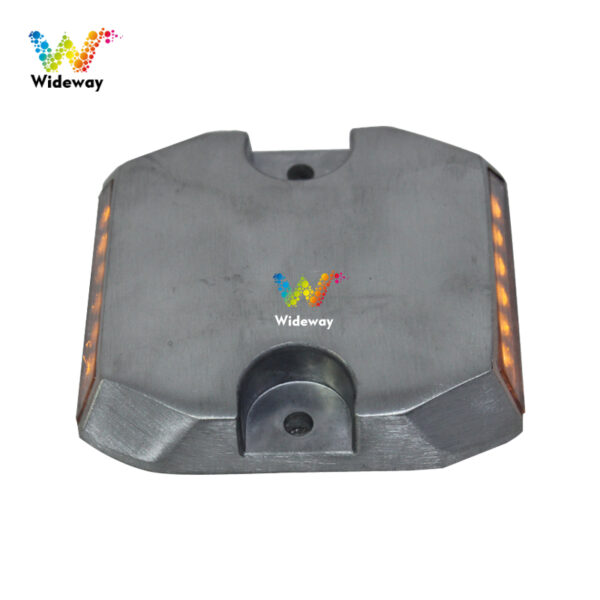

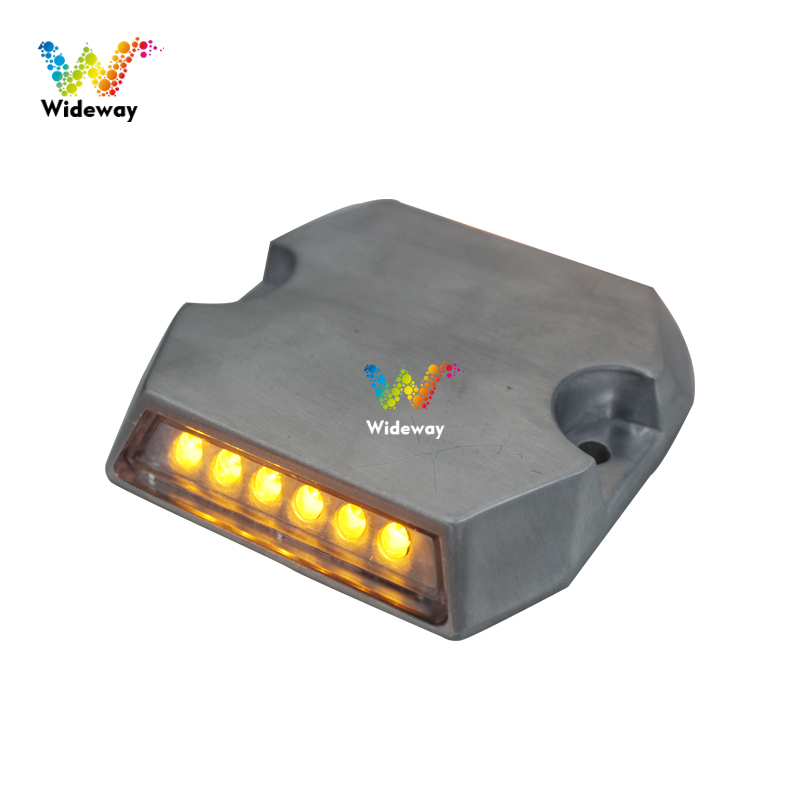

Aluminium Road Studs
A key feature of Aluminum Road Studs is that the control circuits for each stud are centralized within a single control box; a single control system can effectively manage a distance of up to 500 meters. Aluminum Road Studs are suitable for installation on winding mountain roads, roads with dense tree cover, and roads with limited sunlight. They play an irreplaceable role in applications such as tunnels and mountain roads.
Features of Aluminum Road Studs:
1. Cast Aluminum Housing: Designed with an aluminum housing, it offers high impact resistance, is sturdy and durable, and is pressure-resistant and waterproof.
2. Synchronized Control: When connected to a controller, it can simultaneously control multiple road studs and configure their operating modes.
3. Protection Rating: Meets IP68 standards; the back is sealed with potting compound to prevent water leakage or seepage into the product’s interior.
4. Wide Range of Color Options: The product is available in a variety of colors, and LED colors can be customized according to customer requirements.
5. Excellent Warning Effect: Equipped with ultra-bright Epistar chips from Taiwan, the lights feature eye-catching, vivid colors and excellent visibility, effectively drawing drivers’ attention, prompting them to slow down, and enhancing road safety.
Parameter
| Model | WDM-DD07-A-R/Y/G/B/W |
|---|---|
| Product size | 110*100*20mm |
| LED light source | Taiwan chip lamp beads |
| Working mode | Steady on |
| Number of lamp beads | 12pcs |
| Case material | cast aluminum |
| Operating temperature | -40° C~+65° C |
| Working voltage | DC24V |
| Rated power | 0.5W |
| Visual distance | 500M |
| Protection level | IP68 |
