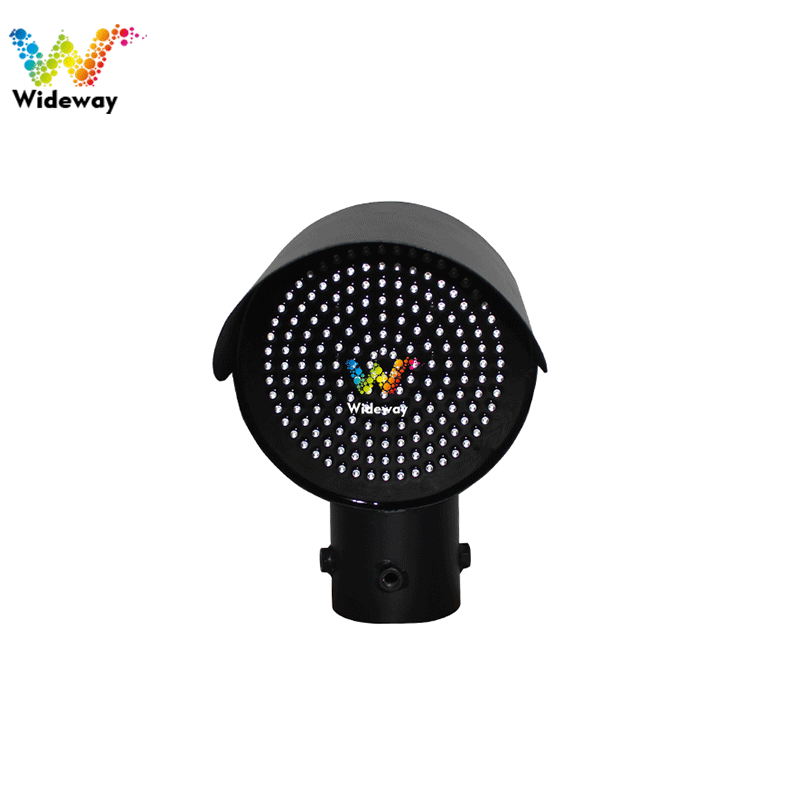

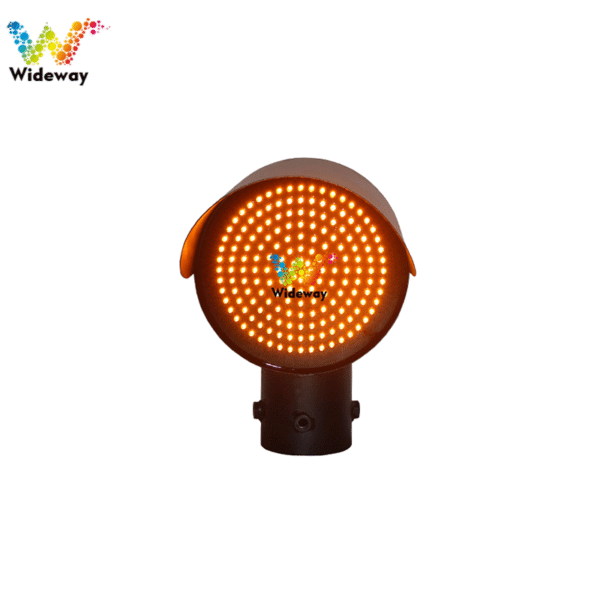

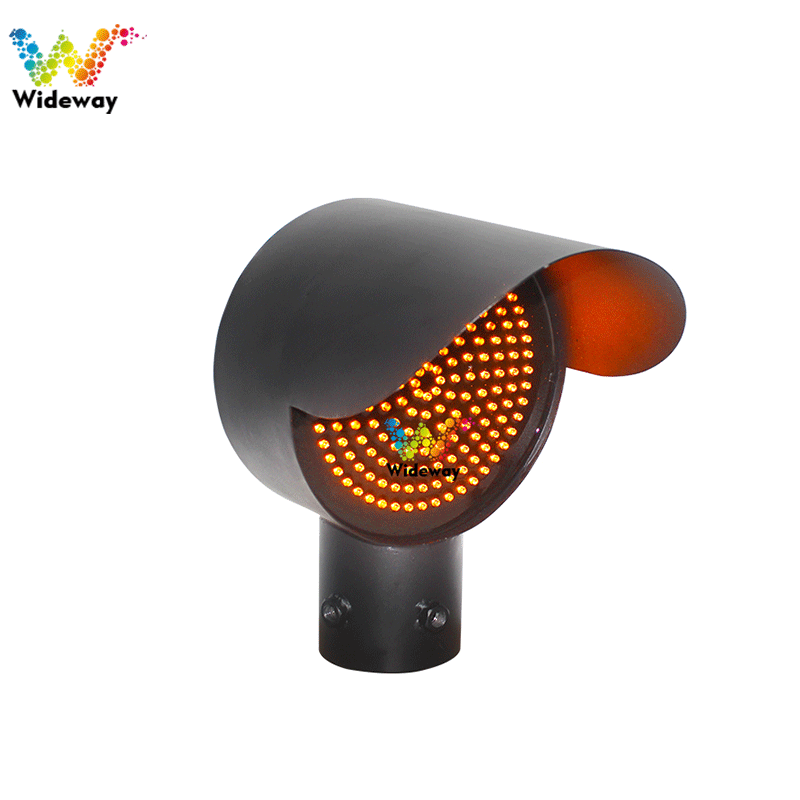

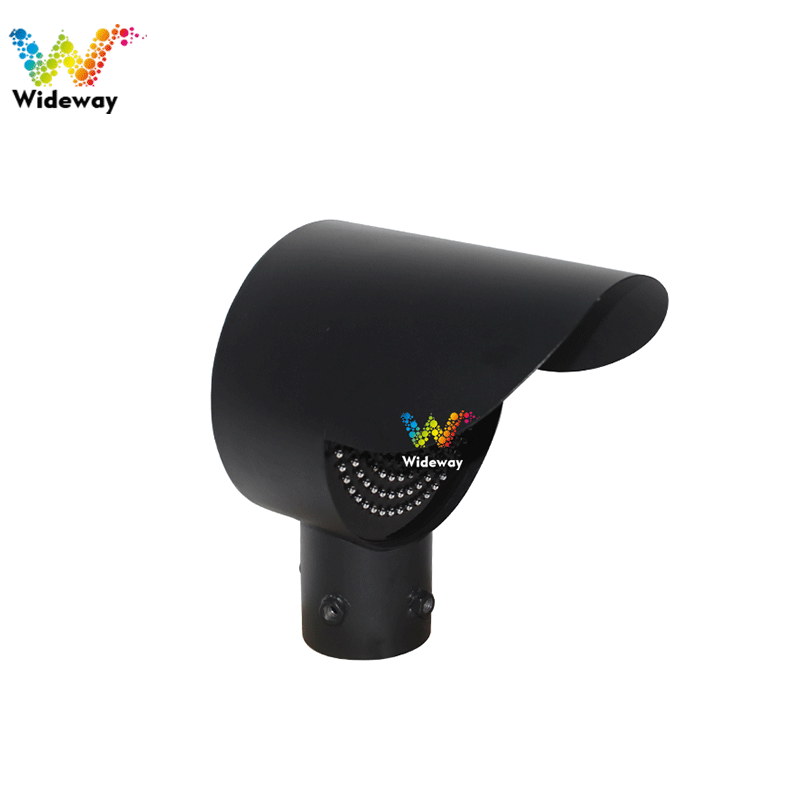

Features of the Model 200 Round-Head Metal-Housing Fog Light:
1. The Model 200 Round-Head Metal-Housing Fog Light uses LED lighting, which is energy-efficient, economical, and environmentally friendly; it contains no harmful substances and emits no pollutants.
2. The Model 200 Round-Head Metal-Housing Fog Light uses LED chips from Taiwan’s Epistar, with a service life of ≥100,000 hours. It features high brightness, a unique optical system, uniform color distribution, excellent warning effectiveness, and slow light decay.
3. The Model 200 Round-Head Metal-Housing Fog Light features low power consumption, a wide viewing angle, ultra-high brightness, long visibility range, and extended operating time.
4. The Model 200 Round-Head Metal-Housing Fog Light is rugged and durable. It is stable and reliable, with a high protection rating. It is impact-resistant, resistant to aging, and corrosion-resistant.
5. The Model 200 Round-Head Metal-Housing Fog Light is waterproof and easy to install.
6. The Model 200 Round-Head Metal-Housing Fog Light complies with GB/14887-2003 and relevant international standards.
7. The Model 200 Round-Head Metal-Housing Fog Light can be configured as a synchronized fog light; by connecting it to a fog light synchronization controller, it can flash at the same frequency. However, please note that the fog light synchronization controller must be installed separately from the fog lights
to prevent electric shock (the fog lights operate at 24 V DC, while the synchronizer operates at 220 V AC); a single synchronizer can
connect to more than ten fog lights; it also comes with PC software, allowing users to independently configure the fog lights’ flashing frequency, brightness, duty cycle, and other settings on a computer, making
it convenient to use.
Parameter
| Product Name | Model 200 Round-Head Metal-Housing Fog Light |
|---|---|
| Number of LEDs | 180 |
| Product Model | WDM-SG200-C-Y-T |
| Dimensions | 225 × 250 × 300 mm |
| LED Type | Taiwan Epistar chips |
| Yellow Wavelength | 590–595 nm |
| Operating Voltage | AC 85–265 V |
| Operating Temperature | –40°C to 65°C |
| Protection Rating | IP53 |
| Rated Power | R ≤ 10 W |
| Visibility Distance | 1,000 m |
| Service Life | 100,000 hours |
| Housing Material | Steel |
| Beam Angle | 30° |
Introduction to the Model 200 Round-Head Metal-Housing Fog Light:
Metal-housing fog lights are commonly used on highways and at toll plazas to alert drivers to drive safely. Fog lights are typically installed on both sides of fog-prone sections of highways, which are characterized by
high vehicle speeds and heavy traffic. Installing fog lights at road curves, on bridges, and at tunnel entrances and exits plays
a significant role in improving highway safety and reducing traffic accidents. At the same time, fog lights can effectively guide vehicle operation in rainy or foggy weather.
The fog lights use outdoor yellow plug-in LEDs, and the housing is made of cold-rolled steel. They are mounted on poles, making installation simple and convenient. The lighting mode can be either constant or flashing, and the operating voltage
can be configured as AC 220V or DC 12/24V, depending on customer requirements.
