600 mm Single-Faced Through-Hole Lane Control Signal

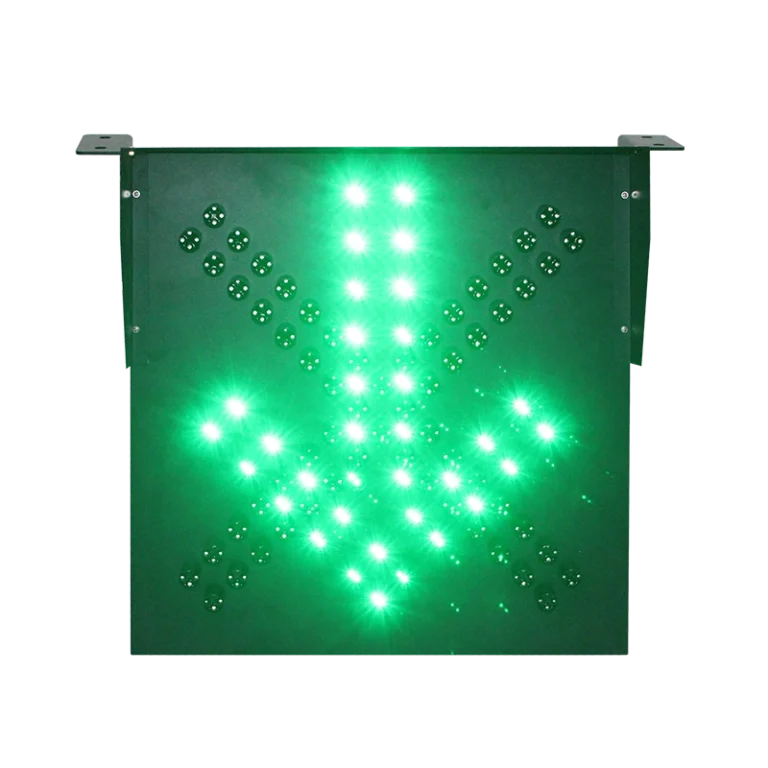

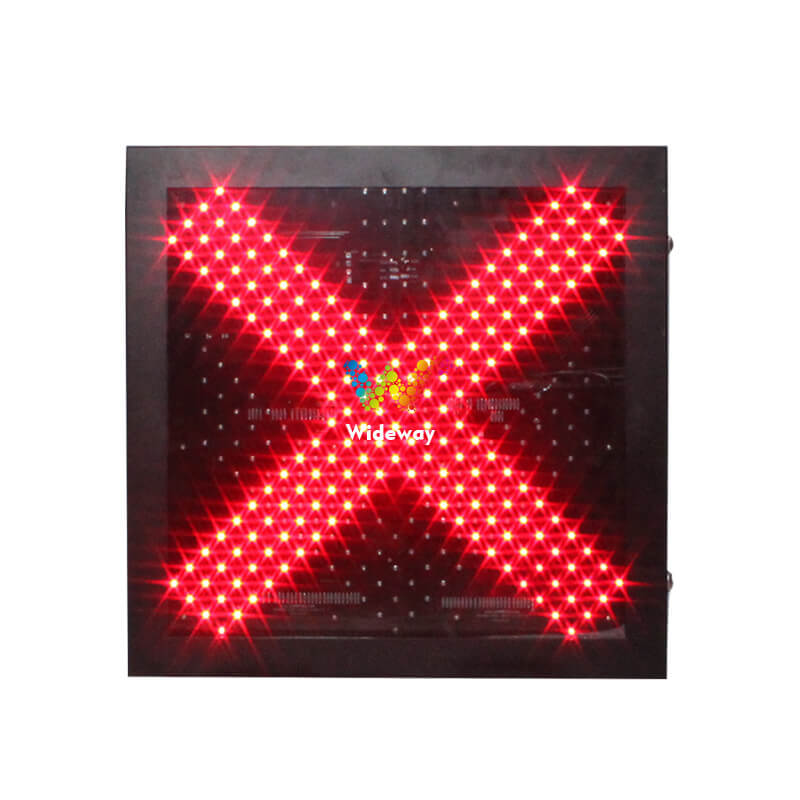

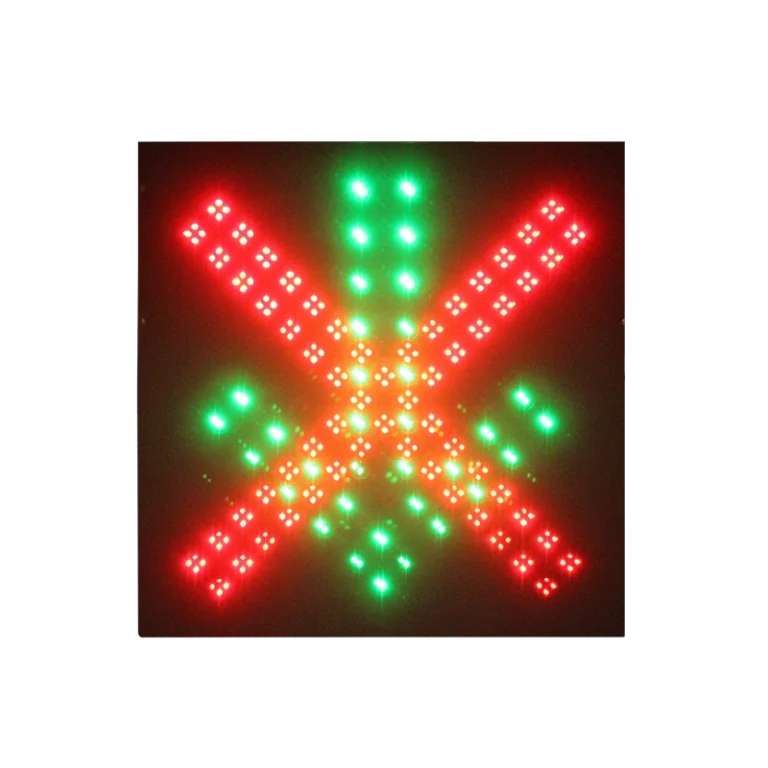

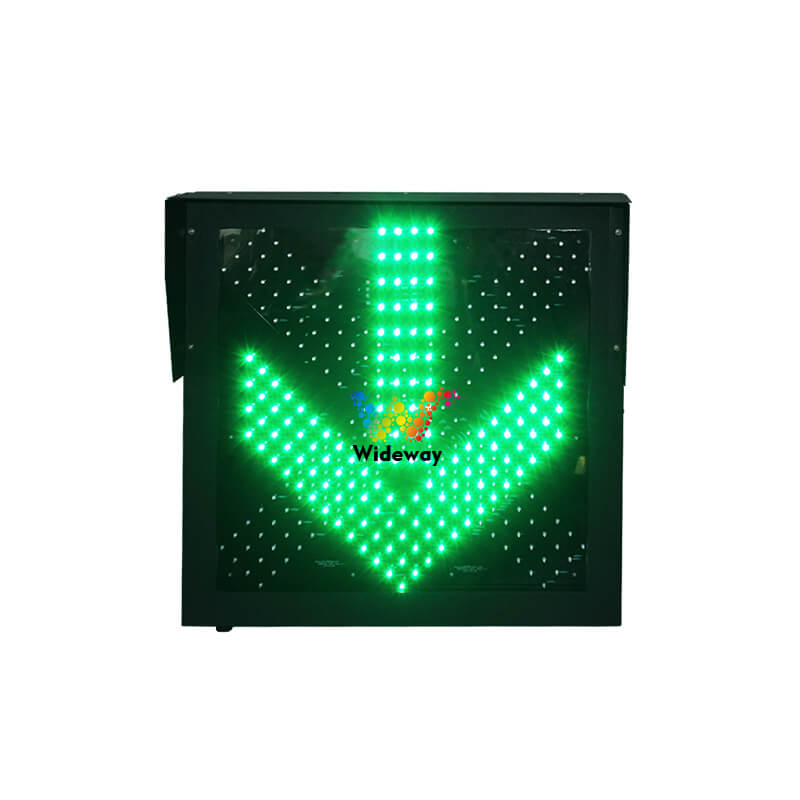

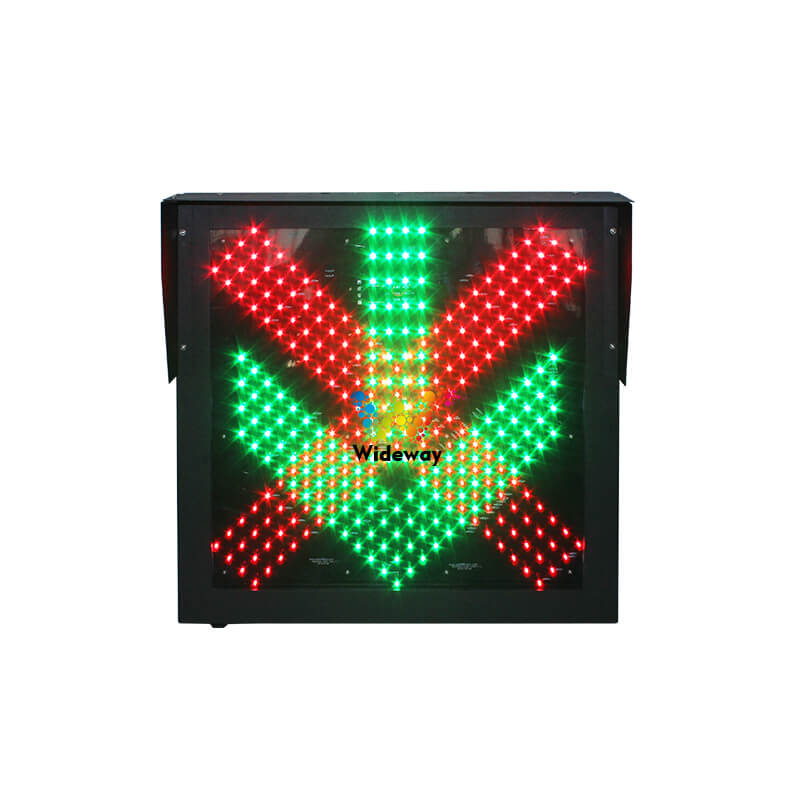

The 600 mm Single-Faced Through-Hole Lane Control Signal is a very common type of traffic signal. It features a dual-color display on a single screen—a red cross and a green arrow—which alerts vehicles and pedestrians to traffic conditions. This product is primarily used at highway toll plazas and tunnel entrances, with one set of canopy lights typically installed above each lane. It has two display states: one is a red cross, and the other is a green arrow. It has only two operational states: the red cross indicates “No Entry,” while the green arrow indicates “Proceed.” The red cross and green arrow lights emit a strong light, allowing drivers to see them from a distance, prompting them to slow down in advance and guiding them to pass through the toll station correctly, safely, and smoothly.
1. The 600 mm Single-Faced Through-Hole Lane Control Signal is primarily used at toll booths, in tunnels, and similar locations. It features LED chips from Taiwan’s Epistar, arranged in a through-hole configuration. The LEDs are densely packed, delivering ultra-high brightness and excellent visual effects.
2. The housing of the 600 mm Single-Faced Through-Hole Lane Control Signal is constructed from cold-rolled steel plates and welded together, providing excellent strength and wind resistance. The panel features a double-layer structure, ensuring superior sealing and dustproofing, while also facilitating effective heat dissipation within the panel. The canopy light components are complete, securely assembled, and structurally stable, with smooth transitions at the edges and corners, free of flash or burrs;
3. The protective coating on the outer casing and connectors of the 600 mm Single-Faced Through-Hole Lane Control Signal is uniform in color, free from scratches, cracks, or exposed substrate defects, and its physical and chemical performance indicators comply with relevant national and industry standards;
4. The 600 mm Single-Faced Through-Hole Lane Control Signal is fully waterproof: waterproof sealant is applied at the junction between the display screen and the housing to enhance the product’s waterproof performance.
5. The 600 mm Single-Faced Through-Hole Lane Control Signal has undergone rigorous aging testing: The product undergoes a 24-hour validation aging test prior to shipment, ensuring superior performance!
Parameter
| Product Name600 mm Single-Faced Through-Hole Lane Control Signal | |
| Product Model WDM-HCLJSM-RG | |
| Number of LEDs Red 192*2, Green 140*2 | |
| LED Color Red/Green | |
| Red Wavelength 620-625 nm | |
| Green Wavelength 500-505 nm | |
| Operating Voltage AC 85-265V, 50/60Hz | |
| Rated Power ≤20W | |
| Housing Material Electrostatic spray coating, sheet metal enclosure | |
| LED Beam Angle Horizontal -30°, Vertical -30° | |
| Operating Current ≤250mA | |
| Dimensions 600 x 600 x 70mm | |
| Operating Temperature -40°C to +80°C | |
| Relative Humidity 10%–95% | |
| Housing Color Black | |
| Visibility Distance ≥300m | |
| Service Life 100,000 hours | |
| Applications Toll booths, tunnels, parking lots, etc. |
