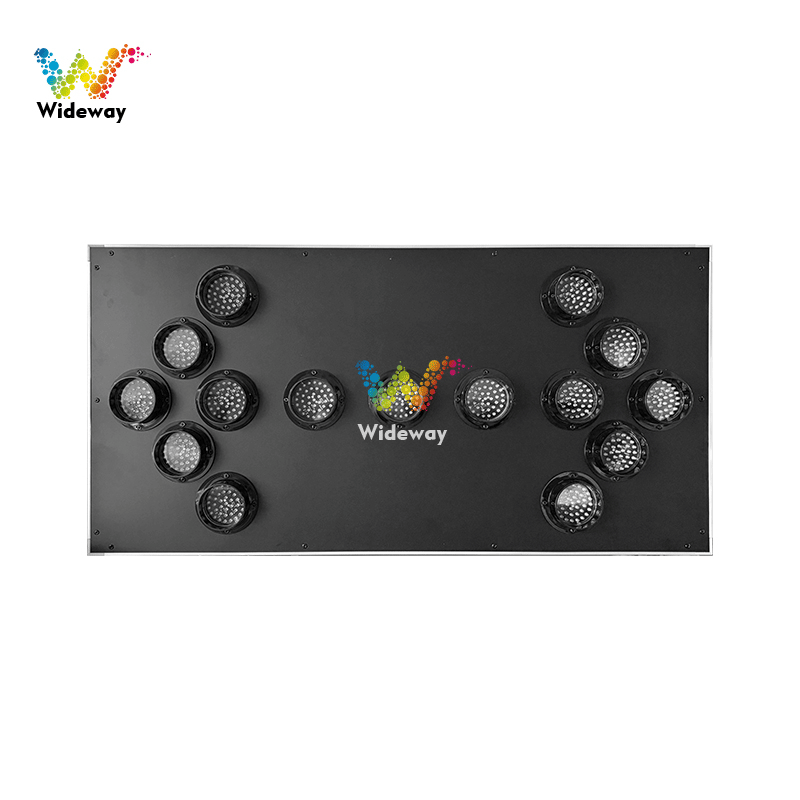

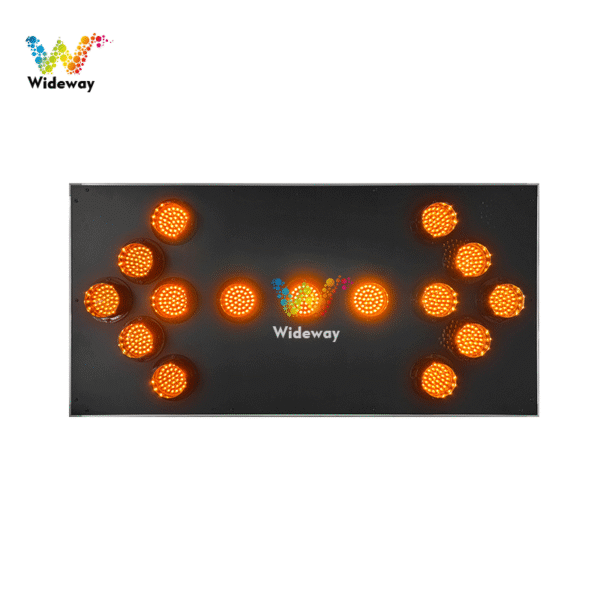

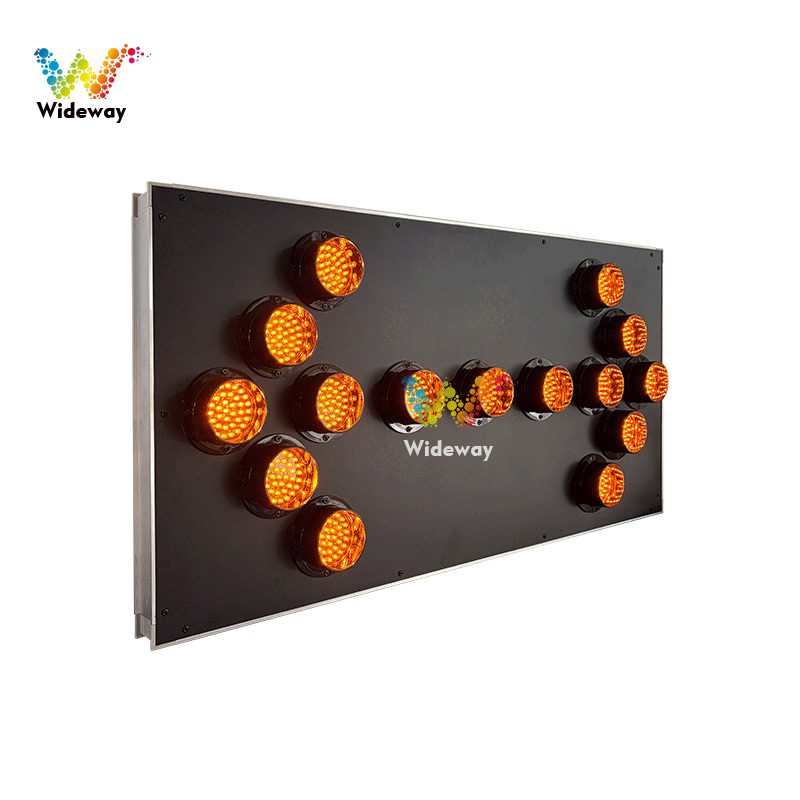

1200×600 LED Directional Warning Sign
1200×600 Sign Without a Lifting Mechanism Overview:

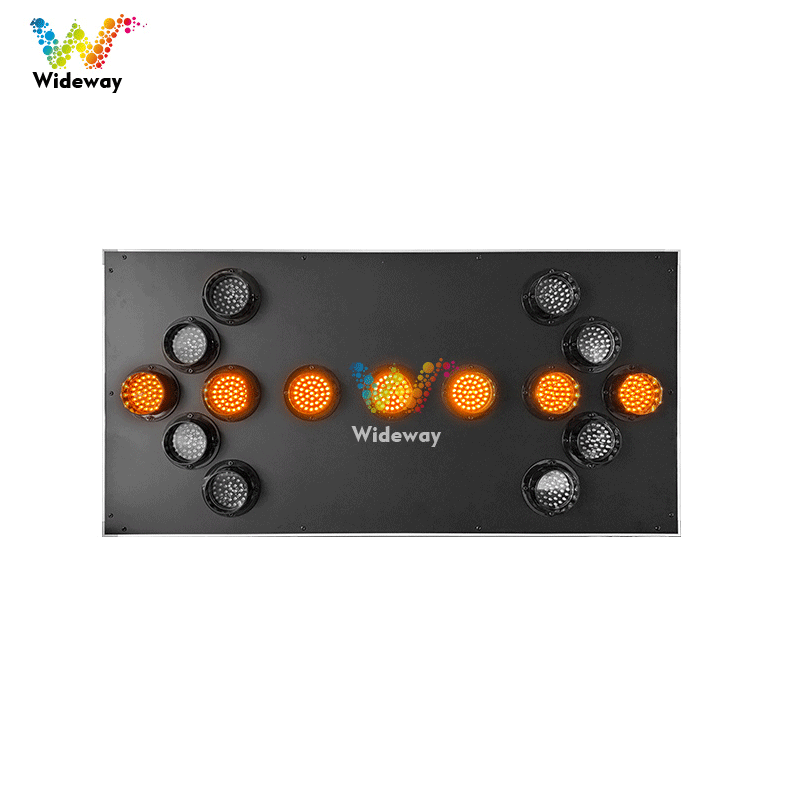

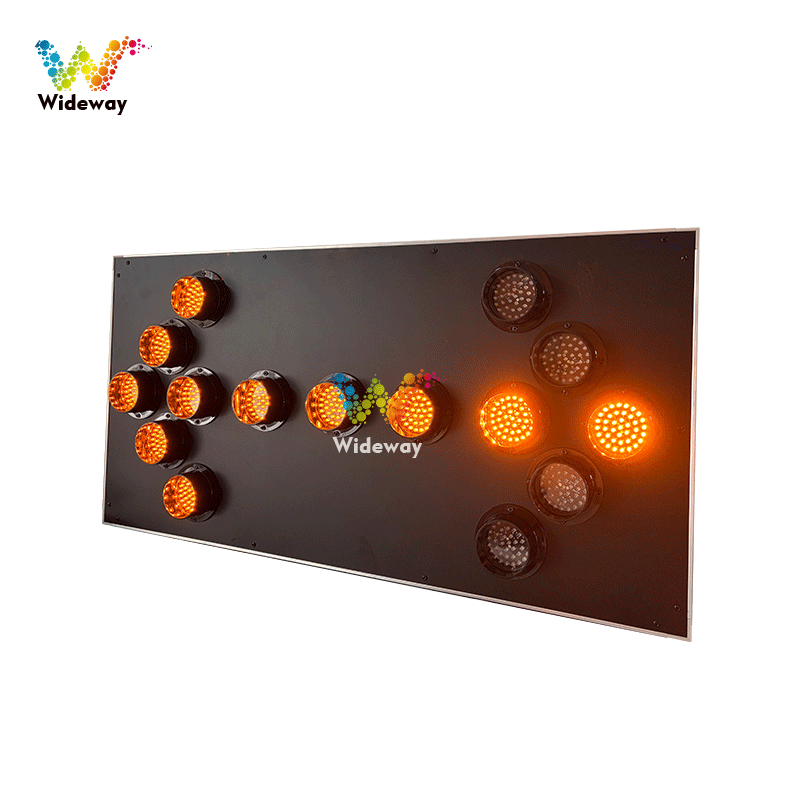

The 1200×600 Sign Without a Lifting Mechanism features an array of amber LEDs arranged to form left and right arrow graphics, with the ability to switch between left-turn, right-turn, and two-way arrow lights.
It is used to alert drivers to lane changes and help reduce traffic accidents in areas and during weather conditions with low visibility.
Features of the 1200×600 LED Directional Warning Sign:
1. Taiwanese Epistar LED chips: large chips, high brightness;
2. Manual control makes operation more intuitive. One-click control;
3. Features an LED arrow panel with 15 high-brightness LEDs, providing long-distance visibility;
4. Waterproof and sealed, with high industrial durability for operation in harsh environments.
Parameter
| Vehicle LED arrow board (15 LEDs) | |
| Product Model | WDM-DXP-1200×600-15 |
|---|---|
| Casing material | Sheet metal chassis |
| Product dimensions | 1200x600mm |
| Operating voltage | DC 9–36V |
| Protection rating | IP65 |
| Flashing mode is synchronized via the controller | |
| LEDs | Epistar chip LEDs from Taiwan |
| Light-emitting modules | 100 mm x 15 |
| Yellow wavelength | 590–595 mm |
| Number of LED beads per module | 40 pcs |
