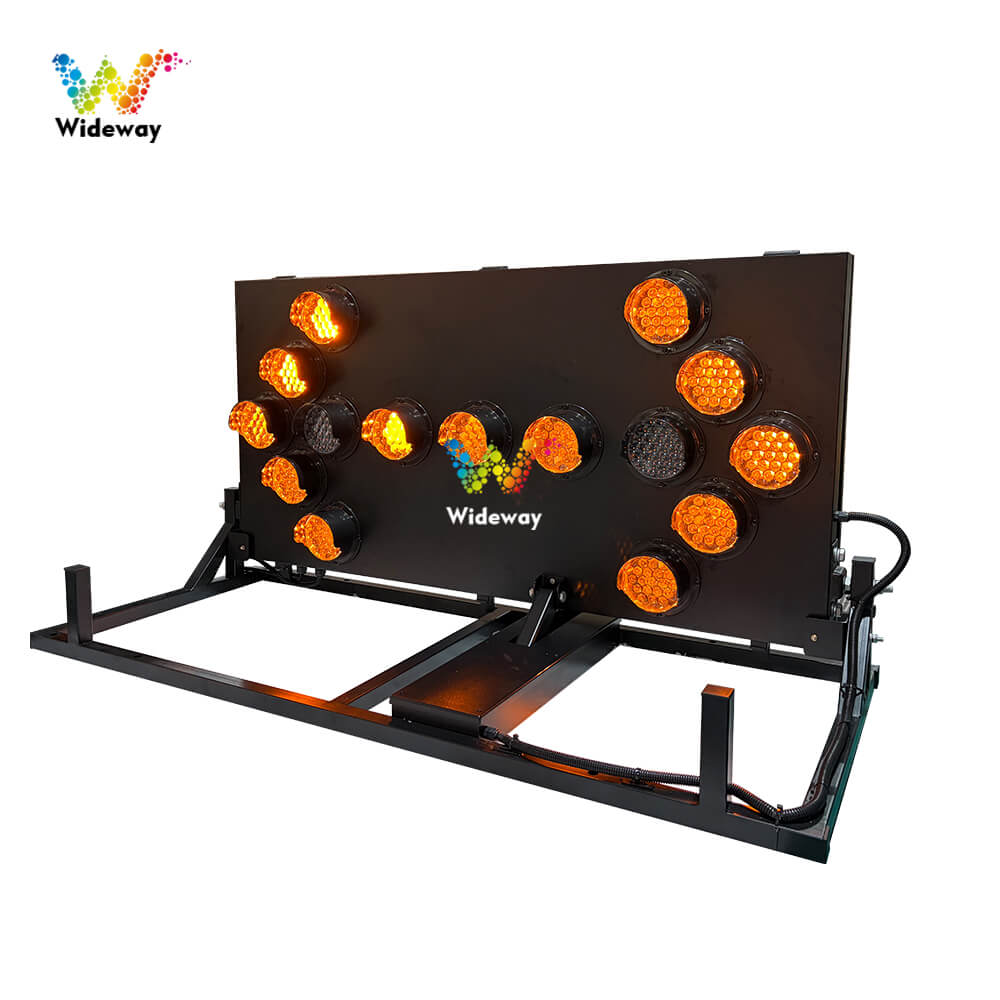

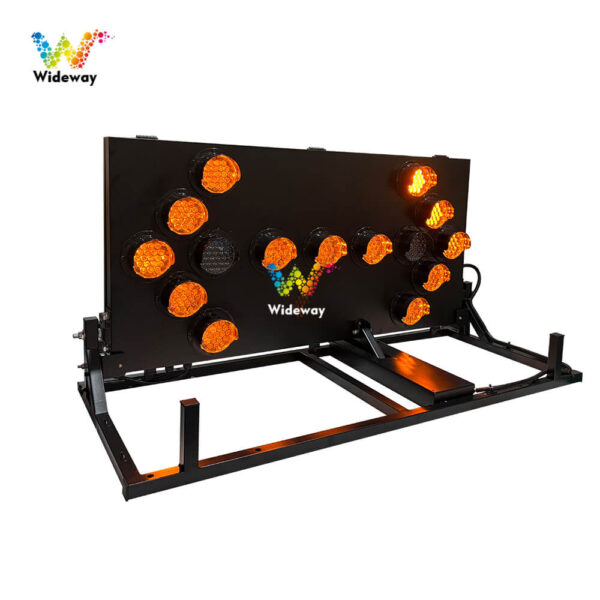

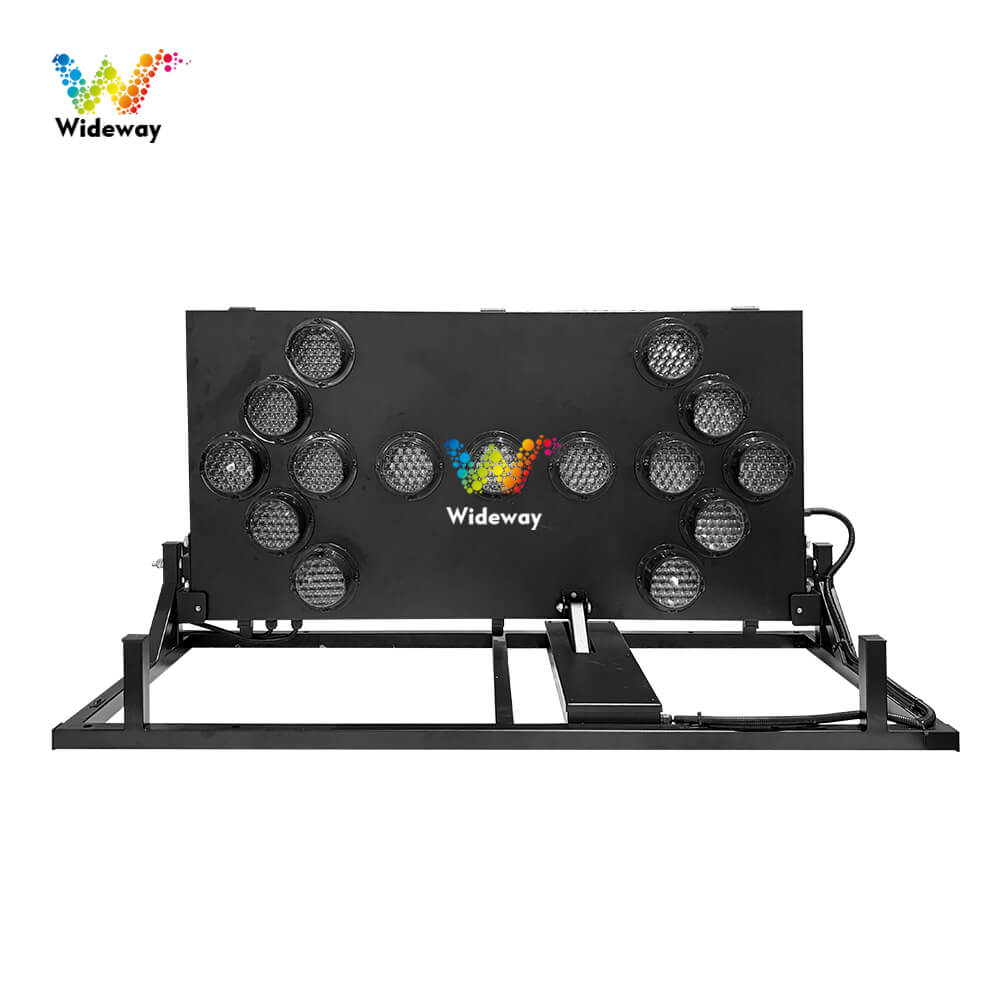

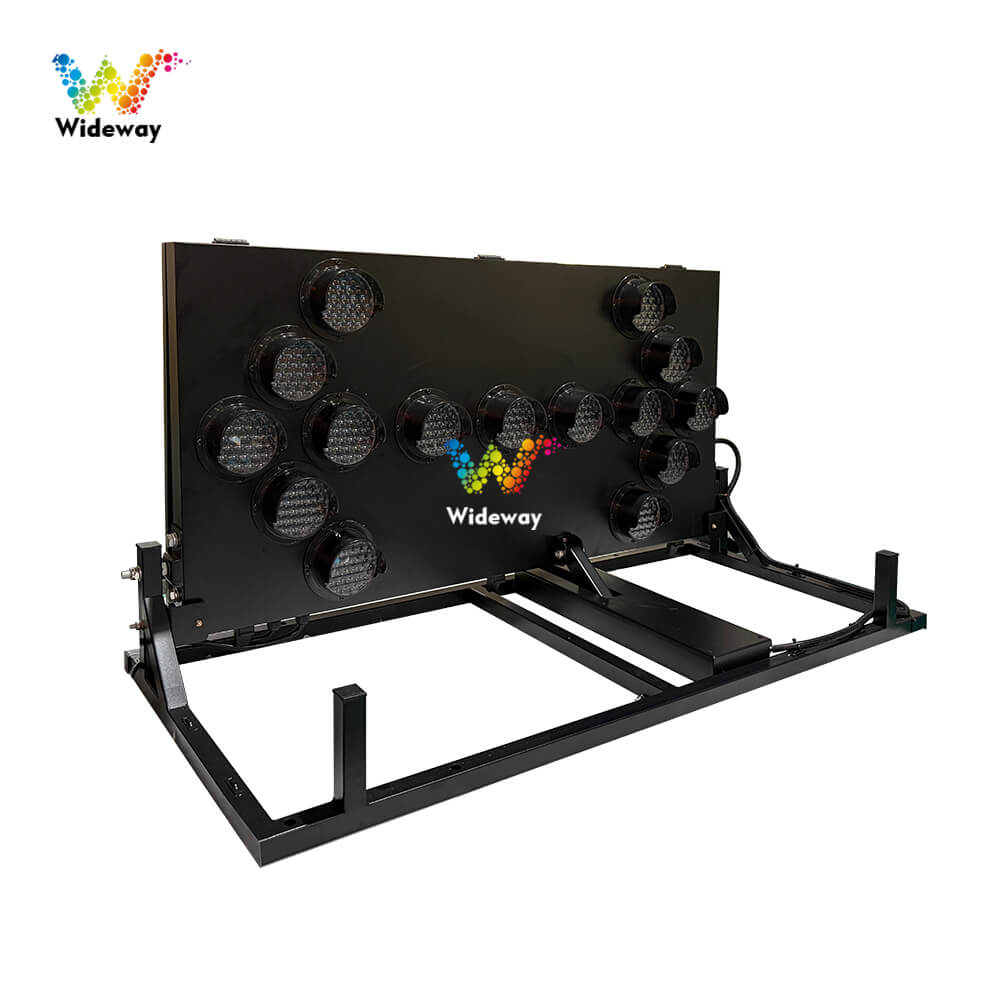

1200 x 600 mm Foldable LED Arrow Board
The 1200×600 mm Foldable LED Arrow Board (15 LEDs) is a foldable construction vehicle-mounted directional sign that utilizes Wei Mei’s exclusively designed lens-equipped light tubes (which focus the light beam through the lens for enhanced warning effectiveness). During construction, the 1200×600 mm Foldable LED Arrow Board can be raised from inside the cab using either the in-cab controller or a wireless controller (eliminating the need to exit the vehicle, thereby better protecting the safety of construction personnel). By displaying different combinations, it can show left arrows, right arrows, bidirectional arrows, and flashing warnings to alert passing vehicles to yield to the construction vehicle. Installed at the rear of the vehicle, it prompts following vehicles to change lanes in advance and avoid the construction zone, reducing the risk of rear-end collisions.
Once construction is complete, the foldable LED arrow board can be lowered directly via the controller without the need to exit the vehicle, further ensuring safety and reducing the risk of accidents.
The 1200×600 mm Foldable LED Arrow Board (15 LEDs) features:
1. The warning message can be changed from inside the cab;
2. It can be paired with a wireless handheld controller, eliminating the need to be restricted by wiring during installation (normally, a 15-meter power cable is required to connect to the cab);
3. The unit operates on a wide voltage range of 9–36 V, providing better protection for the construction vehicle’s battery against potential damage from sudden voltage spikes;
4. The foldable design allows the board to be raised during construction to warn passing vehicles of potential hazards, and lowered once work is complete to avoid causing a distraction to following vehicles;
5. Multiple display modes are available, including full illumination, left arrow, right arrow, and solid line.
Parameter
| Model | WDM-SJ-DXP-1200×600-15 LED |
|---|---|
| Qty | 37pcs |
| Casing material | Sheet metal chassis |
| Product Size | 1200x600mm |
| Operating voltage | DC9-36V |
| Protection rating | IP65 |
| Binking mode is synchronized on the controller | |
| LED | Epistar chip LED chips from Taiwan |
| Light-emitting modules | 125mm x 15 |
| Yellow wavelength | 590-595mm |
| Module LED beads | |
