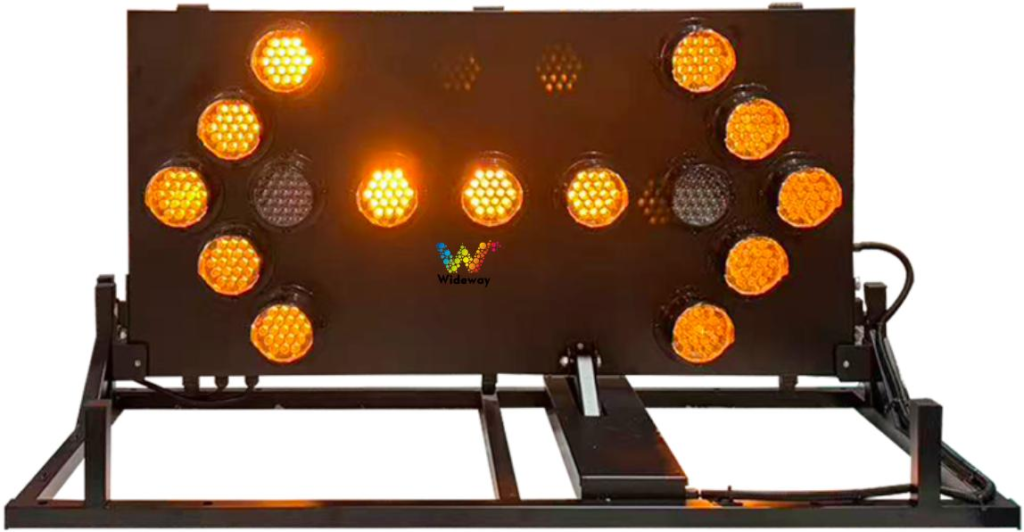

1200 x 600 mm Foldable LED Arrow Board
The 1200×600 mm Foldable LED Arrow Board (15 LEDs) is a foldable construction vehicle-mounted directional sign that utilizes Wei Mei’s exclusively designed lens-equipped light tubes (which focus the light beam through the lens for enhanced warning effectiveness). During construction, the 1200×600 mm Foldable LED Arrow Board can be raised from inside the cab using either the in-cab controller or a wireless controller (eliminating the need to exit the vehicle, thereby better protecting the safety of construction personnel). By displaying different combinations, it can show left arrows, right arrows, bidirectional arrows, and flashing warnings to alert passing vehicles to yield to the construction vehicle. Installed at the rear of the vehicle, it prompts following vehicles to change lanes in advance and avoid the construction zone, reducing the risk of rear-end collisions.
Once construction is complete, the foldable LED arrow board can be lowered directly via the controller without the need to exit the vehicle, further ensuring safety and reducing the risk of accidents.
Share This Products :
1200×600MM Folding Guide Sign
The 1200×600 mm foldable traffic guidance sign is a self-luminous traffic guidance and warning device designed for road construction projects. 1200×600MM Folding Guide Sign is primarily used in road maintenance operations, sanitation tasks, and emergency response scenarios. Installed at the rear of construction vehicles,1200×600MM Folding Guide Sign utilizes dynamic high-brightness LED arrow signals to alert vehicles behind it to change lanes in advance, thereby reducing the risk of traffic accidents caused by road occupation during construction. The device can also be paired with a foldable bracket for temporary ground-based deployment (as shown in the figure below).
Product Features of the 1200×600 mm Foldable Guidance Sign
Directional flow guidance:By selectively illuminating LED indicator beads, the system can switch between various illuminated arrow patterns—left arrow, right arrow, straight arrow, and bidirectional convergence arrow—to guide vehicles to change lanes in advance, divert traffic, and avoid closed or construction lanes.
Long-range high-intensity warning light:Equipped with high-brightness amber LEDs that emit active light, this device provides a visible range of up to several hundred meters during daytime, at dusk, and in rainy or foggy conditions. 1200×600MM Folding Guide Sign alerts following vehicles to proceed with work ahead, reduce speed, and exercise caution to avoid collisions, thereby helping to prevent rear-end accidents in advance.
Temporary traffic control and diversion measures:Designed for high-speed and urban road maintenance, emergency pavement repairs, traffic accident response, and temporary road closure and detour scenarios, this system replaces temporary manual signage to dynamically guide traffic flow, maintain traffic order, and alleviate congestion.
Portable in-vehicle operation:Equipped with a foldable metal bracket, 1200×600MM Folding Guide Sign can be quickly installed at the rear of road maintenance vehicles, street cleaning and water-spraying vehicles, and emergency rescue vehicles; while the operating vehicle is in motion, 1200×600MM Folding Guide Sign simultaneously provides dynamic warning guidance, making it ideal for mobile road maintenance operations.
The 1200×600 mm foldable directional signage addresses the key pain points of customers.
Address the poor visibility of static signage, inadequate warning measures during rain or fog and nighttime conditions, and the consequent risk of secondary accidents.
Features high-visibility amber actively luminous LEDs, ensuring clear visibility from long distances, providing robust warning effects in all weather conditions, and alerting drivers to slow down and yield in advance, thereby reducing road work safety risks.
Manual placement of signage is inefficient, and personnel are exposed to an extremely high risk of traffic hazards.
The vehicle-mounted integrated folding sign post can be directly fixed to the rear of the construction vehicle; once the vehicle reaches the work site, the warning and guidance signage can be activated without requiring personnel to exit the vehicle to install the signs, thereby reducing the risk of outdoor workers being exposed to hazardous road conditions.
Given the diverse nature of construction sites, fixed signage cannot flexibly switch diversion schemes.
The electronic control system supports multiple lighting modes (left arrow, right arrow, straight path, bidirectional convergence), enabling one-touch switching of the flow direction to accommodate various operational scenarios, including temporary route diversion, emergency response, and sectional maintenance.
Mobile work vehicles lack dynamic guidance equipment.
The system operates synchronously with the vehicle, providing dynamic lighting guidance while the vehicle is in motion, thereby meeting the safety guidance requirements for mobile road maintenance, inspection, and cleaning operations.

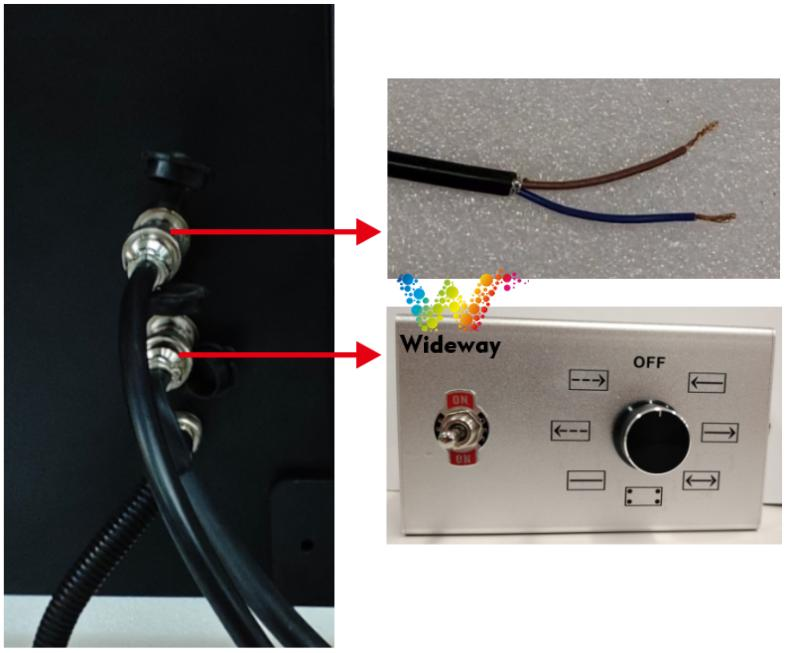

Description of the 1200×600 mm Foldable Guidance Sign Control Box
DC 9–26 V (power supply):
1. Brown line: Positive terminal
2. Blue line: Negative electrode
control box:
1.direction switch
2.Tilt the black button to switch between lighting modes.

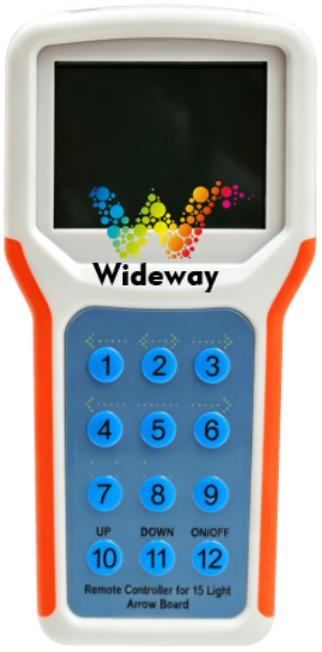

Wireless Controller:
Detailed button function description: The numeric keys 1–9 preset multiple lighting pattern modes, including commonly used modes.
give an example:
1 Left-pointing arrowhead (1)
2 bidirectional flow arrows (left and right double arrows)
3. Right-pointing arrowhead (1)
4. Left-pointing arrow (2)
5. Single-character horizontal line
6. Right-pointing arrowhead (2)
7 Four-corner illumination
8 diagonal lights
9 None
The pattern can be customized according to the manufacturer's software; the corresponding patterns for 1–9 may vary slightly across different manufacturers.
Bottom buttons: 10,11,12
10 (UP): Brightness increase / Stand height increase (for versions with electric height-adjustable stand)
11 (DOWN): Brightness reduced / Support lowered (for versions with electric height-adjustable support)
12 (ON/OFF): Main power switch of the guide plate, enabling one-touch activation and deactivation of the entire plate's LED lighting.
1200×600MM Folding Guide Sign Installation Instructions

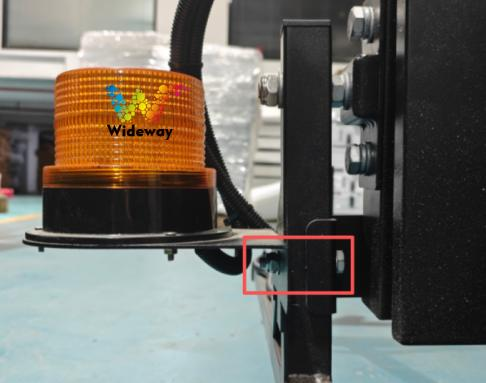

Warning light installation:
The lifting bracket is secured to both sides with two screws, and the warning light is also secured to both sides with two screws.

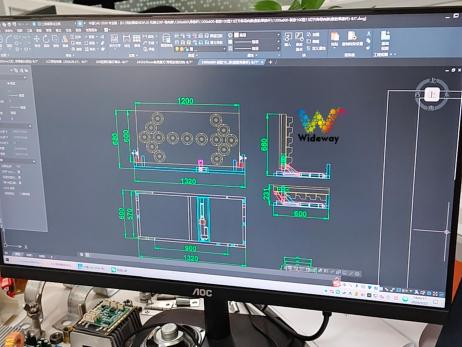

1200×600MM Folding Guide Sign Production Details

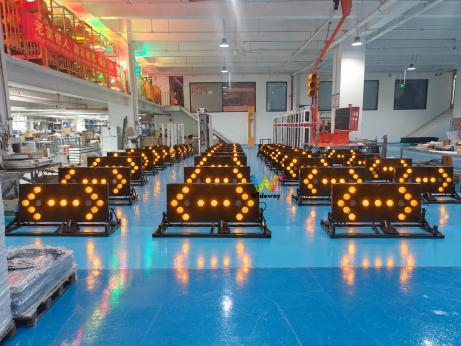

1200×600MM Folding Guide Sign Batch Aging
1200×600MM Folding Guide Sign Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
1200×600MM Folding Guide Sign Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Model | WDM-SJ-DXP-1200×600-15 LED |
|---|---|
| Qty | 37pcs |
| Casing material | Sheet metal chassis |
| Product Size | 1200x600mm |
| Operating voltage | DC9-36V |
| Protection rating | IP65 |
| Binking mode is synchronized on the controller | |
| LED | Epistar chip LED chips from Taiwan |
| Light-emitting modules | 125mm x 15 |
| Yellow wavelength | 590-595mm |
| Module LED beads | |
| fittings of a machine | quantity | Notes |
| Signpost | 1 unit | Yellow warning requirement |
| lifting support | 1 | Assembled with the directional sign |
| control box | 1 | Equipped with a toggle switch to switch between lighting modes. |
| certificate | 1 copy | As a material release certificate |
| product specification | 1 copy | Includes product technical specifications, illustrated installation steps, and safety and maintenance guidelines. |
