Radar Speed Detection 2-Digit Display 600*850mm
The Radar Speed Detection 2-Digit Display (600×900 mm) consists of a housing, an LED panel, a radar unit, and a control system. The housing features a side-opening door for easy access to the display for inspection and maintenance. The display is mounted on a pole and secured using clamps. Please refer to the relevant drawings for spec
Share This Products :
600×850MM Radar Speed Traffic Sign

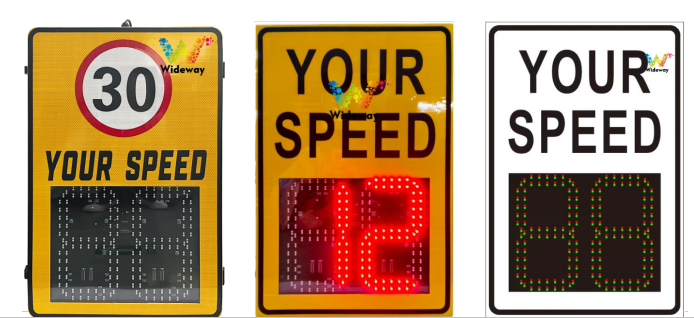

The 600×850 mm dual-function 88 MHz radar speed monitoring sign combines a high-reflectivity traffic signage panel with a Doppler radar system and a high-brightness LED display module. 600×850MM Radar Speed Traffic Sign enables real-time detection of passing vehicles’ speeds and provides an intuitive visual display, actively reminding drivers to maintain appropriate speed limits; however, 600×850MM Radar Speed Traffic Sign does not possess license plate violation capture or evidence recording functionality and is widely used on low-speed safety control sections. The product is available in two variants: the Speed Limit Indicator Version (left image, preset speed limit: 30 km/h) and the Pure Speed Display Version (right image) (as shown in the figure below).
Product Function – 600×850 mm Dual-Function 88 Radar Speed Measuring Signboard
Real-time speed measurement and vehicle speed visual feedback:Equipped with a built-in Doppler radar that automatically detects the real-time speed of approaching vehicles, the system displays “YOUR SPEED” directly on a high-brightness LED digital screen, allowing the driver to instantly see their current speed.
Over-speed warning, active speed reduction:
Compliant speed: typically displayed as a green number;
Exceeding the speed limit (e.g., the preset speed limit on the left-hand side of the diagram is 30 km/h): a flashing red digital warning light will appear; some models may also provide voice alerts or flashing warning lights to prompt the driver to reduce their speed proactively. This device falls under the category of “Flexible Traffic Stability Control Equipment” – 600×850MM Radar Speed Traffic Sign does not involve direct image capture or penalty enforcement; its primary function is to serve as a reminder.
Static speed limit reminder:The limited-speed signage version (left image) also displays the legal speed limit for that road section, creating a contrast with the real-time vehicle speed and thereby enhancing awareness of the speed limit.
Multiple power supply adapters (standard or optional):Supports mains power supply; can also be paired with a solar power system; suitable for deployment at locations without external power supply.
All-weather outdoor work:Yellow high-reflectivity signage equipped with LED technology ensures clear visibility under strong daylight, at night, or in rainy or foggy conditions; 600×850MM Radar Speed Traffic Sign supports both solar and mains power supply options, making 600×850MM Radar Speed Traffic Sign ideal for installation in temporary construction sites, campuses, residential areas, industrial complexes, and industrial park roads.

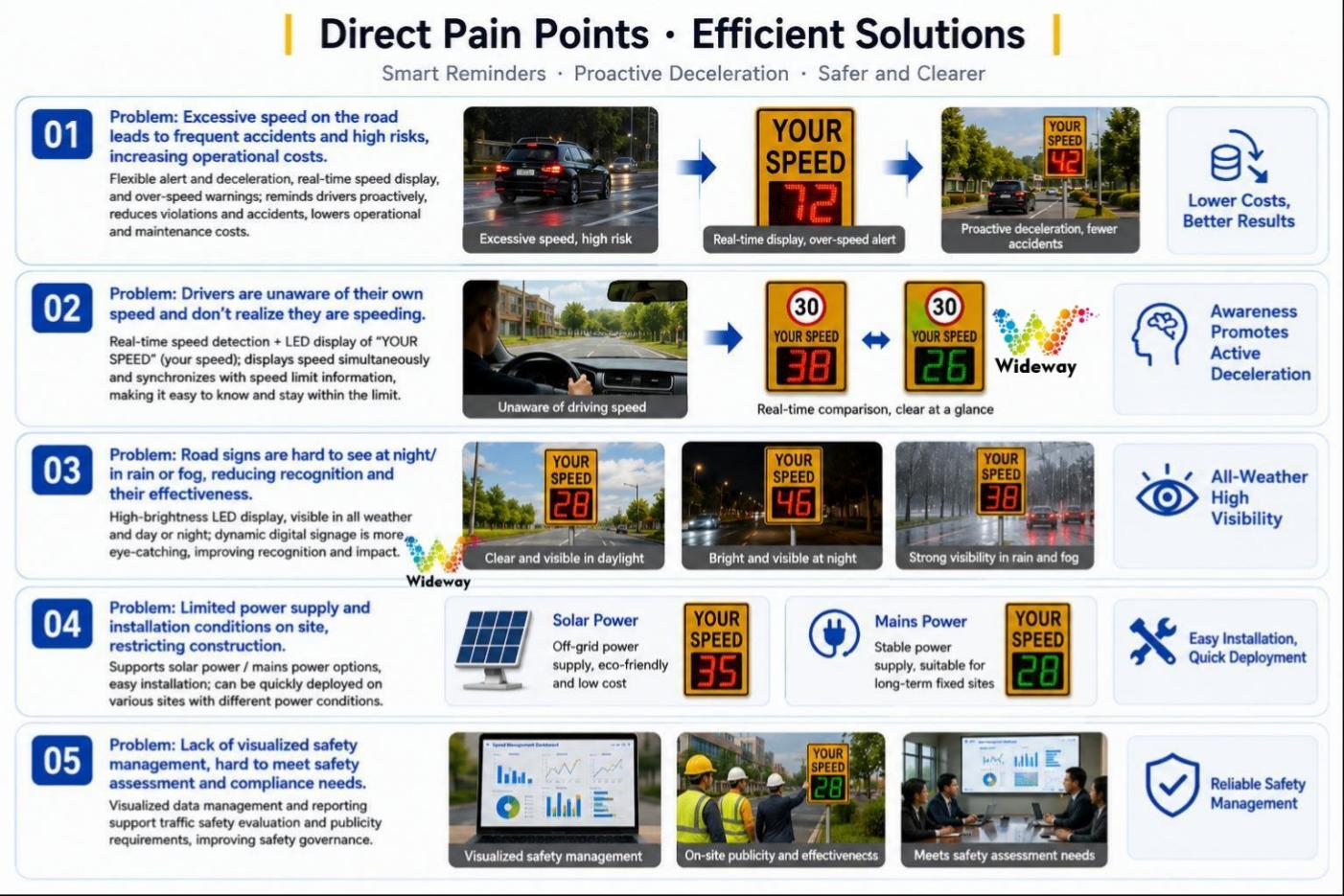

The 600×850 mm dual-function 88GHz radar speed-measuring sign effectively addresses a key pain point for customers.
Addressing frequent speeding incidents and high accident risks on road sections, while managing the high costs associated with strict law enforcement.
Flexible active speed reduction alert system that displays real-time vehicle speed and shows a red warning when speeding – providing an intuitive prompt for drivers to voluntarily reduce their speed. This system effectively lowers the average vehicle speed on road sections without requiring law enforcement penalties, thereby reducing traffic accidents; its implementation and operational maintenance costs are significantly lower than those of electronic speed camera systems.
The driver has an ambiguous perception of their own vehicle speed and is unaware that they are driving too fast.
Real-time radar speed monitoring + LED digital display showing “YOUR SPEED” – the limited-speed version can simultaneously display the road speed limit, creating a clear contrast and quickly correcting any discrepancies in speed perception.
Road warning signs exhibit poor visibility at night or under strong light conditions, resulting in limited effectiveness as a warning.
High-reflectivity signage combined with bright LED digital displays ensures clear and conspicuous visibility under strong daylight, at night, or in cloudy/rainy conditions; dynamic digital displays are more effective at capturing drivers’ attention than static signage.
On-site power supply / Limited installation conditions; complex construction and renovation requirements
Supports both solar-powered and grid-powered options; features easy installation and rapid deployment, making 600×850MM Radar Speed Traffic Sign ideal for temporary or areas without a power supply.

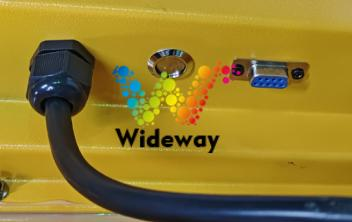

Wiring Instructions for the 600×850 mm Two-Position 88 Radar Speed Measuring Signboard
Power Cable
Brown wire:
Live wire
Blue wire: Neutral wire
Yellowgreen wire: Earth wire
Power switch (on/off)
Communication Interface Indicator Light

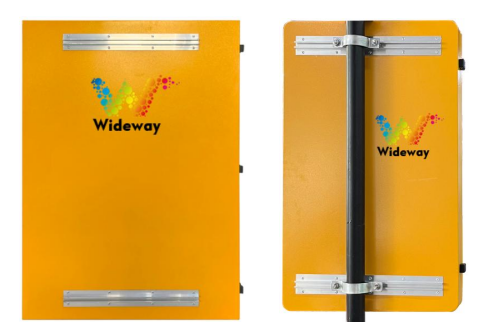

600×850MM Radar Speed Traffic Sign Product Installation
Clamp installation:
Insert the M10 screw through the aluminum groove on the back of the product, then fit the clamp around the vertical rod; pass the screw through the screw holes at both ends of the clamp and secure 600×850MM Radar Speed Traffic Sign using a nut, a washer, and a spring washer.
Optional Configuration Specifications (Selectable based on requirements)

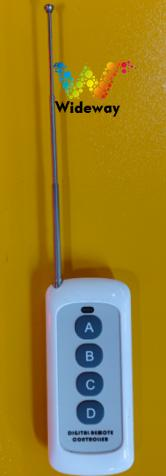

Remote Control Instructions
Remote control for setting speed limit value:
Keys A and B are used to set a speed limit value; press once to increase the value;
Keys C and D control the speed reduction/limit value – press once to decrease the speed;
(10–95, with stepwise incremental or decremental changes of 5 levels each time)
600×850MM Radar Speed Traffic Sign Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
600×850MM Radar Speed Traffic Sign Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Product size | 600*900mm (customize) |
|---|---|
| Alternating current | AC85-220V |
| Lamp beads | high brightness lamp beadsRed for speeding, green for not speeding |
| Lane | Simultaneous detection of lanes>3 |
| Installation | Vertical installation |
| Shell material | sheet metal chassis |
| Detection lanes | 2-4 lanes at the same time |
| Maximum displayed speed | 99 km/h |
| Text | Customizable |
| Installation | Vertical installation |
| Use | school, intersection, mountain road, etc. |
| fittings of a machine | quantity | Note: |
| Signage | 1 unit | Red/Green dual-color display – meets various warning requirements across different scenarios. |
| Clamp | 2 | Used to securely fasten the signboard body. |
| screw | 4 | For securing sign clamps |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation procedures, and a safety and maintenance guide |
