Features of the Model 200 Round-Head Metal-Housing Fog Light:
1. The Model 200 Round-Head Metal-Housing Fog Light uses LED lighting, which is energy-efficient, economical, and environmentally friendly; it contains no harmful substances and emits no pollutants.
2. The Model 200 Round-Head Metal-Housing Fog Light uses LED chips from Taiwan’s Epistar, with a service life of ≥100,000 hours. It features high brightness, a unique optical system, uniform color distribution, excellent warning effectiveness, and slow light decay.
3. The Model 200 Round-Head Metal-Housing Fog Light features low power consumption, a wide viewing angle, ultra-high brightness, long visibility range, and extended operating time.
4. The Model 200 Round-Head Metal-Housing Fog Light is rugged and durable. It is stable and reliable, with a high protection rating. It is impact-resistant, resistant to aging, and corrosion-resistant.
5. The Model 200 Round-Head Metal-Housing Fog Light is waterproof and easy to install.
6. The Model 200 Round-Head Metal-Housing Fog Light complies with GB/14887-2003 and relevant international standards.
7. The Model 200 Round-Head Metal-Housing Fog Light can be configured as a synchronized fog light; by connecting it to a fog light synchronization controller, it can flash at the same frequency. However, please note that the fog light synchronization controller must be installed separately from the fog lights
to prevent electric shock (the fog lights operate at 24 V DC, while the synchronizer operates at 220 V AC); a single synchronizer can
connect to more than ten fog lights; it also comes with PC software, allowing users to independently configure the fog lights’ flashing frequency, brightness, duty cycle, and other settings on a computer, making
it convenient to use.

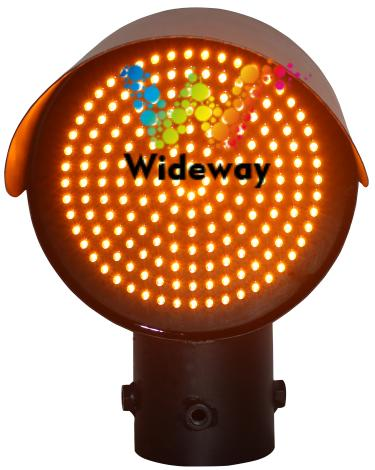

200MM Round Fog Light
The Type 200 circular fog lamp is a road safety guidance device for low-visibility conditions, primarily deployed in fog-prone sections of highways, tunnel entrances and exits, toll stations, bridges, interchanges, and safety islands. During rainy or foggy weather, 200MM Round Fog Light emits high-penetration amber-yellow flashing warning light—either as a single lamp flashing independently or as multiple lamps flashing in wireless or wired synchronous mode—to alert drivers to reduce speed and maintain a safe following distance. This device helps mitigate the risk of rear-end collisions in dense fog or rainfall conditions, serving as the front-end terminal device in fog-area driving safety guidance systems (as illustrated below).
Features of the Type 200 Circular Fog Lights
Warning for strong sunlight during foggy or rainy weather:Utilizing high-penetration amber-yellow light, this device ensures longer transmission range in low-visibility conditions—such as dense fog, rain, or haze—providing a conspicuous warning to drivers that the road ahead is hazardous, thereby encouraging them to reduce their speed and maintain a safe following distance.
Flashing indicator:Unlike steady-lit lighting fixtures, flickering illumination is more effective at capturing the attention of the human eye, helping to reduce driver visual fatigue and enhance road warning effectiveness.
Road profile guidance function:Multiple fog lights are continuously installed along both sides of the road and the edges of the lanes, delineating the road boundaries, curve sections, and ramp contours. In conditions of dense fog, the visibility of road markings is severely compromised; the continuously flashing light assemblies provide drivers with clear reference boundaries for driving, helping to prevent vehicles from drifting out of their lanes or veering off the roadway.
Synchronous flashing:All fog lights across the entire fog zone flash in unison, creating a continuous warning light band that enhances the overall warning effect.
Platform remote control:The backend software enables remote control of lighting (on/off) and adjustment of flashing frequencies, and supports integration with high-speed monitoring systems for unified scheduling and management.
Curves and long downhill sections:Issue early warnings about the risks of sharp turns and downhill sections, and advise drivers to slow down and apply brakes in advance;
Bridges, interchange ramps, and tunnel entrances/exits:In such locations, where fogging is highly likely and lighting conditions can change abruptly, fog lights serve as a transitional warning device to mitigate visual discontinuities.
High-risk road sections:As a routine safety early-warning facility, 200MM Round Fog Light aims to reduce the incidence of major traffic accidents during severe weather conditions.
The Type 200 circular fog lights address the key pain points faced by customers.
Sudden drop in visibility during foggy or heavy rainfall conditions, leading to failure of road markings.
Fog lights are installed in continuous rows to delineate the lane boundaries, providing drivers with clearly visible driving limits and compensating for the limitations of road markings in foggy conditions.
The high incidence of rear-end collisions and multi-vehicle accidents during severe weather conditions has placed significant pressure on traffic management efforts.
The dynamic yellow flashing light provides stronger stimulation to the human eye, offering early warnings from a distance; 200MM Round Fog Light also serves as a mandatory reminder for drivers to reduce speed and maintain a safe following distance, thereby lowering the risk of rear-end collisions.
Traditional warning devices suffer from short service life, high failure rates, and cumbersome subsequent maintenance.
IP65 protection rating, long-life LED lighting source, and a corrosion-resistant sheet metal housing ensure stable long-term operation in outdoor environments, significantly reducing the workload for subsequent inspection and maintenance.
Individual devices operate in isolation, making 200MM Round Fog Light impossible to achieve a continuous induction effect.
Supports synchronized flashing of clusters of lights, enabling full-length fog zone lighting to be linked in sync, thereby creating a complete and continuous safety guidance light belt.

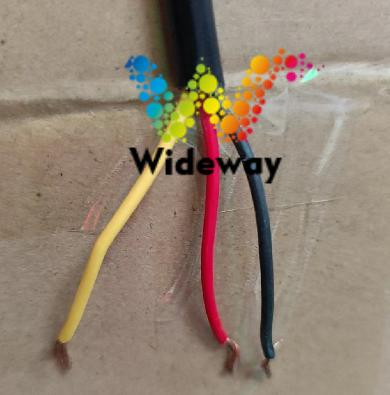

Wiring Instructions for Model 200 Circular Fog Lamps
AC85-265V (Power cord):
1.Red line —Line wire
2.Black line — Neutral wire
3.Yellow line — Ground
Installation Instructions

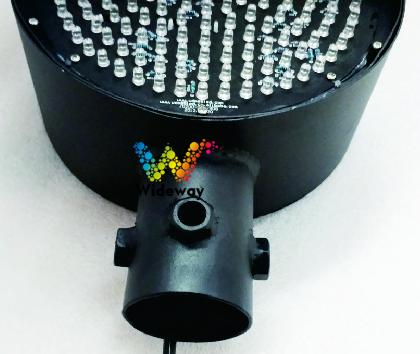

foot mounting:
1.Pass the power cable through the pole;
2. Then, insert the lamp into the pole and tighten the screws;
3. To prevent the lamp from being damaged by vibration, ensure it is securely fastened (as shown in the figure).

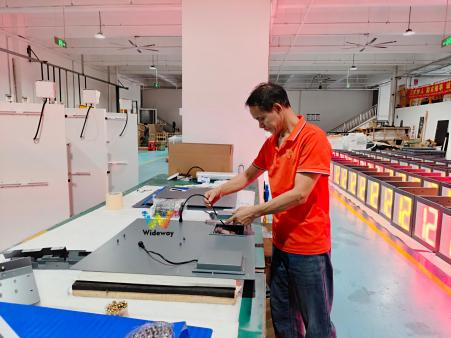

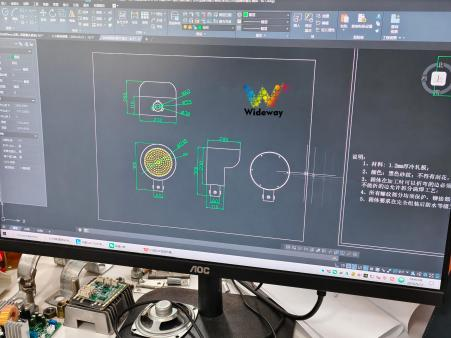

200MM Round Fog Light Production Details

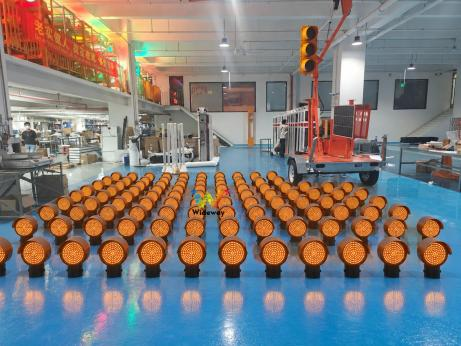

200MM Round Fog Light Batch Aging
200MM Round Fog Light Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
200MM Round Fog Light Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Product Name | Model 200 Round-Head Metal-Housing Fog Light |
|---|---|
| Number of LEDs | 180 |
| Product Model | WDM-SG200-C-Y-T |
| Dimensions | 225 × 250 × 300 mm |
| LED Type | Taiwan Epistar chips |
| Yellow Wavelength | 590–595 nm |
| Operating Voltage | AC 85–265 V |
| Operating Temperature | –40°C to 65°C |
| Protection Rating | IP53 |
| Rated Power | R ≤ 10 W |
| Visibility Distance | 1,000 m |
| Service Life | 100,000 hours |
| Housing Material | Steel |
| Beam Angle | 30° |
| fittings of a machine | quantity | Notes |
| lamps and lanterns | 1 unit | Yellow warning requirement |
| Screw + Nut | 3 sets | Fixed lighting fixture |
| certificate | 1 copy | As a material release certificate |
| product specification | 1 copy | Includes product technical specifications, illustrated installation steps, and safety and maintenance guidelines. |
