Solar powered radar speed detection sign 600×850mm, non‑enforcement traffic warning device with dual‑digit LED display. Equipped with microwave radar, IP56 aluminum housing, built‑in lithium battery, supports remote APP parameter adjustment for school, residential, construction road speed reminder.
600×850MM Solar Radar Speed Traffic Sign

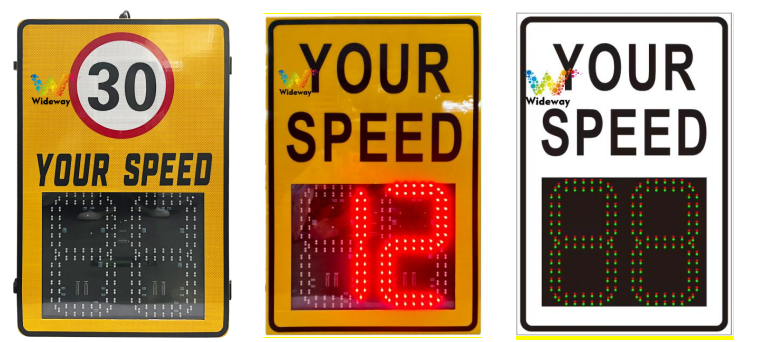

The 600×850 mm solar-powered dual-channel 88 MHz radar speed limit sign is a non-enforcement type of road traffic safety warning device. 600×850MM Solar Radar Speed Traffic Sign integrates microwave radar detection, high-brightness LED display, and a solar power supply system into a single unit, primarily designed for road speed advisory and warning purposes; 600×850MM Solar Radar Speed Traffic Sign does not possess vehicle violation capture or evidence recording functionality and is widely compatible with various road environments both domestically and internationally. The product is available in multiple panel configurations: version with speed limit signage, version with pure text on a yellow background, and version with text on a white background – all designed to comply with the road signage regulations of different regions (as shown in the figure below).
Product Functionality – 600×850 mm Dual-Function Solar-Powered 88 Radar Speed Measuring Signboard
Real-time radar speed measurement + Intuitive vehicle speed display:Equipped with a built-in microwave/mmWave radar, the system automatically detects the vehicle’s speed when the vehicle enters its detection range (typically between and 200 meters). 600×850MM Solar Radar Speed Traffic Signdisplays “YOUR SPEED” in real time via a high-brightness LED digital screen, enabling the driver to immediately know their current speed.
Over-speed visual warning:Pre-set road section speed limit value (e.g., the left-side model comes with a 30 km/h speed limit indicator):
Speed compliance: Typically displayed as a green digital number;
Vehicle speeding:automatically switches to red digital display (some models may feature flashing lights) as a high-visibility alert to prompt the driver to reduce speed; this constitutes a user-friendly early warning system and does not involve direct image capture or penalty enforcement.
Solar-powered independent supply:Equipped with a built-in solar panel and energy storage battery, this device requires no external mains power and is ideal for scenarios with challenging cabling conditions—such as remote roads, construction sites, industrial parks, or areas surrounding schools—operating automatically throughout all weather conditions.
Active speed control – reduces vehicle speed on specific road sections:Unlike static speed limit signs (which drivers are likely to overlook), real-time speed feedback serves as a psychological reminder for drivers to voluntarily reduce their speed; field tests have shown that this can lower the average vehicle speed on a given road section by 8%–25%, thereby reducing the risk of accidents caused by speeding.

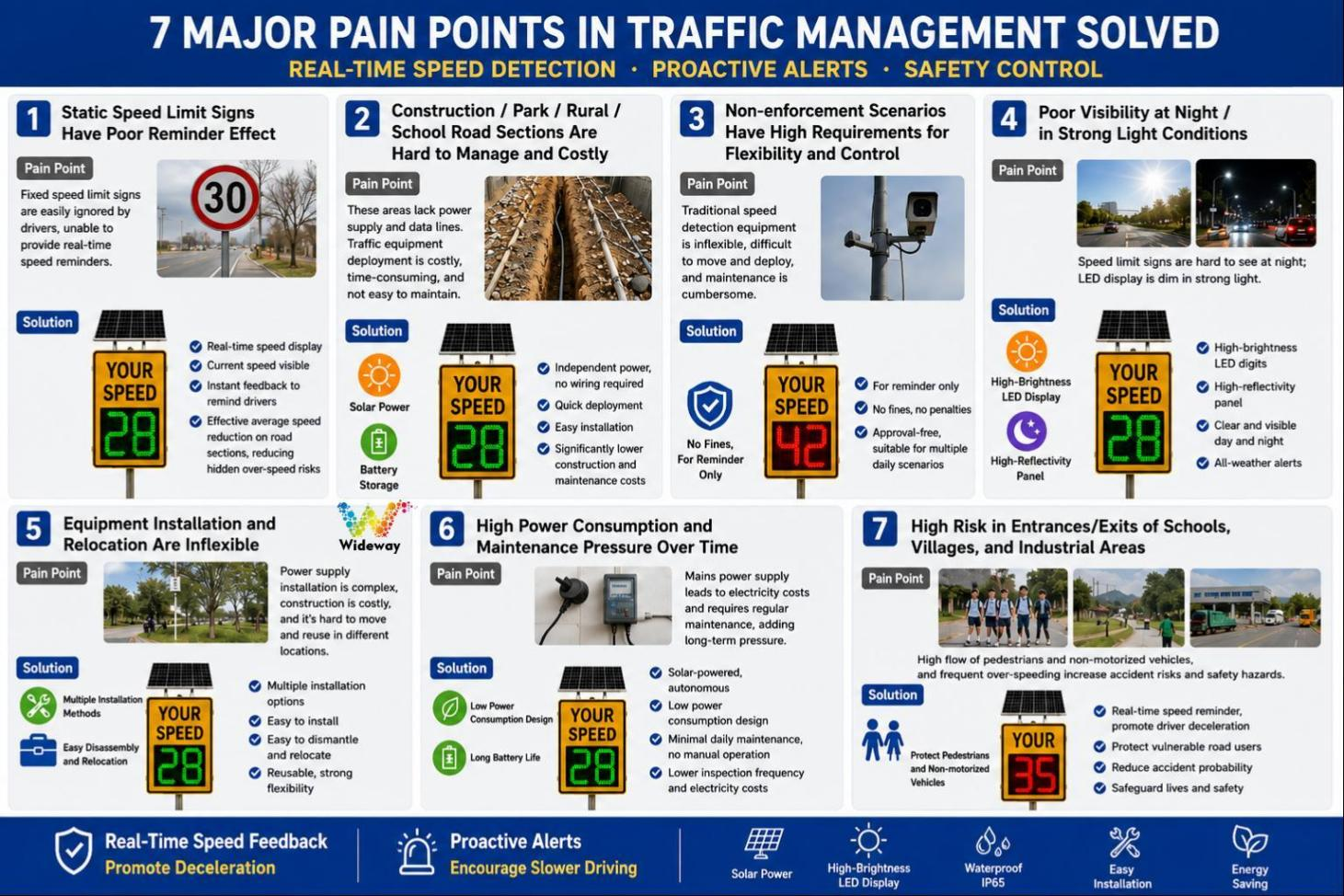

The 600×850 mm dual-channel 88MHz radar speed limit sign effectively addresses the core pain
Weak warning effectiveness of static speed limit signs
Conventional fixed speed limit signs are often overlooked by drivers as a matter of habit, rendering them ineffective as real-time reminders. This device displays the vehicle’s current speed in real time, providing intuitive feedback that psychologically encourages drivers to reduce their speed proactively, thereby effectively lowering the average speed on the road and mitigating the risk of speeding incidents.
The challenges of complex wiring installations and high power supply costs in construction sites, industrial parks, rural areas, campuses, and other road sections.
These areas often lack municipal power supply infrastructure; installing and wiring conventional utility power measurement equipment involves high costs and lengthy project timelines. Our product provides independent power supply via solar energy and energy storage batteries, eliminating the need for trenching or wiring work, enabling rapid installation and deployment, and significantly reducing both construction and operational maintenance costs.
Inflexible device installation and migration process
Can be mounted via hanging or vertical pole installation; easy to assemble and disassemble, allowing rapid relocation in temporary scenarios such as construction road sections – making 600×850MM Solar Radar Speed Traffic Sign eusable and offering greater flexibility compared to fixed mains power equipment.
High energy consumption and significant maintenance burden associated with long-term use
Solar-powered independent energy storage system with low-power consumption design requires minimal manual power supply maintenance during daily operation, thereby reducing subsequent inspection costs and electricity expenses.

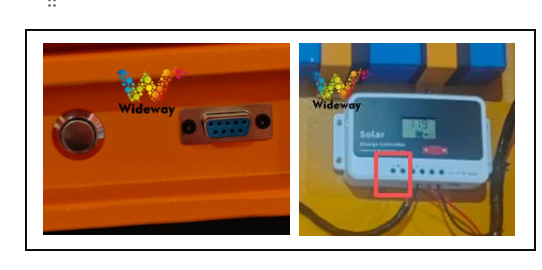

Wiring Instructions for the 600×850 mm Dual-Function 88 Radar Speed Measuring Signboard
AC85-265V (Power cord):
1.witch Power‑switch controlled lampcontrolled lamp
2.485 Communication Interface Lamp
3.Power Cable
Brown wire:
Live wire
Blue wire: Neutral wire Yellowgreen wire: Earth wire
Product Installation
Solar panel installation:
1. First, secure the bracket using screws; then, attach the fixed bracket to the back of the solar panel using screws;
2. Then, place the solar panel – already securely mounted on its bracket – onto the installation pole; align the mounting hole on the bracket with the corresponding hole on the clamp, and finally secure the panel to the bracket using a screw.

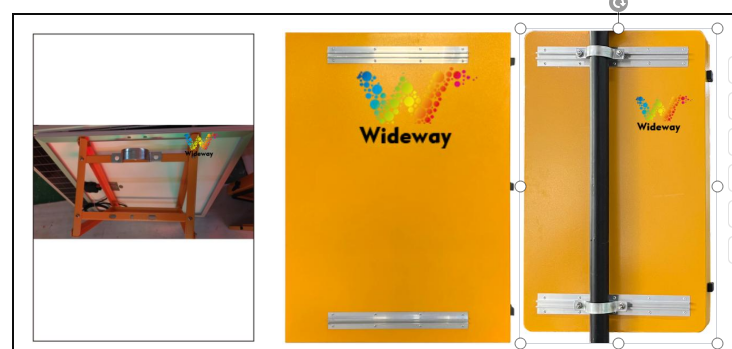

Clamp installation:
1. Insert the M10 screw through the aluminum groove on the back of the product, then fit a clamp around the vertical rod; pass the screw through the screw holes at both ends of the clamp and secure 600×850MM Solar Radar Speed Traffic Sign using a nut, a washer, and a spring washer.
2. Use one clamp at the top and one clamp at the bottom to secure each component to the vertical pole.
Optional Configuration Specifications (Select according to requirements)

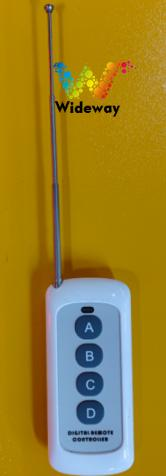

Remote control for setting speed limit value:
Keys A and B are used to set a speed limit value – press once to increase the value; Keys C and D control the speed reduction value – press once to decrease the speed; (10–95, with stepwise incremental or decremental changes of 5 levels each time)
600×850MM Solar Radar Speed Traffic Sign Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
600×850MM Solar Radar Speed Traffic SignWarranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Name | parameter |
|---|---|
| outline dimension | 600*850MM |
| LED bead category | Taiwan-based Epistar LED beads |
| Red wavelength | 620-625NM |
| Green wavelength | 500–505 nm (blue-green);520–525 nm (emerald green)： |
| life length | 100000H |
| Shell material | aluminium |
| working temperature | -40°C to 80°C – suitable for outdoor environments with extreme temperatures： |
| solar panel | 60W/18V |
| lithium cell | 30AH/11.1V |
| Light emission angle | 30° |
| levels of protection | IP56 – dust and splash protection |
| working voltage | DC12V |
| visual range | 1-1000M |
| way to install | Clamp installation |
| Quality Assurance | 3 years |
| fittings of a machine | quantity | Note: |
| Signage | 1 unit | Red/Green dual-color display – meets diverse warning requirements across various scenarios. |
| Clamp | 2 | Used for securely fastening the signboard body. |
| screw | 4 | Used for securely fastening signage and solar panel mounting clamps. |
| solar panel | 1 block | Solar panels with independent energy storage |
| Solar panel mounting bracket | 1 | Fixed solar panels |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation steps, and a safety maintenance guide |
