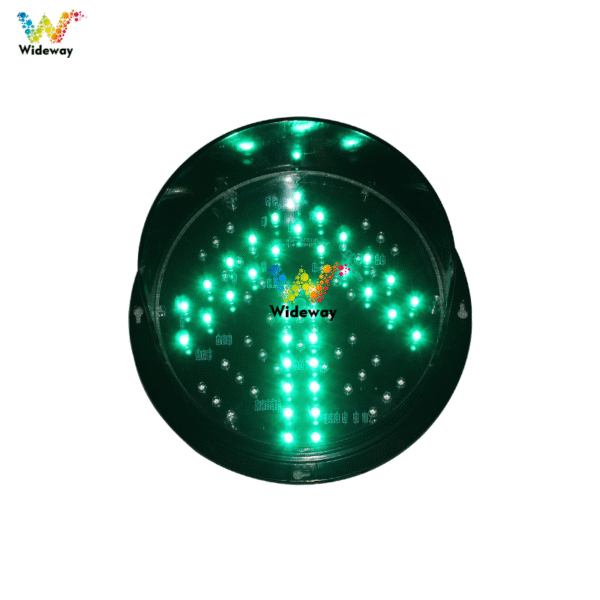

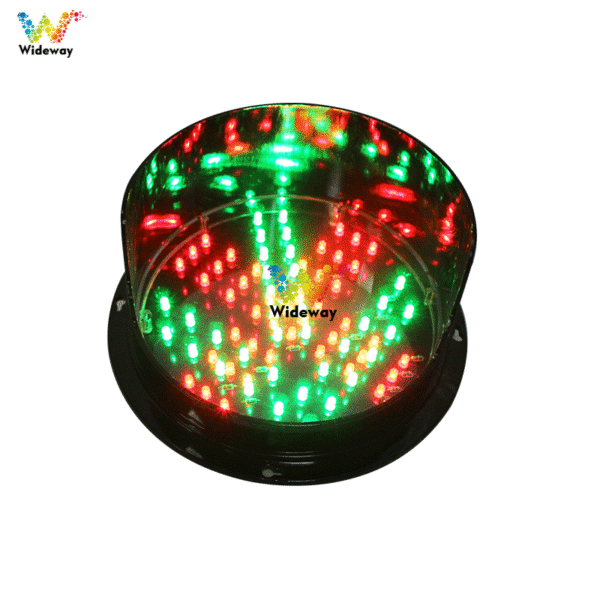

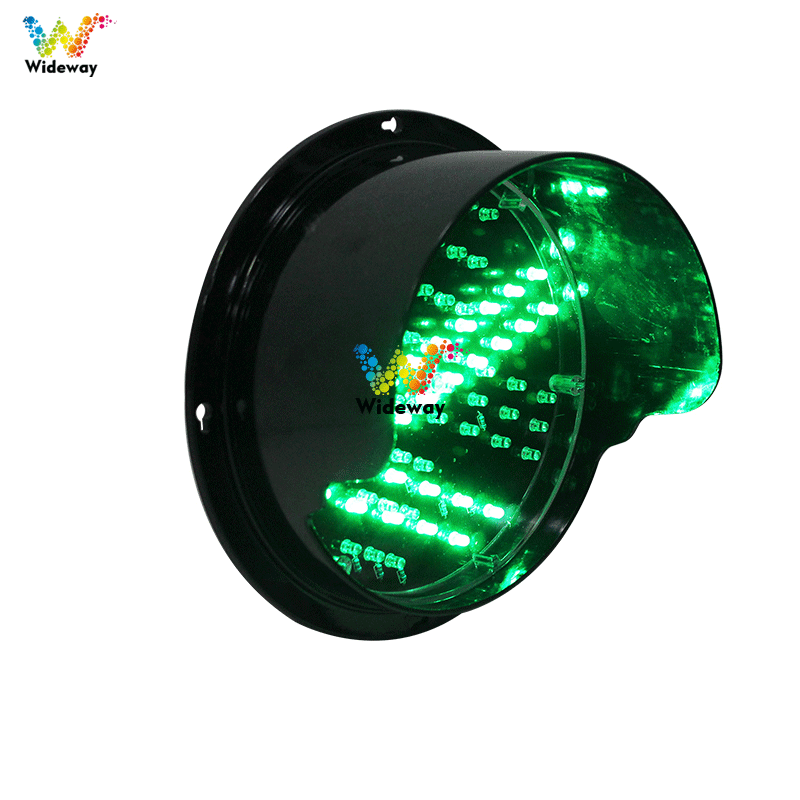

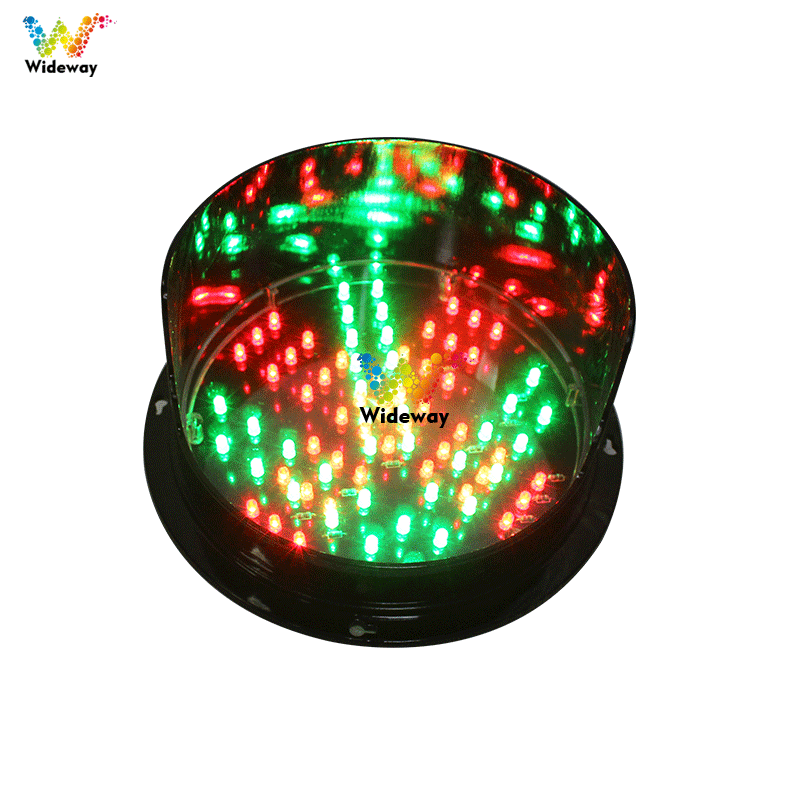

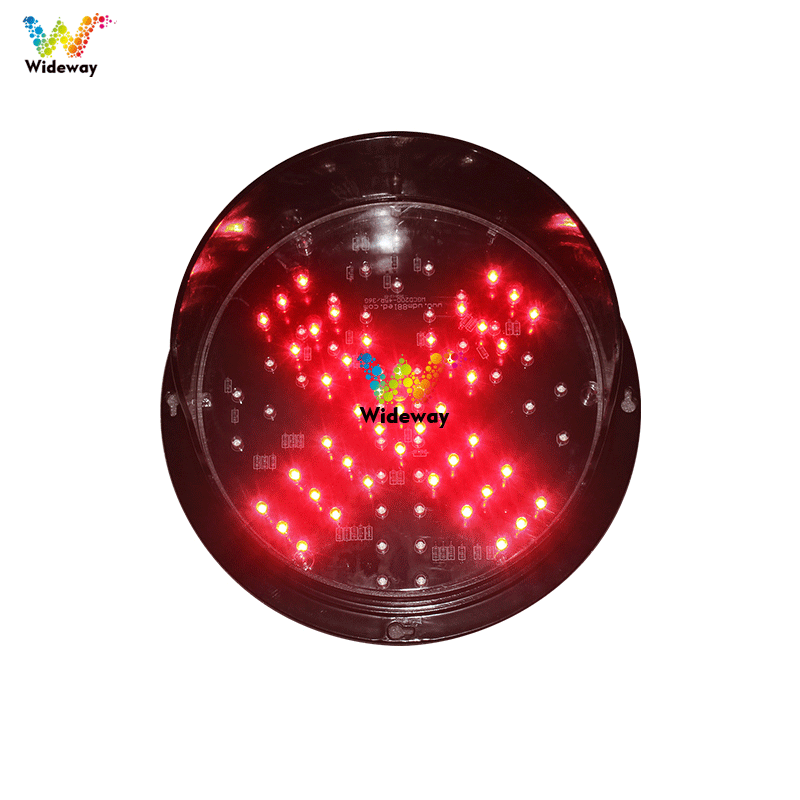

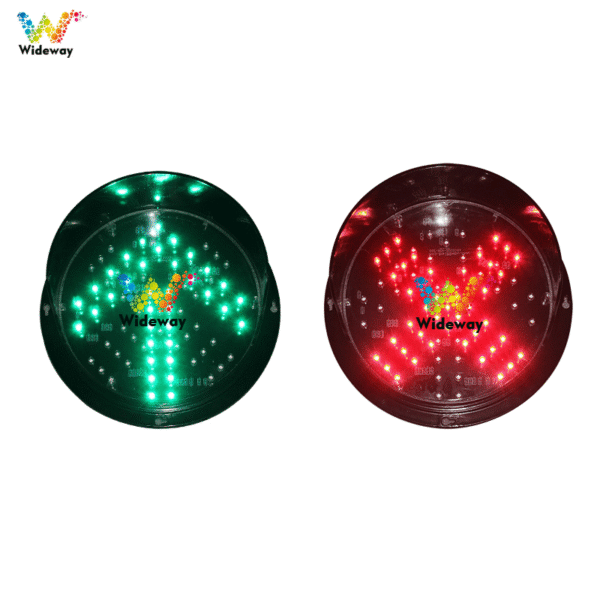

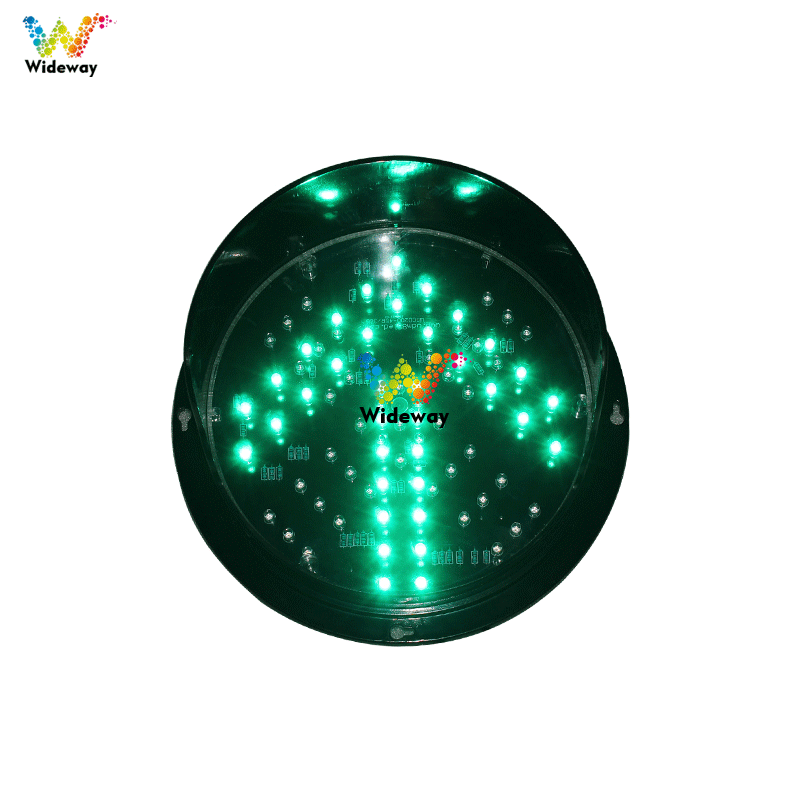

Model 200 LED Red X and Green Arrow Light Housing
Introduction to the Model 200 LED Red X and Green Arrow Light Housing:
The Model 200 LED Red X and Green Arrow Light Housing is a type of traffic signal light. It uses spot-beam LEDs, providing excellent warning visibility,
and is commonly used in traffic lights, car washes, factory and warehouse entrances, parking lots, and other locations.
Model 200 LED Red X and Green Arrow Light Housing Features:
1. Green energy; economical and environmentally friendly; contains no harmful substances and emits no pollutants.
2. Equipped with LED chips from Taiwan’s Epistar, with a service life of ≥100,000 hours; high brightness; a unique optical system ensures uniform color distribution, excellent warning effectiveness, and slow light decay.
3. Low power consumption, wide viewing angle, ultra-high brightness, long visibility distance, and long operating time.
4. Sturdy and durable. Stable and reliable, with a high protection rating. Impact-resistant, resistant to aging, and corrosion-resistant.
5. Exquisite appearance and innovative design.
6. Waterproof. Easy to install.
Parameter
| Product Model | WDM-CD-C200-RG |
|---|---|
| Product Name | Model 200 Red X and Green Arrow Light Housing |
| Product Dimensions | 235 × 192 × 100 mm |
| Number of LEDs | 45 red, 36 green |
| LED Type | Epistar chips from Taiwan |
| Yellow Wavelength | 590–595 nm |
| Red Wavelength | 620–625 nm |
| Green Wavelength | 500–505 nm (blue-green) / 520–525 nm (emerald green) |
| Service Life | 100,000 hours |
| Housing Material | PC |
| Operating Temperature | -40°C to 60°C |
| Protection Rating | IP53 |
| Operating Voltage | DC 12V / DC 24V |
| Visibility Distance | ≥800 m |
