600*400MM Traffic Light Countdown Timer

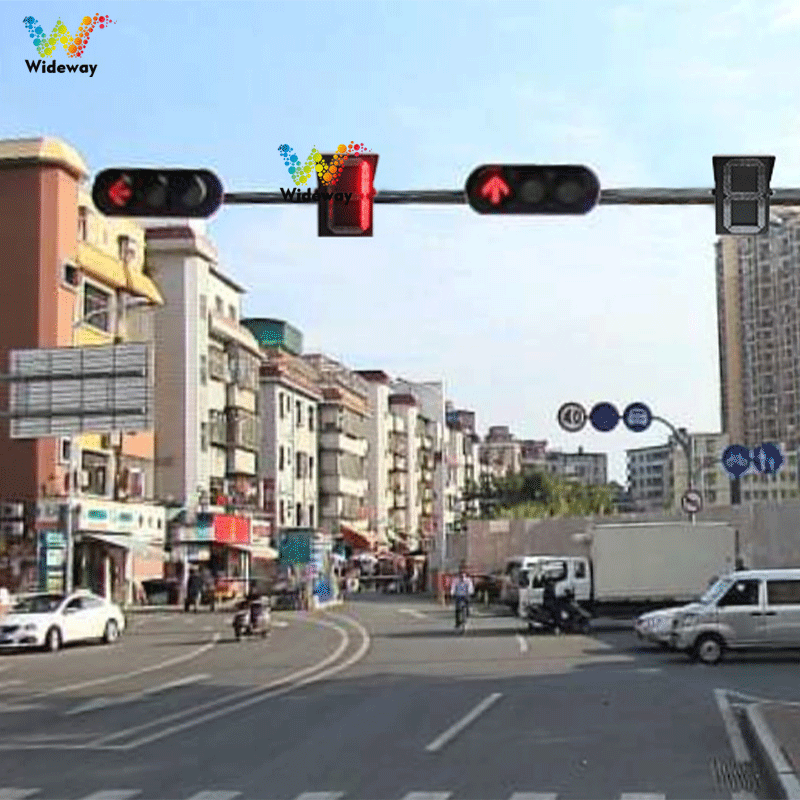

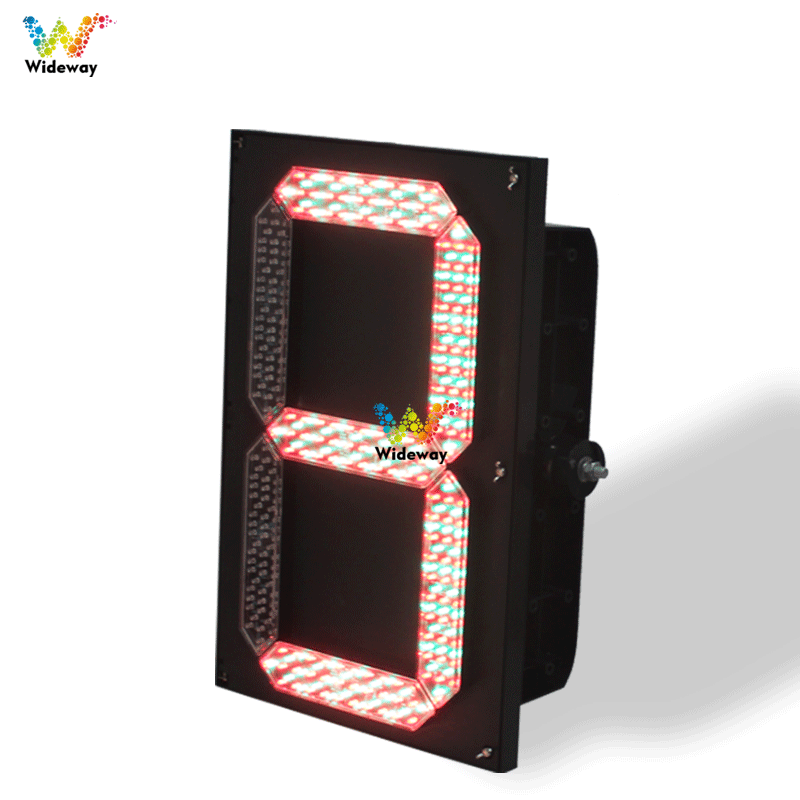

The 600×400 mm Traffic Light Countdown Timer is a type of countdown signal used on roads. It synchronizes with traffic lights at intersections to display the remaining time before the light changes, allowing passing drivers to prepare in advance and effectively reducing the frustration of waiting for the light to change. It features a single vertical 8-segment large-digit display with wide-stroke numerals, making the countdown time clearly visible from a distance—even from highway interchanges and by large trucks from a distance; the top features a built-in sunshade and rain visor that prevents glare and whitening in bright light, ensuring the numbers remain clearly visible even under direct midday sunlight.
Share This Products :
600MM Dingle 8 Traffic Light
Red Light Warning · Strong Penetration
High-brightness LED chips deliver strong light penetration and excellent long-distance visibility. Ideal for high-priority warning applications such as no-entry signals, equipment fault alerts, and other critical warning scenarios.
Green Light for Passage · Clear & User-Friendly
Soft and clear illumination, specially designed for passage authorization and normal equipment operation status. It provides excellent visibility and easy recognition, helping guide safe passage.
600MM Dingle 8 Traffic Light Feature Overview

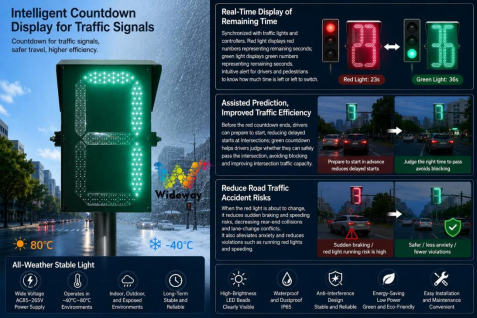

Intuitive display of remaining time, enabling proactive anticipation: The system shows in real time how many seconds are left until the current traffic light changes, so drivers and pedestrians don’t have to guess when the signal will change – they can prepare in advance to either stop or proceed.
Enhance intersection traffic efficiency: For the 600×400 mm single-vehicle countdown red light system, drivers can initiate their vehicle earlier as the countdown nears its end, thereby reducing vehicle startup time; the green light countdown allows vehicles to properly assess whether they can pass through the intersection smoothly, minimizing idling time, increasing intersection throughput capacity, and alleviating congestion.
Reduce intersection safety risks: minimize hazardous driving behaviors—such as sudden acceleration to gain a green light or emergency braking—when adjacent traffic signals change, thereby reducing rear-end collisions and overtaking conflicts; simultaneously, alleviate anxiety experienced while waiting at a red light and discourage illegal lane changes or running red lights.
All-weather visual warning system: High-brightness through-hole LED beads enable clear long-distance recognition even in high-light or rainy/misty conditions, enhancing driving safety in low-light environments such as tunnels and toll stations; uniform light distribution ensures an effective visibility range of 1–800 meters, enabling clear long-distance signal detection.
All-weather stable illumination: Operates on a wide voltage range of AC 85–265 V, suitable for extreme temperature environments from –40°C to 80°C; ensures long-term, continuous lighting performance both indoors and outdoors.

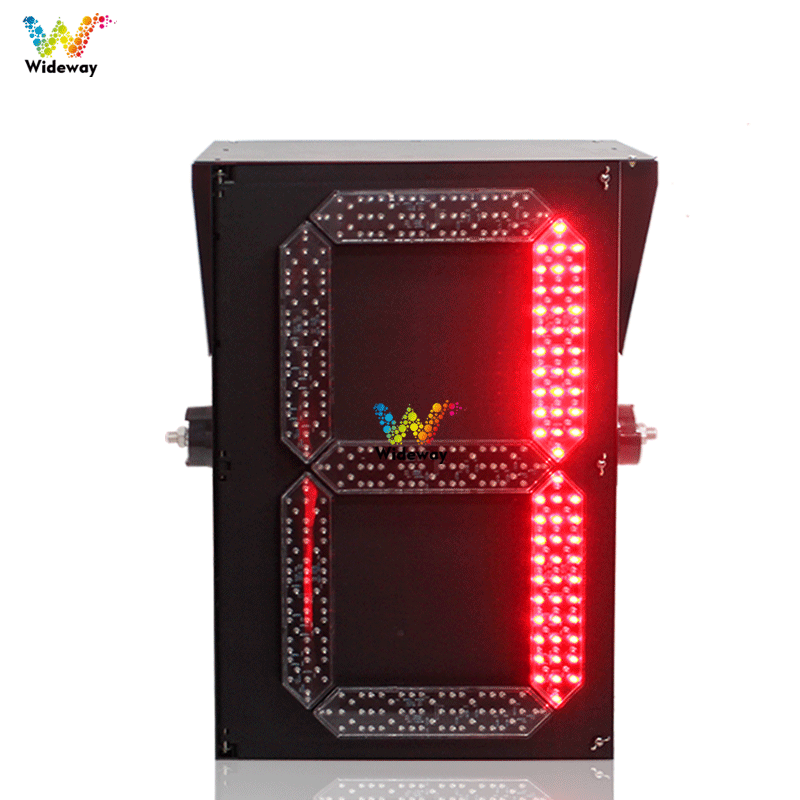

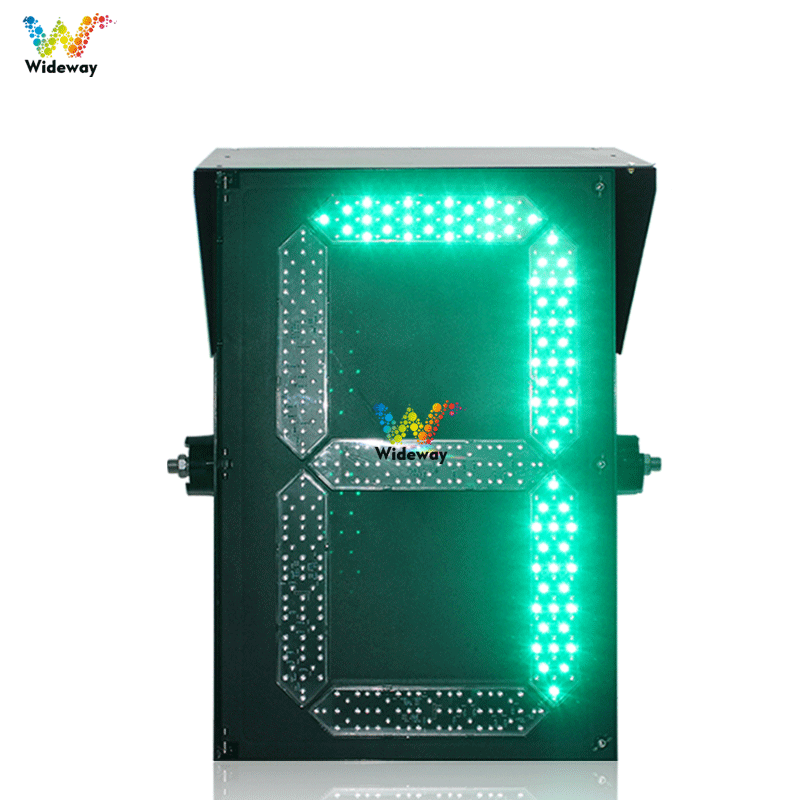

Real-time remaining time display: The 600×400 mm single countdown timer is synchronized with the intersection traffic signal; when the light is red, a red digit is displayed indicating the remaining seconds of waiting; when the light is green, a green digit is displayed indicating the remaining seconds for proceeding. This provides drivers and pedestrians with an intuitive indication of how much time remains before the signal changes.
Reduce the risk of traffic accidents at intersections: minimize dangerous driving behaviors such as sudden braking or abrupt acceleration to yield the right-of-way when traffic lights change, thereby reducing rear-end collisions and overtaking conflicts; simultaneously alleviate waiting anxiety and decrease violations such as running red lights or cutting in from behind.

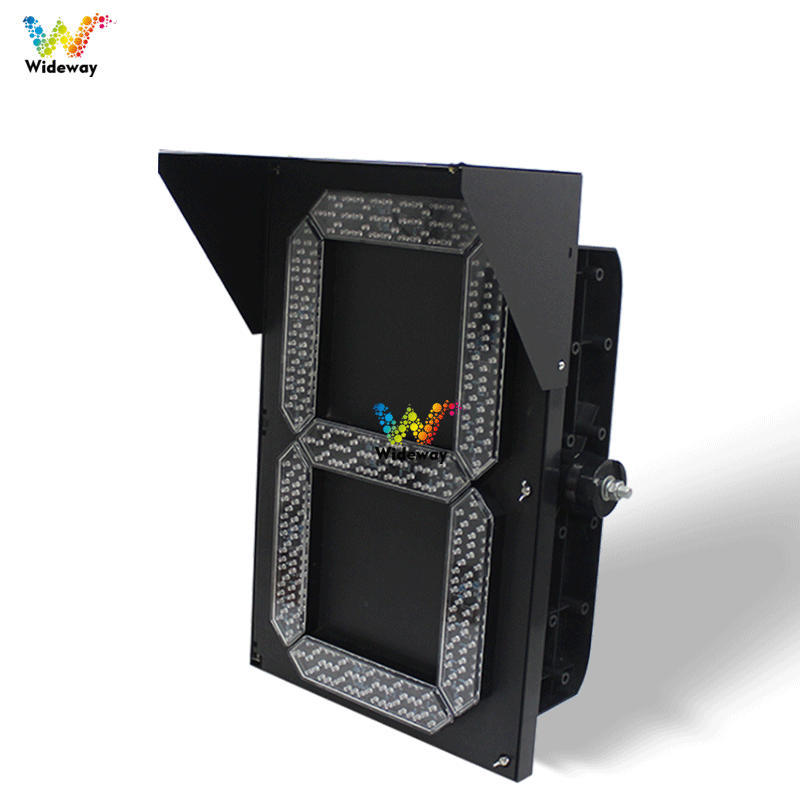

High-visibility LED display: Large digital display panel combined with high-brightness LED light source, equipped with a built-in shade – ensures clear readability under strong light, during rainy conditions, or from a distance; ideal for use at urban interchanges and major/secondary road intersections.
Signal synchronization adaptation: Supports integration with mainstream traffic signal controllers, automatically following the color and digital display changes of traffic lights; 600MM Single 8 Traffic Light is designed as a complementary auxiliary device for traffic signals and does not replace the traffic permission indication provided by the main signal light.
600MM Dingle 8 Traffic Light Solves core pain points for customers
• Solution: With only red and green dual lighting, the unnecessary yellow light unit has been removed, resulting in lower equipment procurement costs and a more compact device size – making 400MM traffic light two aspect perfectly suited for scenarios where pole-mounted installation space is limited.
• Solution: 400 mm large-lighting-area LED lamp disc with built-in sunshade to reduce glare; high-brightness LEDs ensure long-range visibility and clear signal recognition even in rainy or foggy conditions, thereby reducing the risk of driver misjudgment.
• Solution: IP65 protection rating – dust-and water-resistant; wide operating temperature range – resistant to direct sunlight, rain, and snow – enables long-term stable operation in outdoor environments, reducing equipment downtime due to malfunctions.
• Solution: LED light sources feature a long service life and low power consumption, helping to reduce electricity costs; the modular lamp panel allows individual lamps to be replaced when faulty, eliminating the need to disassemble the entire fixture, thereby lowering spare parts procurement and high-altitude maintenance costs.
• Solution: Direct integration with traffic signal controllers and turnstile control systems is supported; the nighttime flashing warning mode eliminates the need for additional warning light equipment, simplifying control system configuration.
• Solution: Dual-unit design reduces the overall machine height, minimizes installation space requirements, and makes 400MM traffic light two aspect ideal for installation in confined spaces.
• Solution: A red light indicates that the lane is closed and vehicles are prohibited from entering; a green light indicates that the lane is open for traffic. This provides drivers with an intuitive indication of the lane status, preventing vehicles from mistakenly entering closed lanes and reducing the risk of traffic accidents.
600MM Single 8 Traffic Light Wiring Instructions
Red line
The Red Light Line provides power input to the red LED module, ensuring proper illumination of the red light.
Green line
Green light line – independently controls the green LED module, enabling individual switching of the green light source.
Black line
The public neutral conductor, which serves as the common terminal for the circuit loop, must be reliably connected to the power supply neutral conductor.
Wide-range voltage
Supports a wide input voltage range of AC 85–265 V, compatible with power grid voltage standards worldwide.
Product Installation (Vertical Installation Example)
01. Remove nut
There is a screw at each end; loosen the nut on the screw.
02. Fixed L-shaped bracket
Fit the flat end of the L-shaped bracket onto the screw according to the hole position and the slot, then tighten the nut. Tighten the nut;
3. Sunshade Hat Installation
The sunshade cap is installed on the upper part of the lamp; the longer shade is mounted at the top of the lamp body, while the shorter shade is mounted on the sides; secure the shade by tightening the screws into the corresponding holes.
4. Whole-unit component installation
Drill two holes in the signal light pole according to the hole locations specified on the signal light body; insert an appropriate screw through the pole, then fit an L-shaped bracket over the screw and secure 600MM Single 8 Traffic Light with a nut.
600MM Dingle 8 Traffic Light Usage Precautions
This product features a PC plastic casing; avoid applying excessive pressure to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
600MM Single 8 Traffic Light After-Sales Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer Return
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items for repair shall be borne by the sender in a one-way manner.
| Product Name | 600 x 400 mm Traffic Light Countdown Timer |
|---|---|
| Product Dimensions | 600 x 400 x 100 mm |
| Product Model | WDM-DJS600*400-RG |
| Number of LEDs | 224 red, 168 green |
| LED Type | Taiwan Epistar Chip LEDs |
| Red Wavelength | 620–625 nm |
| Green Wavelength | 500–505 nm / 520–525 nm |
| Yellow Wavelength | 590–595 nm |
| Operating Voltage | AC 85–265 V |
| Operating Temperature | -40°C–65°C |
| Rated Power per Light | ≤15 W |
| Visibility Range | 1–800 m |
| Housing Material | Plastic |
| Beam Angle | 30° |
| Service Life | 100,000 hours |
| fittings of a machine | quantity | Note: |
| lamps and lanterns | 1 unit | Available in red and green dual colors to meet various warning requirements across different scenarios. |
| L-shaped bracket | 2 | High-strength cold-rolled steel sheet – used to securely fasten the luminaire body. |
| Sunshade Hat | 1 set | Reduces sun glare |
| certificate | 1 copy | As a material release certificate |
| product specification | 1 copy | Includes product technical specifications, illustrated installation steps, and a safety and maintenance guide. |
