Model 200 LED Red X and Green Arrow Light Housing
Introduction to the Model 200 LED Red X and Green Arrow Light Housing:
The Model 200 LED Red X and Green Arrow Light Housing is a type of traffic signal light. It uses spot-beam LEDs, providing excellent warning visibility,
and is commonly used in traffic lights, car washes, factory and warehouse entrances, parking lots, and other locations.
Share This Products :
200mm Red Cross Green Arrow Lamp Tube
Red Alert
High-brightness LED chips offer superior light transmission capabilities. They are ideal for high-visibility warning scenarios—such as no-entry zones and equipment failure alerts—providing exceptional visibility over long distances.
Green Light Passage
The lighting is soft and clear, specifically designed to ensure clear access and the proper operation of equipment. Type 100 lamp housing
is visually intuitive, offers high recognizability, and guides safe passage.
Product Features of Model 200 Red Cross & Green Arrow Light Assembly
Red X symbol: When illuminated, it indicates that the current lane is closed and vehicles are prohibited from entering. This symbol is commonly used in scenarios such as temporary lane closures, vehicle maintenance, lane closures at toll stations, or tunnel access controls, serving as a warning to drivers not to enter the affected lane.
Green Arrow: When illuminated, it indicates that the current lane is open, allowing vehicles to enter and travel normally; it signals that the current lane is available.
Traffic guidance and lane diversion: Visible from a distance, this system provides drivers with advance information on the open or closed status of lanes, guiding vehicles to select their appropriate lanes in advance. This approach reduces abrupt lane changes and lane-claiming maneuvers near toll gates, thereby enhancing traffic efficiency.
Safety Warning: When a lane is closed, a prominent red cross symbol is displayed to prevent vehicles from accidentally entering the closed lane, thereby reducing the risk of collisions and rear-end accidents. This warning is commonly used on ETC toll shelters and variable lane signs in tunnels.
The Type 200 red cross and green arrow lamp housing addresses the key pain points of our customers.
Solution: Emergency lane changes pose risks of scraping, rear-end collisions, traffic congestion, and accidents.
The red cross and green arrow indicators remain visible from a distance, providing drivers with early feedback on lane conditions, guiding them to change lanes in advance, reducing abrupt lane changes at traffic junctions, thereby lowering the risk of accidents and enhancing traffic efficiency.
Solution: High maintenance costs, prolonged assembly and disassembly times, and a high failure rate.
Modular independent lamp tubes allow any single lamp tube to be replaced individually without the need to replace the entire unit; the high-strength PC cover is UV-resistant, waterproof, and dust-proof (IP55), making it suitable for tunnel and canopy condensation environments, thereby reducing the frequency and cost of subsequent maintenance.
Solution: Unstable performance at high and low temperatures; poor pattern recognition, making signals difficult to discern.
Dot-matrix high-brightness LEDs ensure clear patterns in day, night, and rainy or foggy conditions; they feature a wide operating temperature range (-40 °C to +60 °C), constant-current driving, and stable brightness without flickering.
Solution: Traditional traffic signals exhibit high power consumption, leading to elevated electricity costs during prolonged operation; furthermore, their light sources degrade rapidly, necessitating frequent replacements.
Low-power LED light source featuring low power consumption per luminaire, with an LED lifespan of ≥100,000 hours, ensuring energy efficiency and durability for long-term use.
Wiring Instructions for Model 100 Lamp Housing
Red line
positive terminal of the red light
Green line:
positive terminal of the green light
Black line:
negative electrode
Voltage:
Supports DC 12V/24V.
Product Installation (Vertical Installation Example)
Screw installation:

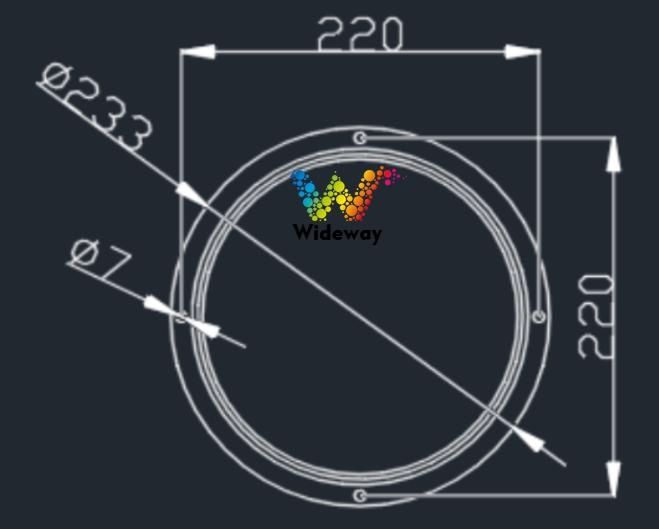

The lamp housing features four mounting holes, which can be secured to the installation surface using screws.
Usage Precautions
This product features a PC plastic casing; avoid applying excessive pressure to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
Usage Instructions & After-Sales Warranty
Usage Instructions
The 125mm three-aspect traffic light features a high-strength sheet-metal casing coated with electrostatic spray paint; avoid applying excessive pressure or subjecting it to severe impacts to prevent damage or deformation. The installation, wiring, and power-on procedures for the luminaire must be performed under the guidance of a qualified professional electrician. Non-professional individuals are advised not to disassemble or assemble the unit independently, as this may lead to circuit malfunctions or electric shock hazards.
Warranty Commitment
We provide a 3-year original manufacturer's warranty to ensure the proper functioning of the luminaire's main structure and core light source; however, wear-and-tear components (e.g., lampshades, connecting cables) and customized non-standard products are not covered under this warranty.
Repair Submission Process
For the customer return-to-service model, please first contact our after-sales customer service to register the fault details; upon receiving authorization, please return the product to a designated service center or send it back to the manufacturer via courier for professional inspection and repair.
Disclaimer
Damage resulting from human-induced damage, unauthorized modification, improper use, or force majeure events (such as fire, earthquake, or voltage abnormalities), as well as malfunctions caused by failure to operate the device in accordance with the instruction manual, are not covered under the free warranty.
Logistics Responsibility
For product repairs, the one-way shipping cost incurred when sending the product from the customer to the after-sales service point shall be borne by the customer; for defects identified during inspection as falling within the warranty scope, the shipping cost for returning the repaired product shall be covered by the brand owner.
| Product Model | WDM-CD-C200-RG |
|---|---|
| Product Name | Model 200 Red X and Green Arrow Light Housing |
| Product Dimensions | 235 × 192 × 100 mm |
| Number of LEDs | 45 red, 36 green |
| LED Type | Epistar chips from Taiwan |
| Yellow Wavelength | 590–595 nm |
| Red Wavelength | 620–625 nm |
| Green Wavelength | 500–505 nm (blue-green) / 520–525 nm (emerald green) |
| Service Life | 100,000 hours |
| Housing Material | PC |
| Operating Temperature | -40°C to 60°C |
| Protection Rating | IP53 |
| Operating Voltage | DC 12V / DC 24V |
| Visibility Distance | ≥800 m |
| fittings of a machine | quantity | Notes |
| Lamp tube | 1 unit | Available in red, yellow, and green, to meet the warning requirements of diverse scenarios. |
| certificate | 1 copy | As a material release certificate |
| product specification | 1 copy | Includes product technical specifications, illustrated installation steps, and safety and maintenance guidelines. |
