1-meter-wide traffic lights

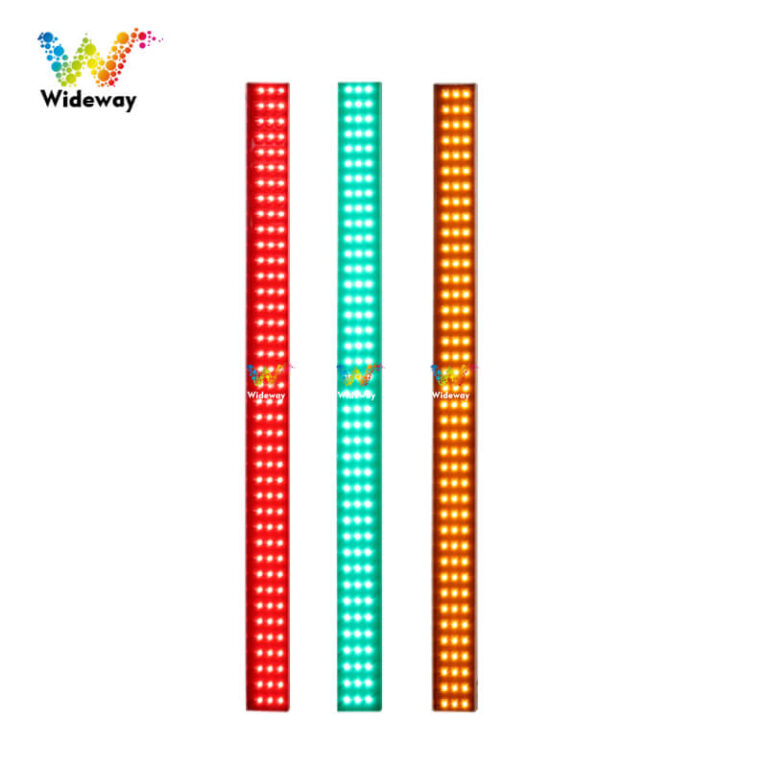

The front of the 1-meter pavement traffic light features a white polycarbonate panel, with a stainless steel housing. The interior uses transparent adhesive, and the bottom is completely filled with adhesive, ensuring that rainwater cannot penetrate the product—it is absolutely sealed and waterproof. The internal soft rubber is elastic, highly adhesive, and resistant to shock and pressure; it provides a certain degree of cushioning when vehicles drive over it. The LED lights on the panel use F5 round-head large-chip LEDs designed for direct insertion into traffic signal lights, offering excellent heat dissipation;
The 1-meter ground-mounted traffic light is a type of signal used at pedestrian crossings. It displays red and green indicators and is installed at ground level, primarily on crosswalks or on traffic islands—specifically in front of the first crosswalk. This allows pedestrians who are looking down while walking to see the traffic status at all times, thereby reducing the occurrence of traffic accidents!
1.1-meter-long traffic light floor tiles are auxiliary equipment in our company’s range of pedestrian crossing facilities designed with user-friendliness in mind. They serve as a visual reminder to pedestrians not to jaywalk, encouraging them to cross the street safely in accordance with pedestrian traffic signals; they help foster good, civilized travel habits and ensure road traffic safety; and they demonstrate a commitment to human welfare while enhancing the image of urban roads.
2.1-meter pavement traffic light is pressure-resistant and shock-resistant. Made of special plastic, it serves as an excellent insulating material. The surface features a matte finish and an anti-slip design.

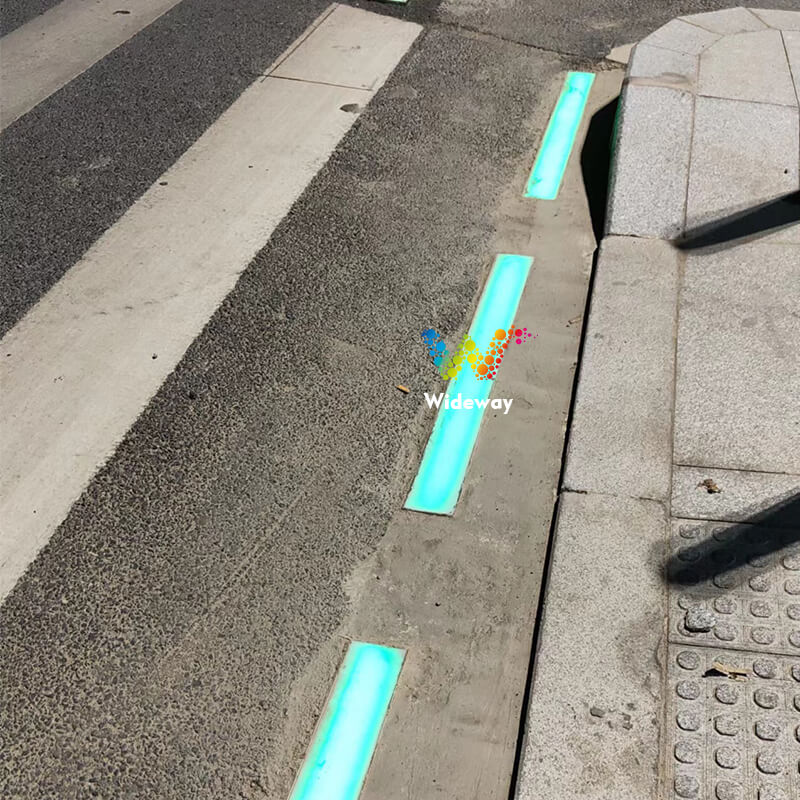

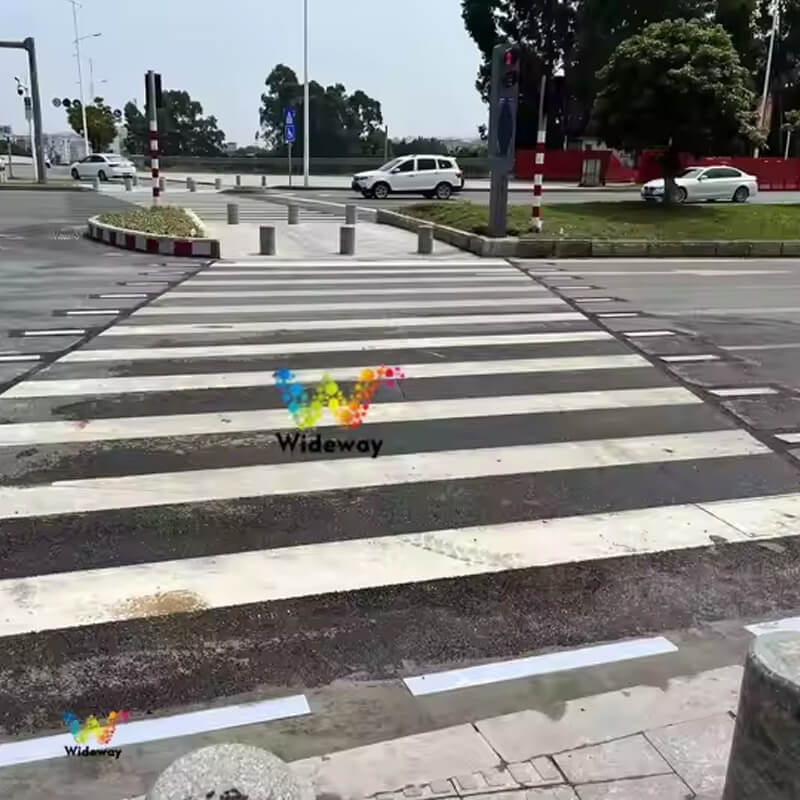

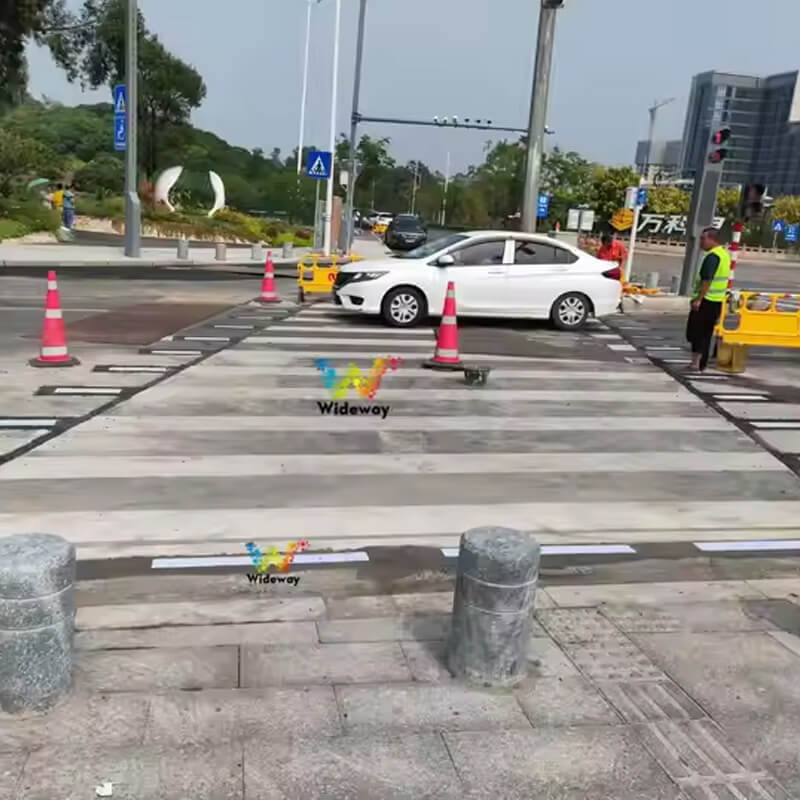

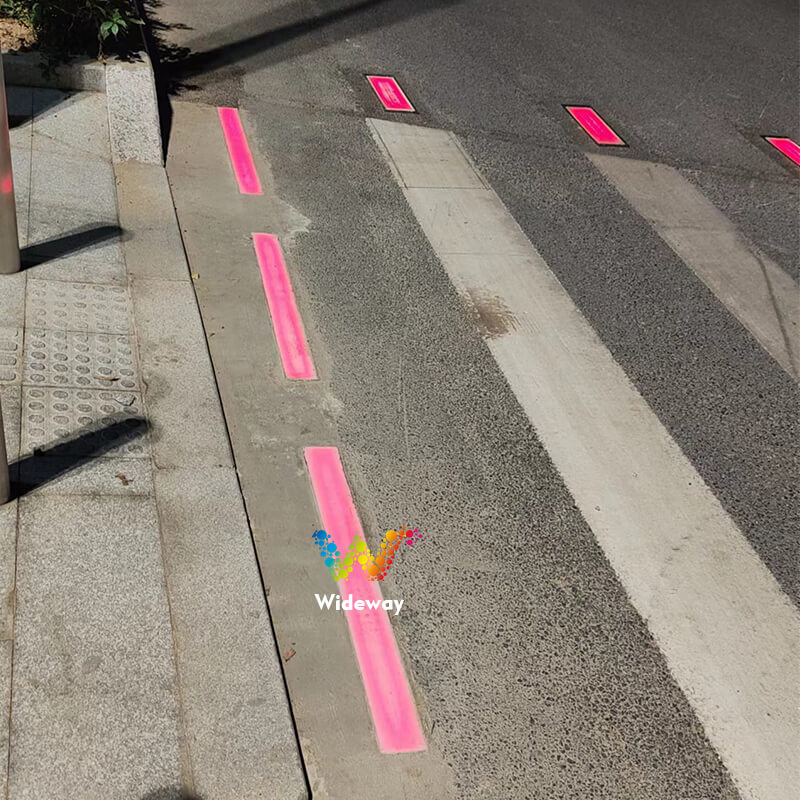

3.1-meter pavement traffic light is typically installed at both ends of a crosswalk; it can also be installed on a pedestrian safety island, specifically in front of the first crosswalk. With a load-bearing capacity exceeding 50 tons, its primary function is to serve as a visual aid, beautifying urban roads, reinforcing safety reminders, and alerting “phone-zombies” to the traffic light status to help them cross the crosswalk safely.
4.1-meter ground-mounted traffic signal offers a high safety factor and operates on a DC 24V power supply. The ground-mounted lights synchronize seamlessly with audio prompt columns or pedestrian signal lights, with no delay.
5.1-meter ground-mounted traffic signal is internally filled with transparent adhesive that completely covers the light board. The soft adhesive bonds fully with the outer casing, and a layer of tempered glass is placed on top to enhance the unit’s pressure resistance and ensure complete waterproofing.
Parameter
| Red Tube | Epistar chip 625±2nm 4500mcd 140 pieces |
|---|---|
| Green Tube | Epistar chip 525±2nm 10000mcd 140 pieces |
| LED Configuration | 5mm diameter round tube |

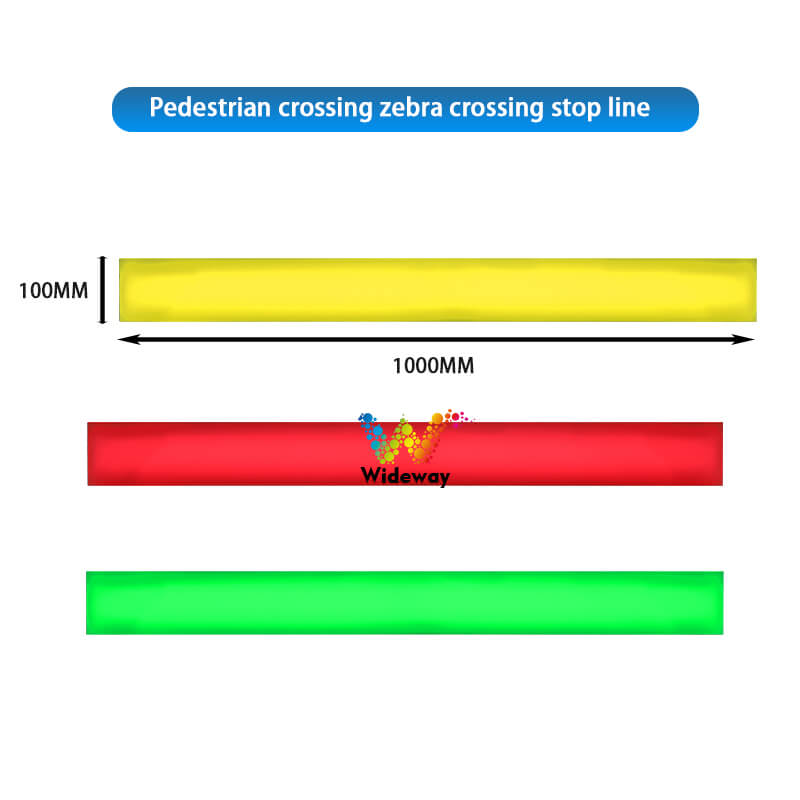

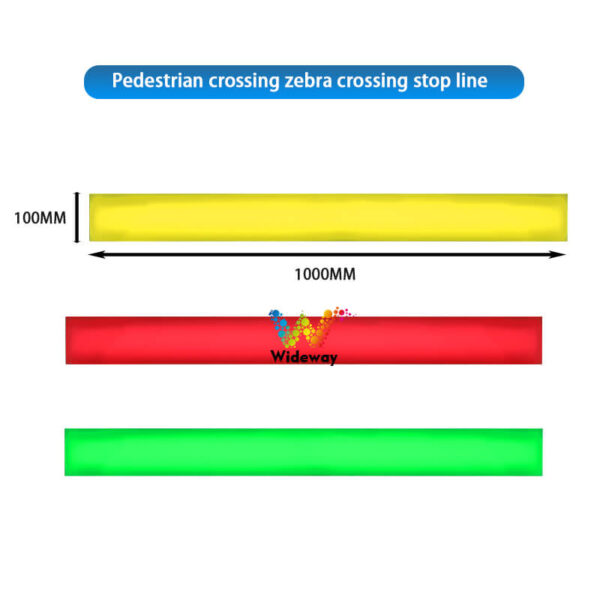

| Product Dimensions | 1000*100*60mm |
| Housing Material | Polymer composite material, stainless steel housing |
| Rated Power | R: 7.68W, G: 9.6W |
| Operating Voltage | DC 24V |
| Operating Current | 160mA |
| Average Luminous Intensity | ≥8000 cd/m² |
| Visibility Range | 20–300 m |
| Operating Temperature | -40°C to +65°C |
| Relative Humidity | 10%–95% |
| Insulation Rating | >1500 V |
| Leakage Current | ≤3 mA |
| Mean Time Between Failures (MTBF) | ≥10,000 hours |
| Service Life | ≥100,000 hours |
| Uniformity | Uniform brightness |
| Protection Rating | IP65 |
| Installation Method | Underground |
