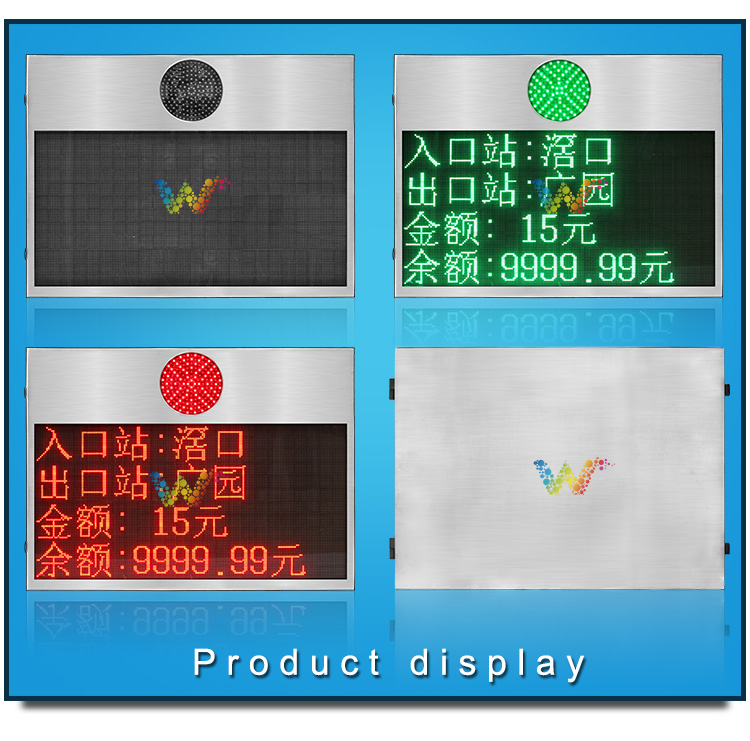

    ETC Usage Price Charge Calculation Pricing Indicator LED Fare Display

    Fare led display

    The Specification for the ETC Usage Price Charge Calculation Pricing Indicator LED Fare Display:

    Name ETC Usage Price Charge Calculation Pricing Indicator LED Fare Display
    Shell Material Galvanized cold-roll steel sheets (SPCC) powder coating

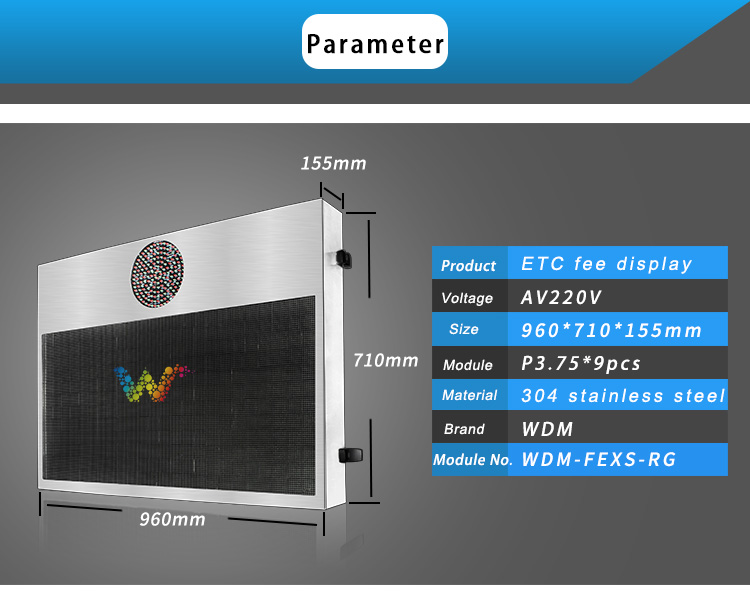

    Dimension(H×W×T)mm 960X710X155mm
    Display Size (H X W) mm customized
    Display Size for Red and Green Traffic Signal (H X W)mm 110X110
    Display Specification Inserted LED, tube chip: Φ3.75mm, pixel pitch:4.75mm
    Display Dot Matrix (HXW) 64X128 dot matrix, full Screen 4X8 chinese characters or 4X16 ASCII characters.
    Display Dot Matrix Type 12 dot matrix, 16 dot matrix, ASCII font and GB2312 font
    Communication Interface  RS232 serial port
    Communication Protocol According to Project Road segment autofit or customer requests
    Display Unit Luminous Intensity >1500cd/m^2
    Display Unit Drive Method 1/8 scan constant current
    Display Brightness Adjustment Software level 8
    Red and Green Traffic Signal Control Method Software control / AC220V/DC24V/DC12V as per customer request.
    Operating Voltage  220V±20%,50HZ±10%,AC110V±20%,50HZ±10%(as per customer requests).
    Power ≤120W
    Operating Temperture -40~+70℃
    MTBF 50 thousands hrs
    Using Life 100 thousands hrs
    Waterproof and Dustproof IP65
