Super brightness 400mm countdown timer arrow traffic signal light

Super brightness 400mm countdown timer arrow traffic signal light

Short Description:

Super brightness 400mm countdown timer arrow traffic signal light Name Super brightness 400mm countdown timer arrow traffic signal light  Product size  1880*470*140mm LED QTY arrow:99pcs each color     timer:168pcs each color Lamp diameter  400mm LED luminous  RED :620-630nm  ,green :505-510nm,yellow:590-594nm Wave length  red /yellow:4000-5000mcd , green : 8000-10000mcd Life span  3-5 years  NET Weight  18KG visual angle  30 °C Visual distance  1000m Warranty  2years ...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Super brightness 400mm countdown timer arrow traffic signal light

    400mm traffic light

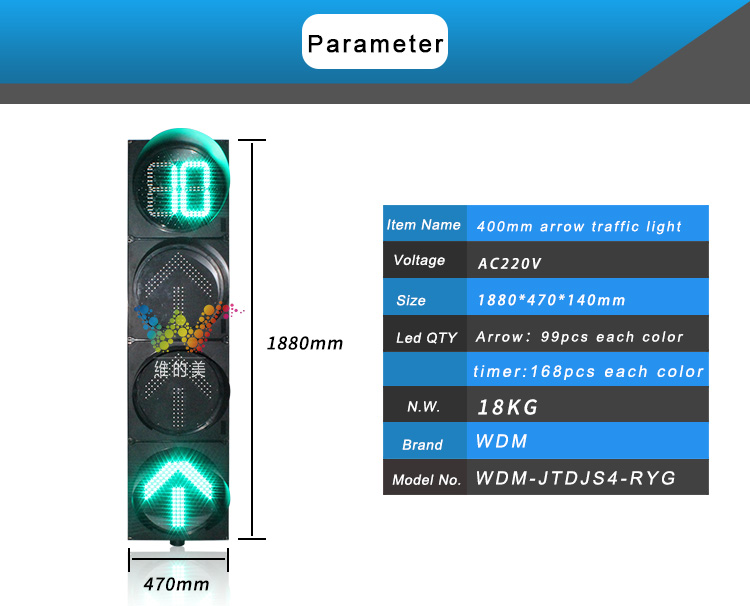

    Name Super brightness 400mm countdown timer arrow traffic signal light
    Product size  1880*470*140mm
    LED QTY arrow:99pcs each color     timer:168pcs each color
    Lamp diameter  400mm
    LED luminous  RED :620-630nm  ,green :505-510nm,yellow:590-594nm
    Wave length  red /yellow:4000-5000mcd , green : 8000-10000mcd
    Life span  3-5 years
    NET Weight  18KG
    visual angle  30 °C
    Visual distance  1000m
    Warranty  2years
    Working temperature  -40℃–+50℃
    LED type Taiwan Epistar

    Application :

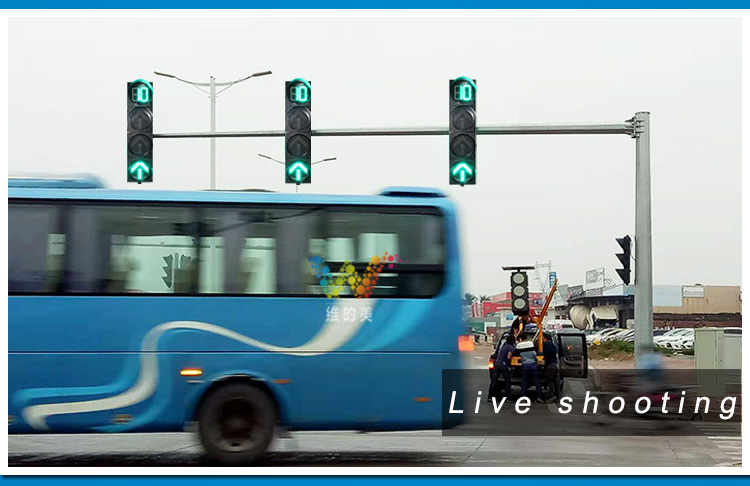

    use for cross road , high way ,turning road ,school ,parking area,etc

    1_02

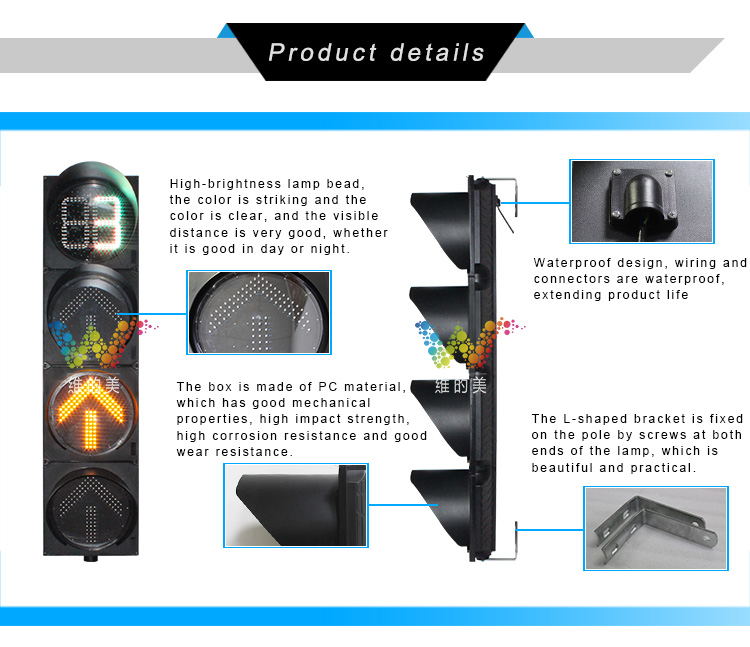

    Second, the traffic road 400mm countdown timer arrow traffic signal light features:
    1. Traffic Road 400mm countdown timer arrow traffic signal light uses Taiwan crystal chip lamp beads, high brightness, high refresh

    rate, long service life.
    2. Traffic road 400mm countdown timer arrow traffic signal light The rear of the traffic light is designed with a wire outlet, which is not

    only convenient for outlet, but also has a good waterproof effect.
    3. The 400mm countdown timer arrow traffic signal light sunshade of the traffic light is made of PC material, which has better waterproof

    and dustproof effect and simple installation.
    4. Traffic Road 400mm countdown timer arrow traffic signal light Each light and light of the traffic light is designed with a snap-on design

    to facilitate product inspection and maintenance.
    5. Traffic road 400mm countdown timer arrow traffic signal light with yellow flash function

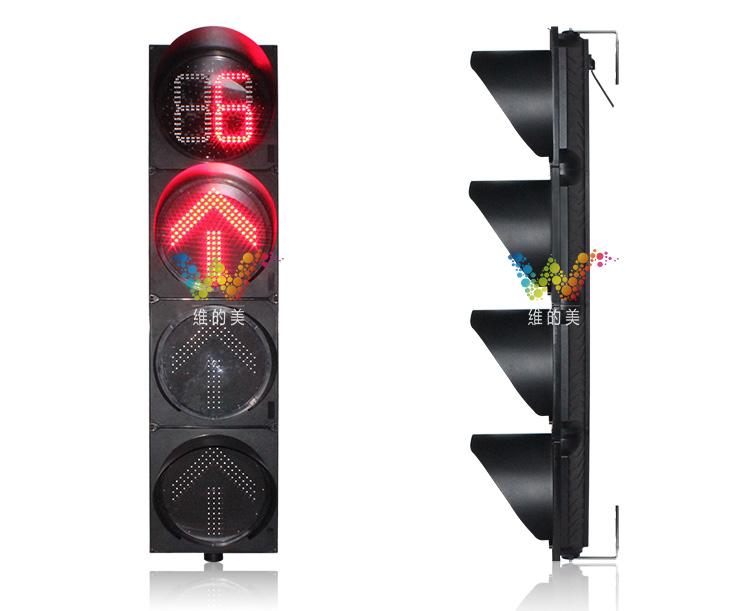

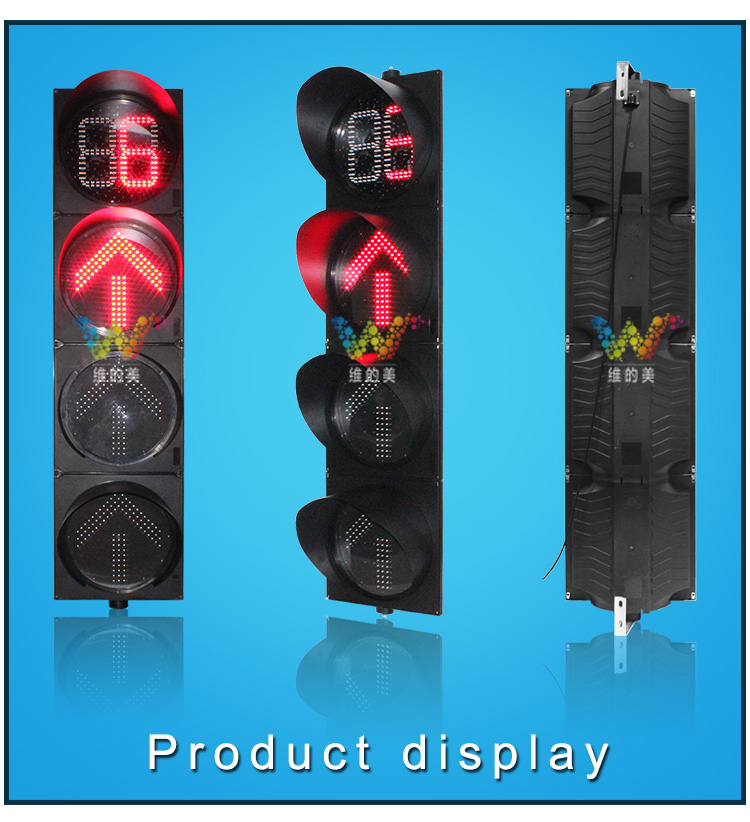

    Third, the traffic map 400mm countdown timer arrow traffic signal light physical map:

    1_04

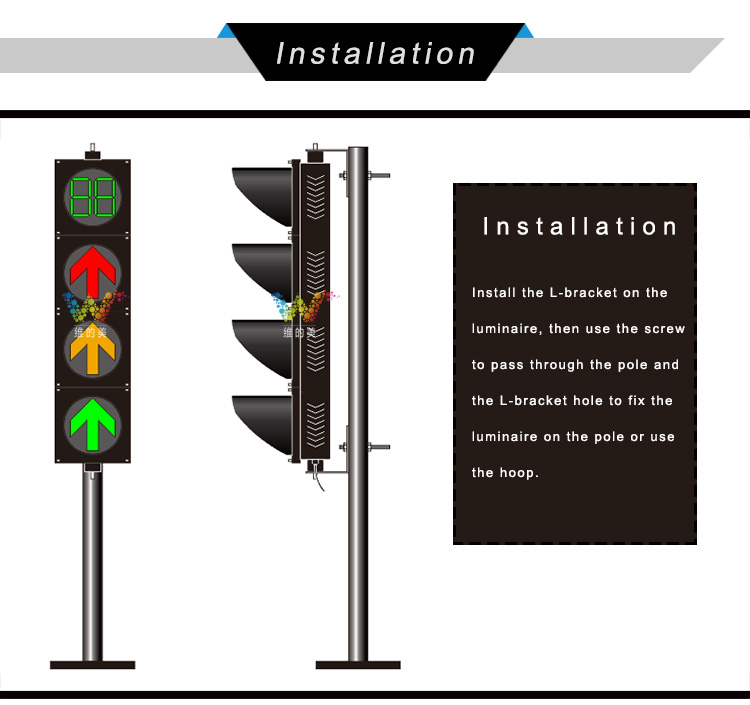

    Fourth, the traffic road 400mm countdown timer arrow traffic signal light installation method:
    Installation method: horizontal installation
    1. Leave a screw on both ends and unscrew the nut on the screw.
    2. Place the “L” bracket on the flat end and tighten the nut according to the hole position and the slot on the screw. (as the picture shows)
    3. The sun visor is installed on the upper part of the lamp. The three-corner aluminum plate is folded into a circular arc shape, which is

    placed on the lamp and screwed to the corresponding hole to tighten.
    4. Make 2 holes on the signal light rod, drill holes according to the hole position of the L bracket of the signal, pass the light rod through

    the appropriate screw, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
    Note 2 points:
    1. The visor is at the top of the lamp
    2. The outlet hole is facing down (as shown)
    Fifth, the traffic road 400mm arrow countdown timer traffic light wiring:

    1_05
    AC AC220V:
    The black line is the public zero line;
    The red line is a red arrow with a red countdown fire line;
    The green line is the green arrow and the green countdown line of fire;
    The yellow line is a yellow arrow with a yellow countdown line of fire;

    1_07
    Sixth, traffic road 400mm arrow countdown timer traffic light accessories details:
    (1) Lamps: 1 set

    (2) Instructions: 1 copy

    (3) Certificate of conformity: 1 part

    (4) L-shaped bracket: 2
    (5) M4 black self-tapping screws: 36

    (6) M4 white self-tapping screws (with nuts): 4
    (7) Sun visor: 4 pieces

    (8) Decorative side: 6 pieces

    1_09
