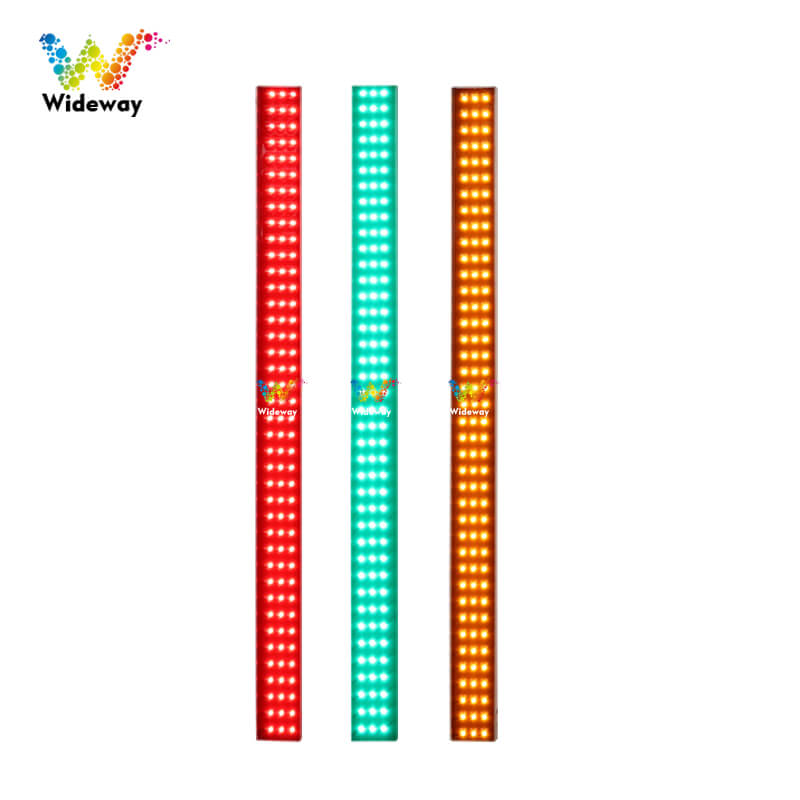

Puls LED Strip Lights

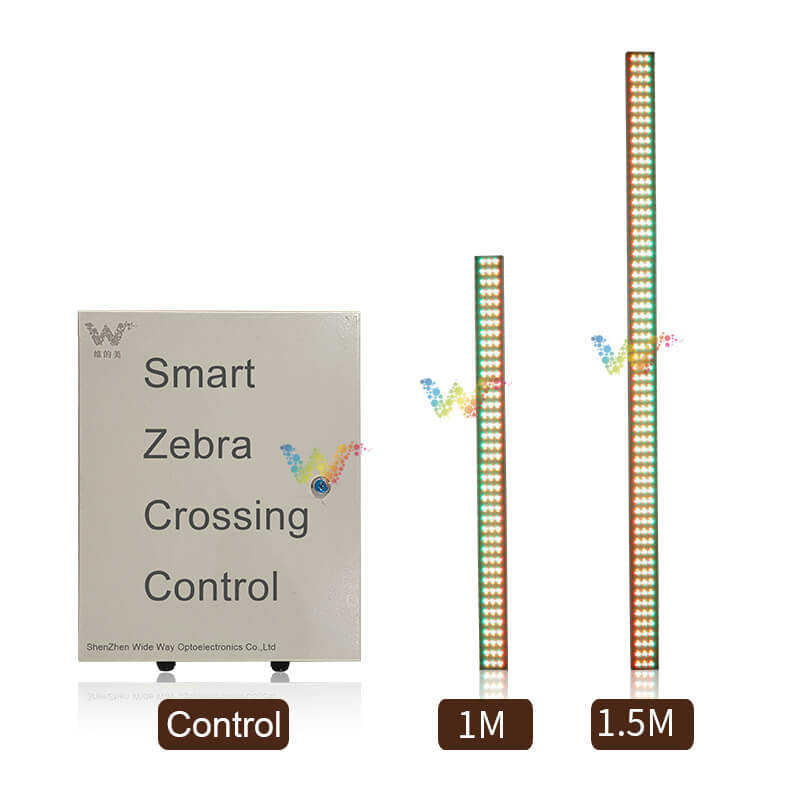

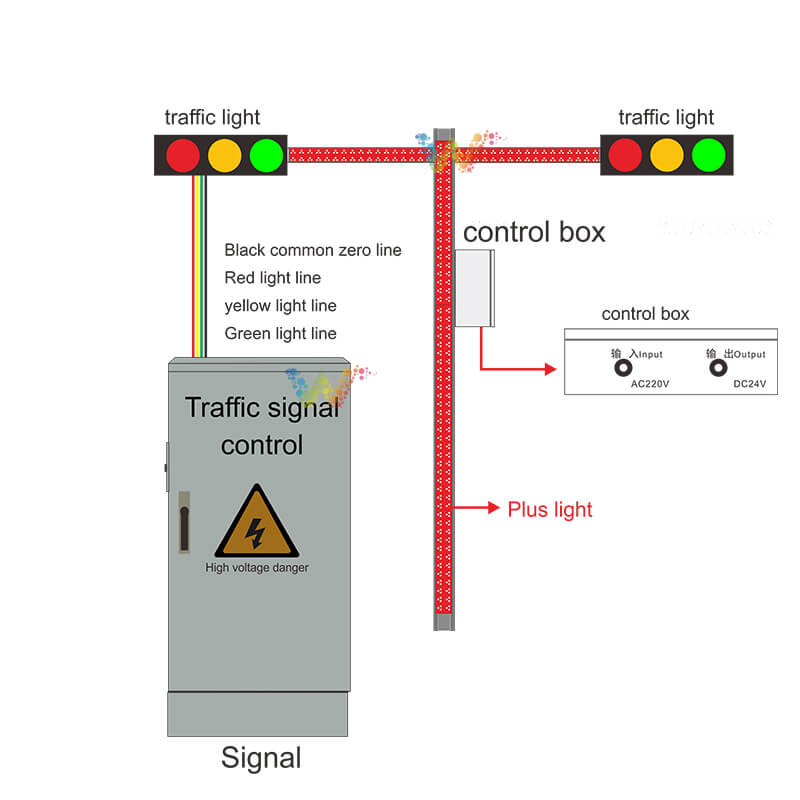

The Puls LED Strip Lights operates on the same principle as traffic signals. Following a specific control program, it implements time separation in the lighting cycles, displaying a cycle of red, yellow, and green lights in each direction at the intersection to direct traffic flow. The operating voltage of the light strip is converted by the control box from the high-voltage power (85–265 V) supplied by the signal controller or traffic lights to low-voltage DC 24 V. When connected to a signal controller, the light strip’s colors can be synchronized with those of the traffic lights, ensuring they light up in unison.
1. The Puls LED Strip Lights is specifically designed for vehicle drivers. It emits uniform, soft, and non-glare light, utilizing Epistar LEDs from Taiwan to deliver excellent visual effects.

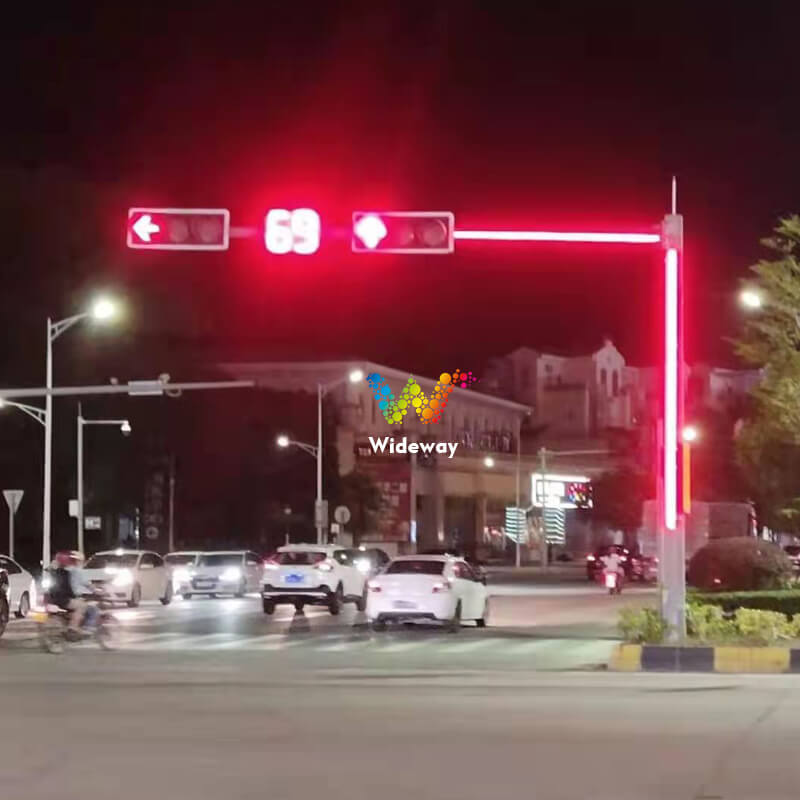

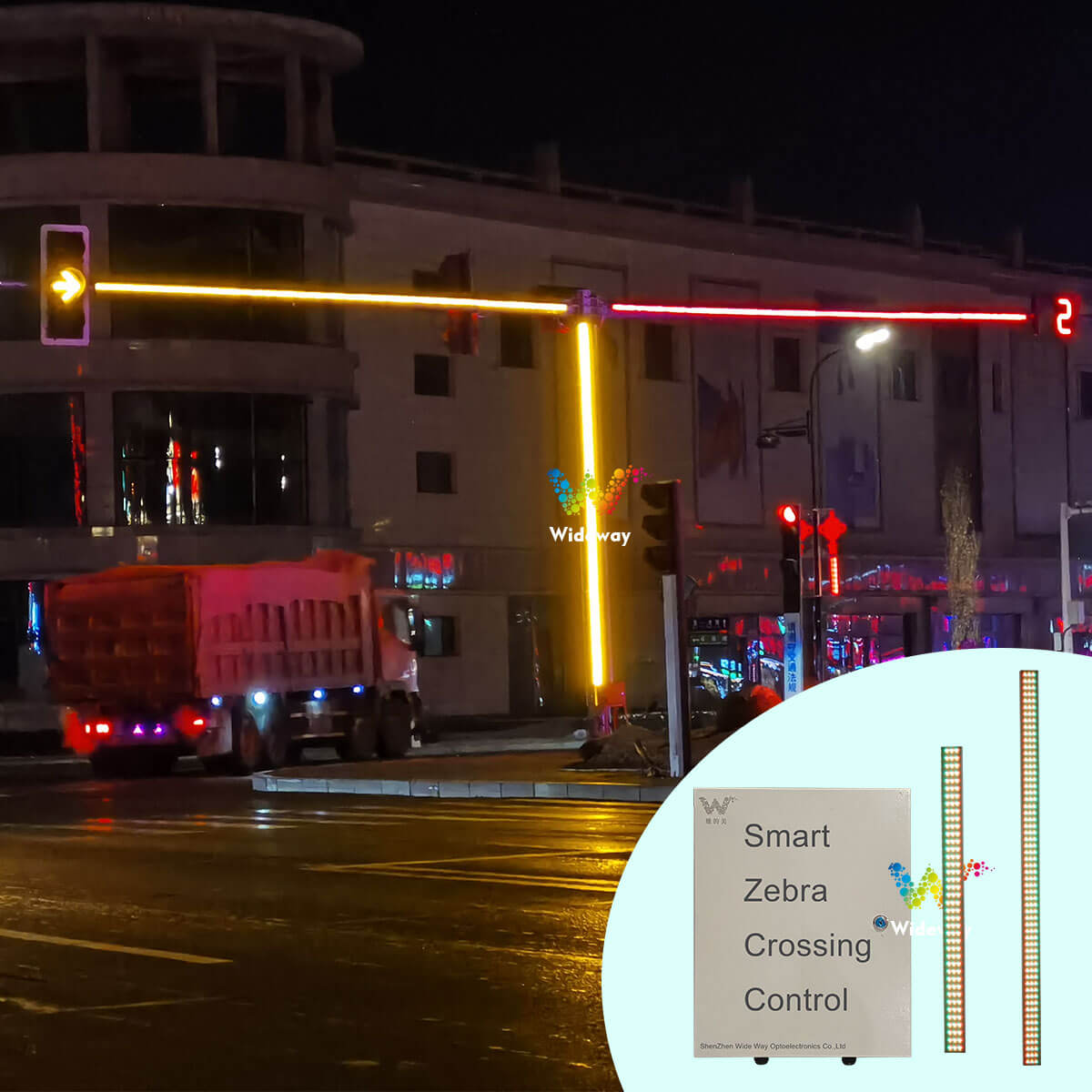

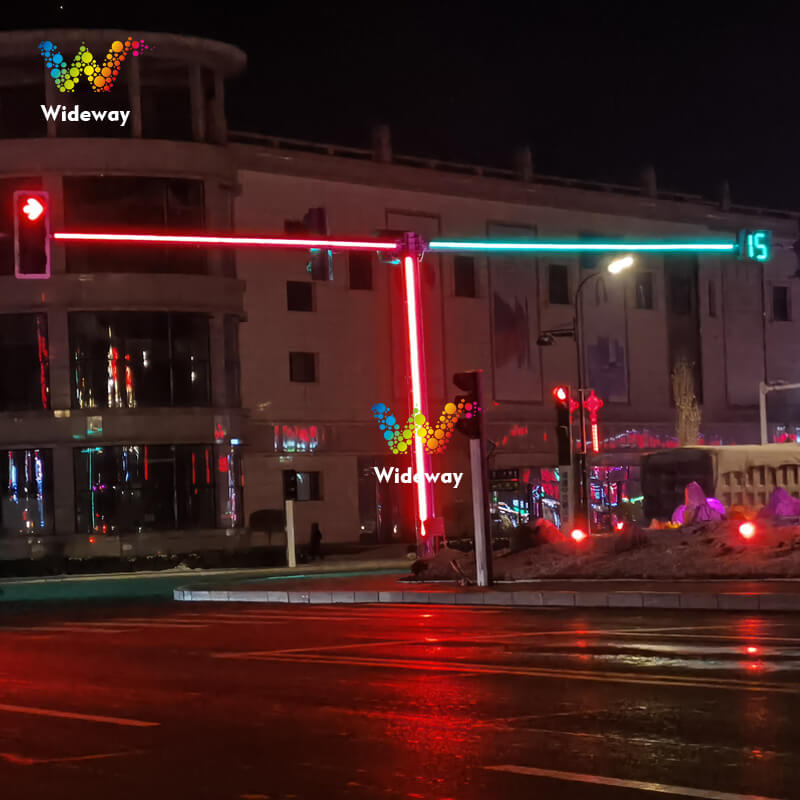

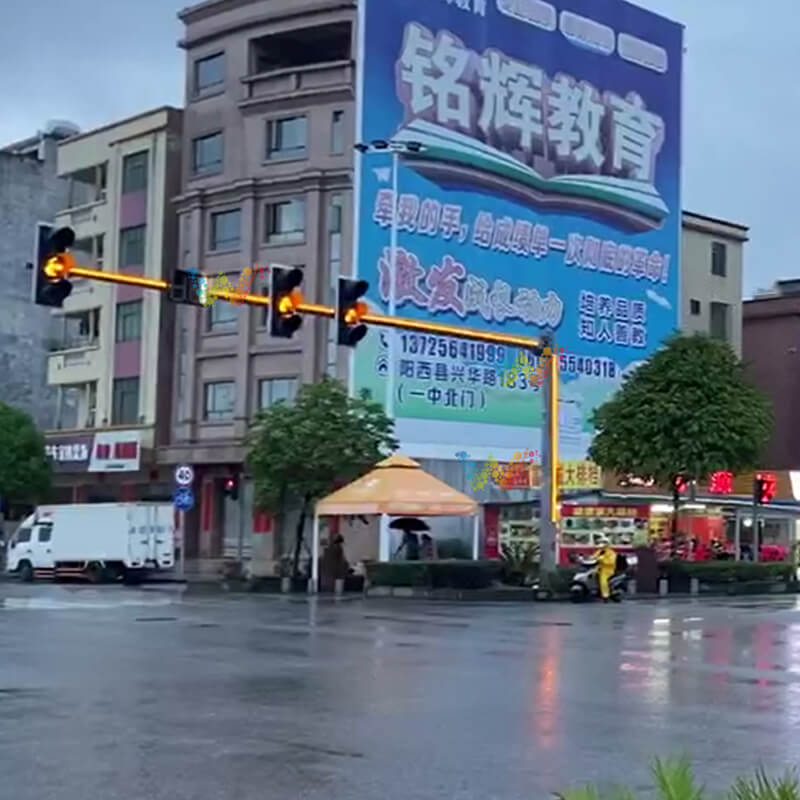

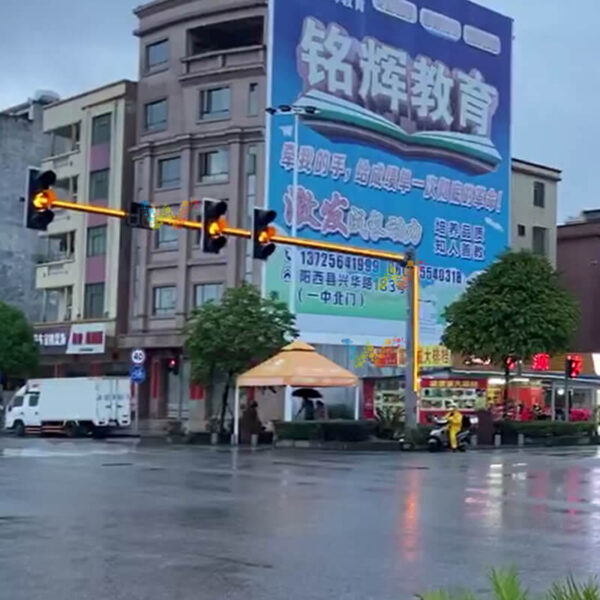

2. The Puls LED Strip Lights features an aluminum housing. As shown in Figure 2, the light strip is angled at 6 degrees. When mounted on the crossarm of a traffic light pole, the light is directed downward; When mounted on the vertical shaft of the traffic light pole, the light should be angled slightly to the left, providing an excellent visual effect.
3. The Puls LED Strip Lights is fully waterproof: the housing is made of aluminum, with the front section featuring an integrated LED module. The LED components are bonded with high-molecular-weight potting compound, ensuring a strong bond with the metal parts and high waterproof performance.
4. The Puls LED Strip Lights power supply is fully encapsulated for waterproofing. It features a specially treated constant-current driver, with a fast response time of <100 ms, ensuring seamless synchronization with traffic lights and zero delay;
5. The Puls LED Strip Lights boasts an elegant appearance and a modern design;
6. The Puls LED Strip Lights offers a high safety margin, operating at 24 V DC with a maximum power consumption of 8 W.
Parameter
| Product Dimensions | 1500/1000/500 × 60 × 24 mm |
|---|---|
| Product Model | WDM-GD1000-RG-1 |
| Number of LEDs | 120 red and 120 green |
| LED Type | Epistar chips |
| Red Wavelength | 620–625 nm |
| Green Wavelength | 520–525 nm |
| Red Luminous Flux | 5000–6000 mcd |
| Green Luminous Flux | 8667–10400 mcd |
| Housing Material | Aluminum |
| Service Life | 100,000 hours |
| Operating Temperature | -40°C to 60°C |
| Beam Angle | 30° |
| Protection Rating | IP53 |
| Operating Voltage | DC 24V |
| Rated Power | R/G: 9.6W |
| Visibility Range | 1–1,000 m |
| Mounting Method | Vertical or Horizontal |
