Solar Arrow Boards with Trailers
Introduction to the Solar-Powered Arrow Sign with Trailer:
The solar-powered arrow sign with trailer consists of a vehicle, a sign, multiple light bulbs, and a strobe module. The sign is divided into upper and lower sections; the lower section features an arrow in the lower-left corner and a construction sign, which is made of 3-millimeter reflective film. The upper section consists of Type 100 and Type 200 light bulbs and can be folded backward. Please refer to the relevant drawings for the specific structural design.
All bulbs operate in flashing mode. The flashing of the arrows in the lower-left and lower-right corners—composed of Type 100 bulbs—is controlled by buttons on the control box, while the Type 200 bulbs are controlled by the main switch on the control box. The strobe lights are controlled via separate wiring.
Share This Products :
Solar Foldable Mobile Arrow Sign

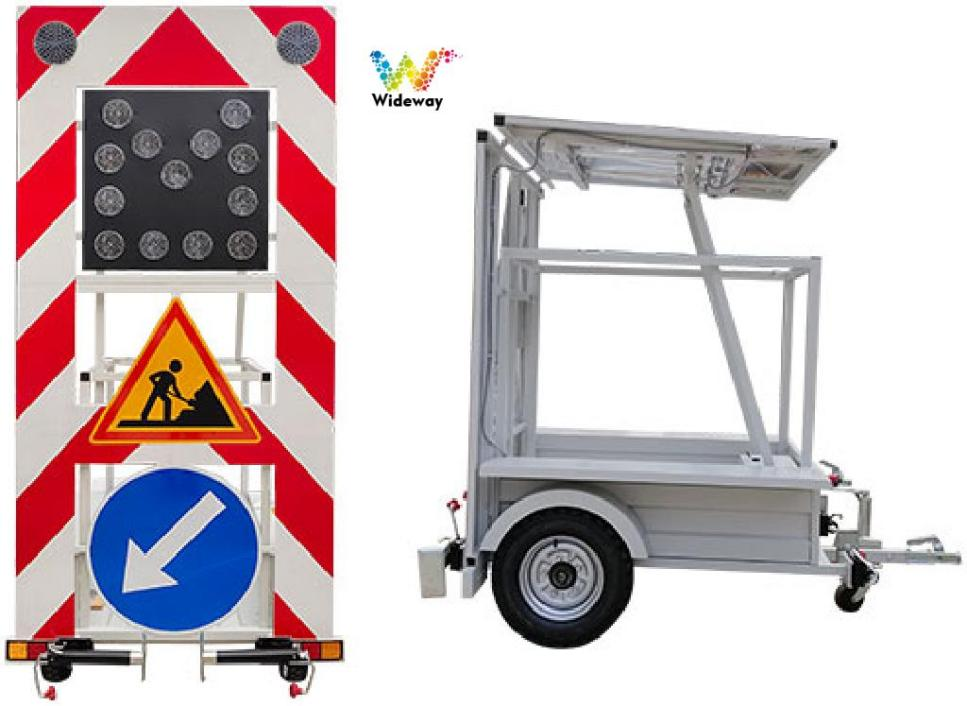

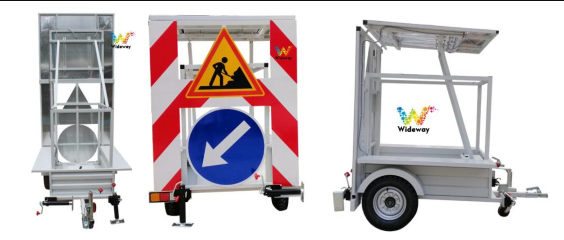

The Solar Foldable Mobile Arrow-Indicating Sign is a towable solar-powered traffic construction warning and guidance device, specifically designed for highway and municipal road maintenance and emergency repair operations, as well as road-congestion construction scenarios. Solar Foldable Mobile Arrow Sign integrates LED arrow guidance, national standard warning signs, solar self-powering technology, and a mobile towable chassis into a single unit – requiring no external mains power supply – and can be rapidly deployed at temporary work sections to guide traffic flow to change lanes and avoid construction zones, thereby reducing the risk of rear-end collisions. (As shown in the figure below)
Functional Features of the Solar-Powered Foldable Mobile Arrow Guidance Sign

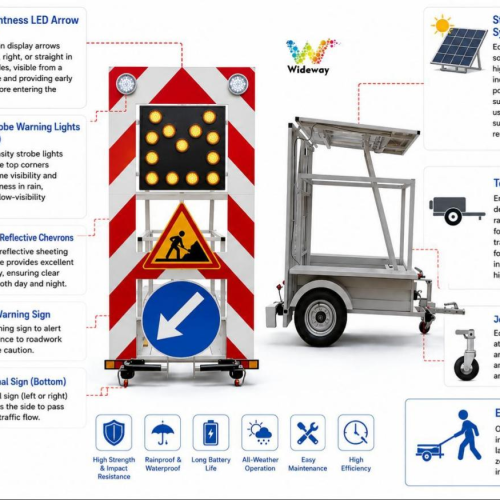

LED high-brightness arrow indication:The LED light cluster supports multiple modes – including left arrow, right arrow, bidirectional flashing, and full-on/off flash – providing drivers with a remote alert to change lanes in advance and avoid approaching construction zones.
Edge Auxiliary Flashlight:Two warning flashlights at the top of the panel expand the viewing angles on both sides, enhancing visibility in bright daylight or during rainy nights or in heavy fog.
Red/White Diagonal Checkered High-Strength Reflective Crash-Resistant Backing Panel:The vehicle’s lighting system utilizes passive reflection, ensuring a nighttime warning function even when the vehicle is powered off.
Solar-powered standalone runtime:The solar panel features an adjustable top angle and automatically charges the built-in lithium battery during daylight hours, eliminating the need for external mains power or a generator; the battery is equipped with overcharge, overdischarge, and short-circuit protection; when fully charged, Solar Foldable Mobile Arrow Sign can operate continuously for several days and provides extended runtime on cloudy or rainy days; the entire system is fully self-sufficient in power supply, making Solar Foldable Mobile Arrow Sign ideal for outdoor or highway construction sites without access to electrical infrastructure.
Trailer-mounted mobile chassis:The engineering trailer design allows for direct towing and relocation of construction sites using standard engineering vehicles, enabling rapid disassembly and relocation; its fully corrosion-resistant and rust-proof metal construction is ideal for prolonged outdoor use under exposure to sunlight, rain, and high-velocity airflow.
Park brake + Support casters:Upon arriving at the construction site, engage the brakes and lower the support feet to stabilize the equipment against wind forces and prevent sliding or tipping.

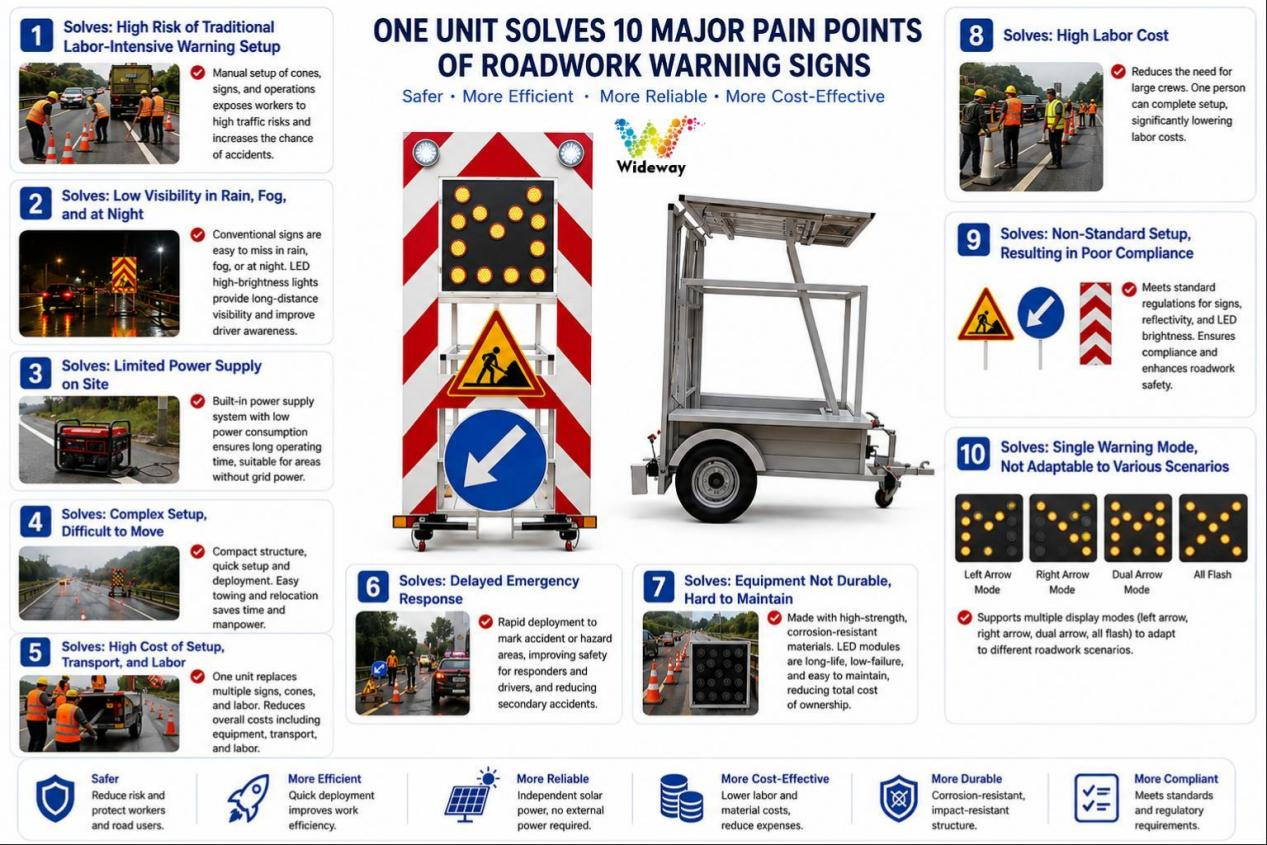

The solar-powered foldable mobile arrow directional sign addresses a key pain point for customers.
Traditional manual installation of warning signs carries high risks.
When cones and signage are manually placed on foot, operators are exposed to heavy traffic flow, making them highly susceptible to collision accidents; this equipment can be towed into position in a single operation by an engineering vehicle, thereby reducing manual operations on public roads and lowering the risk of personnel injury or death.
Conventional static warning signs suffer from poor visibility and insufficient warning range.
Conventional reflective signs have limited visibility under strong light, rain, fog, or at night, leaving drivers insufficient time to slow down or change lanes; this product combines LED active illumination with multiple reflective markings for all-weather, long-range warning, effectively reducing the risk of rear-end collisions and accidents involving entry into construction zones, as well as minimizing liability risks related to safety incidents.
For high-speed, field construction projects without a mains power supply.
Traditional active warning systems require a generator and connecting cables, which involve cumbersome wiring, significant noise, and high fuel costs; in contrast, the solar-powered standalone energy storage solution eliminates the need for an external power source, has zero fuel consumption, and can be deployed directly in remote areas or on highways, thereby overcoming all power supply limitations.
AC85-265V (Power cord):
1.Red line —Line wire
2.Black line — Neutral wire
3.Yellow line — Ground
Unstable battery life; device may not be usable on cloudy or rainy days.
The high-capacity energy storage battery, paired with intelligent charge/discharge protection, enables prolonged operation even during rainy or overcast weather, ensuring safe construction operations anytime, anywhere.
Wiring Instructions for the Solar-Powered Foldable Mobile Arrow Guide Sign

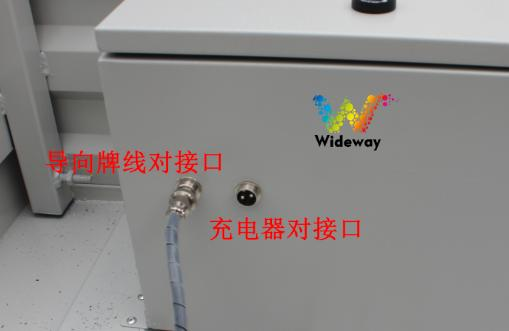

The directional sign is powered by a DC12V supply; the battery is charged using a charger connected to an AC 85–265V voltage source. The battery is housed within a battery compartment. When charging is required, the battery can be charged directly via the charging port on the battery compartment's charger; alternatively, the battery compartment can be opened, the screws securing the battery removed, and the battery taken out for charging.

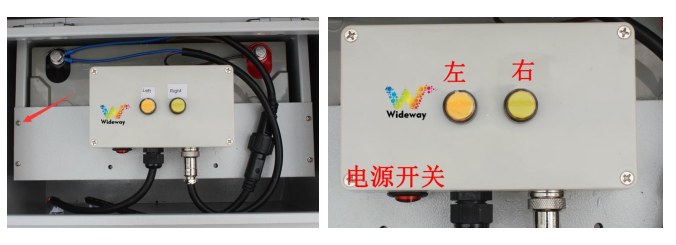

The control box is housed within the battery compartment, as shown in the figure below. The control box features two yellow buttons: one controls the flashing left-down and right-down arrow indicators (which consist of 100 filament elements), and the other is the power switch located on the side of the control box.
Solar Foldable Mobile Arrow Sign Product Installation

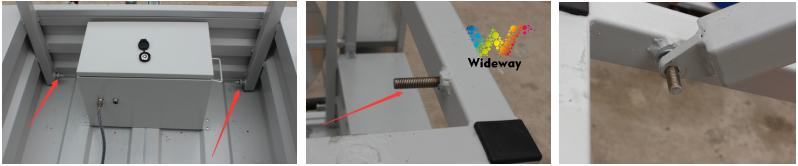

The vehicle-mounted directional sign features a foldable section – specifically, the part of the sign equipped with a light source. To deploy the sign, remove the two rods located at the back of the sign and mount them on the vehicle's overhead rack; to fold the sign, install the rods inside the vehicle. (As shown in the figure)

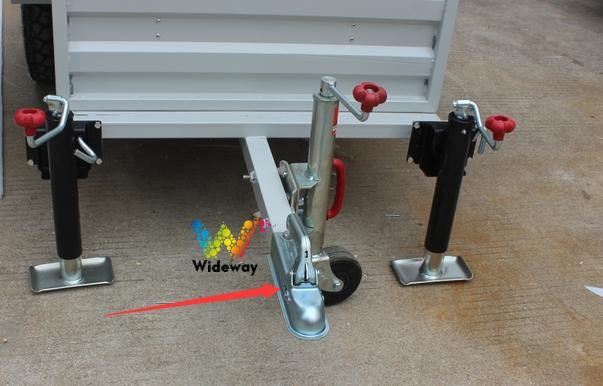

The trailer carrying the vehicle guidance sign is equipped with a hook that can be directly attached to the rear of the construction vehicle.
When shipping the product, the guide plate should be folded. To unfold it, loosen the nut at the bottom of the rod, then slide the rod onto the screw mounted on the trailer's upper support bracket, and finally tighten the nut securely.

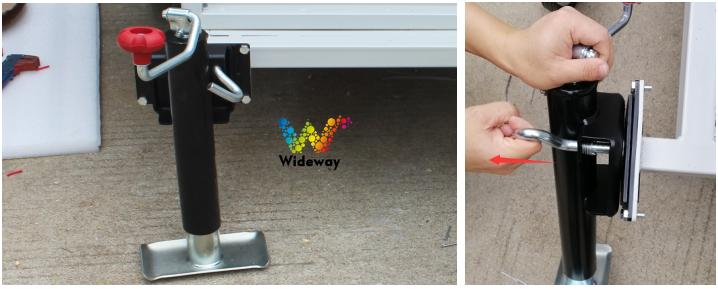

When used independently, the vehicle guidance sign must be securely fastened to prevent Solar Foldable Mobile Arrow Sign from shifting during operation, which could lead to accidents. The installation method is as follows: install four footrests at the front and rear of the trailer; rotate the handle on each footrest clockwise to lock Solar Foldable Mobile Arrow Signto the ground, or rotate it counterclockwise to gradually release it. Alternatively, the footrests can be lifted horizontally: pull out the J-shaped hook on the footrest without releasing it, then turn the footrest to a horizontal position and release the handle. (Rotate the handle clockwise to lock; rotate it counterclockwise to unlock; after attaching the J-shaped hook, pull it outward to rotate the footrest.)
Solar Foldable Mobile Arrow Sign Production Details

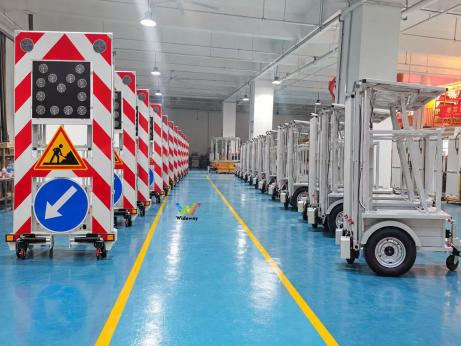

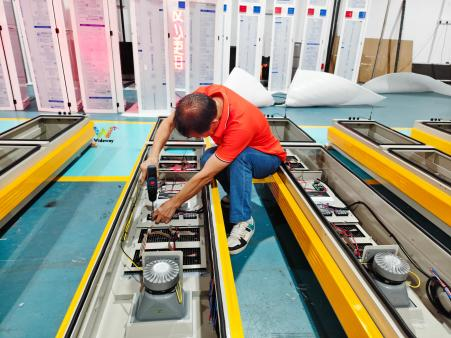

Solar Foldable Mobile Arrow SignBatch Aging
Solar Foldable Mobile Arrow Sign Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
Solar Foldable Mobile Arrow Sign Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Total height | 3300 mm |
|---|---|
| Sign dimensions | 1400 mm (width) × 2870 mm (height) |
| LED assembly | Ø5 round tube |
| Type 100 | 102 × 20 mm |
| Model 200 | 202 × 22 mm |
| Red wavelength | 625 ± 2 nm |
| Yellow wavelength | 590 ± 2 nm; Red brightness: 4500 mcd |
| Yellow brightness | 10000 mcd |
| White brightness | 18900–22600 mcd |
| Visual range | 20–300 m |
| Operating mode | Blinking |
| Control method | Manual control |
| Operating temperature | -40°C to +65°C |
| Relative humidity | 10%–95% |
| Insulation rating | >1500 V |
| Operating voltage | DC12V; |
| Battery | 100 Ah/12 V |
| Maximum power consumption | 42 W |
| Mean Time Between Failures | ≥10,000 hours |
| Screen lifespan | ≥100,000 hours |
| Uniformity | Uniform pixel light intensity and brightness |
| Case material | Cold-rolled steel sheet |
| Protective rating | IP65 |
| Lifting bracket | Secure the lifting bracket with screws. |
| Applicable scenarios | construction sections, maintenance sections, etc. |
| fittings of a machine | quantity | Note: |
| Guidance Sign | 1 unit | External road signage information display |
| Cart | 1 unit | Portable display screen |
| Triangle Sign | 1 unit | Construction Signage |
| Circular signboard | 1 unit | Arrow Signage |
| battery box | 1 | to load batteries |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation steps, and a safety and maintenance guide |
