860 x 860 mm Single-Sided Folding Display

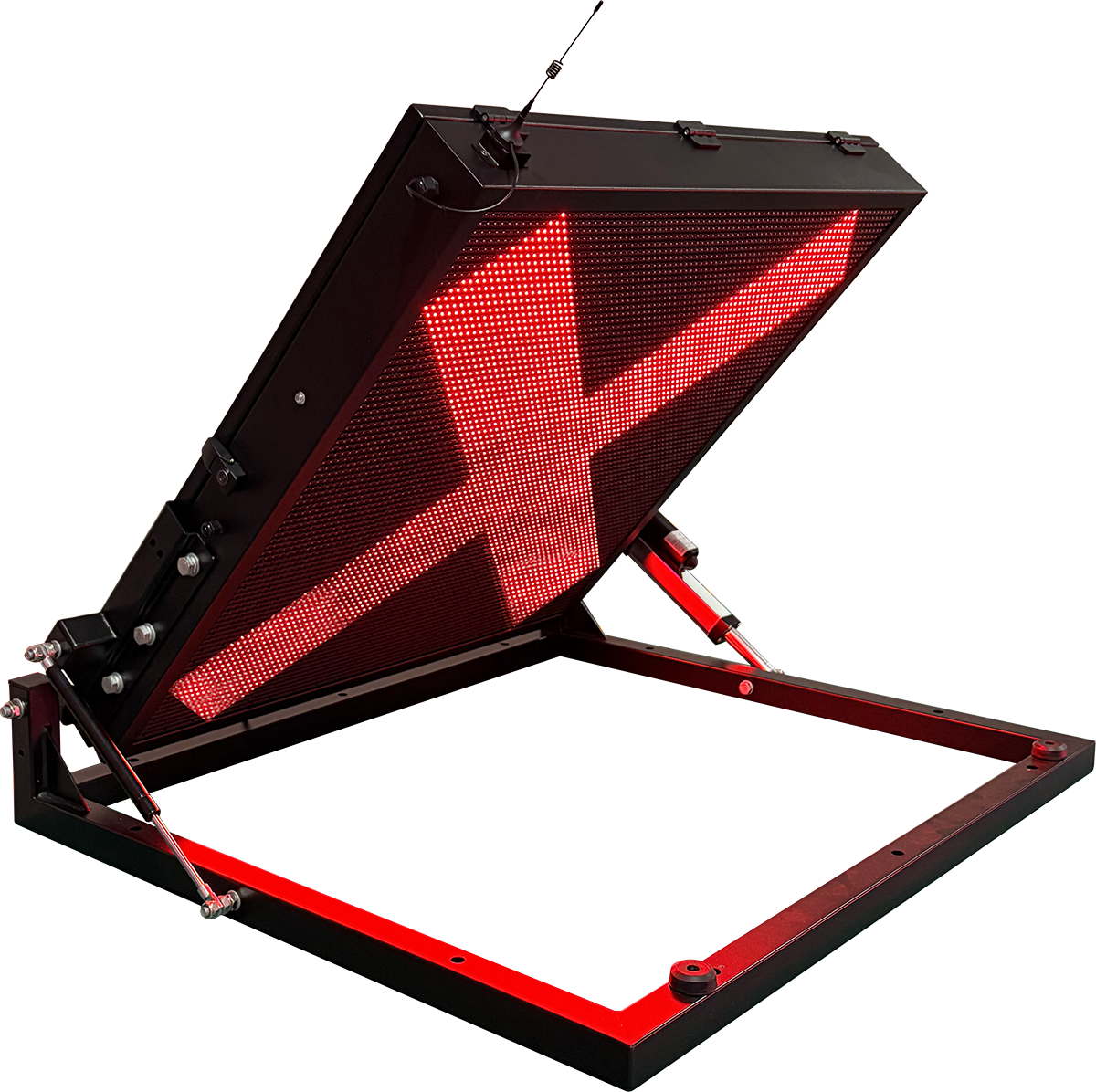

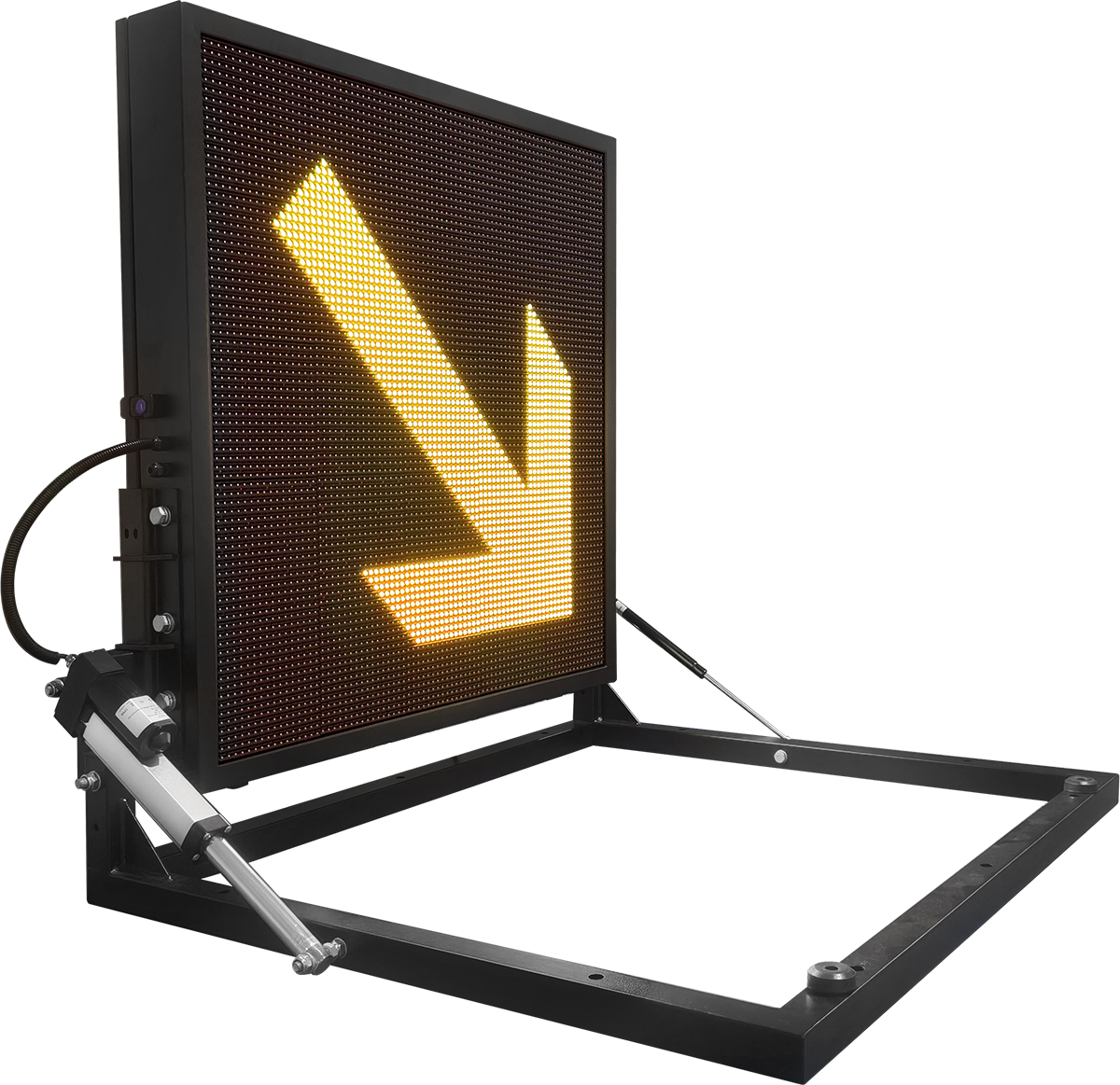

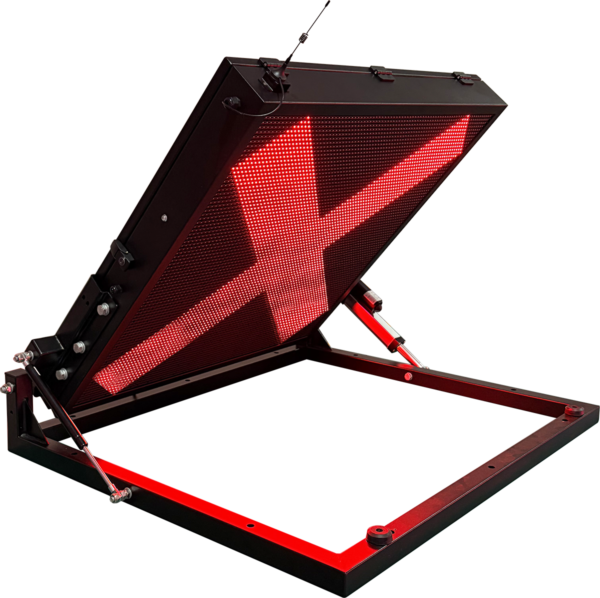

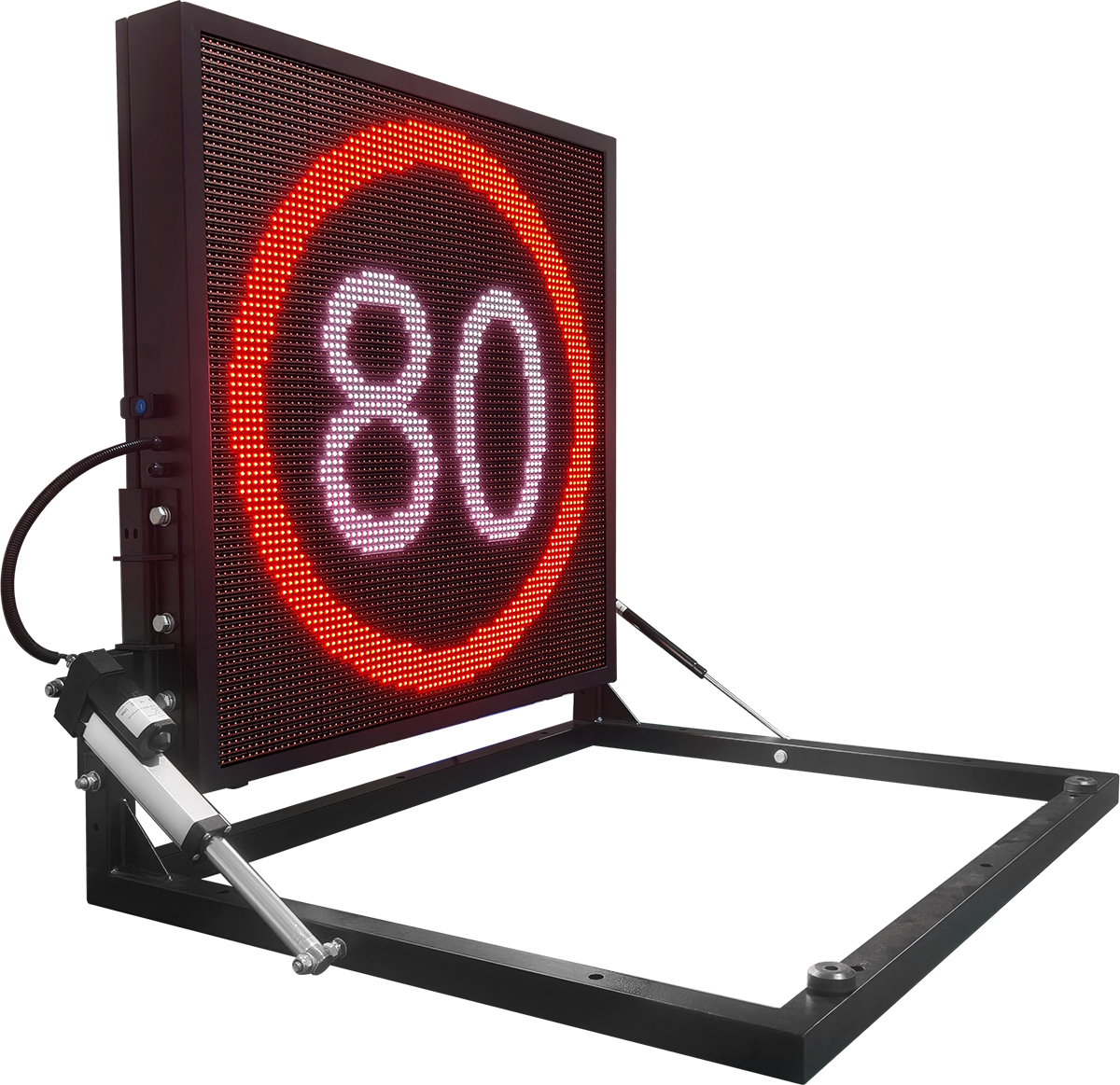

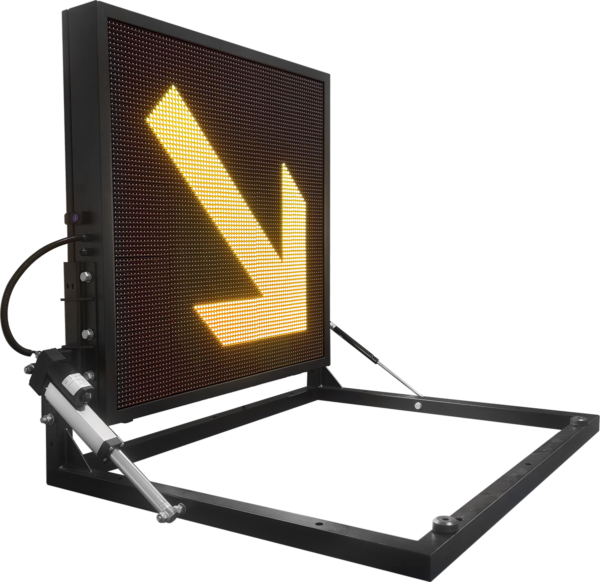

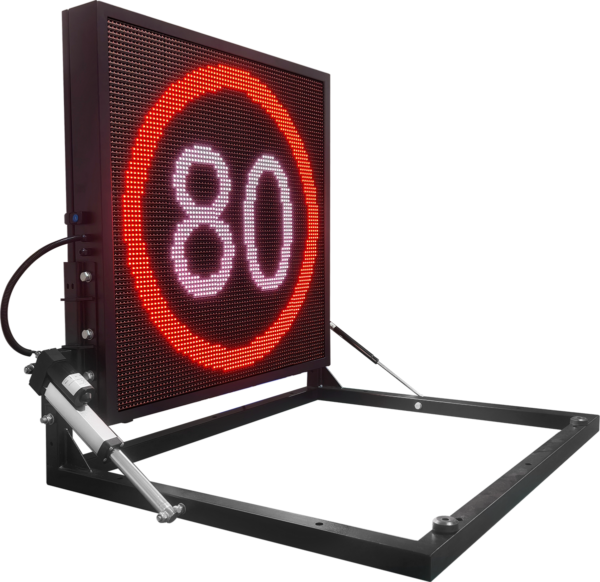

The 860×860 mm single-sided folding display consists of a cabinet, multiple modules, and a folding bracket. The cabinet features a rear-opening door design for easy access during inspection and maintenance. A waterproof flange is located above the front door, and a waterproof strip is affixed to the inside of the door panel; when closed, it seals completely with the drainage channel to prevent rainwater from entering the cabinet through the rear door. It offers high brightness and a long service life. The display receives information transmitted by a monitoring and management computer and can display Chinese, English, numbers, and icons.
The 860×860 mm single-sided folding display, also known as a road construction safety warning display or a variable message sign for construction zones, is an outdoor smart display specifically designed for scenarios such as highway reconstruction and expansion, municipal road maintenance, bridge maintenance, and temporary roadwork. It is primarily used to provide real-time construction updates, safety warnings, and traffic guidance to passing vehicles and pedestrians, reminding road users to change lanes in advance, slow down, and avoid risks in the construction zone. This ensures the safety of both construction workers and road users while improving traffic flow efficiency in the construction area.
1. The total height of the 860×860 mm single-sided folding display when folded is 165 mm;

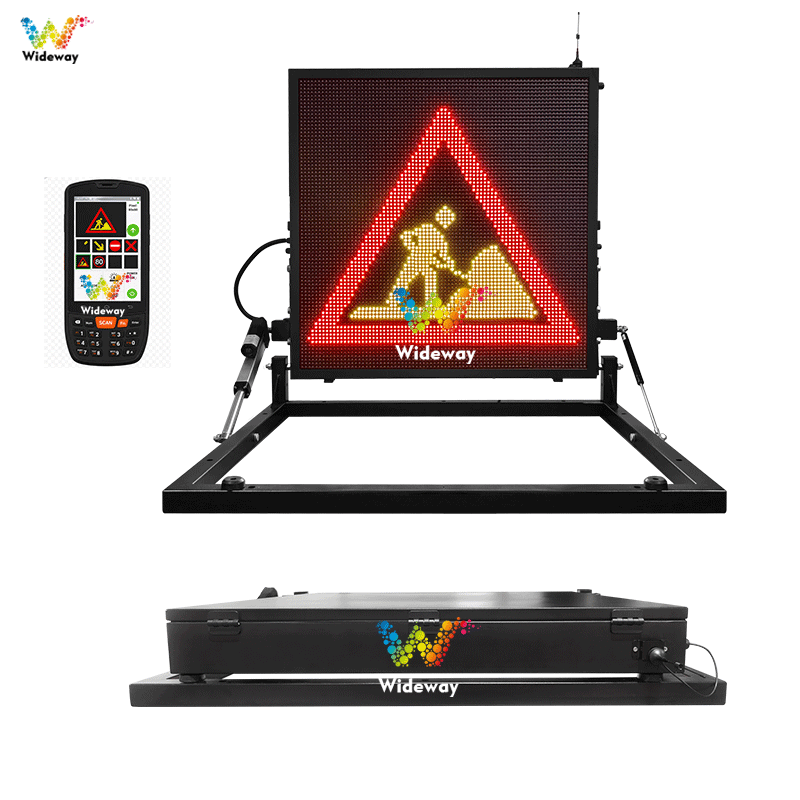

2. The 860×860 mm single-sided folding display uses a wireless controller, allowing the display content to be changed from the driver’s seat, thereby better ensuring the safety of construction personnel;
3. The wireless controller for the 860×860 mm single-sided folding display has a range of 200 meters
4. The 860×860 mm single-sided folding display operates on a wide voltage range of 9V–36V, providing better protection for construction vehicles by preventing the vehicle battery from being damaged by sudden voltage surges;
5. The 860×860 mm single-sided folding display features high brightness and visibility, making it suitable for all lighting conditions;
6. The 860×860 mm single-sided folding display offers excellent weather resistance, making it suitable for complex outdoor construction environments;
7. The 860×860 mm single-sided folding display allows for flexible content editing to meet diverse construction needs;
8. The housing of the 860×860 mm single-sided folding display is constructed from cold-rolled steel plates welded together. Cold-rolled steel offers excellent surface quality, is non-reflective, and provides anti-glare properties. The fully enclosed, all-weather, and weatherproof design ensures strong oxidation resistance, as well as excellent structural strength and wind resistance.
9. The protective coating on the housing and connecting components of the 860×860 mm single-sided folding display screen is uniform in color and free from defects such as scratches, cracks, or exposed substrate. Its physical and chemical performance indicators comply with relevant national and industry standards;
Parameter
| Product Name 860×860 mm Single-Sided Foldable Display | |
| Product Model WDM-XSP-860×860-P10-RGB | |
| Cabinet Dimensions 860×860 mm | |
| Display Dimensions 800×800 mm | |
| Module Dimensions 160×160 mm | |
| Pixel Pitch 10 mm | |
| Drive Method Constant Current Drive | |
| Average Luminous Intensity ≥5000 mcd | |
| Viewing Distance >250 m | |
| Interface RS-485 Communication Interface | |
| Operating Temperature -30°C to +65°C | |
| Operating Voltage DC 12–36 V | |
| Display Mode Alternating or arbitrary combination of images, text, and other content | |
| Uniformity Uniform pixel luminance and module brightness | |
| Cabinet Door Rear door | |
| Cabinet Material Cold-rolled steel | |
| Protection Rating IP65 | |
| Warranty 1 year | |
| Brand Weimei |
