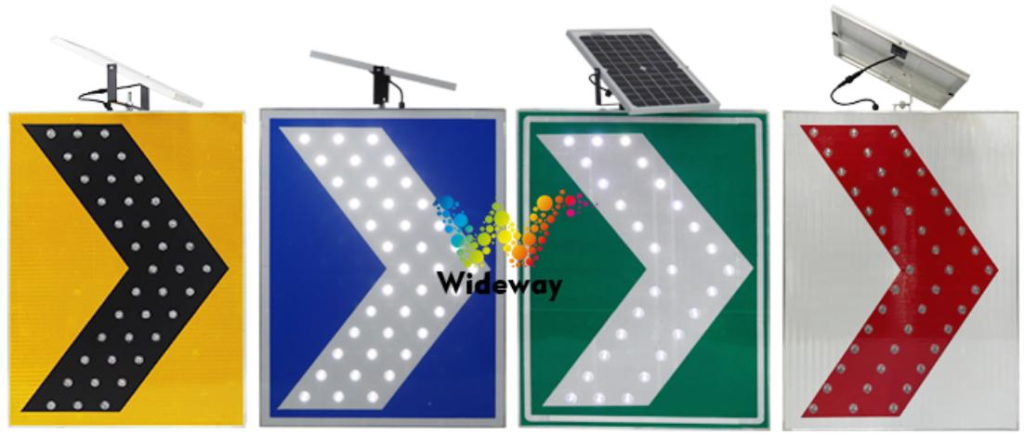

600 x 800mm Arrow Solar Traffic Signs
600 x 800 mm Arrow Solar Traffic Signs are powered by solar energy and feature built-in energy storage. The arrow symbols are illuminated by high-brightness LEDs, eliminating the need for external 220V municipal power lines. During the day, they are visible thanks to reflective film; at night, they automatically flash to warn drivers. These signs are used for lane separation, curve guidance, construction detours, and directional guidance at intersections.
Share This Products :
800MM×600MM Solar Arrow Board
The 600×800 mm solar-powered arrow sign is a type of solar-powered active-illumination traffic guidance sign, also known as a solar-powered arrow contour sign or LED guidance sign. The sign is equipped with a solar panel and an energy storage battery, and features built-in high-brightness LED beads in the arrow section, capable of operating in constant illumination or flashing mode. During daytime, 800MM×600MM Solar Arrow Board charges via solar energy; at night, it automatically illuminates. When combined with high-grade reflective film, 800MM×600MM Solar Arrow Board provides dual warning effects—both active illumination and passive reflection—making it ideal for guiding traffic flow and indicating changes in road alignment. (See the figure below)
Product Features of 600×800 mm Solar Arrow Signage
Road alignment guidance:Using illuminated arrows, the system provides early warnings to drivers regarding the upcoming road conditions (sharp curves, ramps, lane narrowing, diverging or merging lanes), guiding vehicles along the correct trajectory, correcting driving paths, and reducing the incidence of accidents in curves and lane changes.
All-weather visual warning:Daytime: utilizes high-grade reflective film for passive reflection, enabling clear identification of the arrow indicators;For nighttime or rainy/foggy conditions: The arrow-shaped sign features built-in LED lighting for long-range visibility, addressing the visibility challenges posed by conventional reflective signs in rainy nights or dense fog.
Solar self-powering:
The rooftop solar panels collect sunlight during the day to charge the built-in lithium battery, eliminating the need for an external power supply, trenching, or wiring—making 800MM×600MM Solar Arrow Board ideal for outdoor environments and remote road sections without access to electricity.
IP65 protection:
Waterproof and dustproof, 800MM×600MM Solar Arrow Board withstands heavy rain, wind, and frost, and is suitable for outdoor environments in both high and low temperature conditions.
Dual-mode safety redundancy:
Even if the LED fails, the sign’s reflective film retains its reflective warning capability, ensuring safety.
Convenient installation and mounting:
Supports installation using column clamps; features rapid assembly and disassembly, making 800MM×600MM Solar Arrow Board suitable for both permanent roadways and temporary construction sections.
The 600×800 mm solar arrow sign addresses the key pain points of our customers.
Addressing the challenge of poor nighttime and rain/fog visibility for conventional reflective signage
The arrow features built-in LED lights that emit active illumination, ensuring clear visibility from a great distance. Combined with passive reflective properties, this dual protection ensures that even if the LEDs fail, the reflective film still retains its warning capability, significantly extending the detection range during nighttime, foggy conditions, and dusk hours.
Addressing the pain points of no municipal power supply in outdoor or remote road sections, as well as the high costs associated with cable installation.
A standalone solar power system that requires no external mains power; 800MM×600MM Solar Arrow Board can be installed directly using on-site clamp fittings, eliminating the need for wiring and excavation, thereby shortening the construction cycle and reducing project costs.
Addressing the challenge of harsh outdoor environments, where signage is prone to rusting, aging, and damage.
Equipped with aluminum panels that are rust-resistant and deformation-resistant; paired with a high-strength reflective film that resists UV radiation and prevents fading; the entire unit features IP65 waterproof and dustproof ratings, making 800MM×600MM Solar Arrow Board suitable for harsh outdoor climates—including high temperatures, extreme cold, and heavy rainfall—thereby extending its service life.
Addressing the challenge of inconvenient dismantling, relocation, and assembly during temporary road construction phases.
Features column-mounted clamps for easy assembly and disassembly; allows for repeated installation, disassembly, and repositioning, making 800MM×600MM Solar Arrow Board ideal for repeated use in temporary road construction, emergency road diversion, and similar applications.

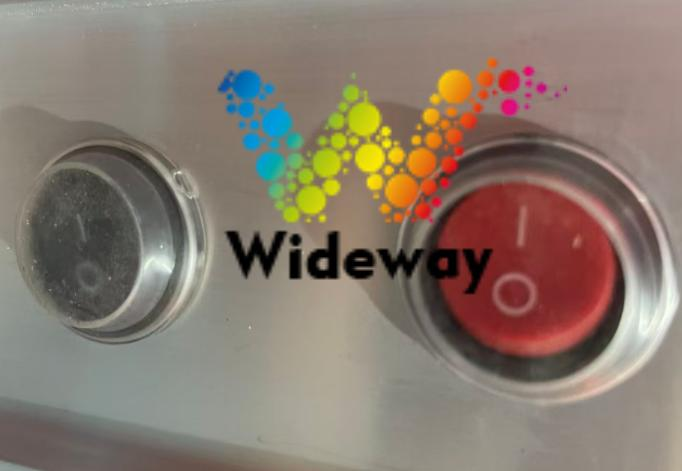

Switch Specifications for 600×800 mm Solar Arrow Sign
Black switch:
light-operated switch
Red switch:
main switch
800MM×600MM Solar Arrow Board Installation Instructions

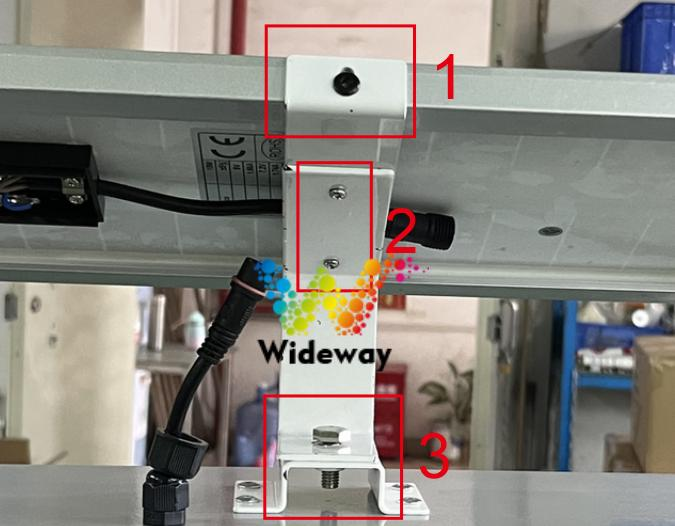

Solar panel installation:
1.First, use screws to secure the first bracket and the solar panel from both sides; then, use two screws to fasten the second bracket to the already assembled first bracket.
2. Connect the solar energy waterproof connector to the luminaire connector, and tighten the waterproof nut on the wiring;
3. Next, align the holes of the solar panel and the lamp, then insert the screw and the washer, and tighten them;

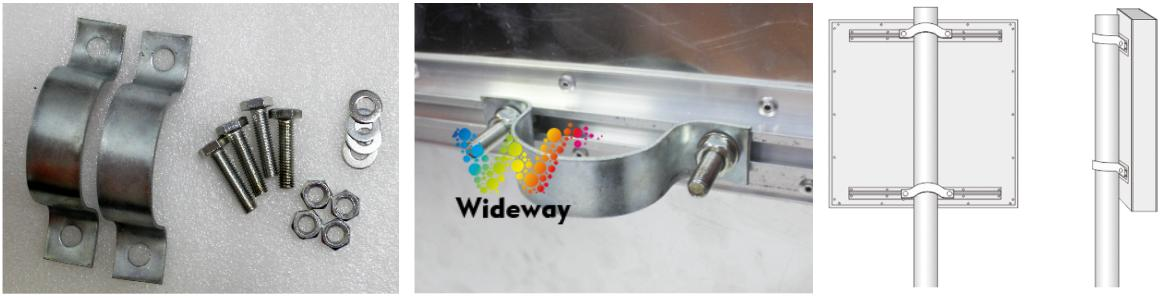

Clamp installation:
1.1. Pass the screw through the aluminum slot on the back side of the product, then insert the holes at both ends of the clamp into the screws at those respective ends, tighten the nuts, and secure the clamp in the center of the aluminum slot;
2. Pass the pole through the two clamps and secure it using nuts and washers.

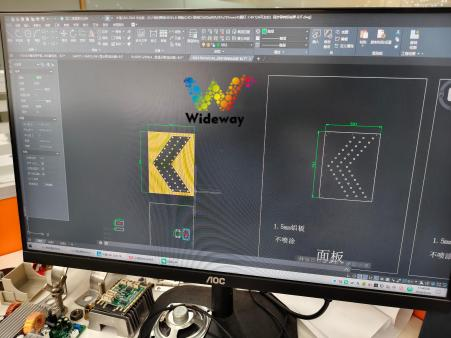

800MM×600MM Solar Arrow Board Production Details

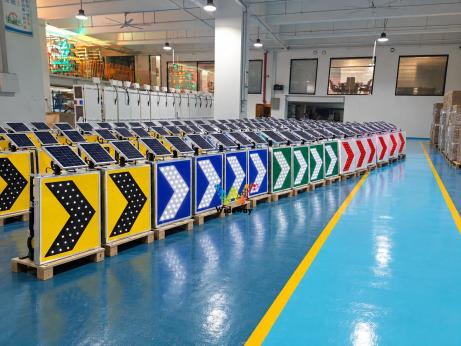

800MM×600MM Solar Arrow Board Batch Aging
800MM×600MM Solar Arrow Board Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
800MM×600MM Solar Arrow Board Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Product model | WDM-DK600*800-Y-01 |
|---|---|
| Product size | 600*800*70MM |
| Lithium battery | 8AH/3.7V |
| Solar panel | 10W/6V |
| Lamp beads | 45 (yellow) |
| Power supply method | solar power |
| Material | aluminum |
| Voltage | DC3.7V |
| Working mode | flashing |
| Reflective film color | customizable |
| Size | can be customized |
| Lamp beads | high brightness lens beads |
| fittings of a machine | quantity | Notes |
| Sign | 1 unit | Warning Requirements |
| solar panel | 1 set | Self-contained energy storage via solar panels |
| Solar panel mounting bracket | 1 set | Fixed solar panels |
| Clamp + Screw + Nut | 2 sets | Fixed signboard |
| certificate | 1 copy | As a material release certificate |
| product specification | 1 copy | Includes product technical specifications, illustrated installation steps, and safety and maintenance guidelines. |
