750 x 750mm Pedestrian Solar Traffic Signs
The 750 x 750 mm Pedestrian Solar Traffic Signs are smart traffic signs that feature built-in LED lighting within the housing, are powered by solar energy, and require no external power wiring. Unlike ordinary reflective signs (which rely solely on reflection from vehicle headlights), these signs use internal LEDs to actively emit light, providing a highly visible warning to vehicles at a distance—even at night or in rain and fog—to ensure they yield to pedestrians.
Share This Products :
750×750MM Square Pedestrian Sign

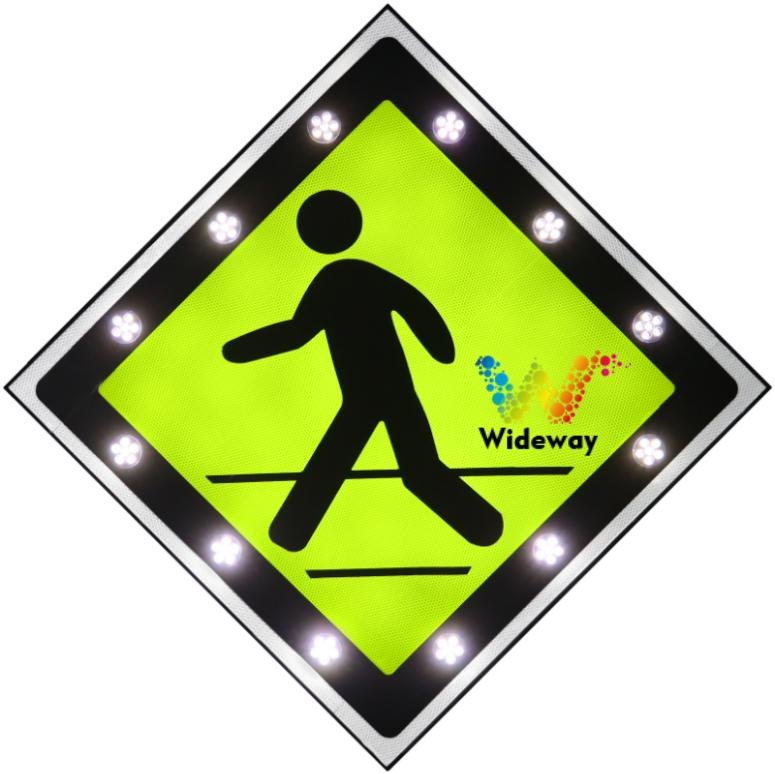

The 750×750 mm square pedestrian crossing sign is classified as a road active safety warning device. The sign features a fluorescent yellow-green high-strength reflective film as its background, with a frame encircling multiple high-brightness LED strobe lights. During daylight hours, the sign relies on the reflective film for passive warning; at night or in low-light conditions, the LEDs automatically flash. Compared to conventional static reflective signs, this design significantly extends the visible range, serving to alert drivers to the presence of a pedestrian crossing ahead and to exercise caution when crossing, thereby reducing the incidence of collision accidents in pedestrian crossing areas. (See the figure below)

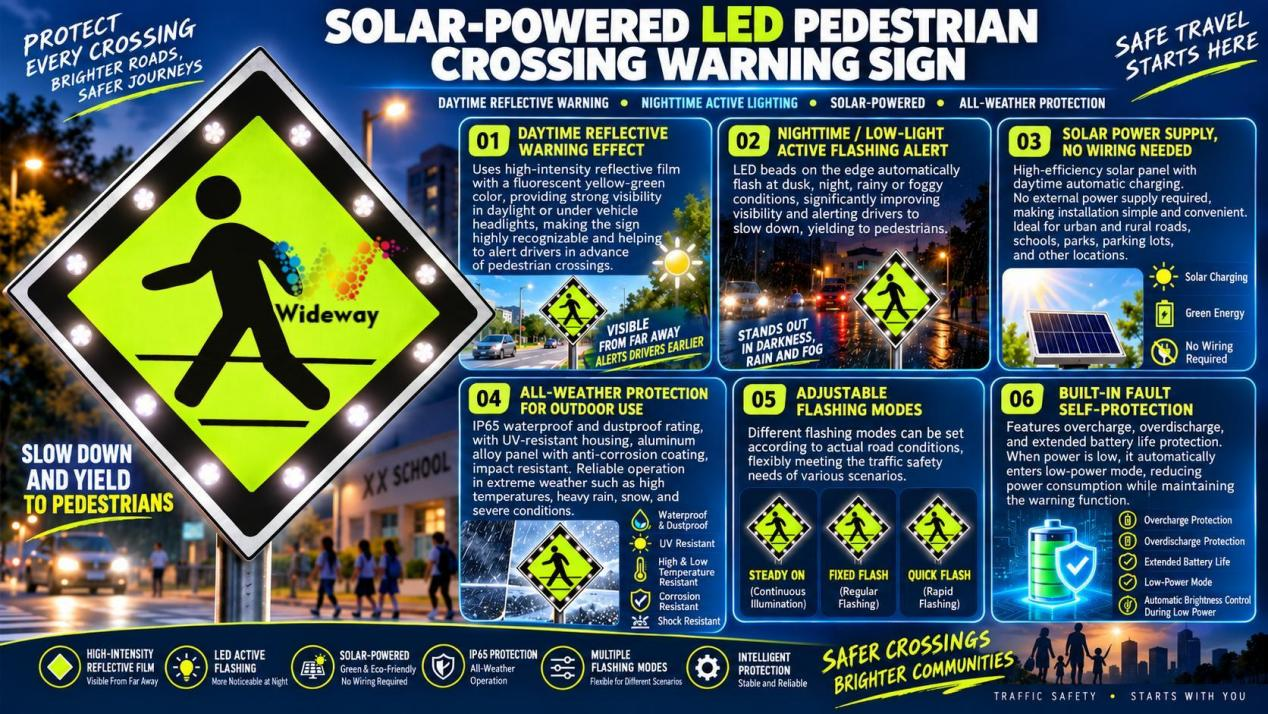

Product Features of 750×750 mm Square Pedestrian Signage
Daytime reflective warning function:The sign employs a fluorescent yellow-green high-strength reflective film, which provides a high retroreflective effect under natural light, serving to alert drivers from a distance to the pedestrian crossing ahead; this constitutes a passive warning device.
Active luminous warning for nighttime/low visibility conditions:The LED beads around the signage flash, providing enhanced visibility during dusk, night, overcast or rainy weather, and in foggy conditions. This design overcomes the limited visibility range of conventional reflective signage, delivers a strong visual impact, and prompts vehicles to slow down in advance to yield to pedestrians.
Solar-powered self-sufficiency, no wiring required:
Solar panels capture solar energy and store 750×750MM Square Pedestrian Sign in batteries, eliminating the need for an external mains power supply. This system is ideal for locations without power access—such as rural roads, school entrances, and intersections without traffic signals—thereby reducing construction costs.
All-weather outdoor protection:
The entire unit features IP65 protection, offering rain and dust resistance as well as UV resistance; the aluminum plates are rust-resistant and impact-resistant, enabling stable long-term operation in outdoor environments such as high temperatures, heavy rainfall, and extreme cold.
Adjustable flicker mode:
It supports multiple lighting modes—including constant illumination, fixed flashing, and rapid flashing—ensuring compliance with safety requirements across different road sections.
Fault self-sustaining protection:
The battery features overcharge and over-discharge protection to extend its service life; when the battery level is low, 750×750MM Square Pedestrian Sign automatically reduces power consumption to prevent the device from failing outright.

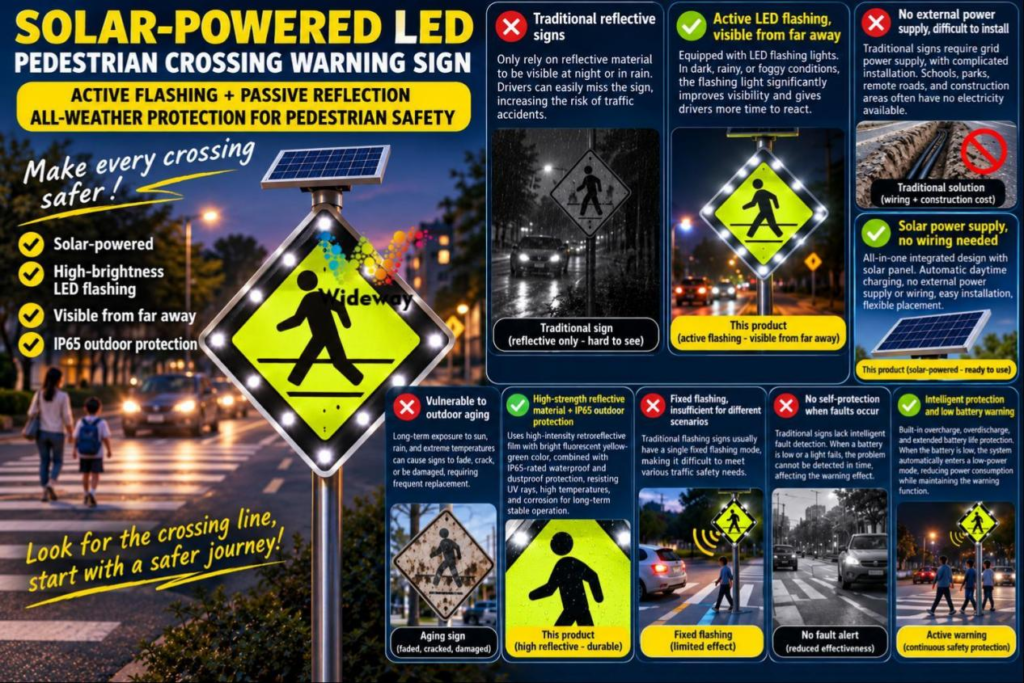

The 750×750 mm square pedestrian sign provides a solution to key pain points for our customers.
Conventional reflective signage suffers from poor visibility at night, in rain, or in fog, resulting in insufficient warning distance.
The sign features integrated surround LED flashing lights that emit active illumination, providing high-visibility warnings from a great distance. This significantly extends the visible range under nighttime or low-visibility conditions, granting drivers ample time to decelerate and respond.
Many street crossings lack mains electricity, making 750×750MM Square Pedestrian Sign difficult to install electronic warning devices.
An integrated solar power solution that stores energy during daytime operation, eliminating the need for external grid power, requiring no wiring during installation, reducing civil engineering and pipeline infrastructure costs, and offering flexible site deployment options.
Outdoor signage is prone to aging and fading, resulting in a short service life.
Equipped with a fluorescent yellow-green high-reflectivity film combined with aluminum panels, this product offers UV resistance, rust resistance, and impact resistance; the entire unit features IP65-rated sealing protection, ensuring durability against heavy rain, as well as extreme low and high temperatures, and prevents fading or damage during prolonged outdoor use.
Address persistent flashing, energy waste, and the lack of targeted early warnings (radar-enabled optional version available)
When a pedestrian is detected by the millimeter-wave radar, the radar automatically increases its flicker frequency; in the absence of pedestrians, 750×750MM Square Pedestrian Sign reduces the flicker intensity, enabling on-demand warning alerts that save energy while enhancing alert effectiveness.
High accident rates on crosswalk sections have placed significant pressure on safety performance evaluations.
Proactive luminous warning facilities enhance early warning capabilities along road sections, providing advance alerts to vehicles to slow down and yield to pedestrians, thereby effectively reducing the accident rate at pedestrian crossings and meeting the requirements of the safety enhancement renovation project.

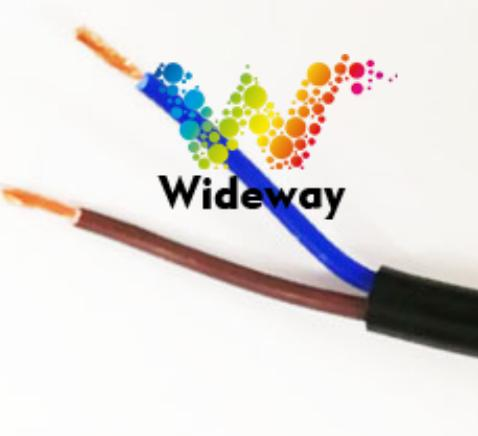

Wiring Instructions for 750×750 mm Square Pedestrian Sign
1.Brown line: Live wire
2.Blue line: Neutral wire

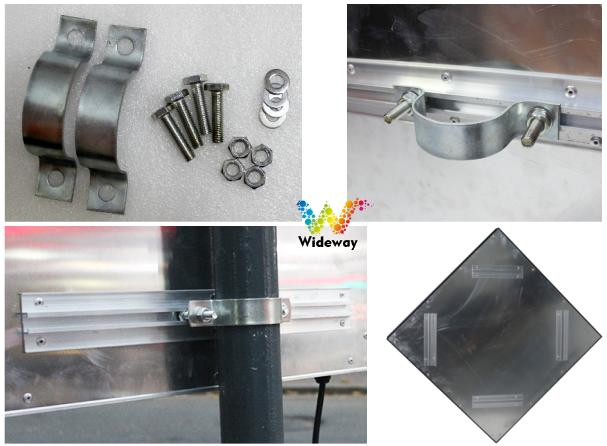

750×750MM Square Pedestrian Sign Installation Instructions
Clamp installation:
1. Pass the screw through the aluminum slot on the back side of the product, then insert the holes at both ends of the clamp into the screws at those respective ends, tighten the nuts, and secure the clamp in the center of the aluminum slot;
2.Insert the pole between the two clamps, then secure it with nuts and washers.

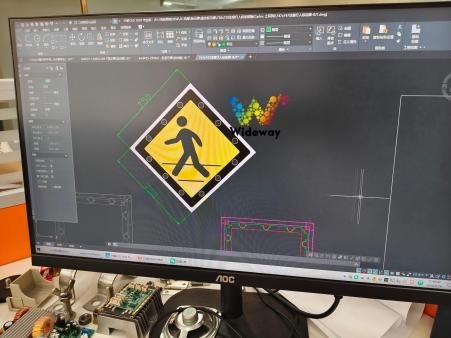

750×750MM Square Pedestrian Sign Production Details

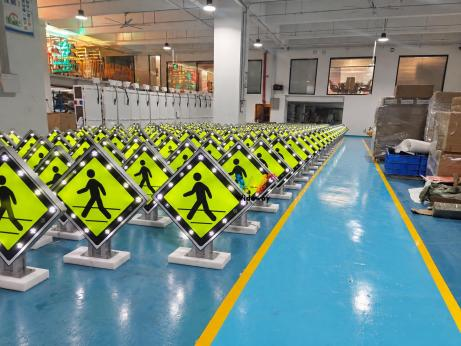

750×750MM Square Pedestrian SignBatch Aging
750×750MM Square Pedestrian Sign Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
750×750MM Square Pedestrian Sign Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Product size | 750*750*70MM |
|---|---|
| Lamp beads | 12 white C50 pixels |
| Lamp bead color | white |
| Shell material | aluminum shell |
| Working voltage | AC85-265V |
| Working mode | flashing |
| Visual distance | >1000M |
| Installation method | clamp installation |
| Service life | 100000H |
| Customization | size/content customization |
| White light intensity | 18900-226MCD |
| fittings of a machine | quantity | Notes |
| Sign | 1 unit | Warning Requirements |
| Clamp + Screw + Nut | 2 sets | Fixed sign |
| certificate | 1 copy | As a material release certificate |
| product specification | 1 copy | Includes product technical specifications, illustrated installation steps, and safety and maintenance guidelines. |
