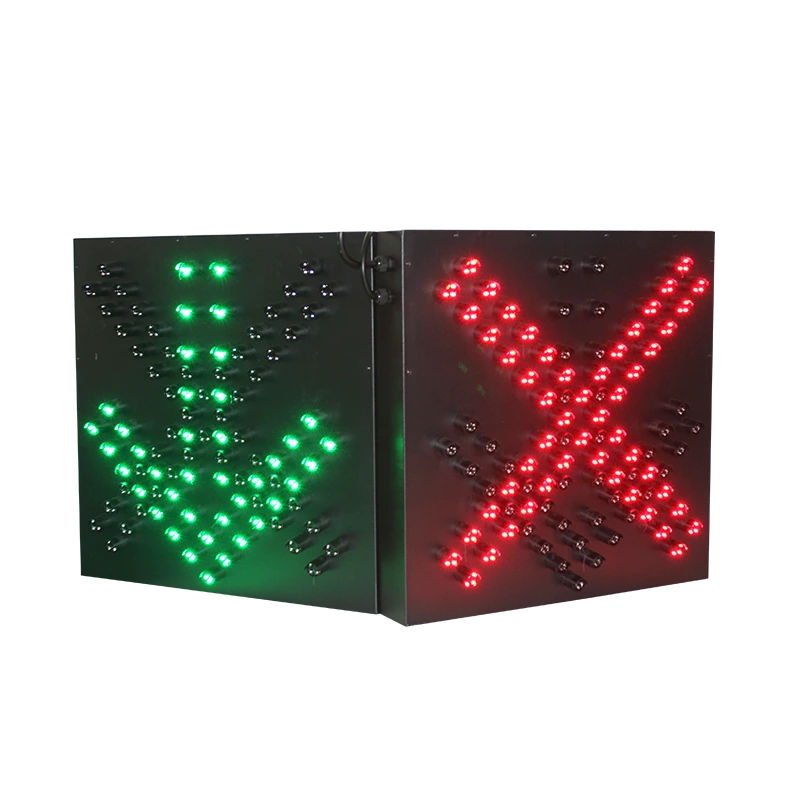

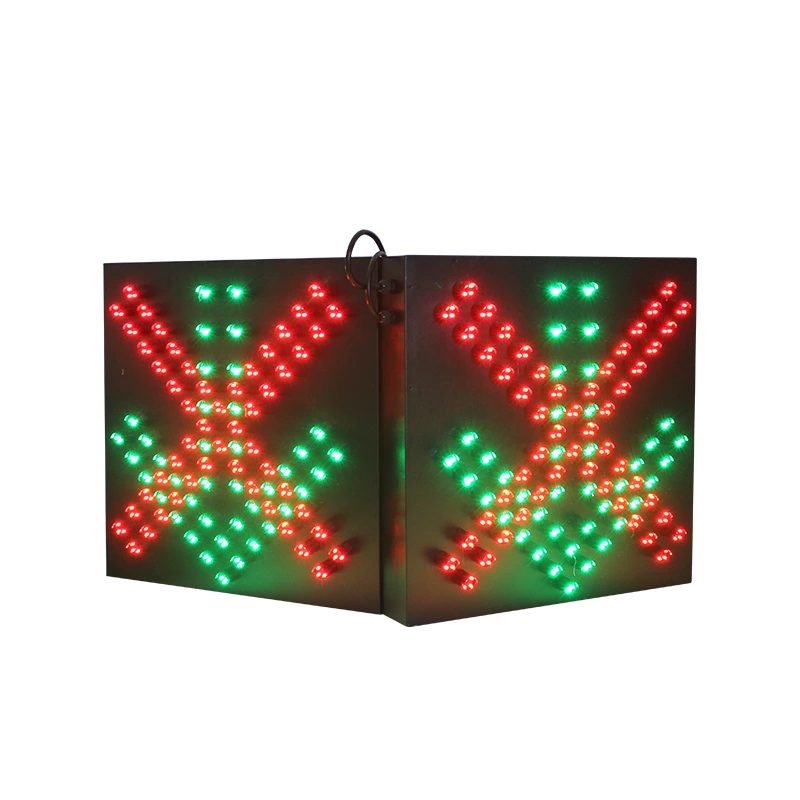

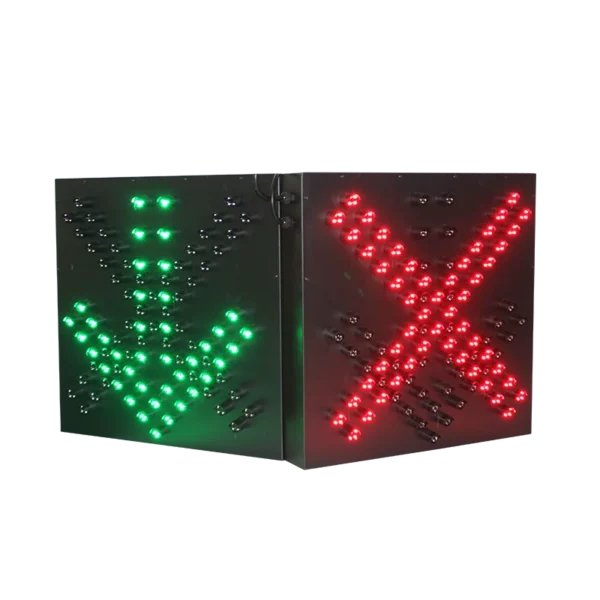

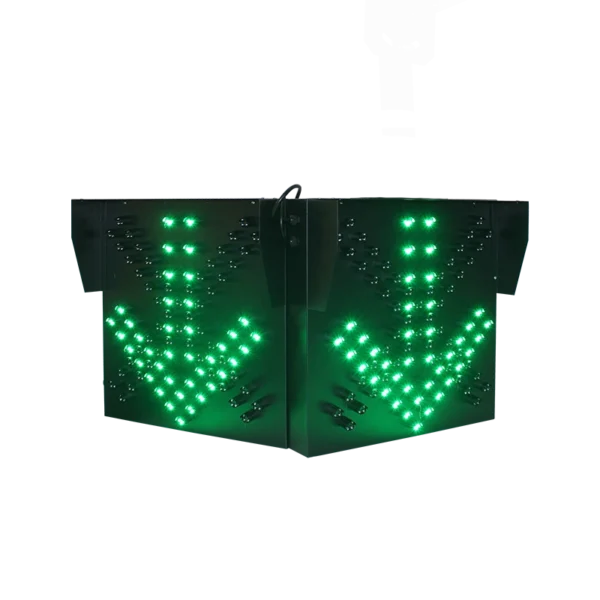

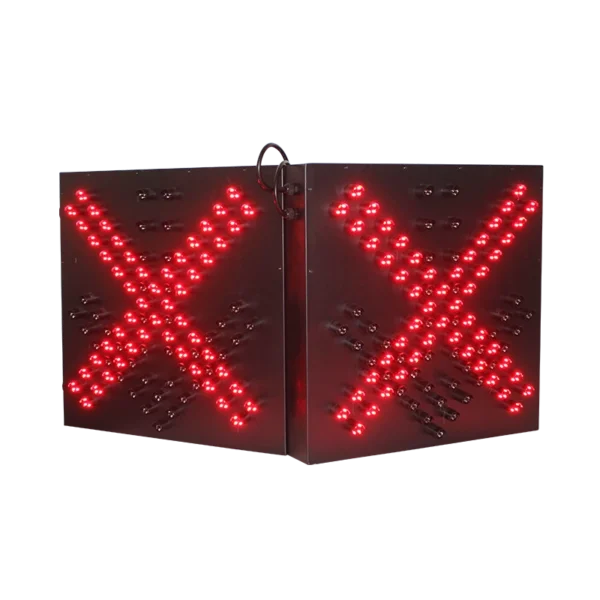

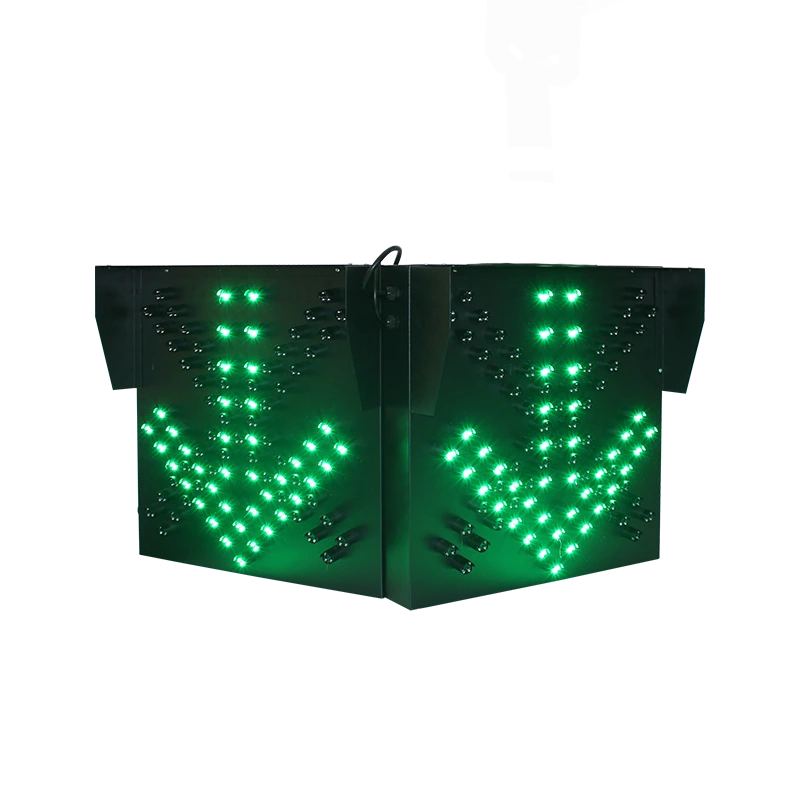

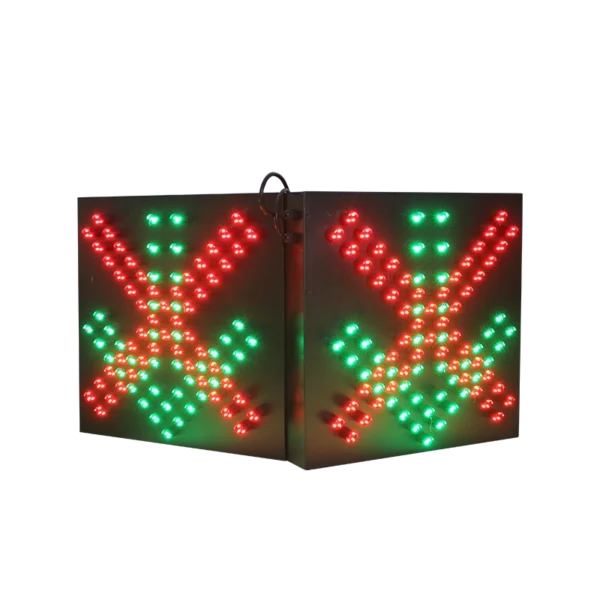

Model 600 Double-Sided Pixel Tube Lane Control Signal
The Model 600 Double-Sided Pixel Tube Lane Control Signal is composed of a box and multiple pixel tubes. Each red pixel tube is made up of 4 LEDs, and each green pixel tube is composed of 3 LEDs. The box has a side-opening design, which is convenient for opening the display screen for inspection and maintenance. The box is installed on the crossbeam of the toll station or on the top of the tunnel. For the specific structural form, please refer to the relevant drawings.
This product is mainly used at highway toll stations and tunnel entrances. The light intensity is relatively high, and drivers can observe it from a distance, allowing them to slow down in advance and proceed safely and smoothly.
- It is mainly used in toll stations, tunnels, etc. The LED uses Taiwan’s chip light beads and is arranged in a pixel tube manner. The number of LEDs is closely arranged, with extremely high brightness and excellent visual effect.
- The box body is made of cold-rolled steel plates and welded together, with excellent strength and wind resistance performance. The screen body adopts a double-layer structure, which has good sealing and dust-proof performance, and at the same time has good heat dissipation performance inside the screen body. The canopy light components are complete, assembled firmly, and the structure is stable. The edges have smooth transitions, without burrs or sharp edges.
- The protective layer of the screen body and connection parts has uniform color, no scratches, no cracks, and no exposed base materials, and its physical and chemical performance indicators meet the requirements of relevant national and industry standards.
- Fully waterproof: The connection area between the display screen surface and the box body is sealed with waterproof glue to improve the waterproof performance of the product.
- Strict aging test: The product is verified for aging 24 hours before shipment, with better performance!
Parameter
| Product Model | WDM-CD600-C26-2-4R3G-RG |
|---|---|
| Product Name | 600-Type Double-Sided Pixel Tube Red Cross Green Arrow Canopy Lamp |
| Product Dimensions | 600*600*110MM |
| Number of Pixel Tubes | 60 Red * 2, 34 Green * 2 |
| Number of Light Beads | 4 Red Beads/Tube, 3 Green Beads/Tube |
| Light Bead Type | Taiwan Crystal Chip Light Beads |
| Red Wavelength | 620-625NM |
| Green Wavelength | 520-525NM |
| Service Life | 100,000 Hours |
| Shell Material | Electrostatic Spraying, Metal Box |
| Operating Temperature | -40℃ – 65℃ |
| Protection Grade | IP53 |
| Operating Voltage | AC85 – 265V |
| Visible Distance | ≥1000M |
| Installation Method | Suspension |
