200MM Single-Color Traffic Light
200MM Single-Color Traffic Signal Light. It is widely used at entrances and exits of residential areas, parking lots, factories, airports, enterprises and institutions, to guide the passage of pedestrians and vehicles. It can effectively manage the passage of people and vehicles, ensuring safety and order. The high-brightness light beads have bright and distinct colors, and have a long visible distance, providing excellent visibility both during the day and at night.
Share This Products :
- Green energy, environmentally friendly, free of harmful substances, and without pollutant emissions.
- LED uses Taiwan semiconductor chips, with a lifespan of ≥ 100,000 hours, high brightness, a unique optical system, uniform color, good warning effect, and slow light attenuation.
- The protective layer of the shell and connectors is uniform in color, without scratches, cracks, or exposed base materials, and its physical and chemical performance indicators meet the requirements of relevant national and industry standards;
- The front and back of the shell adopt a snap-fit design for convenient opening of the lamp for maintenance and inspection;
- Low power consumption, wide viewing angle, extremely high brightness, long visible distance, and long working time.
- Sturdy and durable. Stable and reliable, with a high protection level. Resistant to impact, aging, corrosion, and water resistance. Installation is convenient.
- Complies with GB/14887-2003 and international relevant standards.
- Product warranty ≥ 2 years;
- Exquisite appearance;
200MM Single-Color Traffic Light

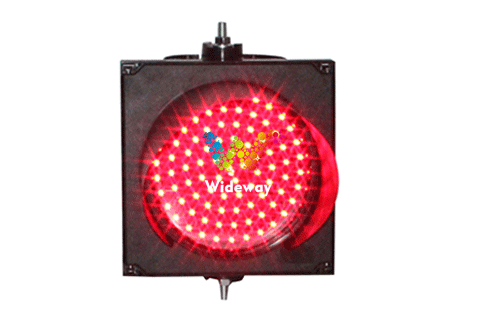

Red Light Warning
High-brightness LED chip with strong light penetration. Suitable for high-warning scenarios such as no-entry indication and equipment fault alarm.
Delivering excellent long-distance visibility.

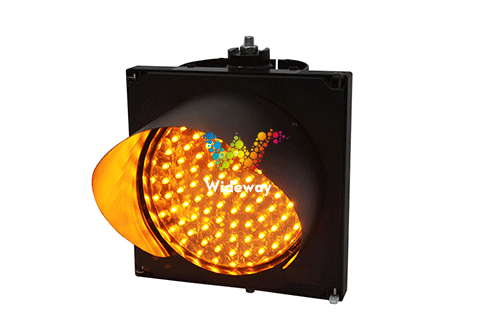

Yellow Light Alert
Eye-catching yet non-glaring,it is suitable for scenarios of safety reminder,slow-down warning or equipment standby status.
Balancing warning effect and visual comfort, 100 mm traffic light three aspect features a wide range of applications.

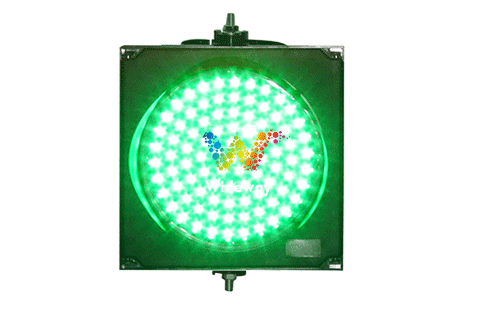

Green light -Proceed
Soft and clear light, specially designed for passage permission and normal-operation status of equipment.
Vision-friendly with high recognizability,it guides safe passage.

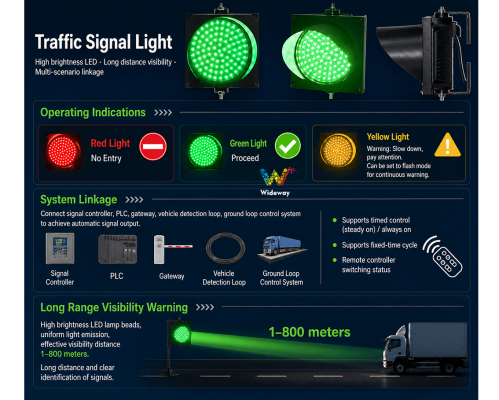

What are the features of the 200MM single-color traffic signal light?
Traffic signal function: Red light – No entry; Green light – Entry permitted; Yellow light – Warning and speed reduction; Alternatively, a flashing yellow mode can be configured for continuous alerting.
System integration capability: compatible with traffic signals, PLCs, barrier gates, ground induction loops, and weighbridge control systems to enable automated signal output; can also be paired with a timer to achieve timed flashing or constant illumination; supports timed cycling and remote control state switching.
Visual long-distance warning: High-brightness through-hole LED beads with uniform light distribution, offering an effective viewing range of 1–800 meters for clear long-distance signal recognition.

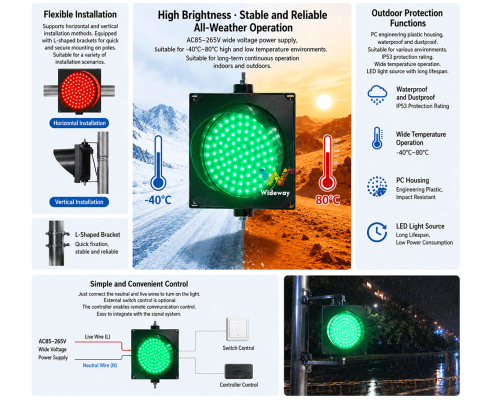

All-weather stable illumination: Operates on a wide voltage range of AC 85–265 V, suitable for extreme temperature environments from –40°C to 80°C; ensures long-term, continuous lighting performance both indoors and outdoors.
Flexible installation compatibility: Supports both horizontal and vertical installation methods; when paired with an L-shaped bracket, 200mm single smart traffic lights can be quickly secured to structural members, accommodating a variety of installation scenarios.
Outdoor protection features: The housing is made of PC engineering plastic, offering waterproof and dustproof protection suitable for outdoor environments; smart traffic lights,
Protection Rating:meets IP53 dust and splash protection standards; smart traffic lights,operates across a wide temperature range; and the LED light source boasts a long service life.
Simple power-on control: Simply connect the neutral and live wires to turn the device on; an external switch or controller can be used for on/off control, making it easy to integrate with a complete signaling system for coordinated operation.
What problems do 200MM single-color traffic lights help you solve?
Solution: Ensures stable operation even during grid voltage fluctuations; connects directly to the mains power supply, eliminating the need for an additional DC power source and reducing the cost of supporting equipment.
Solution: IP53 protection rating – dust and splash resistance – ideal for outdoor use; operating temperature range of 40°C to +80°C – ensures reliable performance in both high-temperature southern climates and extreme cold northern regions; Taiwan-based Epistar LED chips – featuring a long service life of 100,000 hours – reduces the frequency of lamp replacements; rugged PC impact-resistant housing – paired with a sunshade cap – protects against sun-induced aging.
Solution: 90 LED full-point array with a light emission angle of 30° and a visible range of ≥1000 meters; includes a standard sunshade cap to reduce sunlight glare, ensuring clear and sharp signal colors even in bright daylight conditions, thereby enhancing traffic safety.
Solution: Supports both horizontal and vertical installation methods; includes a complete set of L-shaped mounting brackets and shade cap accessories shipped as standard – can be installed immediately upon delivery without additional component procurement, thereby reducing installation costs. The vertical pole has low load-bearing capacity.
Solution: Red, yellow, and green lights operate as independent single-lamp units and can be selected and configured as needed; there is no requirement for a complete integrated signal light system. Each lamp is powered independently and can be connected to a PLC, relay, barrier gate controller, or weighbridge system to implement custom logic – such as a red light when the weighbridge is loaded, a green light when unloaded, or a flashing yellow light as an alarm. The lights can be freely configured: for example, purchasing only the red and green lights for use with a weighbridge, or adding a yellow light to provide an alerting flashing signal.
Solution: Rated power ≤ 5 W – low-power LED light source; operates continuously for 24 hours, saving electricity.
Solution: Model 200 – medium-luminance surface with a compact size (250×250 mm), ideal for low-speed access areas such as industrial sites, weighbridges, and underground garages; offers excellent value for money without exceeding the budget.
200MM Single-Color Traffic Light Wiring Instructions
Red line
Red Light Live Wire: Provides power input to the red LED module,ensuring normal illumination of the red light.
Black line
Common Neutral Wire: Serves as the common terminal of the circuit and must be reliably connected to the power supply neutral wire.
Wide voltage range
Supports a wide AC 85–265V input voltage range, making it compatible with power grid voltage standards in different countries and regions worldwide.
200MM Single-Color Traffic Light Product Installation (Vertical Installation Example)
Nut Assembly – Disassembly
The lamp features built-in screws at both ends; first, remove the screw and its nut.
Fixed L-shaped bracket
Align the flat ends of the two L-shaped brackets with the luminaire mounting holes, then insert the screws into the slots. Tighten the nuts.
Whole-unit component installation
Drill holes in the signal light pole; insert the matching screw through the pole; secure the assembled L-shaped bracket to the pole; tighten the lock nut to complete installation. Tighten the nut.
Usage Instructions & After-Sales Warranty
Warranty Commitment
We provide a 3-year original manufacturer's warranty to ensure the proper functioning of the luminaire's main structure and core light source; however, wear-and-tear components (e.g., lampshades, connecting cables) and customized non-standard products are not covered under this warranty.
Repair Submission Process
For the customer return-to-service model, please first contact our after-sales customer service to register the fault details; upon receiving authorization, please return the product to a designated service center or send it back to the manufacturer via courier for professional inspection and repair.
Disclaimer
Damage resulting from human-induced damage, unauthorized modification, improper use, or force majeure events (such as fire, earthquake, or voltage abnormalities), as well as malfunctions caused by failure to operate the device in accordance with the instruction manual, are not covered under the free warranty.
Logistics Responsibility
For product repairs, the one-way shipping cost incurred when sending the product from the customer to the after-sales service point shall be borne by the customer; for defects identified during inspection as falling within the warranty scope, the shipping cost for returning the repaired product shall be covered by the brand owner.
Usage Precautions
This product features a PC plastic casing; avoid applying excessive pressure to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
| Product Model | WDM-JD200-1-PC-R/Y/G |
|---|---|
| Product Name | 200-type single-color single-lamp (PC) |
| Product Dimensions | 250*250*100MM |
| Number of Light Chips | 90 |
| Light Emission Diameter | 200MM |
| Light Chip Type | Taiwan Crystal Chip Light Chip |
| Red Wavelength | 620-625NM |
| Yellow Wavelength | 590-595NM |
| Green Wavelength | 500-505NM (Blue-Green)/520-525NM (Turquoise Green) |
| Service Life | 100,000 Hours |
| Shell Material | PC |
| Operating Temperature | -40℃ – 60℃ |
| Light Emission Angle | 30° |
| Protection Grade | IP53 |
| Operating Voltage | DC12V/DC24V/AC85-265V |
| Visible Distance | ≥800M |
| Installation Method | Horizontal Installation/Vertical Installation |
| fittings of a machine | quantity | Note: |
| lamps and lanterns | 1 unit | Available in red, yellow, or green – to meet various warning requirements across different scenarios. |
| L-shaped bracket | 2 | High-strength cold-rolled steel sheet – used for securely fixing the luminaire body. |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation steps, and a safety and maintenance guide |
