200-type Red-Yellow-Green Three-Light (PC)
The 200 model red-yellow-green three-lamp assembly consists of three units: the red unit, the yellow unit and the green unit. It is widely used at entrances and exits of residential areas, parking lots, factories, airports, enterprises and institutions, to guide the passage of pedestrians and vehicles. It can effectively manage the passage of people and vehicles, ensuring safety and order. The high-brightness lamp beads have distinct colors and are eye-catching. The visible distance is far, and it has excellent visibility both during the day and at night.
Share This Products :
- Green energy, environmentally friendly, free of harmful substances, and without pollutant emissions.
- LED uses Taiwan semiconductor chips, with a lifespan of ≥ 100,000 hours, high brightness, a unique optical system, uniform color, good warning effect, and slow light attenuation.
- The protective layer of the shell and connectors is uniform in color, without scratches, cracks, or exposed base materials, and its physical and chemical performance indicators meet the requirements of relevant national and industry standards;
- The front and back of the shell adopt a snap-fit design for convenient opening of the lamp for maintenance and inspection;
- Low power consumption, wide viewing angle, extremely high brightness, long visible distance, and long working time.
- Sturdy and durable. Stable and reliable, with a high protection level. Resistant to impact, aging, corrosion, and water resistance. Installation is convenient.
- Complies with GB/14887-2003 and international relevant standards.
- Product warranty ≥ 2 years;
- Exquisite appearance;
200MM traffic light Three aspect

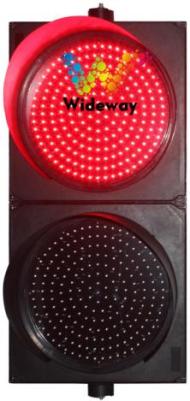

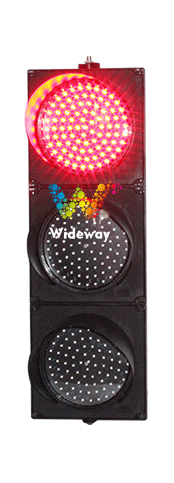

Red Light Warning
High brightness LED chip with strong light penetration. Suitable for high warning scenarios such as no entry indication and equipment fault alarm,Delivering excellent long distance visibility.

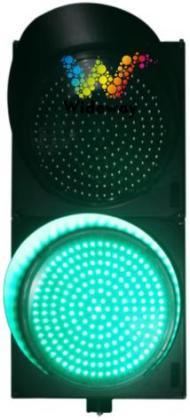

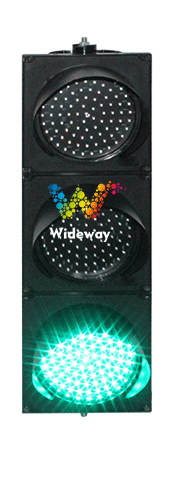

Green light – More friendly
The soft yet clear lighting is specifically designed for traffic signal control and monitoring the normal operating status of equipment. 400MM traffic light two aspect offers a visually friendly design with high recognizability, ensuring safe traffic flow guidance.
Product Features
Red light – No entry: All vehicles and equipment must stop; entry into the passage is prohibited. This signal is commonly used when barrier gates are closed, weighbridges are in use, or passages are secured.

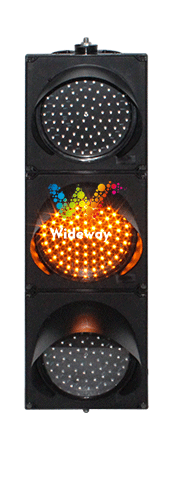

Yellow light – Warning Transition: Indicates a status change, reminding drivers to reduce speed, be cautious, or prepare to stop or start.
Green light ON – Passage permitted: The lane is open; vehicles may enter and equipment can operate. (An external traffic signal controller can be connected to realize cyclic sequence switching among red, yellow and green lights.)(External signal light can be connected to enable cyclic switching between red, yellow, and green signals.)

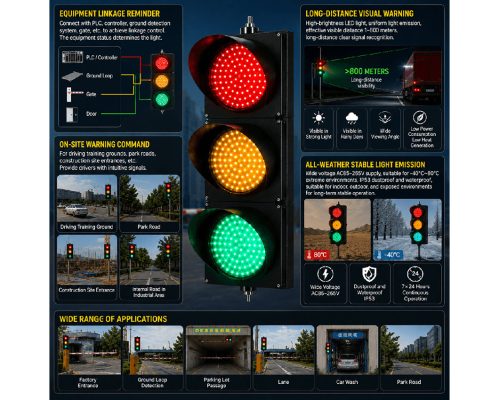

Access Control: Manage vehicle entry and exit at factory entrances/exit points, weighbridges, barrier gates, parking lots, and car wash facilities.
Equipment Interlocking Alert: Integrates with PLCs and controllers, as well as with weighbridges, barrier gates, and access control systems; the corresponding indicator light will illuminate based on the current status of the equipment.
On-site warning and traffic control: Provide drivers with clear, visual signals at driving school training grounds, park pathways, and temporary construction site access points.
Visual long-range warning system: High-brightness through-hole LED beads provide uniform illumination with an effective viewing distance of 1–800 meters, enabling clear identification of signals from afar. The high brightness is complemented by a shading cover, ensuring visibility even under intense light; the long-range capability holds true on both clear and overcast days; the wide viewing angle allows for clear signal detection from multiple angles; and the device features low power consumption and minimal heat generation.
All-weather stable illumination: Operates on a wide voltage range of AC 85–265 V, suitable for extreme temperature environments from –40°C to 80°C; features IP53 dust and splash protection; enables long-term continuous operation both indoors and outdoors; ideal for use at factory entrances/exit points, parking lot aisles, weighbridges, barrier gates, car wash facilities, and driving school training areas.
Flexible installation compatibility: Supports both horizontal and vertical installation methods; when paired with an L-shaped bracket, led 200mmcan be quickly secured to structural members, accommodating a variety of installation scenarios.
Simple power-on control: Simply connect the neutral and live wires to turn the device on; an external switch or controller can be used for on/off control, making led 200mmeasy to integrate with a complete signaling system for coordinated operation.

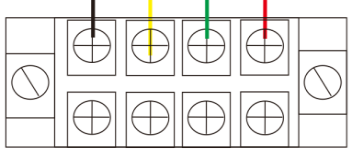

200MM Three-Light Traffic Signal Wiring Instructions
Red line
The Red Light Line provides power input to the red LED module, ensuring proper illumination of the red light.
Green line
Green light line – independently controls the green LED module, enabling individual switching of the green light source.
Black line
The public neutral conductor, which serves as the common terminal for the circuit loop, must be reliably connected to the power supply neutral conductor.
Wide-range voltage
Supports a wide input voltage range of AC 85–265 V, compatible with power grid voltage standards worldwide.

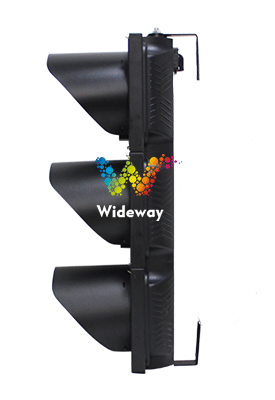

Product Installation (Vertical Installation Example)
Nut Assembly – Disassembly
The lamp features built-in screws at both ends; first, remove the screw and nut.
Fixed L-shaped bracket
Align the flat ends of the two L-shaped brackets with the luminaire mounting holes, then insert the screws into the slots. Tighten the nuts;
Whole-unit component installation
Drill holes in the signal light pole; insert the matching screw through the pole; secure the assembled L-shaped bracket to the pole; tighten the lock nut to complete installation. Tighten the nut.
Usage Precautions
This product features a PC plastic casing; avoid applying excessive pressure to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
| Product Model | WDM-JD200-3-RLG-PC-RYG |
|---|---|
| Product Name | 200-type Red-Yellow-Green Three-Light (PC) |
| Product Dimensions | 750*250*100MM |
| Number of Light Chips | 90 each for red, yellow and green (full pan) |
| Light Chip Type | Taiwan Crystal Chip Light Chips |
| Red Wavelength | 620-625NM |
| Yellow Wavelength | 590-595NM |
| Green Wavelength | 500-505NM (Blue-Green)/520-525NM (Turquoise Green) |
| Service Life | 100,000 Hours |
| Shell Material | PC |
| Operating Temperature | -40℃ – 60℃ |
| Protection Grade | IP53 |
| Operating Voltage | DC12V/DC24V/AC85-265V |
| Visible Distance | ≥800M |
| Installation Method | Vertical or Horizontal Installation |
| fittings of a machine | quantity | Note: |
| lamps and lanterns | 1 unit | Available in red, yellow, or green – to meet various warning requirements across different scenarios. |
| L-shaped bracket | 2 | High-strength cold-rolled steel sheet – used to securely fix the luminaire body. |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation steps, and a safety and maintenance guide |
