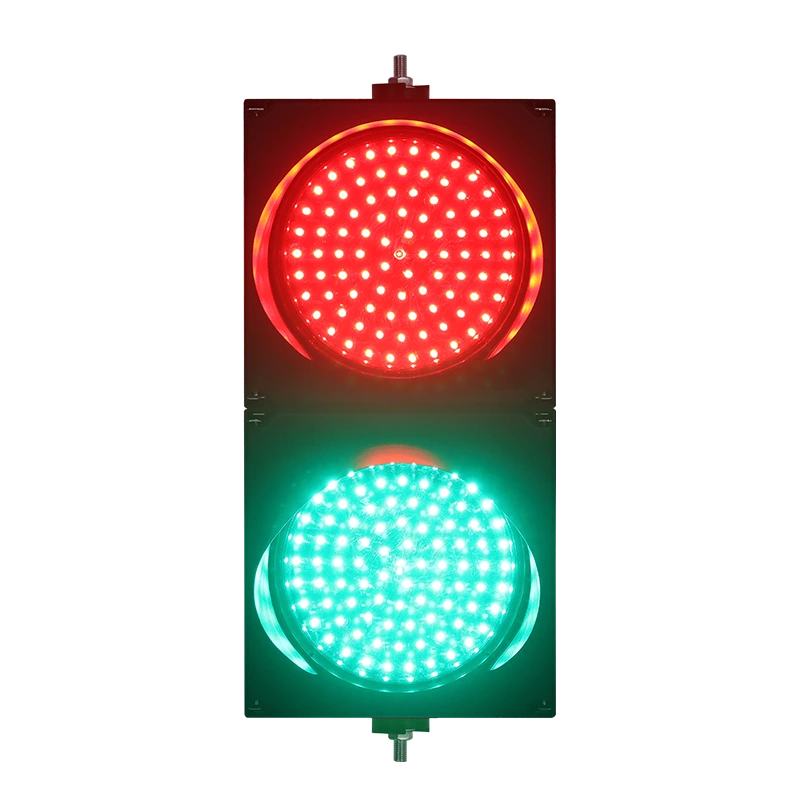

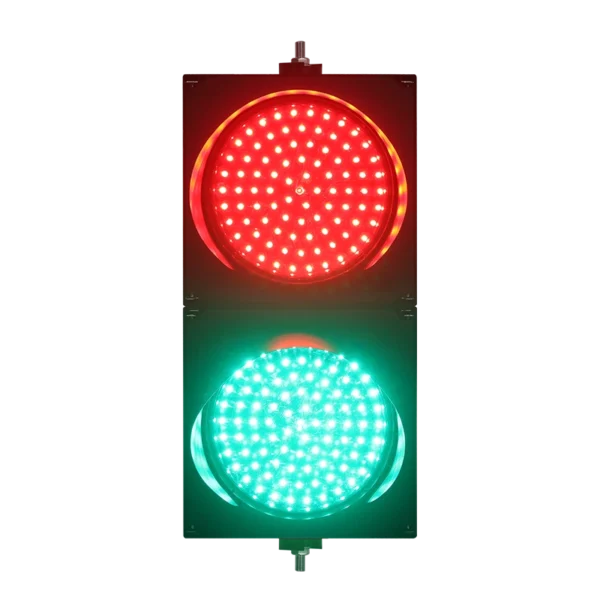

200-type Red and Green Dual-Light (PC)
The 200 model red and green dual-lights consist of two units, namely the red unit and the green unit. They are widely used at entrances and exits of residential areas, parking lots, factories, airports, enterprises and institutions, to guide the passage of pedestrians and vehicles. They can effectively manage the passage of people and vehicles, ensuring safety and order. The high-brightness light beads have bright and distinct colors, and have a long visible distance, providing excellent visibility both during the day and at night.
Share This Products :
- Green energy, environmentally friendly, free of harmful substances, and without pollutant emissions.
- LED uses Taiwan semiconductor chips, with a lifespan of ≥ 100,000 hours, high brightness, a unique optical system, uniform color, good warning effect, and slow light attenuation.
- The protective layer of the shell and connectors is uniform in color, without scratches, cracks, or exposed base materials, and its physical and chemical performance indicators meet the requirements of relevant national and industry standards;
- The front and back of the shell adopt a snap-fit design for convenient opening of the lamp for maintenance and inspection;
- Low power consumption, wide viewing angle, extremely high brightness, long visible distance, and long working time.
- Sturdy and durable. Stable and reliable, with a high protection level. Resistant to impact, aging, corrosion, and water resistance. Installation is convenient.
- Complies with GB/14887-2003 and international relevant standards.
- Product warranty ≥ 2 years;
- Exquisite appearance;
200MM traffic two aspect

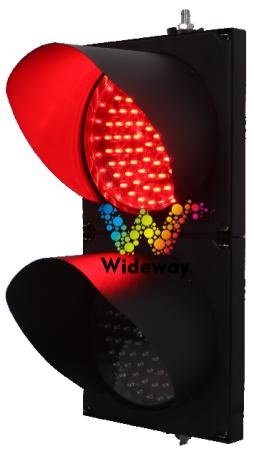

Red light warning – High penetration
High-brightness LED chip with strong light penetration. Suitable for high-warning scenarios such as no-entry indication and equipment fault alarm,
Delivering excellent long-distance visibility.

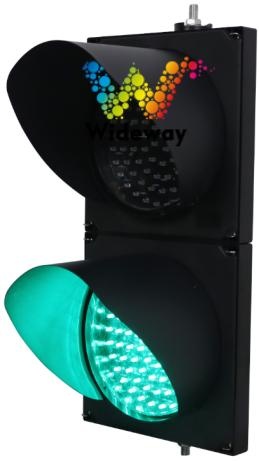

Green light – More friendly
Soft and clear light, specially designed for passage permission and normal-operation status of equipment.
Vision-friendly with high recognizability,it guides safe passage.
product function
Traffic Signal Function

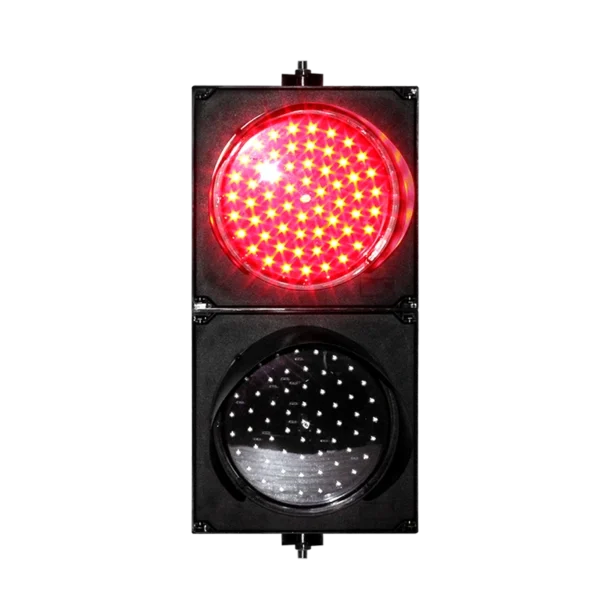

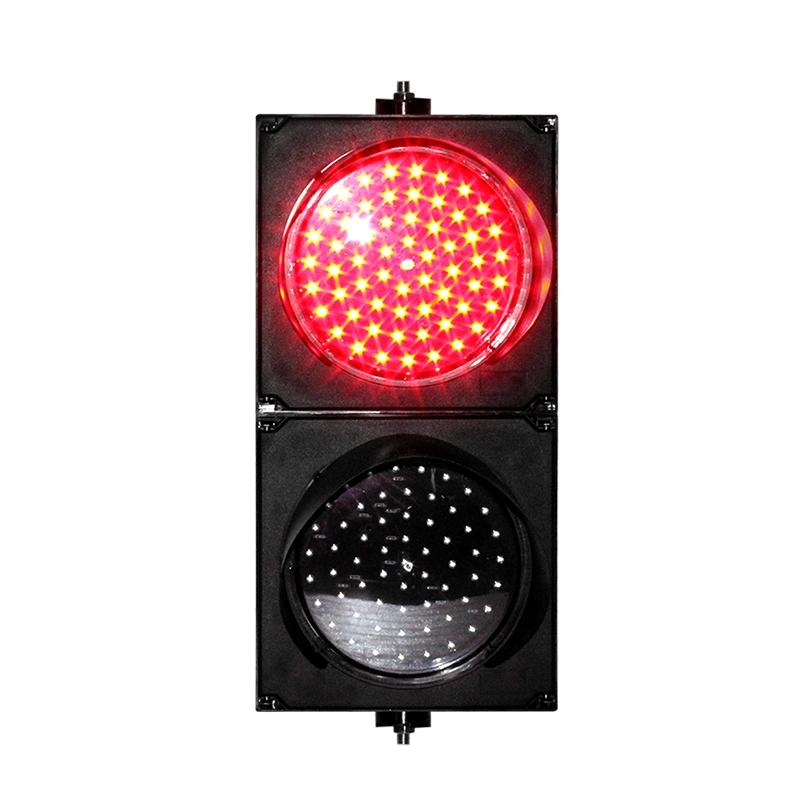

Red light (on): No entry – vehicles are prohibited from entering; commonly used for weighing vehicles at weighbridge stations, closing access gates, or blocking passages.

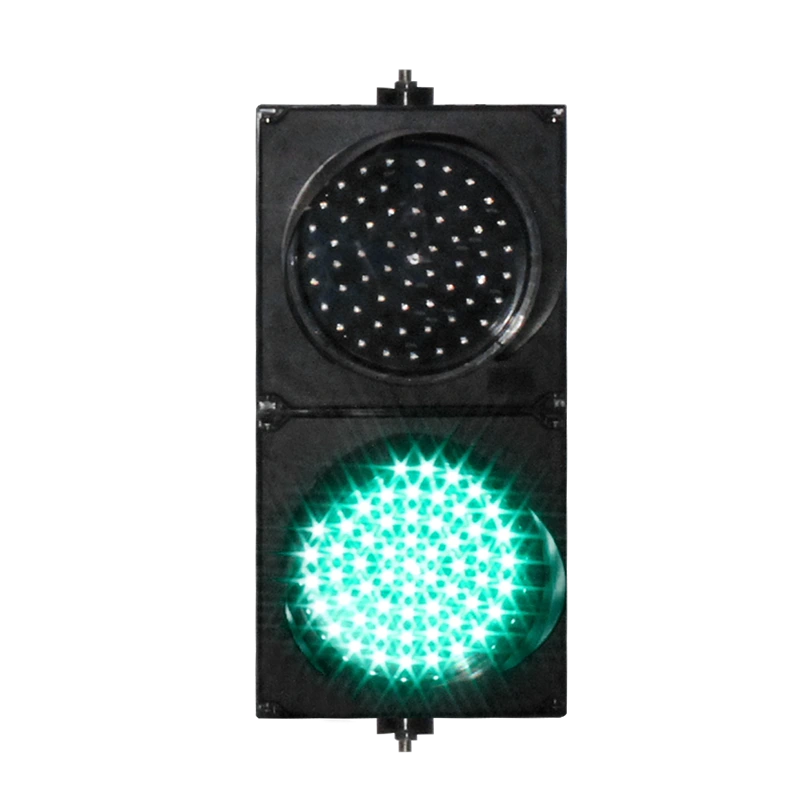

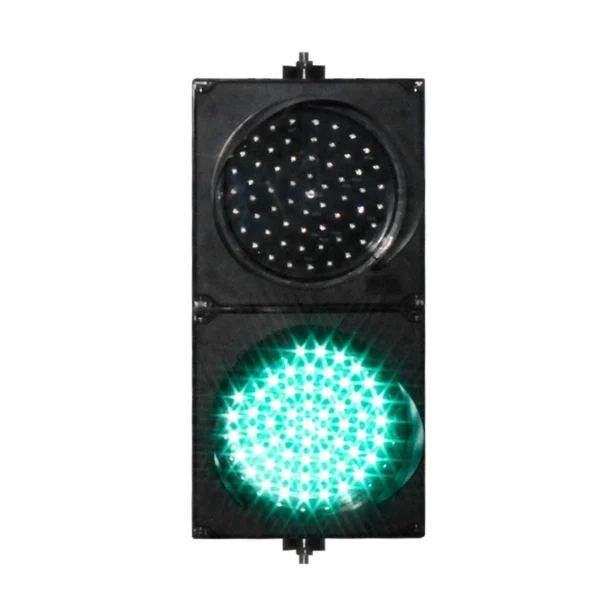

Green light (downlight): Traffic may proceed; vehicles are permitted to enter or exit.
Outdoor protection – high-intensity light resistance feature
Each lamp comes with an integrated sunshade to block direct sunlight, ensuring the light does not appear washed out under intense daylight and providing clear visibility; the LED chips feature a 100,000-hour light source lifespan and a viewing distance of ≥800 meters.
All-weather stable illumination
Operates on a wide voltage range of AC 85–265 V; suitable for extreme temperature environments ranging from –40°C to 80°C; features IP53 dust-and splash-proof rating; enables long-term, stable operation both indoors and outdoors, even in harsh weather conditions.
Flexible installation and adaptation
Supports both horizontal and vertical installation methods; when paired with an L-shaped bracket, 200MM traffic light two aspectcan be quickly secured to structural members, making 200MM traffic light two aspect suitable for a variety of installation scenarios.
Simple power-on control
Simply connect the neutral and live wires to turn the device on; 200MM traffic light two aspect supports external switches or controllers for on/off control and can be seamlessly integrated with any complete signaling system – making operation simple and convenient.
Equipment Interlinked Control Function
Integrates barrier gates, weighbridge systems, proximity sensors, and PLCs (e.g.: when a vehicle approaches the weighbridge, the red light automatically turns on; upon completion of weighing and departure, the green light automatically turns off; when the barrier gate lowers, the red light turns on; when the barrier gate rises, the green light turns on). Optional remote control and time timer available for remote switching and scheduled rotation.

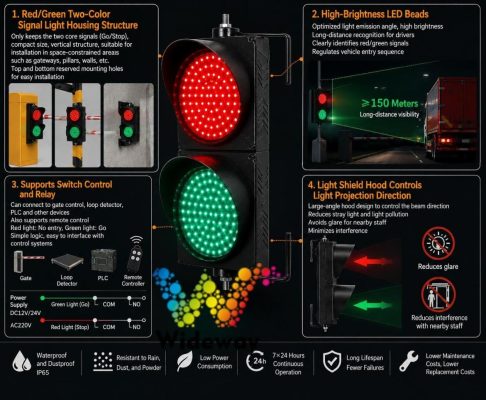

Solves core pain points for customers

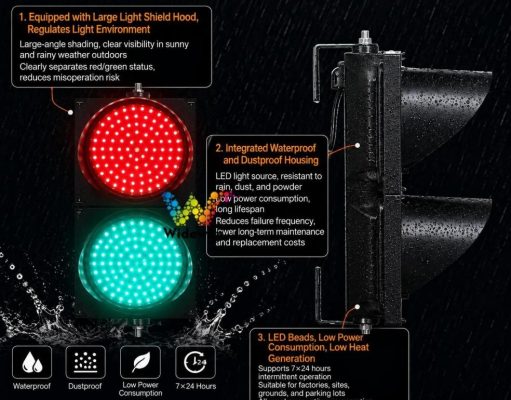

• Solution: Equipped with a built-in large sunshade hood that shields against strong ambient light,providing wide-angle shading – enabling clear distinction between red and green states even on sunny outdoor conditions, thereby reducing the risk of misoperation.
• Solution:Integrated waterproof and dustproof casing with LED lighting – resistant to rain and dust; low power consumption and long service life – reduces failure frequency and lowers subsequent maintenance and material replacement costs.
• Solution: Features LED light beads with low power consumption and minimal heat generation; supports continuous 7×24-hour operation, making 200MM traffic light two aspect ideal for round-the-clock operation in industrial facilities, weighbridges, and garages.
• Solution: Compact structure with dual-light panels for red-green two-color signals. Only two core signals, passage permission and prohibition, are retained. With streamlined volume and vertical layout, 200MM traffic light two aspect fits narrow installation spaces such as barrier gate cabinets, support columns and walls. Pre-drilled mounting screw ports are reserved at the top and bottom for easy installation.
• Solution: High-brightness LED pixelswith optimized light emission angles enable truck drivers to clearly identify red and green traffic signals from a distance, thereby standardizing vehicle entry and exit procedures.
• Solution: Supports dry-contact and relay signals. 200MM traffic light two aspect can connect to barrier gates, weighbridges and PLCs, and also works with an external remote-control unit. Red light = Stop / Prohibition, Green light = Passage. Featuring simple logic, 200MM traffic light two aspect is easy to integrate with industrial-control systems.
• Solution: The light-blocking hood restricts the light emission direction,ensuring that light is projected solely toward the direction of oncoming vehicles, thereby reducing lateral light spillage and preventing glare from disturbing nearby residents or interfering with personnel stationed at the guard booth.
Wiring Instructions
Red line
The Red Light Line provides power input to the red LED module, ensuring proper illumination of the red light.
Green line
Green light line – independently controls a green LED module, enabling individual switching of the green light source.
Black line
The public neutral conductor, which serves as the common terminal for the circuit loop, must be reliably connected to the power supply neutral conductor.
Wide-range voltage
Supports a wide input voltage range of AC 85–265 V, compatible with power grid voltage standards worldwide.
Product Installation (Vertical Installation Example)
Nut Assembly – Disassembly
The lamp fixture is equipped with screws at both ends; first, remove the screws and their nuts.

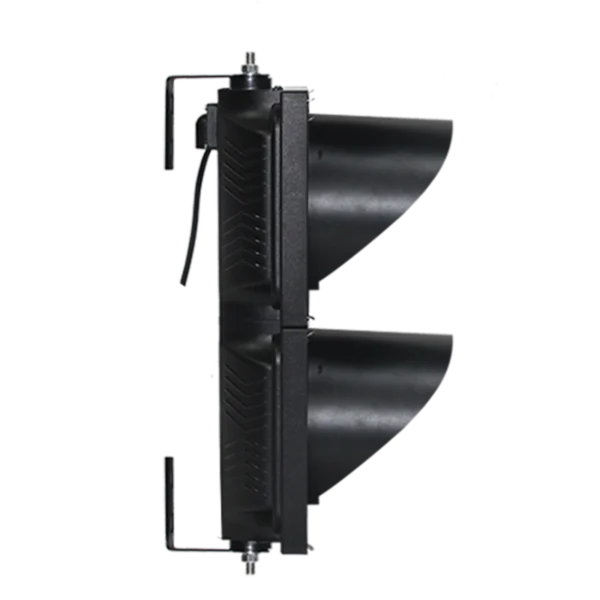

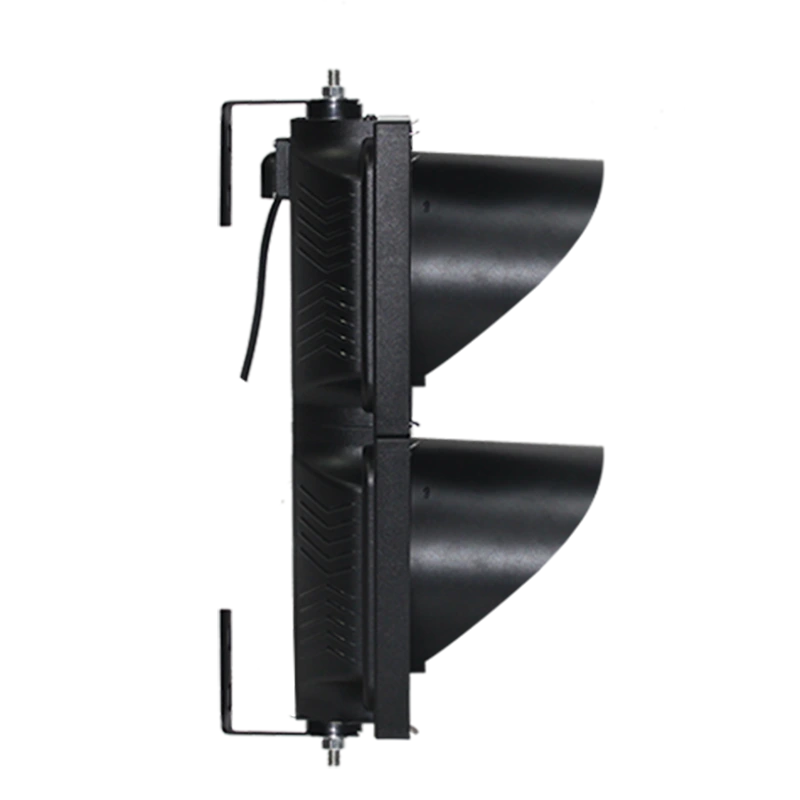

Fixed L-shaped bracket
Align the flat ends of the two L-shaped brackets with the luminaire mounting holes, then insert the screws into the corresponding slots. Tighten the nuts.
Whole-unit component installation
Drill holes in the signal light pole; insert the matching screw through the pole; secure the assembled L-shaped bracket to the pole; tighten the lock nut to complete installation. Tighten the nut.
Usage Precautions
This product features a PC plastic casing; avoid applying excessive pressure to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
After-Sales Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; customized products are excluded.
• Return Method: Customer returns
• Scope of Exemption: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The return shipping cost shall be borne solely by the sender.
| outline dimension | 500*250*100MM |
|---|---|
| LED bead configuration | 90 red LED beads and 90 green LED beads |
| LED bead category | Taiwan-based Epistar LED beads |
| Red wavelength | 620-625NM |
| Green wavelength | 500–505 nm (blue-green); 520–525 nm (emerald green) |
| life length | 100000H |
| Shell material | PC plastic casing |
| working temperature | -40°C to 80°C – suitable for outdoor environments with extreme temperatures |
| levels of protection | IP53 – dust and splash protection |
| working voltage | AC85–265V – Wide voltage range AC power supply |
| visual range | ≥1-800M |
| way to install | Supports horizontal or vertical installation. |
| Quality Assurance | 3 years |
| fittings of a machine | quantity | Note: |
| lamps and lanterns | 1 unit | Available in red, yellow, or green – to meet various warning requirements across different scenarios. |
| L-shaped bracket | 2 | High-strength cold-rolled steel sheet – used to securely fasten the luminaire body. |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation procedures, and a safety and maintenance guide. |
