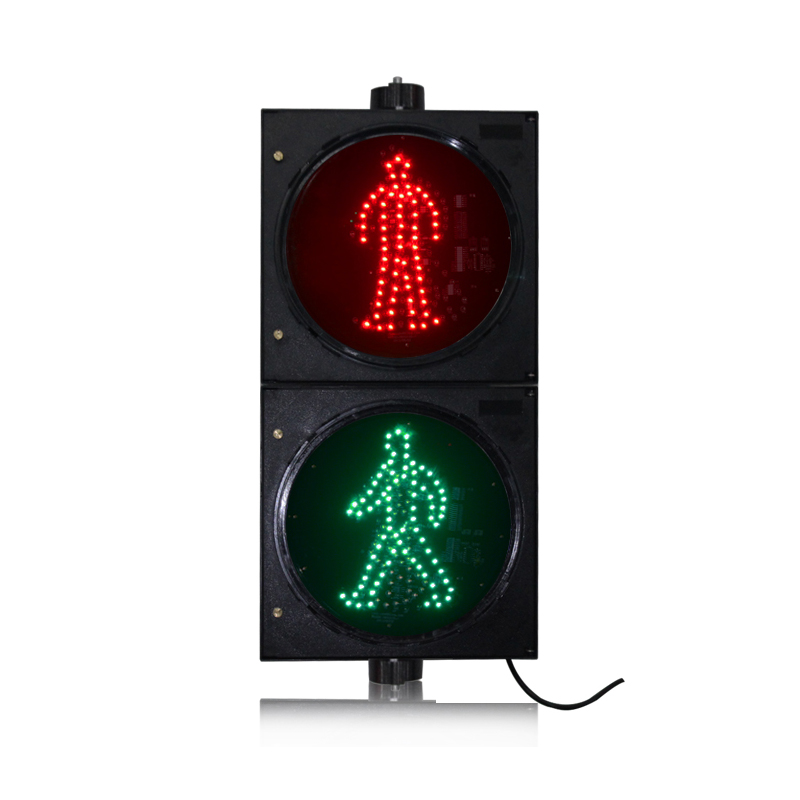

The parameters of the 300mm pedestrian traffic lights:

Product model: WDM-RX300-02-RG
1. Product size: 750*350*110MM
2. Number of lamp beads: 65 reds, 120 greens
3. Lightning diameter: 300MM
4. Lamp Beads Category: Taiwan Crystal Chip Lamp Beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (green)
7. Visual distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Illumination angle: 30°
11. Working temperature: -40 ° C -65 ° C
12. Protection level: IP53
13. Working voltage: AC85V-265V A small amount of DC12V/24V
14. Rated power: red 8W green 10W
15. Working mode: Reds static, green people dynamic
16. Installation method: horizontal or vertical

pedestrian traffic light-2

Second, the characteristics of the 300mm pedestrian traffic lights:

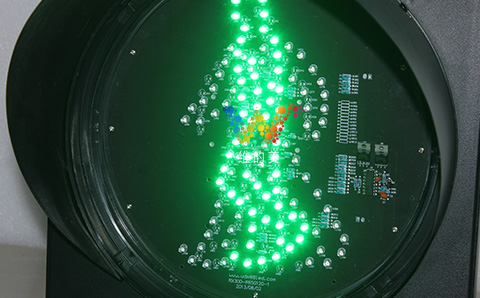

1.300mm pedestrian traffic lights use Taiwan crystal chip lamp beads, high brightness, high refresh rate, long service life.
2.300mm pedestrian traffic lights on the back of the design of the outlet hole, not only easy to outlet, but also has a good

waterproof effect.

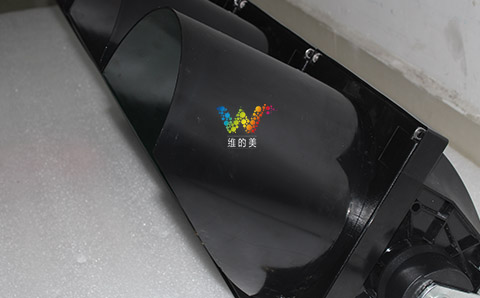

3.300mm pedestrian traffic lights  sunshade is made of PC material, which has better waterproof and dustproof effect and

simple installation.
4.300mm pedestrian traffic lights,each lamp and lamp with a snap-on design,convenient for product inspection and maintenance.

200mm traffic light-1

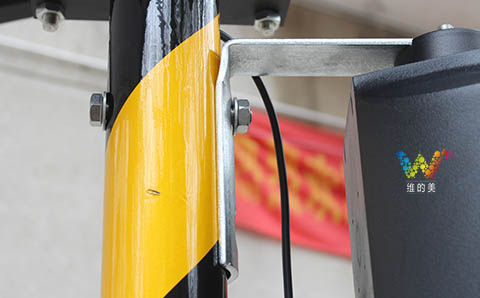

Third, the installation method of 300mm pedestrian traffic lights:
Installation method: erect installation
1. Leave a screw on both ends and unscrew the nut on the screw.
2. Place the “L” bracket on the flat end and tighten the nut according to the hole position and the slot on the screw.
3. The sun visor is installed on the upper part of the lamp. The three-corner aluminum plate is folded into a circular arc

shape, which is placed on the lamp and screwed to the corresponding hole to tighten.
4. Make 2 holes on the signal light rod, drill holes according to the hole position of the L bracket of the signal, pass the

light rod with a suitable screw, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Note 2 points:
1. The visor is at the top of the lamp
2. The outlet hole is facing down

pedestrian traffic light

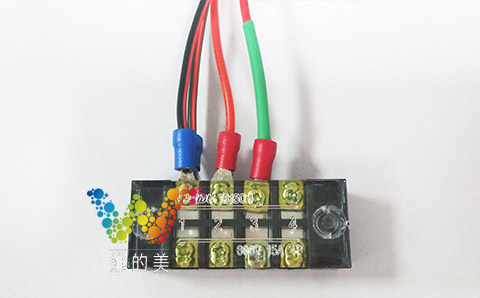

Fourth, 300mm pedestrian traffic lights wiring:

pedestrian traffic light-4
1. Power on DC12V/24V:
Red positive electrode
Red black red light negative;
Green line green light negative;
2. Power up AC220V:
Black zero line;
Red line red light line;
Green line green light line;
pedestrian traffic light-1
In addition to the 300mm pedestrian traffic lights, We also produces other traffic lights.
1,400mm full red, yellow and green traffic lights
2, 300mm full red, yellow and green traffic lights
3, 300 mm full red and green traffic lights
4, 200mm full plate red yellow green traffic lights, etc.

pedestrian traffic light-3
