Electronic Sign Board Solar Slow Down Traffic Sign

Electronic Sign Board Solar Slow Down Traffic Sign
The shell of the Slow down sign is made of cold-rolled sheet. The cold-rolled sheet has good surface quality, good stamping performance and excellent processing. Products made from cold-rolled sheet are durable and durable.

Slow-Down-Traffic-Sign-2

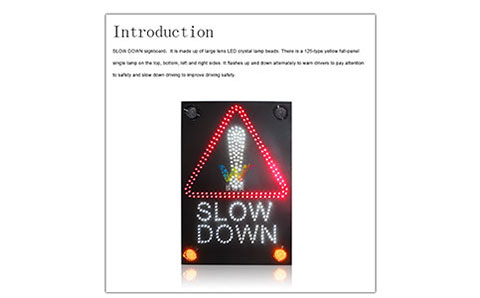

Electronic Sign Board Solar Slow Down Traffic Sign
1.Product size: 1600 * 1100MMI. Details of the parameters of the Solar Slow Down Traffic Sign:
2, lamp beads color: red, yellow, white
3. Number of lamp beads: 132 red, 203 white, 60 yellow * 4
4, lamp beads category: Taiwan wafer chip chip beads
5. Yellow wavelength: 590-595NM
6. Red wavelength: 620-625NM
7. White brightness: 18900-22600MCD
8. Shell material: electrostatic spraying, sheet metal chassis
9. Working voltage: DC12V
10. Working temperature: -40 ℃ ~ 65 ℃
11. Working mode: flashing
12, visible distance: 20-300M

Slow-Down-Traffic-Sign-3

Second, the characteristics of Solar Slow Down Traffic Sign:

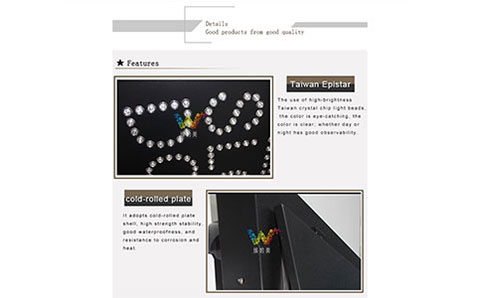

1. The slow down signboard uses large lens Taiwan wafer chip chip beads, high brightness, high refresh rate and long service life.
2. Around the Slow down signboard are four 125-type flashing lamps that alternately flash to better alert passing vehicles and pedestrians.
3. The casing of the Slow down sign is made of cold-rolled sheet. The cold-rolled sheet has good surface quality, good stamping performance and excellent processing. Products made from cold-rolled sheet are durable and durable.

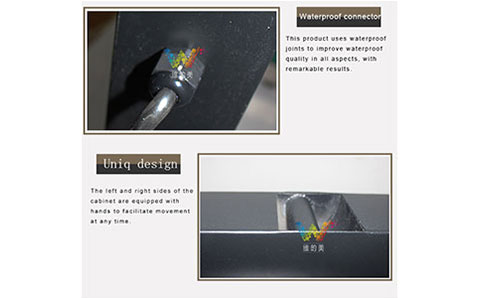

4 Slow down The waterproof terminal of the sign board leads out, which improves the waterproof ability of the product.
5. Both sides of the Slow down sign are designed with two raised hands for better movement.

Slow-Down-Traffic-Sign-4

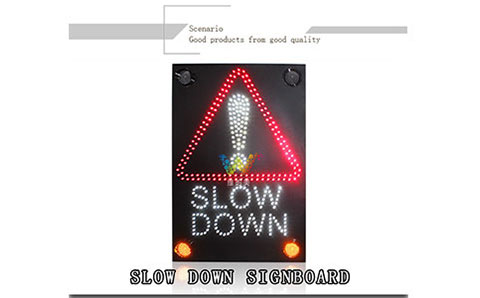

Third, the installation method of Slow down sign:
There are screw holes on the four sides of the product, which are directly fixed with screws

Slow-Down-Traffic-Sign-6

Fifth, the wiring method of Solar Slow Down Traffic Sign:
Red wire-positive
2.Black wire-negative
3.Connect to DC12V
6. Details of Slow down sign accessories:
1.Sign board: 1 set
2. Certificate of conformity: 1 set
3. Manual: 1 set
4. M12 screws: 10 sets
5.Key: 2
