300+200mm combined full screen with countdown timer traffic signal light

300+200mm combined full screen with countdown timer traffic signal light

Short Description:

300+200mm combined full screen with countdown timer traffic signal light Specification model: JWDM-300-200 (88)-RYG Product introduction of 300+200mm combined full screen with countdown signal light: The light source adopts imported ultra-high brightness LED. The lamp shell is made of disposable engineering plastic (PC) injection molding, and the diameter of the light-emitting surface of the lamp panel is 200mm and 300mm. The lamp body can be combined and installed horizontally and vertically...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    300+200mm combined full screen with countdown timer traffic signal light
    Specification model: JWDM-300-200 (88)-RYG

    Product introduction of 300+200mm combined full screen with countdown signal light:
    The light source adopts imported ultra-high brightness LED. The lamp shell is made of disposable engineering plastic (PC) injection molding, and the diameter of the light-emitting surface of the lamp panel is 200mm and 300mm. The lamp body can be combined and installed horizontally and vertically. The light-emitting unit is monochrome. All technical parameters are in line with the road traffic lights of the People’s Republic of China. GB14887-2003 standard.

    countdown-timer-traffic-signal-light_01

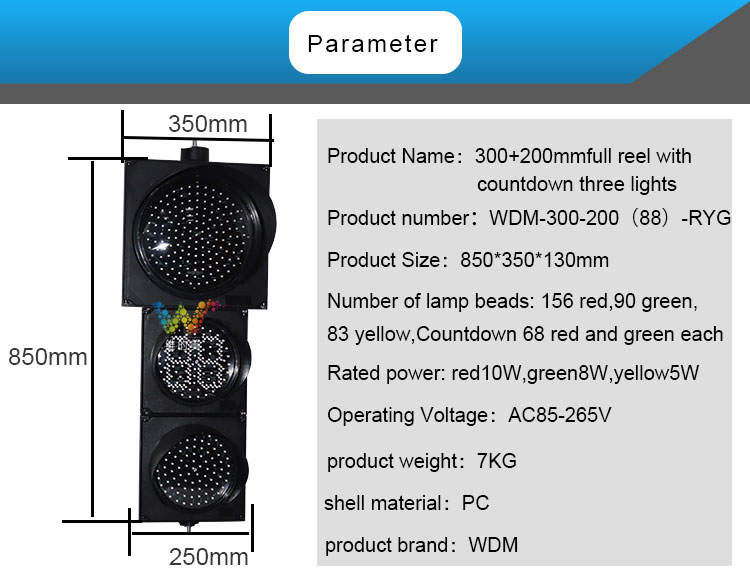

    300+200mm combined full screen with countdown timer traffic signal light:
    Diameter of lamp surface: φ200mm φ300mm
    Chroma: red (620-625) green (504-508)
    Yellow (590-595)
    Working power supply: 85∨~265∨, 50Hz
    Service life of light source:> 50000 hours
    300+200mm combined full screen with countdown signal lamp environmental requirements:
    Ambient temperature: -40℃~+70℃
    Relative humidity: not more than 95%
    Reliability: MTBF≥10000 hours
    Maintainability: MTTR≤0.5 hours
    Protection level: IP54

    There are seven combinations of new traffic lights:
    1. When we see a round signal light turning green at an intersection, it means that we can continue driving forward or turn left and right.
    2. The disc signal light turns green, but all other left or right lights at the intersection turn red, which means we can only move forward.
    3. Based on the first clock, the round light turns green, but the left light turns red. When there is no light on the right, it means that we can keep walking or turn right where there is no signal light.
    4. If the round light turns green, but the right light turns red. If there is no light on the left, we can go left or keep going, but we cannot turn right.
    5. The round light or the signal light on the left and the signal light on the right turn red and will stop there immediately. No matter which direction they are in, they cannot pass.
    6. The round light turns red, the light on the left turns red, and there is no light on the right, which means we can only turn right.
    7. Both the round light and the red light turn red, which means that we cannot continue walking or turn right, but the right light is green and we can turn right.

    countdown-timer-traffic-signal-light_02

    The new traffic lights combine round lights and arrow lights. When we see the direction where the red light is on, it means that we cannot move forward or turn. But when we see the direction the light goes out or turns green, it means which direction we can go. The 300+200mm combined signal light designed by our company is composed of the top red light of 300mm, the middle of the 200mm yellow full plate and countdown, plus the 200mm green full plate.

    The red light is a prohibition signal, and the size of the red light is increased to serve as a warning. Vehicles facing a red light must stop behind the stop line at the intersection. The yellow light is a warning signal. Vehicles facing the yellow light cannot cross the stop line, but the vehicle can enter the intersection when it is very close to the stop line and cannot stop safely. Since then, this rule has become common throughout the world. The control of traffic lights at intersections is the key to ensuring smooth traffic safety.

    countdown-timer-traffic-signal-light_05

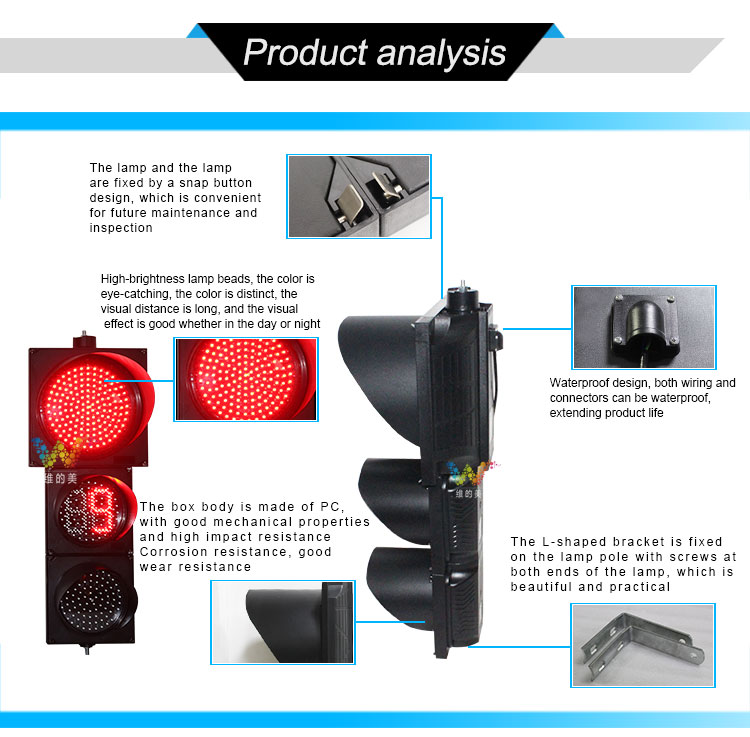

    Features of 300+200mm combined full screen with countdown timer traffic signal light:
    1. The lamp is fixed with a snap button design, which is convenient for future maintenance and inspection.
    2. Waterproof design, both wiring and connectors can be waterproof, extending the service life of the product.
    3. High-brightness lamp beads, the colors are eye-catching, the colors are distinct, and the visual distance is long, and there is a good visual effect in the day or night.
    4. The cabinet is made of PC material, with good mechanical properties, impact resistance, high corrosion resistance, and good wear resistance.
    5. The L-shaped bracket is fixed on the lamp pole with screws at both ends of the lamp, which is beautiful and practical.
    6. Comply with GB/14887-2003 and relevant international standards

    countdown-timer-traffic-signal-light_06

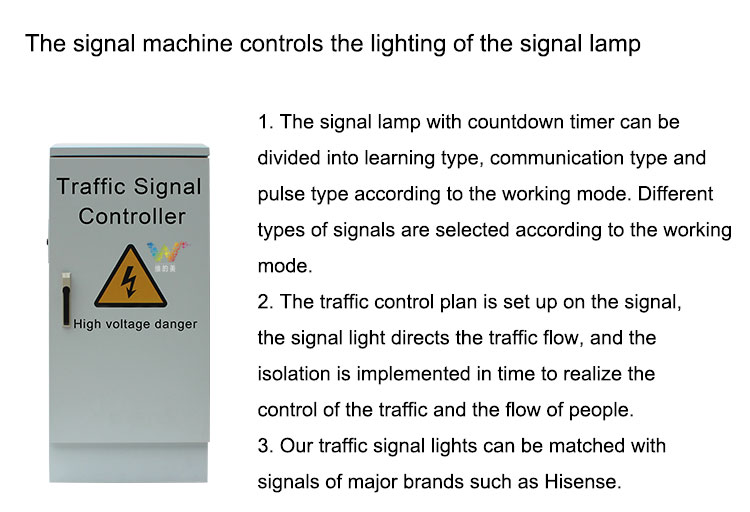

    The signal machine controls the lighting of the signal lamp:
    1. The signal lamp with countdown timer can be divided into learning type, communication type and pulse type according to the working mode. Different types of signals are selected according to the working mode.
    2. The traffic control plan is set up on the signal machine, the signal light directs the traffic flow, and the isolation is implemented in time to realize the traffic control and the flow of people.
    3. Our traffic signal lights can be matched with signals of major brands such as Hisense.

    countdown-timer-traffic-signal-light_04

    300+200mm combined full screen with countdown timer traffic signal light product installation:

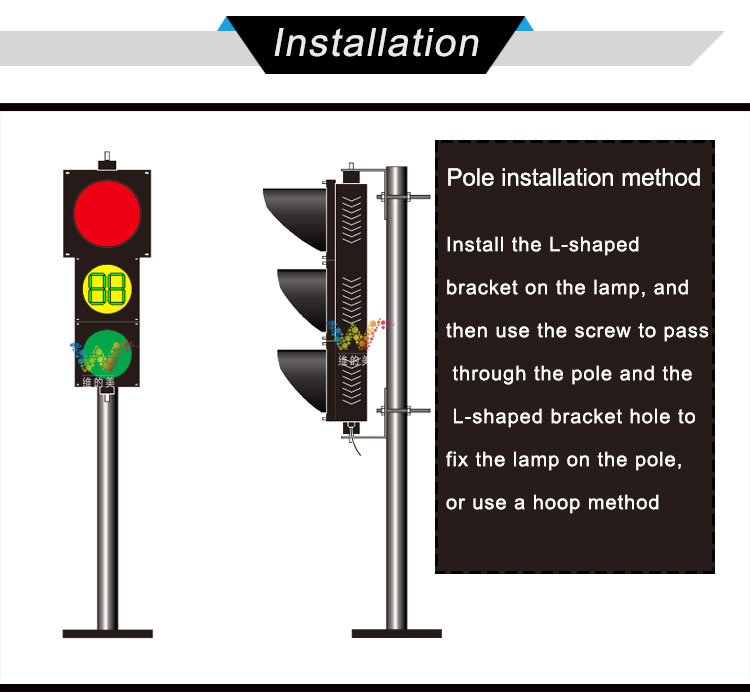

    Pole installation method:
    Install the L-shaped bracket on the lamp, and then use the screw to pass through the vertical pole and the L-shaped bracket hole to fix the lamp on the vertical pole, or use a hoop.

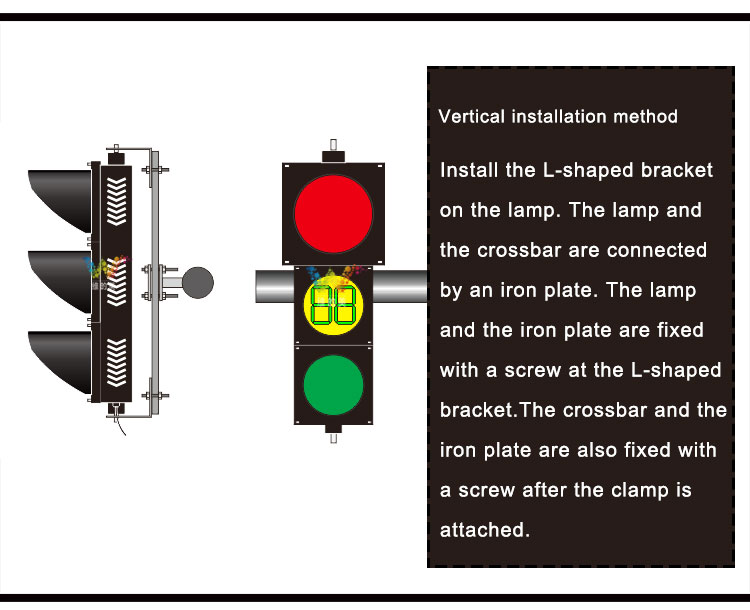

    Vertical installation of crossbar:
    Install the L-shaped bracket on the lamp. The lamp and the crossbar are connected by an iron plate. The lamp and the iron plate are fixed with a screw at the L-shaped bracket. The crossbar and the iron plate are also fixed with a screw after being attached to the iron plate.

    countdown-timer-traffic-signal-light_07 countdown-timer-traffic-signal-light_08

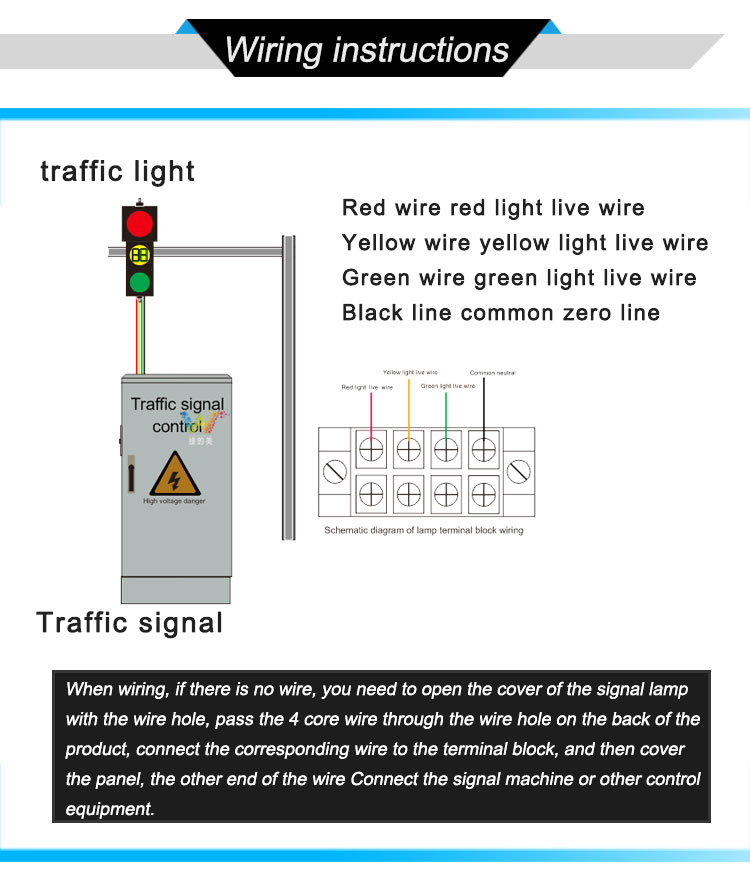

    300+200mm combined full screen with countdown timer traffic signal light wiring instructions:
    Red wire red light live wire
    Yellow wire yellow light live wire
    Green wire green light live wire
    Black line common zero line
    When wiring, if there is no wire, you need to open the cover of the signal lamp with the wire hole, pass the 4 core wire through the wire hole on the back of the product, connect the corresponding wire to the terminal block, and then cover the panel, the other end of the wire Connect the signal machine or other control equipment.

    countdown-timer-traffic-signal-light_09

    In addition to the 300+200mm combined full screen with countdown timer traffic signal light, Shenzhen wide way Optoelectronics Co., Ltd. also makes other types of traffic lights:

    Parking Lots Traffic Light
    100mm Traffic Light Signal
    Parking Lots 100mm Traffic Light
