100mm 200mm 300mm 400mm Red Yellow Green 3 Aspect Traffic Signal Light

100mm 200mm 300mm 400mm Red Yellow Green 3 Aspect Traffic Signal Light

Short Description:

The parameter details of the 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light: Product model: WDM-JD100/200/300/400-3-RYG 1. Product size: As the picture shown. 2. Number of lamp beads: red, yellow and green 3. Luminous diameter: 100mm/200mm/300mm/400mm 4. Lamp Bead Type: Taiwan Epistar Chip Bead 5. Red wavelength: 620-625NM 6. Yellow wavelength: 590-595NM 7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald-green) 8. Service life: 100000H 9. Shell material: P...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    The parameter details of the 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light:
    Product model: WDM-JD100/200/300/400-3-RYG

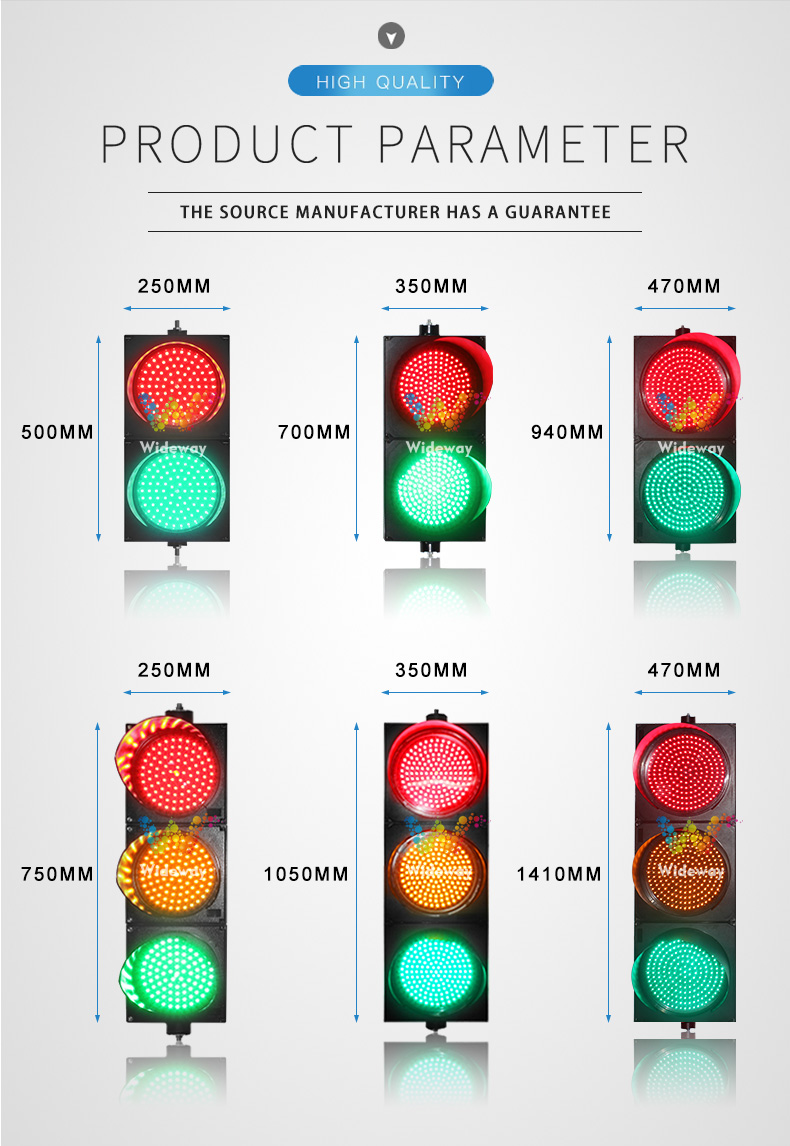

    1. Product size: As the picture shown.
    2. Number of lamp beads: red, yellow and green
    3. Luminous diameter: 100mm/200mm/300mm/400mm
    4. Lamp Bead Type: Taiwan Epistar Chip Bead
    5. Red wavelength: 620-625NM
    6. Yellow wavelength: 590-595NM
    7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald-green)
    8. Service life: 100000H
    9. Shell material: PC
    10. Lighting angle: 30 °
    11. Working temperature: -40 ℃ -65 ℃
    12. Protection level: IP53
    13. Working voltage: AC85V-265V, a small amount of DC12V / 24V
    14. Rated power: 18W red and yellow, 22W green
    15. Installation method: horizontal or vertical
    16. Visual distance: ≥1000M

    400mm traffic light-1

    The characteristics of 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light::
    1. 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light: use Taiwan wafer chip chip beads, high brightness, high refresh rate and long service life.
    2. 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light: are designed with cable outlets on the back, which not only facilitates cable outlets, but also has a good waterproof effect.
    3. The sunshade of the 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light: is made of PC material, which has a better waterproof and dustproof effect and is simple to install.
    4. Each of the 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light: adopts a snap-type design, which is convenient for product inspection and maintenance.

    400mm traffic light_02

    Three, 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light: installation method:
    Installation: horizontal installation
    1. There is a screw at both ends. Unscrew the nut on the screw.
    2. Put the flat end of the “L” bracket on the screw according to the hole position and the card slot, and tighten the nut. (as the picture shows)
    3. The visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten the screws to the corresponding holes.
    4. Make 2 holes on the signal lamp pole, make holes according to the position of the L bracket of the signal, use a suitable screw to penetrate the lamp pole, and put the L-shaped bracket on the screw, and fix it with the nut. (as the picture shows)
    Installation: vertical installation
    The procedure for vertical installation is the same as for horizontal installation.
    Pay attention to 2 points,
    1.The sun cap is on the top of the lamp
    2. The outlet hole is facing down (as shown in the figure)

    1_03

    The 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light: wiring:
    1. Connected to AC220V:
    The black line is the common zero line;
    The red line is a red light line;
    The green line is the green light line;
    The yellow line is the yellow light line;

    1_04

    100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light::
    1. Connect the traffic signal lights in the east and west directions with the lines of the pedestrian lights in the north and south directions. After the electricity is connected, cars in the east and west directions are prohibited, pedestrians are prohibited, cars in the north and south are prohibited, and pedestrians
    2. Connect the lines of traffic lights in the north-south direction with the pedestrian lights in the east-west direction. After the electricity is connected, cars in the east-west direction are prohibited from passing, pedestrians are allowed, cars in the north-south direction are allowed to pass, and pedestrians are prohibited.
    Six, 400 full plate red yellow green three accessories description:
    (1) Lighting: 1 set
    (2) Manual: 1 copy
    (3) Certificate of conformity: 1 copy
    (4) L-shaped bracket: 2
    (5) Sunshade cover: 3
    (6) M4 screw: 16
    (7) Decorative border: 1 set

    1_05

    In addition to the 100mm/200mm/300mm/400mm  Red Yellow Green 3 Aspect Traffic Signal Light:, Shenzhen Wide way Optoelectronics Co., Ltd. also produces the following other types of traffic lights;
    100mm teaching traffic lights;
    Traffic lights of type 200mm driving school;
    400mm Full-ball red yellow greenAluminum Traffic Signal Light;
    Mobile solar traffic lights;
    300mm traffic lights;
    Racing traffic lights, etc.
