Slow Down Solar-Powered Traffic Signs
Introduction to Slow Down Solar-Powered Traffic Signs:
Slow Down Solar-Powered Traffic Signs are a type of traffic sign that uses lens-equipped LEDs to provide nighttime visibility of over 1,300 meters.
Made of cold-rolled steel, they feature high strength and stability, excellent water resistance, and corrosion and heat resistance, making them suitable for harsh environments. They remind drivers to reduce their speed and ensure traffic safety.
Share This Products :
Solar Slow Down Sign 1600×1100MM

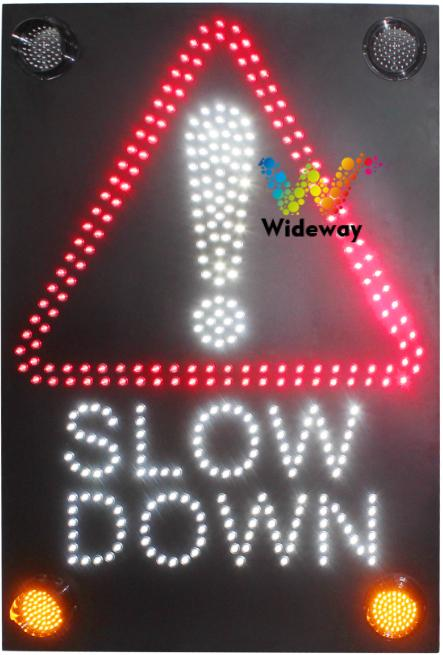

The 1600×1100 mm solar-powered “SLOW DOWN” warning sign is an intelligent traffic safety warning device. Solar Slow Down Sign 1600×1100MM features an integrated LED dot-matrix display that forms a red triangular warning frame, a white exclamation mark, and the text “SLOW DOWN,” complemented by auxiliary yellow flashing lights at each corner. The device can be powered either by solar energy or DC power, and is designed for forward road warning purposes to remind drivers to reduce speed and proceed cautiously. (See the figure below)
Product Features of the 1600×1100 mm Solar "SLOW DOWN" Sign
Glossy graphic and text indicator:Red LED dot matrices form a triangular warning frame, with white LEDs inside illuminating an exclamation mark warning symbol; below this, white dot matrices display the English text “SLOW DOWN,” clearly conveying a speed-reduction warning message.
Synchronized flashing of multiple lamp assemblies:The triangular symbol, exclamation mark, and text may flash synchronously with the yellow warning lights at the bottom corners; compared to conventional reflective signs, this dynamic illumination is more effective at attracting the attention of drivers, and its visibility is significantly enhanced in rain, fog, twilight, or nighttime conditions; Solar Slow Down Sign 1600×1100MM can also be switched to a steady-on mode.
Self-sufficient solar power supply (standard configuration):Equipped with an onboard solar panel that absorbs sunlight during the day to charge the built-in lithium battery; Solar Slow Down Sign 1600×1100MM requires no external cables, making Solar Slow Down Sign 1600×1100MM ideal for outdoor use in areas without access to mains electricity.
Optional external DC power supply:Supports external DC 12V power supply connection, making Solar Slow Down Sign 1600×1100MM suitable for use at fixed locations with mains power.
Fully outdoor waterproof and dustproof:The entire unit features an IP65 protection rating, making Solar Slow Down Sign 1600×1100MM resistant to rain and dust, and capable of operating stably in rainy or snowy weather; the circuit boards have undergone moisture-proof and corrosion-resistant treatments.
The 1600×1100 mm solar "SLOW DOWN" sign addresses the key pain points of our customers.
Addressing the challenge of poor visibility of standard reflective signage at night or in adverse weather conditions.
This product is an active-emitting LED dot-matrix warning sign featuring an integrated light source. The triangular warning symbol, exclamation mark, and “SLOW DOWN” text, along with the bottom yellow flashing light, illuminate and flash simultaneously. Solar Slow Down Sign 1600×1100MM remains clearly visible from a distance in rainy or foggy conditions, at night, and in backlighting environments, eliminating the need for vehicle headlights; thus, Solar Slow Down Sign 1600×1100MM provides stable and reliable warning performance.
Addressing the challenge of high wiring construction costs in unconnected circuit segments.
Standard configuration includes solar power supply and a built-in energy storage battery; the top-mounted photovoltaic panels charge during daytime, with light-controlled automatic opening and closing. No wiring or excavation is required, and the system can be installed directly on a pole, significantly reducing construction and civil engineering costs. An optional external DC12V power supply is also available, making Solar Slow Down Sign 1600×1100MM compatible with existing mains power points.
The weakness of static signage in providing adequate warning—a pain point that drivers are prone to overlook.
By employing a dynamic flashing illumination mode, the dynamic optical signal can more effectively capture the driver’s attention; an optional radar speed detection integration solution is also available: the flashing indicator activates only when the vehicle exceeds the speed limit, while remaining inactive when the vehicle is traveling at normal speeds. This targeted warning mechanism enhances alert effectiveness and extends the service life of the device.
Addressing the pain points of susceptibility to damage in outdoor equipment and the high maintenance workload.
The entire unit features IP65 protection, with an aluminum alloy panel that is corrosion-and impact-resistant; Solar Slow Down Sign 1600×1100MM operates across a wide temperature range (-20 °C to +65 °C), offering resistance to both high temperatures and extreme cold; the LED light source exhibits reduced lumen depreciation, and the controller incorporates built-in undervoltage and overcurrent protection, thereby reducing the frequency of subsequent inspection and maintenance operations.
The lack of early warning mechanisms in accident-prone road sections poses a significant challenge in traffic safety management.
By issuing early, long-range warnings and proactively reminding drivers to reduce speed and drive cautiously, this approach helps reduce accidents caused by speeding or inadequate emergency response, thereby meeting the safety governance requirements of traffic management authorities, industrial parks, and highway management agencies.

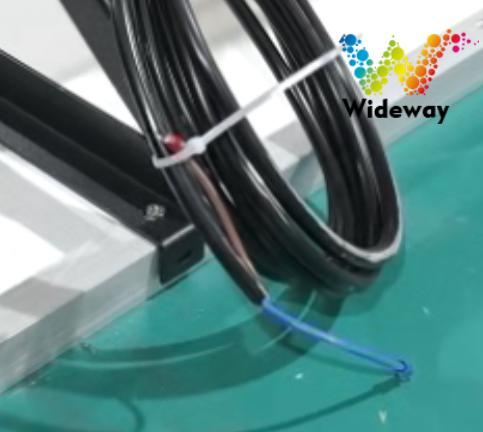

Wiring Instructions for the 1600×1100 mm Solar
1.Brown line: Positive terminal 2.Blue line: negative electrode
Installation Instructions

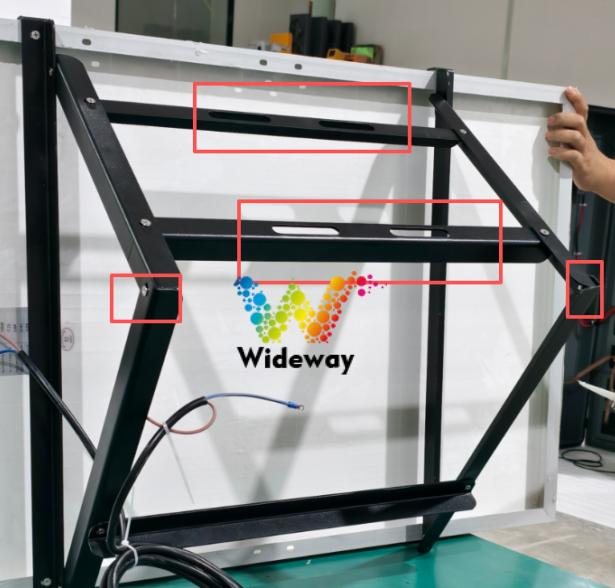

Clamp installation:
- First, secure the bracket with screws; then, fasten the secured bracket to the back of the solar panel using screws.
- Next, place the solar panel, which is already mounted on its bracket, onto the installed vertical pole; ensure that the mounting holes on the bracket align with the corresponding holes on the clamp, and finally secure it to the bracket using a screw.

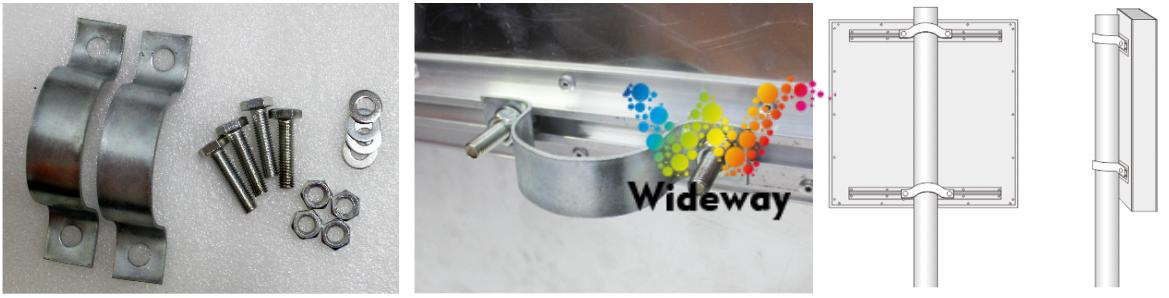

Clamp installation:
- Pass the screw through the aluminum slot on the back side of the product, then insert the holes at both ends of the clamp into the screws at those respective ends, tighten the nuts, and secure the clamp in the center of the aluminum slot;
- Insert the pole between the two clamps, then secure it with nuts and washers.

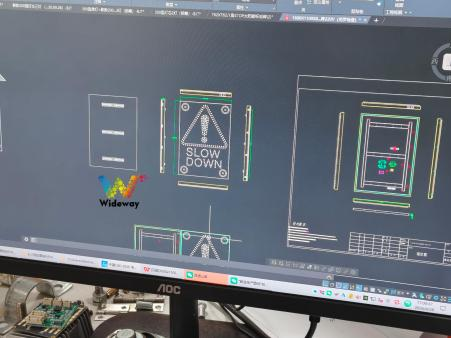

Production Details

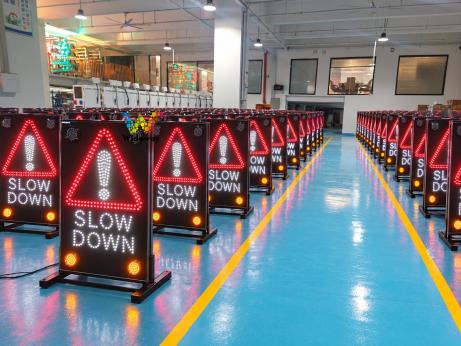

Solar Slow Down Sign 1600×1100MM Batch Aging
Solar Slow Down Sign 1600×1100MM Usage Precautions
This product features an aluminum casing; heavy pressure should be strictly avoided to prevent damage to the casing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.
Solar Slow Down Sign 1600×1100MM Warranty Terms
• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; custom-made products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The shipping cost for returned items shall be borne solely by the shipper.
| Slow Down Solar-Powered Traffic Signs Specifications | |
| Product Name | Slow Down Solar-Powered Traffic Signs |
|---|---|
| Product Model | WDM-SDBZP-1-RYW |
| LED chips | Taiwan Jingyuan |
| Number of LEDs | 203 white, 132 red, |
| 60 per lamp tube | |
| Product size | 1600×1100 mm |
| Yellow Flashing Light Size | 320 × 320 mm |
| Operating Mode | Flashing |
| Operating Voltage | AC 220 V |
| Housing Material | Sheet Metal Chassis |
| Operating Temperature | -40°C to +80°C |
| Installation | Hoop Mounting |
| Product Service | Customization Available |
| Text | Customization Available |
| Visibility | >1,300 m in a straight line at night |
| fittings of a machine | quantity | Notes |
| Sign | 1 unit | Warning Requirements |
| solar panel | 1 set | Self-contained energy storage via solar panels |
| Solar panel mounting bracket | 1 set | Fixed solar panels |
| Clamp + Screw + Nut | 4 sets | Install fixed signage and solar panels |
| certificate | 1 copy | As a material release certificate |
| product specification | 1 copy | Includes product technical specifications, illustrated installation steps, and safety and maintenance guidelines. |
