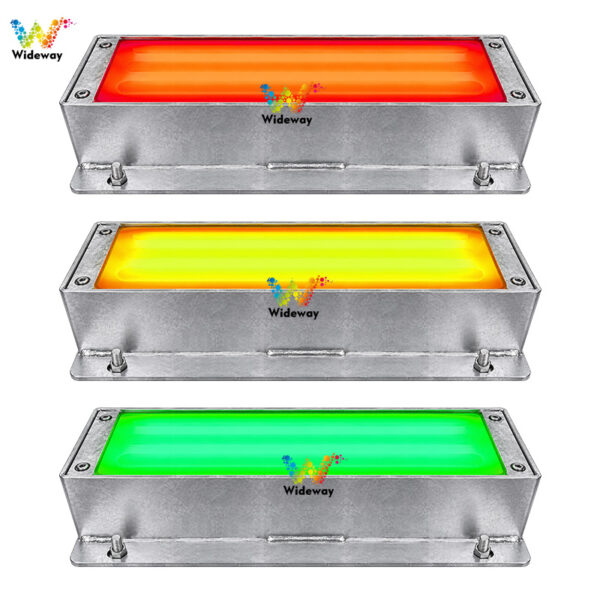

500×130MM Floor Tile Traffic Light
The floor tiles and traffic lights are made of polymer composite materials. They are coated with white glue, with the bottom filled with glue and the interior being solid. Therefore, rainwater cannot enter the product and it is absolutely sealed and waterproof. The front is treated with frosted anti-slip treatment, and there are thick spring plates inside. When a vehicle presses down, it will have a certain buffering effect, enhancing the load-bearing capacity, which can withstand 50 tons of pressure. The LED light board is directly inserted into the red and green light bulbs.
The zebra crossing floor tiles and traffic lights refer to a kind of signal indication when pedestrians pass through the traffic light intersection. It is displayed in red and green, and its display position is on the ground surface. The main installation position is on the zebra crossing. This way, people walking with their heads down can always see the traffic status, thereby reducing the occurrence of traffic accidents!
Share This Products :
- The floor tiles traffic lights are auxiliary devices for the human-friendly design facilities of the city’s pedestrian crossing. They visually remind pedestrians not to run the red light and guide them to cross the road safely according to the traffic light signals; they help cultivate good civilized travel habits and ensure traffic safety; they reflect humanistic care and enhance the image of the urban roads.
- The floor tiles traffic lights are resistant to pressure, shock, and slip. They are made of special plastic and are excellent insulating materials. The surface is treated with sandblasting for anti-slip design.
- The floor tiles traffic lights are generally installed at both ends of the pedestrian crossing stripes; they can also be installed on the safety islands of the pedestrian paths, that is, in front of the first pedestrian crossing stripe. They are mainly for people and drivers to see, to beautify the urban roads, to enhance reminders, and to make “cell phone addicts” notice the status of the traffic lights and help them cross the pedestrian crossing safely.
- The floor tiles traffic lights have a high safety coefficient. The working voltage is DC 24V direct current. The floor tiles lights are synchronized with the voice prompt column or pedestrian lights, without delay.
- The back of the product is filled with white glue and then a rear plate is added for high heat resistance and complete waterproofing.
- The appearance is exquisite, with concave and convex designs.
- Pressure resistance: A single floor tile + base exceeds 48KG;
- Customization: Can be customized to any size;
- Removable: Comes with a detachable base;
- Low power consumption: The power consumption of the floor tile is less than 2.8W, no external pull wire is needed, and cost savings are achieved.
- High color rendering index: High color rendering index, soft and uniform brightness;
- Multiple waterproofing: Triple waterproofing, waterproof base, floor tile filled with glue, waterproof connector at the outlet;
- Simple installation: Used in conjunction with the red and green pedestrian lights at the intersection, easy to install and maintain;
- Installation guidance: From construction to installation at each intersection, 2 technicians are provided to accompany and guide;
- Long lifespan: The intersection is equipped with a 5MM thick steel slot to protect the wire,
- The service life is longer.
- One main line can be connected with 30 floor tiles;
- The installation angle of the floor tiles can be adjusted: Multiple angles are available, according to customer requirements (cutting in a square shape or at an angle);
- The length of the floor tile support can be adjusted: There are holes at both ends of the support, and a adjustable support is provided;
- Parallel installation method: The wiring method adopts the parallel hand-holding method;
- The wiring head is made of metal material;

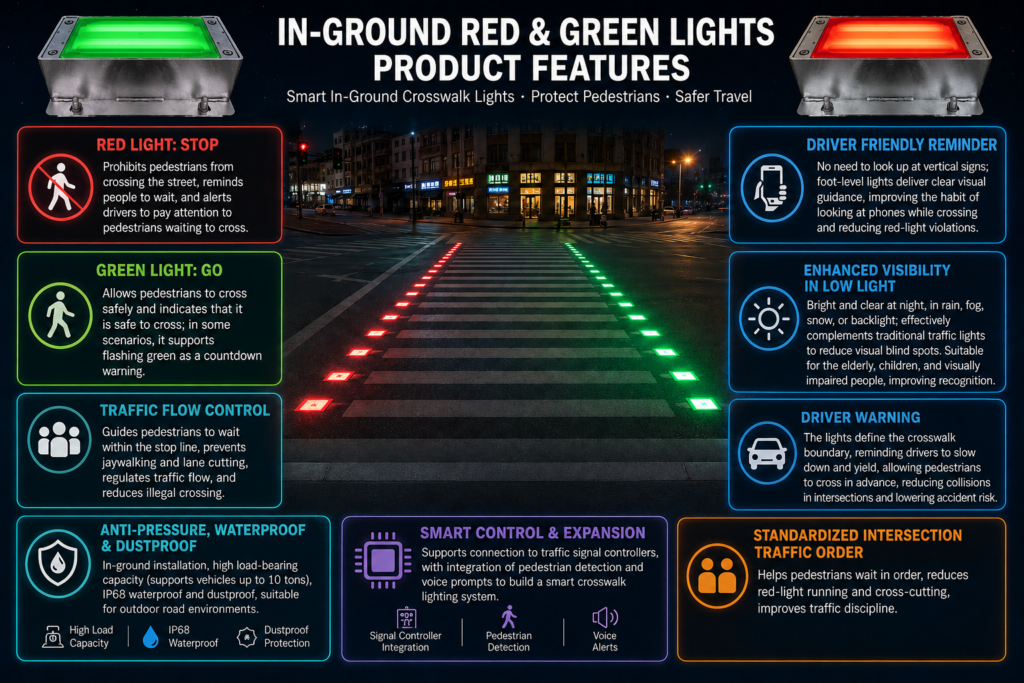

product function
Traffic Order Management:
Guide pedestrians to wait within the stop line to prevent running red lights or crossing the line prematurely; standardize pedestrian crossing routes to reduce illegal crossings at intersections.
Smartphone-wearers – Friendly reminder:
No need to look up at a pole-mounted signal light – the light beneath your feet visually communicates the traffic signal, addressing the issue of crossing the road while using a mobile phone and thereby ignoring the traffic lights;
Enhanced recognition in low-light environments:
Clear brightness during nighttime, rainy, foggy, or backlit conditions – addressing the limitations of traditional traffic signals, such as visual obstruction or poor visibility; designed for elderly individuals, children, and people with reduced visual acuity, making 500×130MM Floor Tile Light easier to recognize traffic signals.
Motor vehicle warning:
The luminous light strip delineates the zebra crossing boundary, reminding drivers to slow down in advance and yield to pedestrians, while enabling long-range detection of crosswalk areas to reduce the risk of collisions between pedestrians and vehicles at intersections – Zhengzhou Evening News.
Intelligent Integrated Control Extension:
Can be integrated with traffic signal controllers to form a comprehensive smart crosswalk system incorporating pedestrian detection and voice prompts;

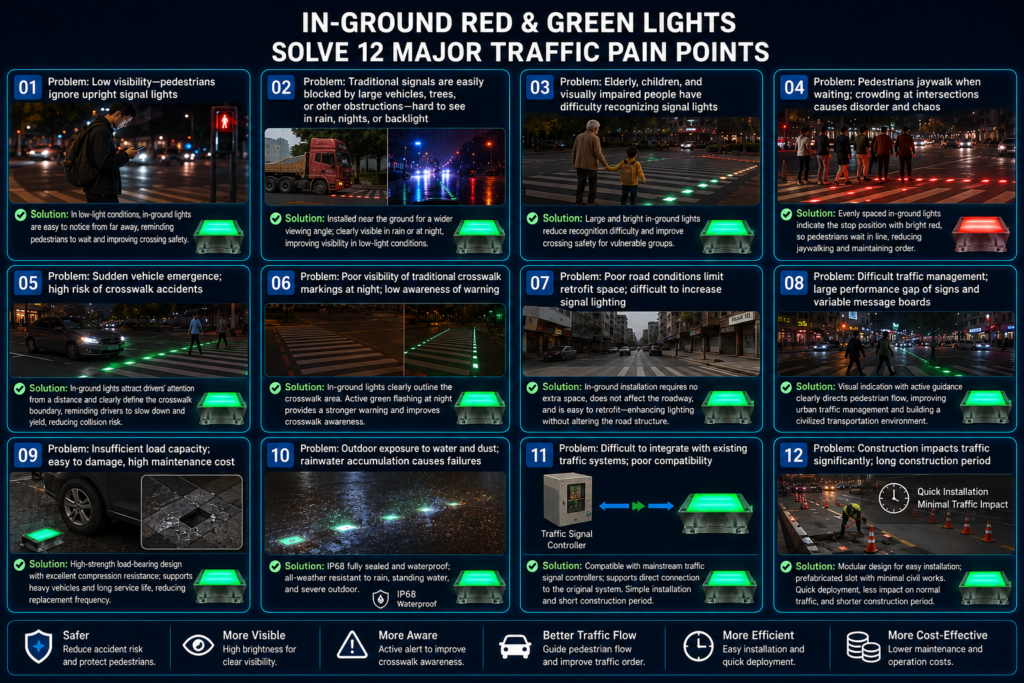

Addressing core customer pain points
Avoid looking down at your phone and ignore the pedestrian signal lights.
The lighting is installed beneath the feet, eliminating the need to look up; pedestrians can directly receive red or green traffic signals while walking, thereby addressing the safety risk associated with drivers or pedestrians who fail to see traffic lights when crossing the road.
Traditional traffic lights are easily obscured by large vehicles or trees; visibility is also poor in backlit conditions or during rainy nights.
Ground-based close-range light sources are not affected by obstructive objects; they offer higher visibility in rainy conditions or under low-light nighttime scenarios.
Addressing the difficulty faced by elderly individuals, children, and people with reduced visual acuity in recognizing traffic signals.
Large-scale soft lighting provides clear visual cues, lowers the recognition threshold, and enhances the safety of vulnerable pedestrians crossing the road.
Address the absence of conspicuous, compliant lane closure signage during lane equipment malfunctions or during construction and maintenance activities.
Floor tiles are placed at the stop line; the illuminated red light creates a visual barrier, guiding pedestrians to wait within the line and reducing the likelihood of running a red light.
Traditional crosswalks often suffer from poor nighttime visibility and limited warning effectiveness.
The luminous light strip delineates the crosswalk area, providing auxiliary traffic control during the day and active illumination as a warning at night, thereby enhancing the visibility and effectiveness of the zebra crossing warning system.
Limited space for renovating aging intersections; installation of additional traffic signals at signal poles is constrained.
Buried installation requires no additional support poles and does not occupy overhead space on roads; 500×130MM Floor Tile Light is ideal for retrofitting projects and narrow intersections.
Insufficient load-bearing capacity of road surface equipment makes 500×130MM Floor Tile Light prone to damage from vehicle traffic; consequently, the cost of subsequent maintenance is high.
The high-strength pressure-resistant shell design is capable of withstanding heavy-duty vehicle traffic, offering a long service life and reducing the frequency of maintenance and replacement activities.
Challenges in integrating with existing transportation systems and poor compatibility during system upgrades.
Compatible with mainstream traffic signal systems; can be directly integrated into existing signal control systems, making project retrofitting simple and construction time short.

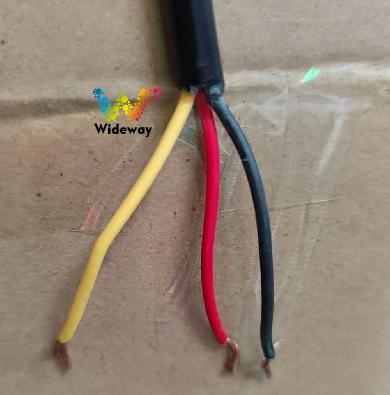

Wiring Instructions
DC 24V: 1. Blue wire: Common positive terminal 2. Yellow wire: Green negative terminal 3. Red wire: Red light negative terminal (Note: These are the wiring instructions for a single in-pavement traffic light. For an entire intersection equipped with in-pavement traffic lights, simply connect the connectors between the lights. Once all connections are complete, connect them to the control box.)

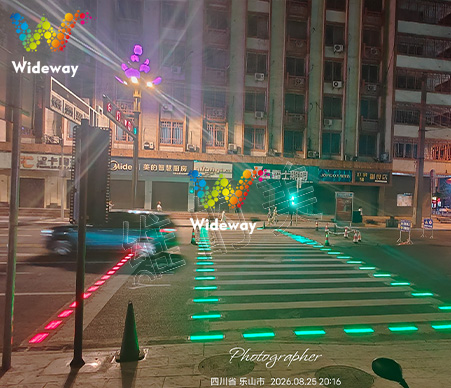

Traditional installation: 15–20 days
All-in-one installation: 5 days
Integrated: fewer processes, pre-finished at the factory
Traditional: many processes, complicated on-site work
no extra parts to buy

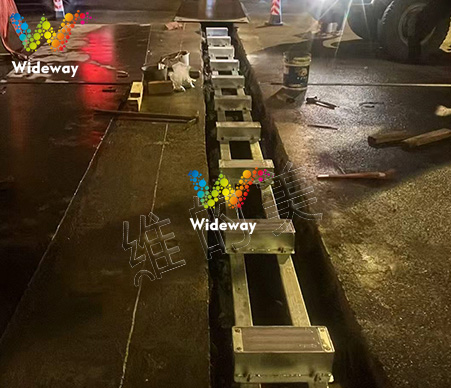

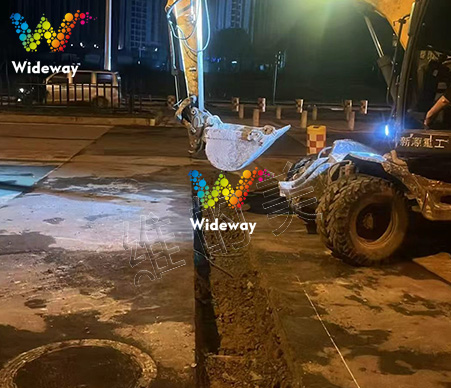

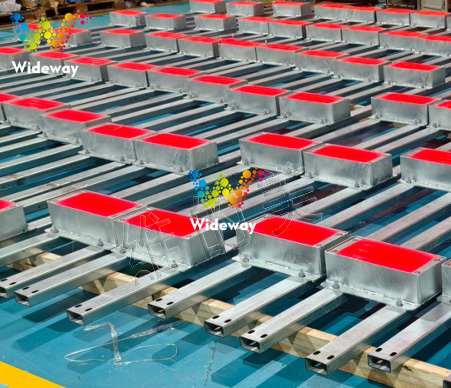

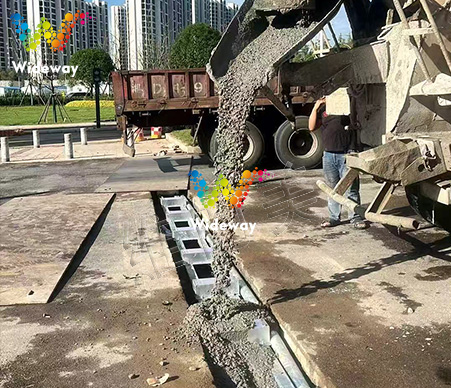

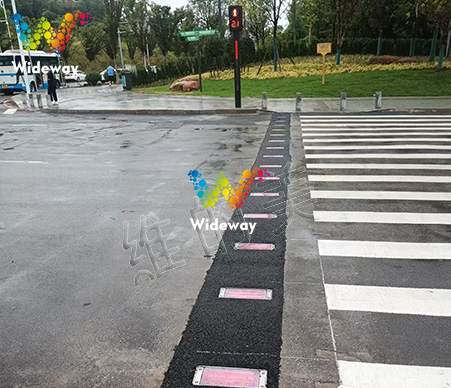

Installation Procedures for 500 x 300 mm One-Piece Illuminated Floor Tiles

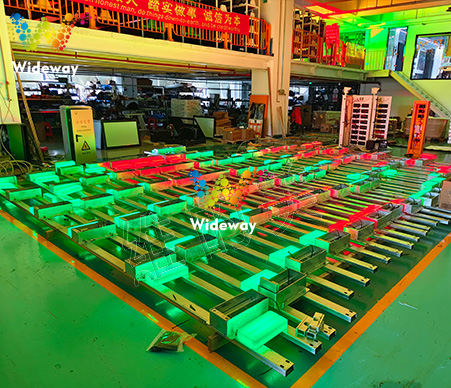

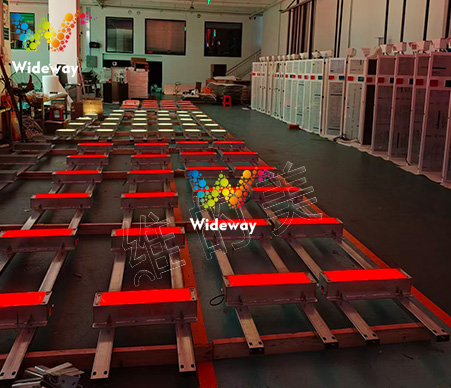

Batch Aging
Instructions for Using 500 x 130 mm Floor Tiles
The outer casing of this illuminated floor tile is made of polymer composite material; the base is made of sheet metal with an electrostatic spray coating. Do not subject it to heavy pressure to prevent damage to the casing. It must be powered on and used under the guidance of a professional; do not disassemble or reassemble the fixture without authorization.
| Product Model | WDM-DZ-500*130-RG |
|---|---|
| Product Name | Floor Tile Traffic Light |
| Product Dimensions | 500*130*55MM |
| LED Composition | Circular Tubes with Diameter 5mm |
| Single Brick Load Capacity | 50t |
| Shell Material | High Molecular Composite Material |
| Rated Power | 5W |
| Working Voltage | DC24V |
| Control Method | Constant Current |
| Average Luminous Intensity | ≥8000cd/㎡ |
| Visible Distance | 20 – 300m |
| Operating Temperature | -30℃ ～ +55℃ |
| Relative Humidity | 10% – 95% |
| Insulation Index | >1500V |
| Ground Current | ≤3mA |
| Average Fault-Free Time | ≥10,000 hours |
| Service Life | ≥100,000 hours |
| Uniformity | Brightness Uniformity |
| Protection Grade | IP65 |
| Installation Method | Underground Installation |
| fittings of a machine | quantity | Note: |
| ground tile | 1 unit | Red/Green dual-color display – meets various warning requirements across different scenarios. |
| lampstand | 1 unit | Install floor tiles |
| certificate | 1 piece | As a material release certificate |
| product specification | 1 piece | Includes product technical specifications, illustrated installation steps, and a safety and maintenance guide |
