200mm Single-Faced Four-Light Portable Traffic Light

Name: 200mm Mobile Single 4-Light Light
Availability: InStock

The 200mm solar-powered single-sided four-light portable traffic signal is designed for use at intersections. It requires no cable connections, eliminating the need for road excavation or overhead wiring. It offers exceptional mobility, allowing the signal to be moved freely and positioned at any intersection where emergency response is needed. It is suitable for urban road intersections and can be used during power outages or construction to direct the flow of vehicles and pedestrians. Its purpose is to temporarily direct vehicles to follow traffic rules, ensuring smooth and orderly traffic flow; to temporarily regulate traffic volume, improve traffic capacity at intersections, and reduce traffic accidents.Single-lane mobile traffic lights require a pair of lights for use (one for each direction of approach and departure). The two lights are connected wirelessly, and users can set the green light duration, the shared red light duration (when both directions display red), the yellow light duration, and the all-red mode.

Share This Products :

Compact Traffic Light Diameter: Refers to a signal light housing with a diameter of 200 millimeters, offering excellent visibility and warning effectiveness.
Single-Panel Four-Light Design: Typically refers to a single panel that integrates red, yellow, and green traffic signals, along with an additional countdown display (or auxiliary warning light), providing more comprehensive information.
High-Brightness LED Light Source: Utilizes highly efficient, energy-saving LEDs characterized by ultra-high brightness and low power consumption, with an extremely long service life (typically 50,000 to 100,000 hours), making them economical and durable.
Multiple Control Modes: Supports various modes, including multi-time-slot timer control, manual control, and intelligent yellow-flash control. The system typically features data retention capabilities, ensuring that operating parameters are not lost even in the event of a power outage.
Fail-Safe and Diagnostics: Equipped with robust intelligent diagnostic capabilities (such as 2-channel diagnostics). In the event of communication failure or signal conflicts (e.g., green light conflict, all red lights off), the system automatically switches to a safety mode such as yellow flashing to ensure traffic safety at the intersection.
Dual-Mode Power Supply System: Primarily powered by solar energy, featuring high-power solar panels and batteries (e.g., a 60W solar panel paired with a 55Ah battery), making it environmentally friendly and eliminating the need for external power cables; It is also equipped with a mains power backup charging device to ensure 24/7 uninterrupted operation during prolonged rainy periods or insufficient sunlight.
Intelligent Charge/Discharge Protection: Features a built-in smart controller with automatic protection against reverse connection, overcharging, over-discharging, and short circuits, effectively extending battery lifespan.

200mm Mobile Single 4-Light Light

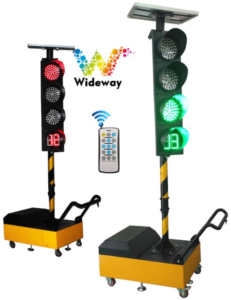

The Model 200 mobile single-sided four-light unit (temporary traffic signal) is a temporary emergency traffic control device primarily used for road construction, emergency power restoration at intersections, temporary road closures, and temporary traffic diversion at school entrances and exits. 200mm Mobile Single 4-Light Light operates without external mains power, relying instead on an integrated battery and solar panels for charging. The unit features a pushable mobile base, allowing flexible repositioning to suit different operational sites. 200mm Mobile Single 4-Light Light is equipped with a wireless remote controller for signal timing control, and the signal unit itself incorporates an LED digital tube countdown display that shows the remaining travel time in real time. (See the figure below)

Features of the Model 200 Mobile Single-Sided Four-Light Product

Red, yellow, and green traffic signal outputs: red light prohibits passage, yellow light provides a warning buffer, and green light permits passage; this configuration enables basic traffic control at intersections and simulates the operation of real-world traffic signal systems for managing vehicular flow.

LED digital countdown display feature: The digital display beneath the signal lights shows in real time the remaining time for the current phase; drivers can clearly see the remaining seconds, which helps reduce lane-merging and emergency braking, thereby enhancing traffic safety at intersections.

Solar panel charging + built-in battery storage: During daytime, the built-in battery is charged via rooftop solar photovoltaic panels; on cloudy days and at night, the system continues to operate using the built-in battery; no external 220V mains power is required, and no wiring is needed—making 200mm Mobile Single 4-Light Light ideal for temporary use in outdoor or construction site environments.

On-site remote configuration of timing: allows direct wireless adjustment of the red light duration, green light duration, and yellow light flashing duration, eliminating the need to climb the equipment for debugging.

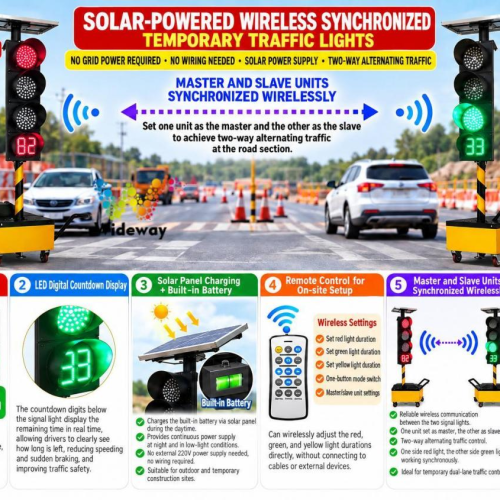

Wireless master-slave synchronization feature (Key): Enables wireless communication pairing between two signal units, with one unit configured as the master and the other as the slave; this facilitates bidirectional alternating signal control at intersections (one side operates on red, while the other side synchronizes on green, as illustrated), allowing for the temporary deployment of bidirectional intersection signal systems.

Mode switching: switch between the flashing yellow warning mode (construction warning) and the normal traffic light cycling mode.

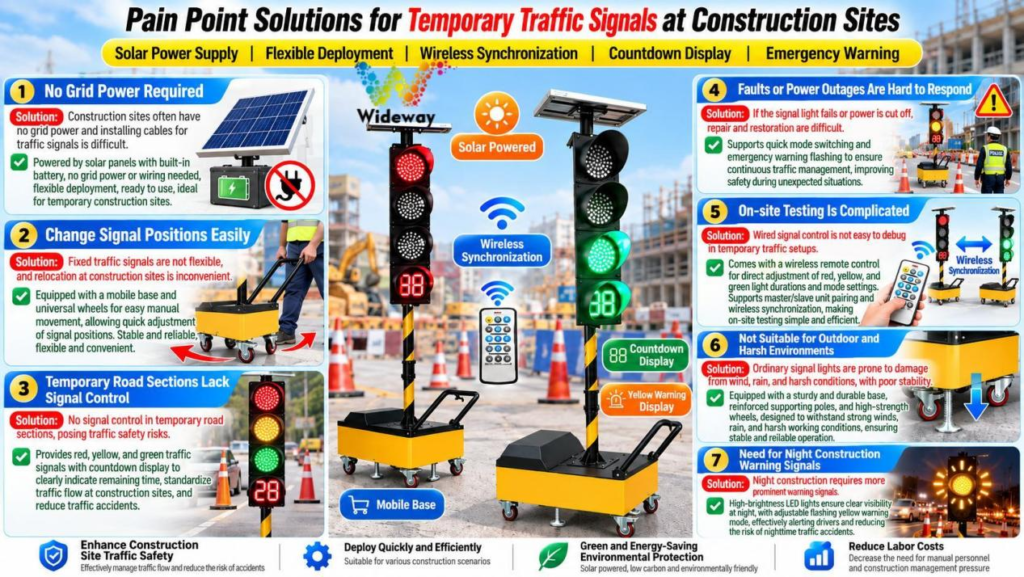

The core pain points addressed by the Model 200 mobile single-sided four-light unit for customers

There is no mains power available at the construction site, making 200mm Mobile Single 4-Light Light impossible to install fixed signal lights.

Powered by solar energy combined with a built-in battery, this system requires no road excavation for cabling and no connection to a 220 V mains power supply; once deployed on-site, 200mm Mobile Single 4-Light Light can be put into operation immediately.

Construction sites frequently change locations, whereas fixed signal lights cannot be relocated.

The base of the push cart features universal casters; once the workstation position has been adjusted, the equipment can be directly moved by hand; this design facilitates repeated relocations.

The temporary intersection lacks signal control, posing a safety liability risk.

Equipped with comprehensive red, yellow, and green signal indicators along with a countdown display, enabling drivers to anticipate the remaining time for passage; this helps standardize vehicle traffic flow and reduce the risk of traffic accidents for construction contractors.

Significant traffic diversion pressure following signal light failures or power outages.

Can be rapidly deployed to fault intersections for emergency operation, swiftly taking over traffic control at the intersections to alleviate the pressure on traffic police officers conducting manual on-site direction.

Wiring Instructions for Model 200 Portable Single-Sided Four-Light Unit

Product Installation (Vertical Installation Example)

Solar panel installation:

Assemble the solar panel with the solar mounting bracket and tighten the screws; then, install the solar panel—once the bracket is in place—onto an angled bracket and tighten the screws accordingly. If the portable lamp is equipped with only one solar panel, use an angled bracket to mount the solar panel onto the lamp pole, as shown in the figure on the lower left.

Lighting fixture installation:

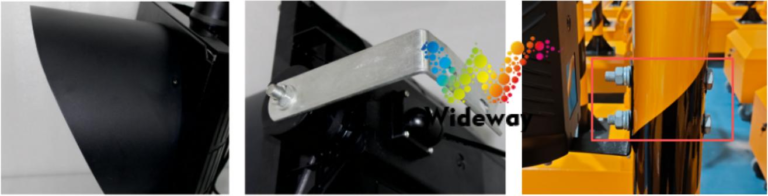

Install the sunshade cap on the upper part of the lamp: place the sunshade cap over the lamp and tighten 200mm Mobile Single 4-Light Lightusing screws aligned with the corresponding holes;
Each end features a screw; unscrew the nut on the screw, slide the L-shaped bracket over the screw, and secure it with the nut.
The lamp post features a hole for a screw; drill holes in the L-shaped bracket of the lamp according to the hole positions, insert an appropriate screw through the lamp post, slide the L-shaped bracket over the screw, and secure it with a nut.

Installation of poles and trolleys:

Sequentially install the installed solar panels and luminaires onto the lamp pole, with the wiring passing through the interior of the lamp pole; prior to installation, securely fasten the small cart to prevent 200mm Mobile Single 4-Light Lightfrom moving during the installation process;

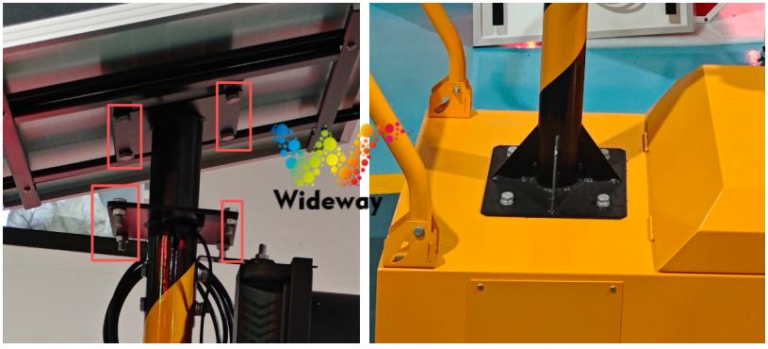

The solar panel shall be installed at the top of the lamp post, with the holes of the angled bracket aligned with the holes at the upper end of the lamp post, and secured using screws (M12×25).
Drill holes in the L-shaped bracket according to the signal layout; pass a suitable screw through the lamp pole, slide the L-shaped bracket over the screw, and secure 200mm Mobile Single 4-Light Lightwith a nut.

Align the hole positions on the bottom flange of the support pole—where the solar panels and lighting fixtures will be installed—with those on the trolley, then fasten the assembly using a screw, a spring washer, and a gasket. (First, slide the spring washer over the screw, then slide the gasket over the spring washer.)

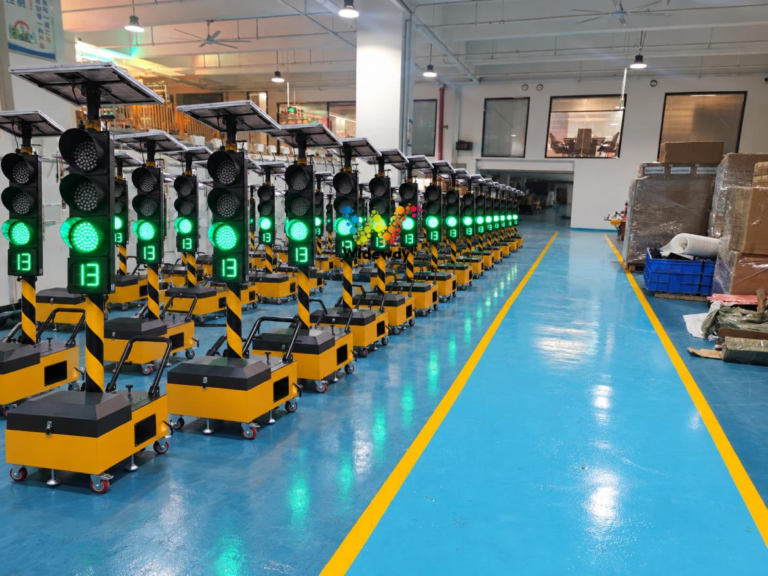

Batch Aging

Usage Precautions

This product features an aluminum housing; heavy pressure should be strictly avoided to prevent damage to the housing. The device must be powered on only under the supervision of a qualified professional; do not disassemble or assemble the luminaire without authorization.

200mm Mobile Single 4-Light Light After-Sales Warranty Policy

• Warranty Period: 3 years; the warranty covers only the main unit of the lighting fixture; accessories are not covered; customized products are excluded.
• Return Method: Customer returns
• Scope of Exclusion: Malfunctions resulting from human-induced damage or natural disasters are not covered under the warranty.
• Logistics Note: The return shipping cost shall be borne solely by the sender.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Single Channel SolarPortable Mobile Light
Product model	WDM-YD200(88)-1-4-RYG
Lamp head size	1000250100MM
Bottom box size	800550200MM
Solar panel	60W/18V
Battery	55AH/12V
Pole height	1600MM
Voltage	DC12V
Lamp beads	R/Y/G 50 each, countdown 64
Signal light power	R/Y/G1000m
Control method	remote control
Usage	Use two lights together

fittings of a machine	quantity	Notes
lamps and lanterns	2 units	Available in red and green, it meets warning requirements for diverse application scenarios.
L-shaped stent	4	High-strength cold-rolled steel plate, used to securely fasten the lamp housing.
utility cart	2 units	Transit can be manually operated.
upright	2 pieces	When mounted on a cart, it allows the solar panels and lighting fixtures to be secured to the pole.
solar panel	2 block	Self-contained energy storage via solar panels
Solar panel mounting bracket	2 sets	Fixed solar panels
telecontroller	1	You can remotely switch between red and green lights with a single click.
certificate	1 copy	As a material release certificate
product specification	1 copy	Includes product technical specifications, illustrated installation steps, and safety and maintenance guidelines.
