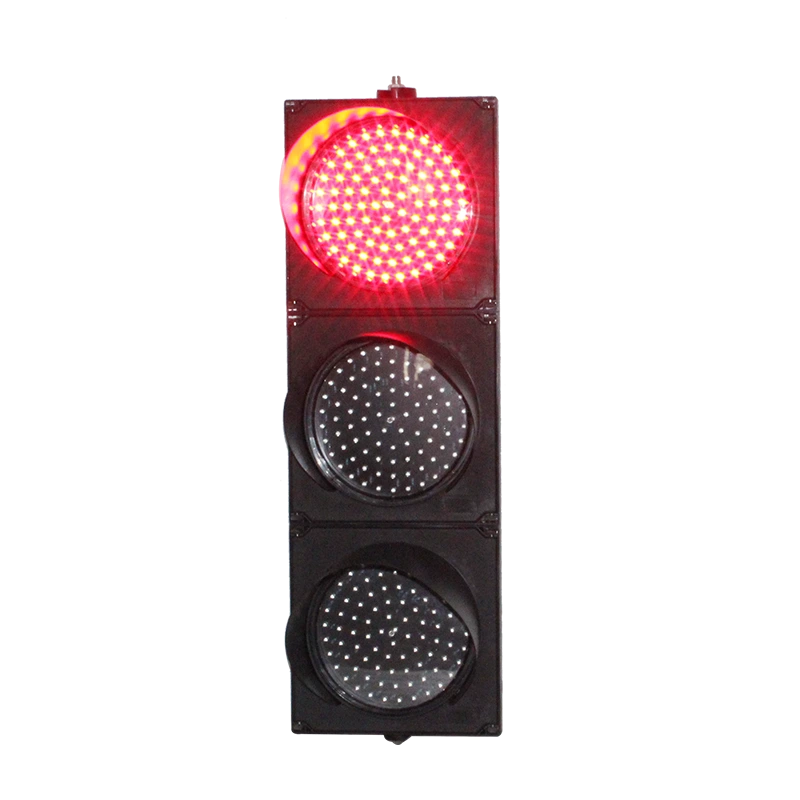

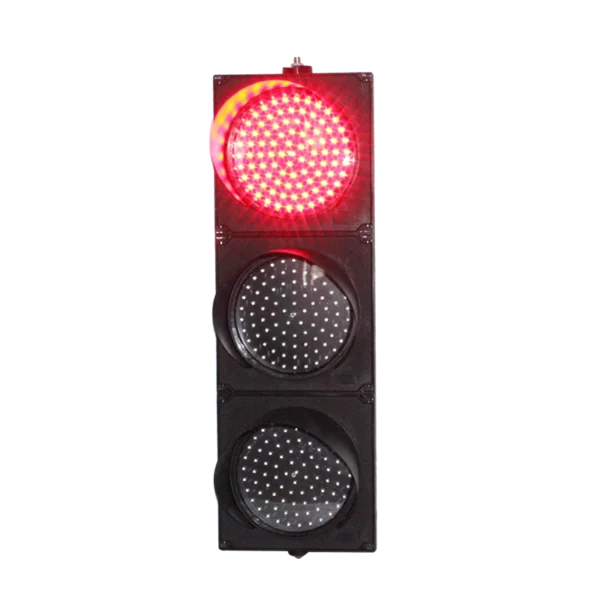

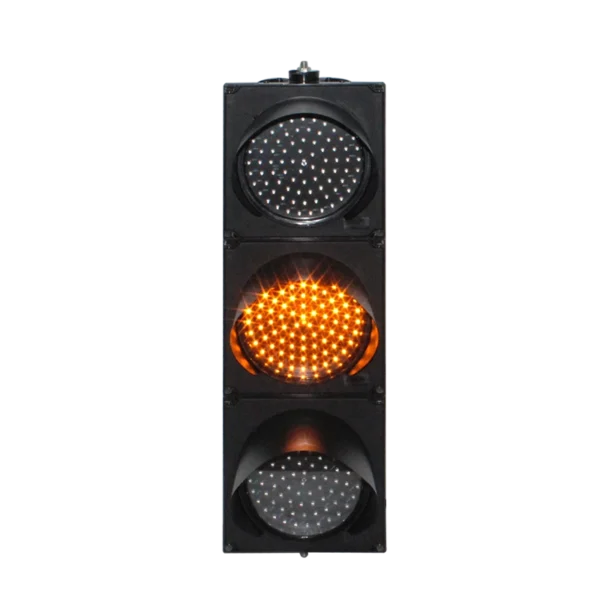

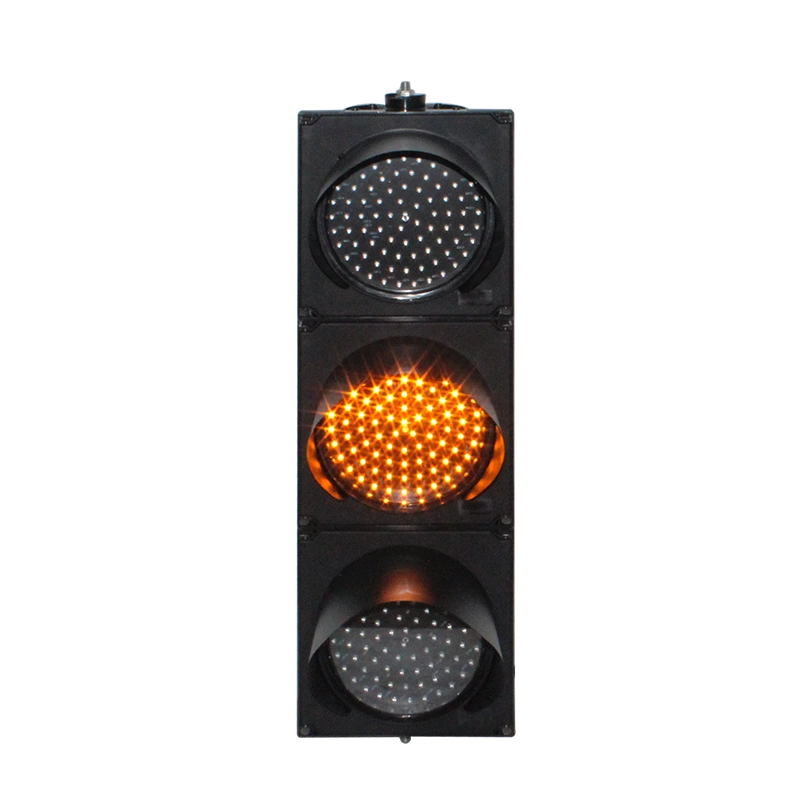

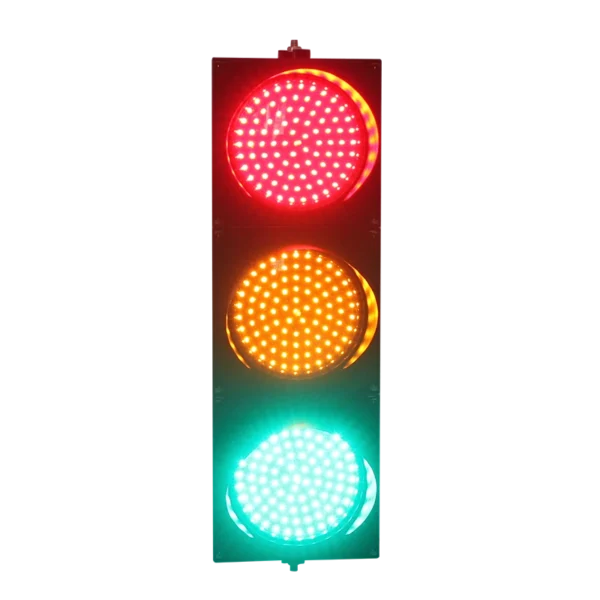

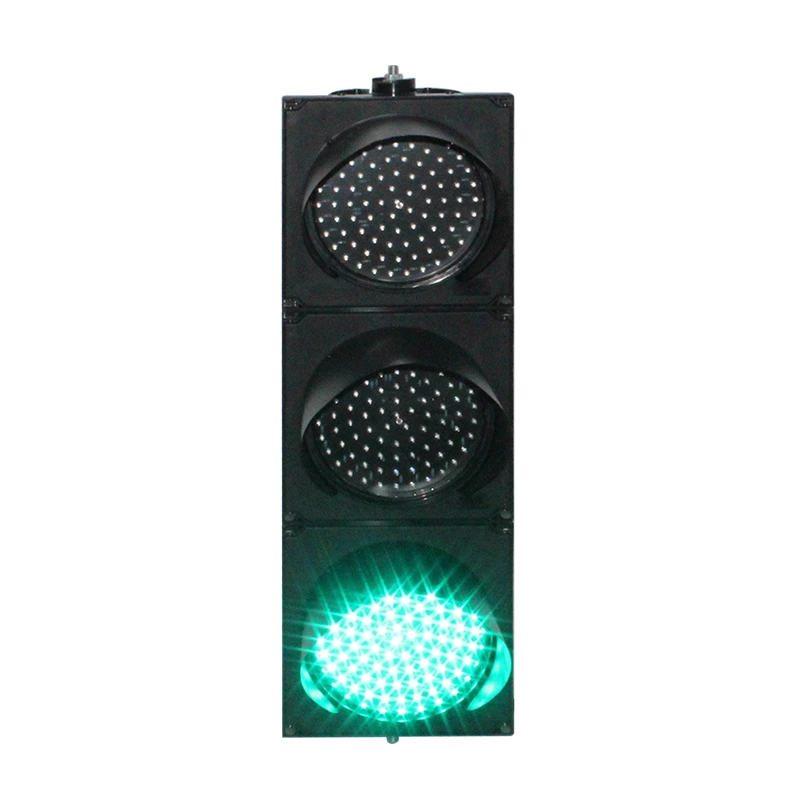

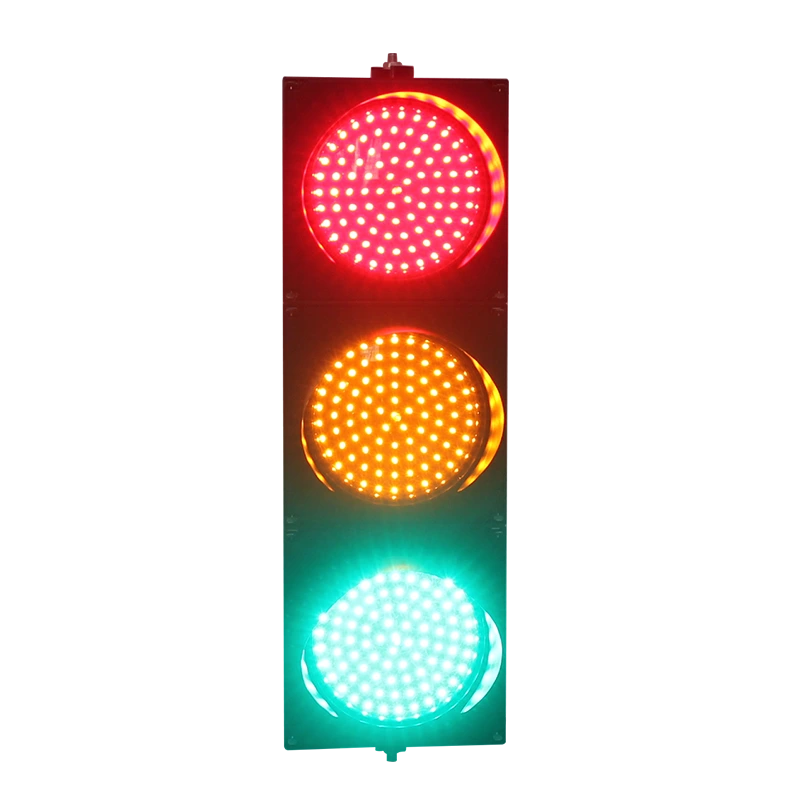

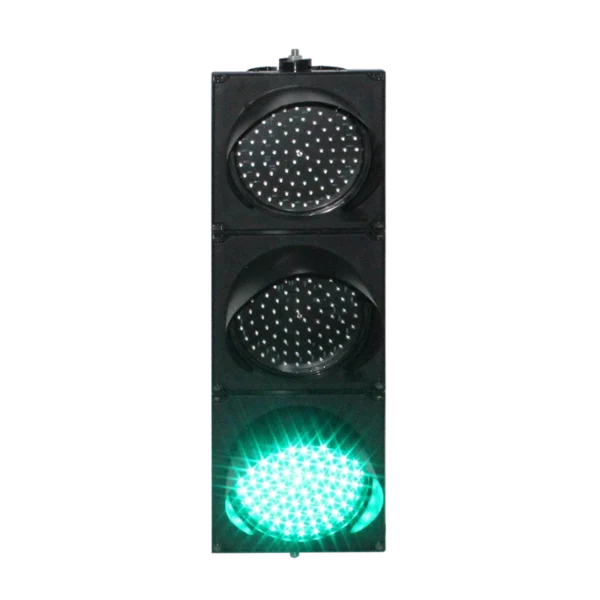

200-type Red-Yellow-Green Three-Light (PC)
The 200 model red-yellow-green three-lamp assembly consists of three units: the red unit, the yellow unit and the green unit. It is widely used at entrances and exits of residential areas, parking lots, factories, airports, enterprises and institutions, to guide the passage of pedestrians and vehicles. It can effectively manage the passage of people and vehicles, ensuring safety and order. The high-brightness lamp beads have distinct colors and are eye-catching. The visible distance is far, and it has excellent visibility both during the day and at night.
- Green energy, environmentally friendly, free of harmful substances, and without pollutant emissions.
- LED uses Taiwan semiconductor chips, with a lifespan of ≥ 100,000 hours, high brightness, a unique optical system, uniform color, good warning effect, and slow light attenuation.
- The protective layer of the shell and connectors is uniform in color, without scratches, cracks, or exposed base materials, and its physical and chemical performance indicators meet the requirements of relevant national and industry standards;
- The front and back of the shell adopt a snap-fit design for convenient opening of the lamp for maintenance and inspection;
- Low power consumption, wide viewing angle, extremely high brightness, long visible distance, and long working time.
- Sturdy and durable. Stable and reliable, with a high protection level. Resistant to impact, aging, corrosion, and water resistance. Installation is convenient.
- Complies with GB/14887-2003 and international relevant standards.
- Product warranty ≥ 2 years;
- Exquisite appearance;
Parameter
| Product Model | WDM-JD200-3-RLG-PC-RYG |
|---|---|
| Product Name | 200-type Red-Yellow-Green Three-Light (PC) |
| Product Dimensions | 750*250*100MM |
| Number of Light Chips | 90 each for red, yellow and green (full pan) |
| Light Chip Type | Taiwan Crystal Chip Light Chips |
| Red Wavelength | 620-625NM |
| Yellow Wavelength | 590-595NM |
| Green Wavelength | 500-505NM (Blue-Green)/520-525NM (Turquoise Green) |
| Service Life | 100,000 Hours |
| Shell Material | PC |
| Operating Temperature | -40℃ – 60℃ |
| Protection Grade | IP53 |
| Operating Voltage | DC12V/DC24V/AC85-265V |
| Visible Distance | ≥800M |
| Installation Method | Vertical or Horizontal Installation |
