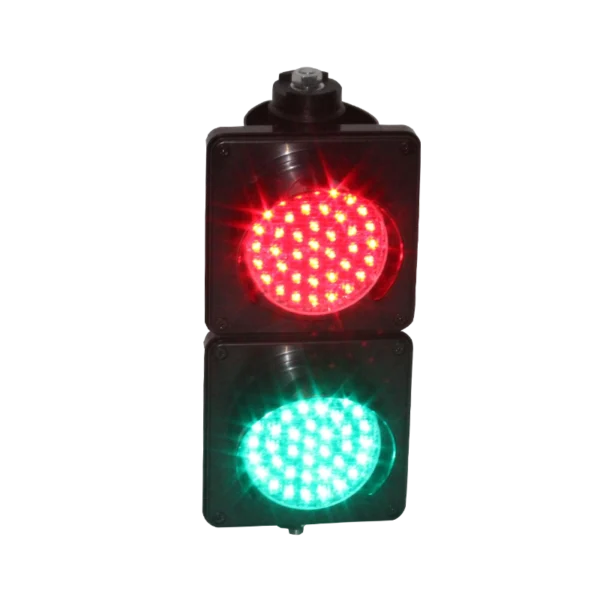

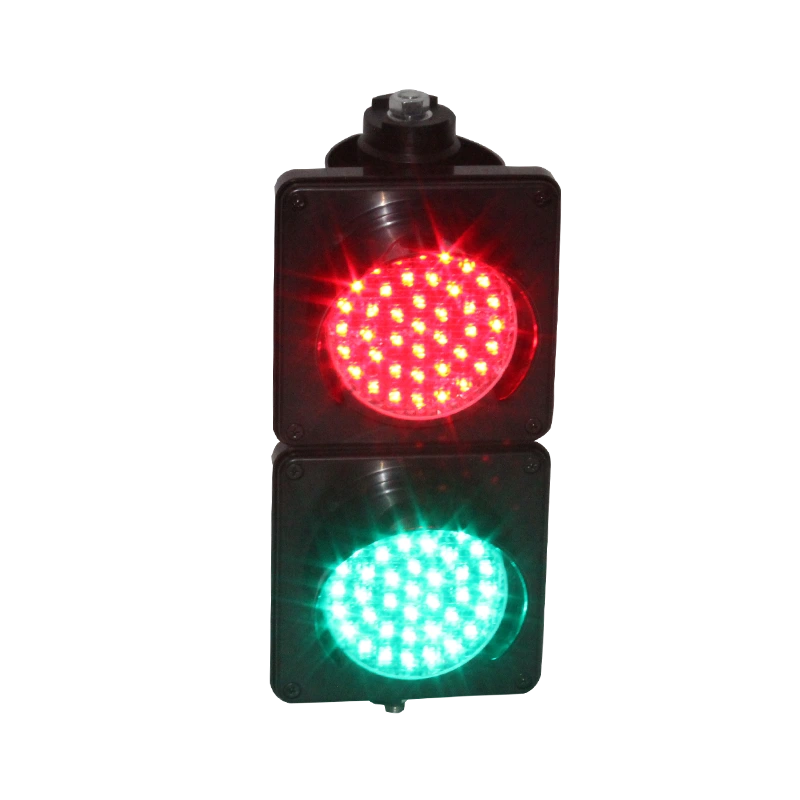

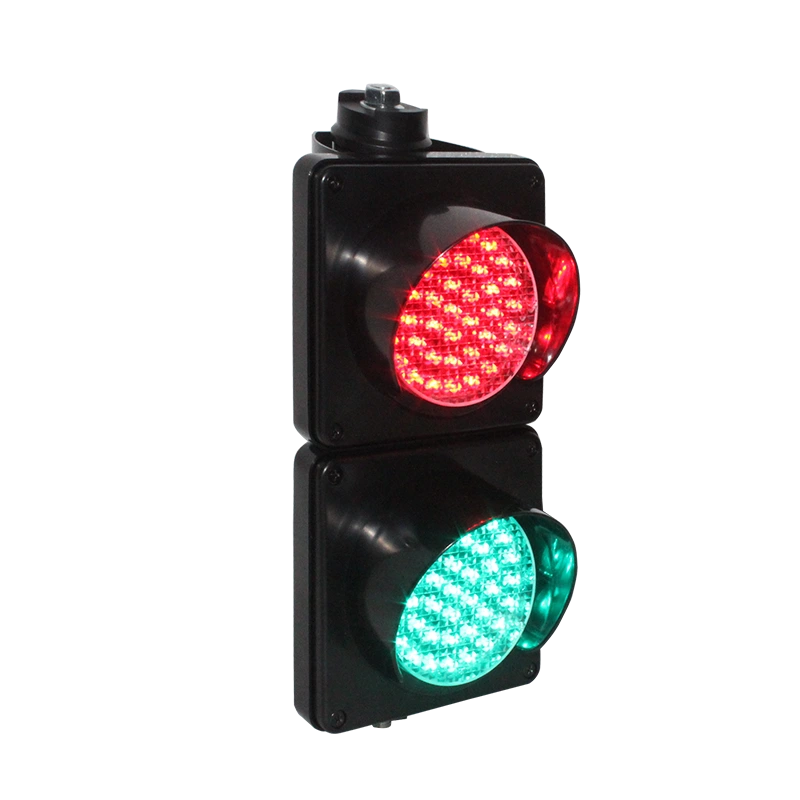

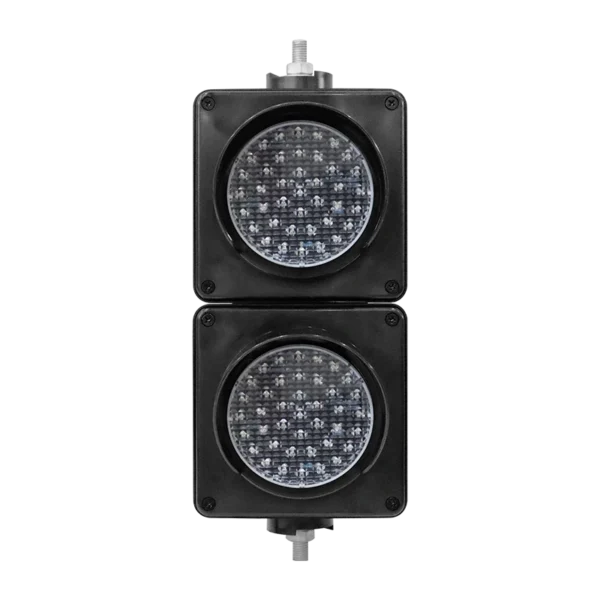

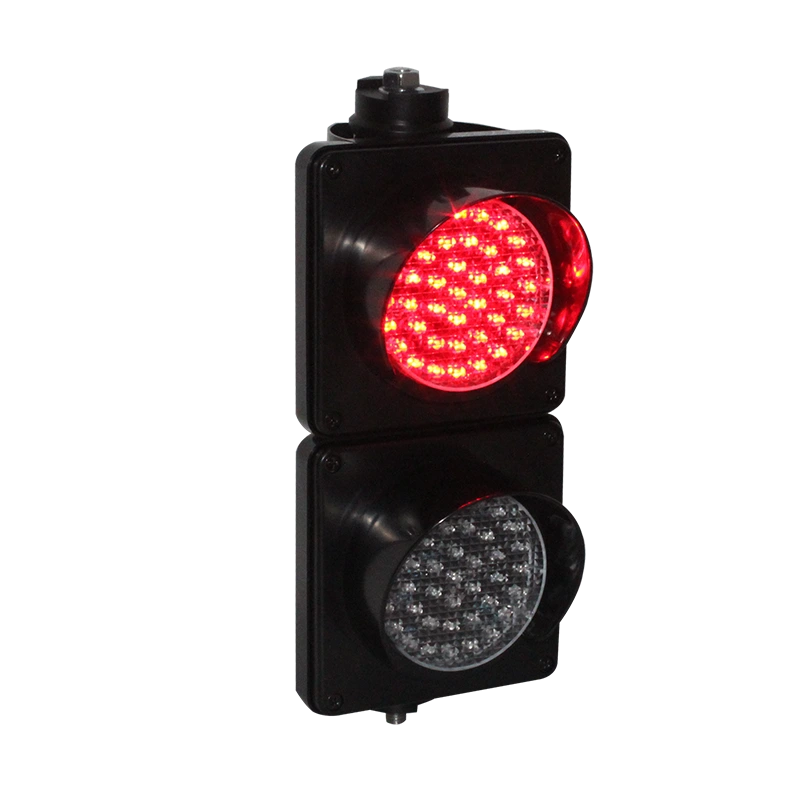

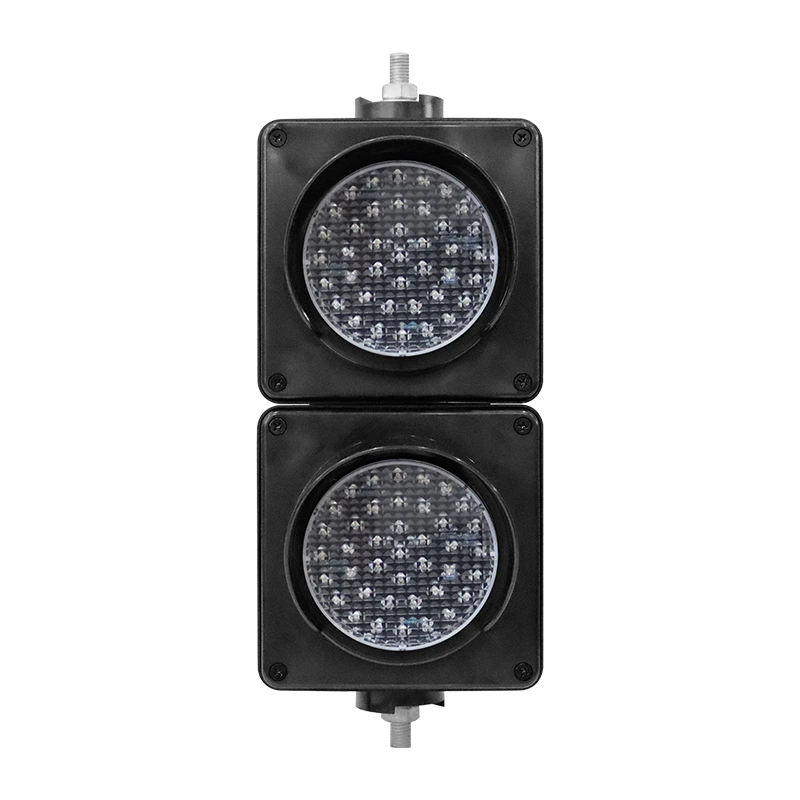

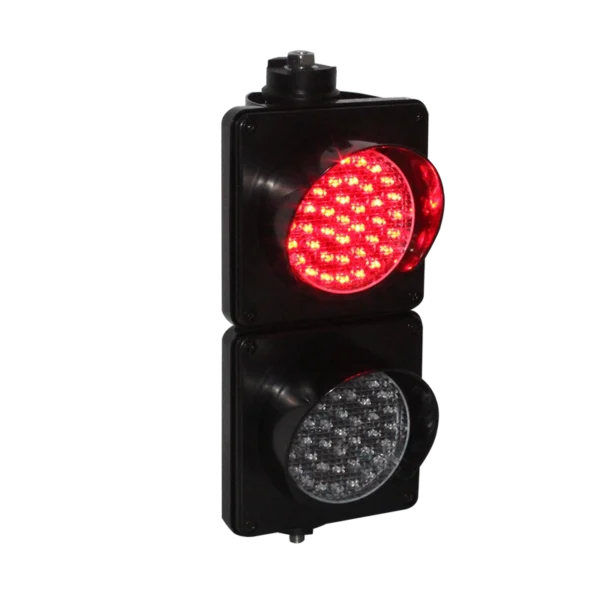

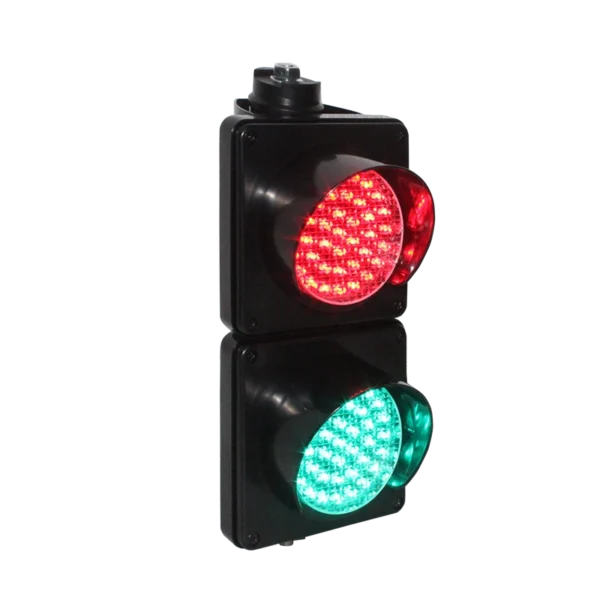

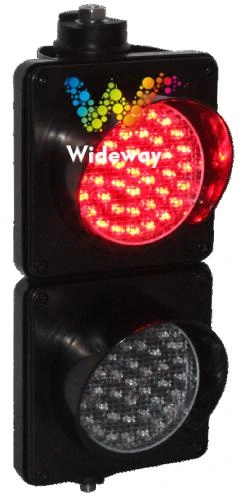

100mm MIni Traffic Light Two Aspects
The 100MM MIni Traffic Light Two Aspects is a small-sized traffic light consisting of two small units and a plastic casing. It features high-brightness light bulbs with distinct and eye-catching colors. Each unit (red and green) contains 40 high-brightness light bulbs. It is mainly used for traffic rule teaching in kindergartens and primary schools, allowing children to learn some traffic rules earlier. Through the demonstration of physical objects and simulating crossing the road scenarios, it is easy to install and convenient to use.
Share This Products :
- Green energy, environmentally friendly, free of harmful substances, and without pollutant emissions.
- LED uses Taiwan’s chip technology, with a lifespan of ≥ 100,000 hours, high brightness, a unique optical system, uniform color, good warning effect, and slow light attenuation.
- Low power consumption, wide viewing angle, extremely high brightness, long viewing distance, and long working time.
- Sturdy and durable. Stable and reliable, with a high protection level. Resistant to impact, aging, and corrosion.
- The appearance looks very exquisite and stylish.
- Easy to install.

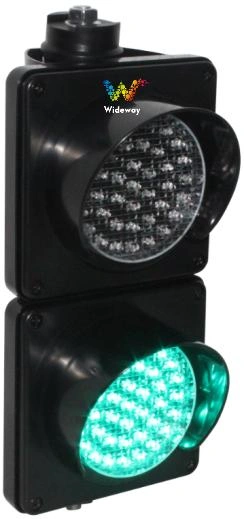

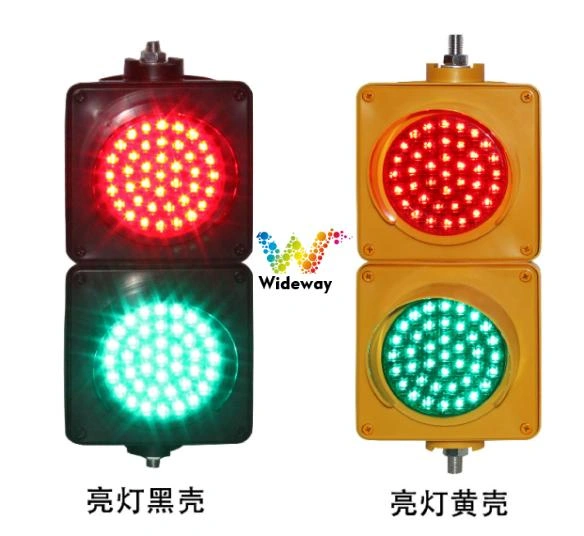

100MM traffic light two aspect
Red Light Warning · Strong Penetration
High-brightness LED chips deliver strong light penetration and excellent long-distance visibility. Ideal for high-priority warning applications such as no-entry signals, equipment fault alerts, and other critical warning scenarios.
Green Light for Passage · Clear & User-Friendly
Soft and clear illumination, specially designed for passage authorization and normal equipment operation status. It provides excellent visibility and easy recognition, helping guide safe passage.
Product Functions
All-Weather Stable Illumination
Supports a wide AC 85–265V input voltage range and operates reliably in temperatures from -40°C to 80°C. With IP53 dust and splash water protection, it is suitable for long-term stable operation in both indoor and outdoor environments, even under challenging weather conditions.
Passage Indication Function

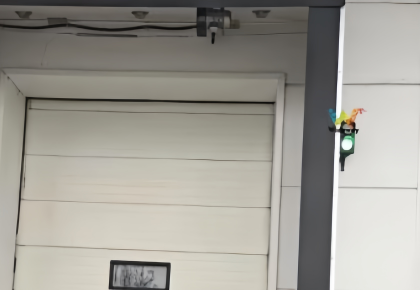

Provides steady red or green illumination to indicate passage status. It can be used as a passage signal at factory entrances and exits, parking garages, construction sites, and driving school traffic light simulators.
Simple Power Connection & Control
Simply connect the live and neutral wires to illuminate the 100MM traffic light two aspect. An external switch or controller can be connected for ON/OFF control, allowing easy integration with complete traffic signal systems for simple and convenient operation.
Long-Distance Visual Warning
Equipped with high-brightness DIP LED chips that provide uniform illumination and an effective visibility range of 1–800 meters, enabling clear signal recognition from a distance.
Flexible Installation

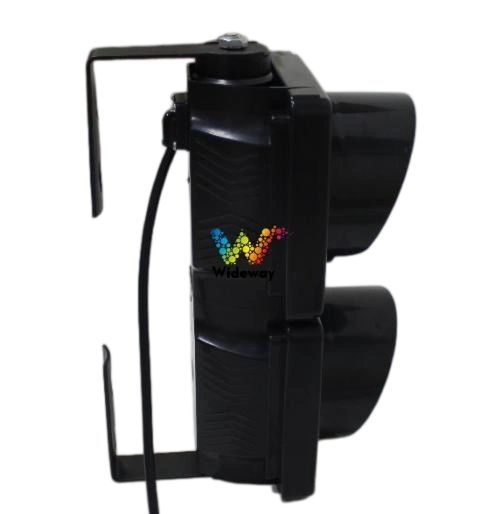

Supports both horizontal and vertical installation. With an L-shaped mounting bracket, the 100MM traffic light two aspect can be quickly secured to poles or structural members, making it suitable for a wide range of installation scenarios.
Extended Control Functions (Optional)
Supports timed cycling, remote control, sensor linkage, and flashing warning modes, meeting the customized requirements of complex applications such as automated control and intelligent sensing.
Extended Control Functions (Optional, Depending on the Application Scenario)
| Control Method | Control Description |
|---|---|
| Timed Cycling | Set a fixed duration to automatically switch between red and green lights for alternating passage control |
| Switch / Remote Control | Connect an external button or remote controller to manually switch light colors for controlled access management |
| Sensor Linkage | Connect to loop detectors or photoelectric sensors to automatically switch signals based on approaching vehicles, commonly used for one-way garage lanes and factory entrances |
| Flashing Warning Mode | Certain models support independent flashing of the red or green light for warning and alert applications |
Core Customer Pain Points We Can Solve
• Solve the Need for Clear Stop/Go Control:
The red-light stop / green-light godual-signal logic provides clear control for alternating one-way traffic. Forklift operators, pedestrians, and private vehicle drivers can easily understand the passage status, helping improve traffic order and reduce collision risks. Ideal for warehouse aisles, one-in/one-out parking garages, and factory entrances.
• Solve Installation Challenges in Space-Limited Areas:
The 100mm compact light face and integrated vertical dual-light housingprovide a space-saving design. It supports multiple installation methods, including pole mounting, wall mounting, and installation on top of turnstiles, making it suitable for confined installation locations without obstructing passageways.
• Solve Protection and Maintenance Issues in Harsh Environments:
The PC flame-retardant sealed housingwith IP53/IP65 protection optionsprovides dust and water resistance, making it suitable for outdoor areas, humid workshops, and dusty industrial environments. The LED dot-matrix light source maintains overall illumination even if an individual LED fails, helping reduce repair frequency and long-term maintenance costs.
• Solve Compatibility Issues with Different Power Supplies:
Supports optional DC 12V, DC 24V, or AC 85–265V wide-voltage power supply, allowing one product series to adapt to different power systems. This helps reduce the number of product models that need to be stocked and simplifies procurement and inventory management.
• Solve the Need for Flexible Control Methods:
Compatible with multiple control modes, including timed automatic switching, external button control, loop detector/photoelectric sensor linkage, and flashing warning mode. It can also work with general-purpose controllers, supporting both unattended automatic control and manual managementscenarios.
• Solve the Need for a Cost-Effective Two-Light Traffic Control Solution:
The red-and-green-only configuration, without a yellow light, is designed for simple stop/go control logic. By eliminating unnecessary yellow-light components, it provides a more cost-effective solution for small entrances and exits while avoiding additional costs for functions that are not required.
• Solve Complex Wiring and Installation Problems:
The integrated housing designcombines the red and green lights into a single unit, requiring only one installation point and one set of incoming wires. This reduces mounting components and wiring work, helping shorten on-site installation time.
• Solve the Need for Standardized Industrial Status Indication:
The 100MM traffic light two aspectcan also serve as an equipment status indicator, with red indicating shutdown/fault statusand green indicating normal operation. It provides a standardized visual signal instead of self-made indicator lights, facilitates integration with safety interlock systems, and helps meet industrial safety and inspection requirements.

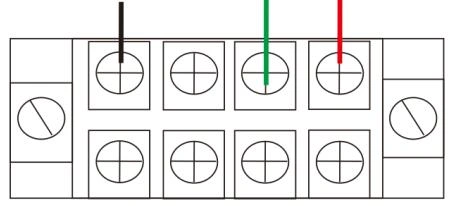

Wiring Instructions
Red line
Red Light Live Wire: Provides power input to the red LED module, ensuring the red light illuminates properly.
Green line
Green Light Live Wire: Independently controls the green LED module, allowing the green light to be switched on or off separately.
Black line
Common Neutral Wire: Serves as the common terminal of the circuit and must be reliably connected to the power supply neutral wire.
Wide Voltage Range
Supports a wide AC 85–265V input voltage range, making it compatible with power grid voltage standards in different countries and regions worldwide.
Product Installation (Vertical Installation Example)
Remove the Nuts
The 100MM traffic light two aspect is equipped with threaded rods on both ends. First, unscrew and remove the nuts from the threaded rods.
Secure the L-Shaped Brackets
Align the flat ends of the two L-shaped brackets with the mounting holes on the 100MM traffic light two aspect, then fit the bracket slots over the threaded rods.
Install the 100MM traffic light two aspect on the Pole
Drill mounting holes in the signal pole. Insert the supplied threaded rods through the pole and secure the assembled L-shaped brackets to the pole.
Precautions for Use
The housing of the 100MM traffic light two aspect is made of PC plastic. Do not apply excessive pressure or heavy loads to prevent damage to the housing.
The product must be connected to power and operated under the guidance of qualified professionals. Do not disassemble or modify the 100MM traffic light two aspect without authorization.
After-Sales Warranty Policy
• Warranty Period:3 years. The warranty covers the 100MM traffic light two aspect main unit only. Accessories are not covered. Customized products are excluded from the standard warranty.
• Repair Method:Customers are responsible for sending the product back for repair.
• Warranty Exclusions:Failures caused by human damage, misuse, or natural disasters are not covered under the warranty.
• Shipping Costs:Return shipping costs for warranty repairs shall be borne one way by the sender.
| Product Dimensions | 300 × 150 × 85 mm |
|---|---|
| LED Configuration | 25 red LEDs and 25 green LEDs |
| LED Type | Taiwan Epistar LED chips |
| Red Wavelength | 620–625 nm |
| Green Wavelength | 500–505 nm (Blue-Green); 520–525 nm (Emerald Green) |
| Service Life | 100,000 hours |
| Housing Material | PC plastic housing |
| Operating Temperature | -40°C to 80°C, suitable for high-and low-temperature outdoor environments |
| Protection Rating | IP53, providing dust and splash water protection |
| Operating Voltage | AC 85–265V, wide-voltage AC power supply |
| Visibility Distance | ≥1–800 m |
| Installation Method | Horizontal or vertical installation |
| Warranty | 3 years |
| Accessory | Quantity | Remarks |
| 100MM traffic light two aspect | 1 unit | Red, yellow, or green light options available to meet different warning and indication requirements |
| L-Shaped Bracket | 2 pcs | Made of high-strength cold-rolled steel plate for secure mounting of the 100MM traffic light two aspect |
| Certificate of Conformity | 1 pc | Serves as proof that the product has passed quality inspection |
| Product Manual | 1 pc | Includes product specifications, illustrated installation instructions, and safety and maintenance guidelines |
