100mm Mini Traffic Light One Aspect
The 100MM Mini Traffic Light One Aspect is a small-sized traffic light, consisting of a small unit and a plastic casing. It features high-brightness light bulbs with distinct and eye-catching colors. Each unit contains 40 high-brightness light bulbs. It is mainly used for traffic rules education in kindergartens and primary schools, allowing children to learn some traffic rules earlier. Through the demonstration of physical objects and simulating the crossing of the road scenario, it is easy to install and convenient to use.
Share This Products :
100MM traffic light one aspect

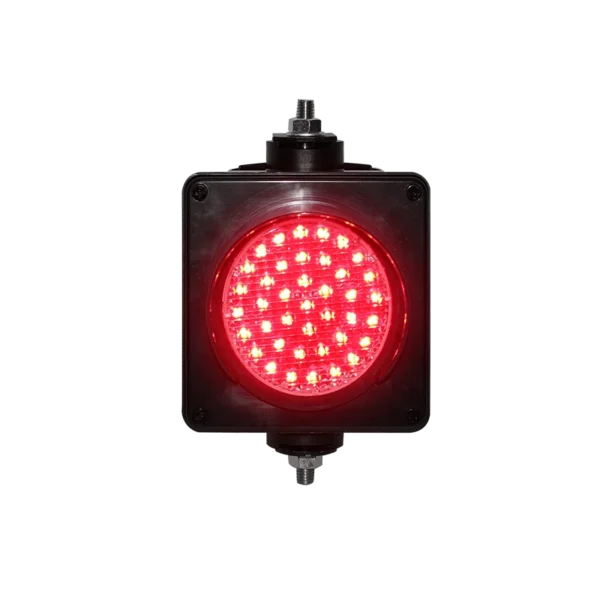

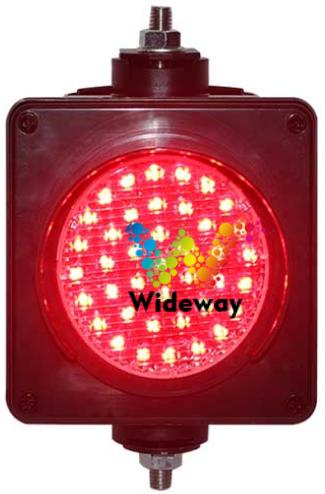

Red Light Warning
High-brightness LED chips provide strong light penetration and excellent visibility. Suitable for high-priority warning applications such as no-entry signals, equipment fault alarms, and other critical warning scenarios, with excellent long-distance visibility.

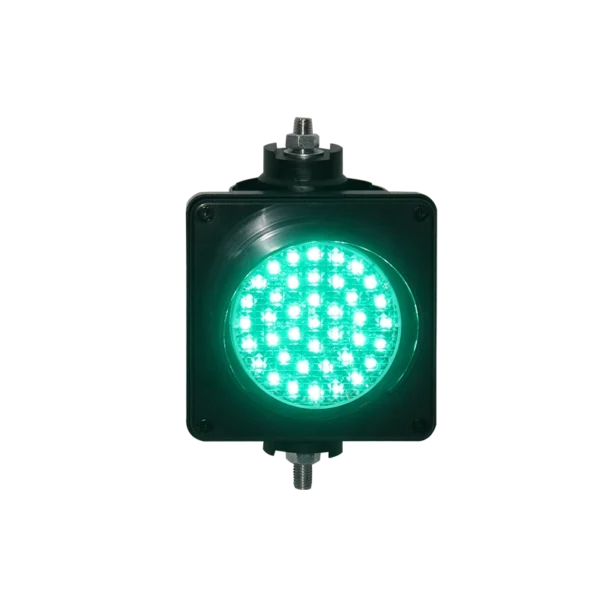

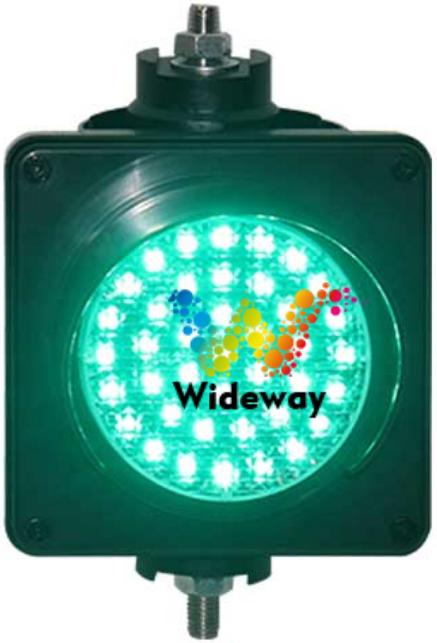

Green Light for Passage
Soft and clear illumination, specially designed for passage authorization and normal equipment operation status. It provides a comfortable visual experience, high visibility, and clear guidance for safe passage.

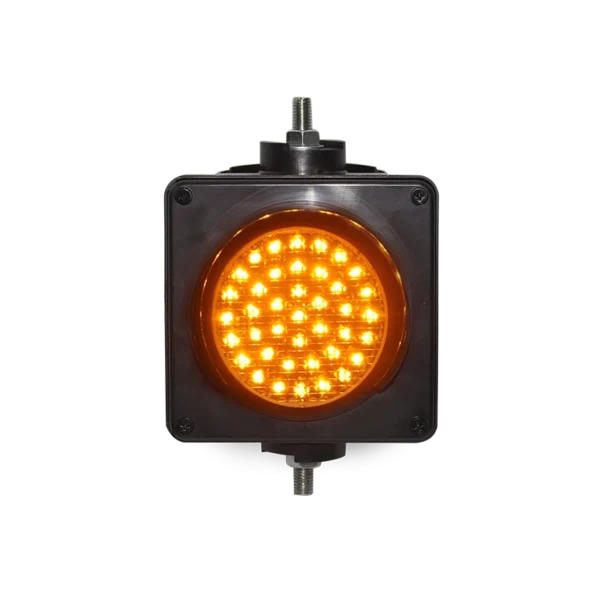

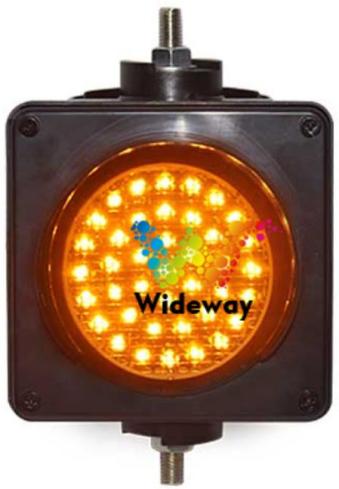

Yellow Light Warning
Bright and eye-catching without being harsh, suitable for safety warnings, speed reduction, and equipment standby status. It balances effective warning performance with visual comfort, making it suitable for a wide range of applications.
Product Functions
Passage Indication Function:
A steady green light indicates that passage is permitted. It can be used as a passage signal for factory entrances and exits, parking garages, construction sites, and driving school traffic light simulators.
Equipment Status Indication Function:
Can be integrated with production lines, turnstiles, and lifting equipment as a status indicator for normal equipment operation and work authorization.

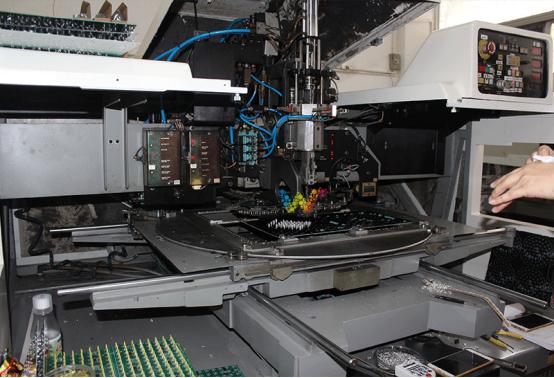

Long-Distance Visual Warning:
High-brightness DIP LED chips provide uniform illumination and an effective visibility range of 1–800 meters, enabling clear signal recognition from a distance.
All-Weather Stable Illumination:
Wide-voltage AC 85–265V power supply supports operation in temperatures from -40°C to 80°C. With IP53 dust and splash water protection, it can operate continuously and reliably in both indoor and outdoor environments.
Flexible Installation:
Supports both horizontal and vertical installation. Combined with an L-shaped mounting bracket, the 100MM traffic light one aspectcan be quickly secured to poles or structural members, adapting to a wide range of installation scenarios.

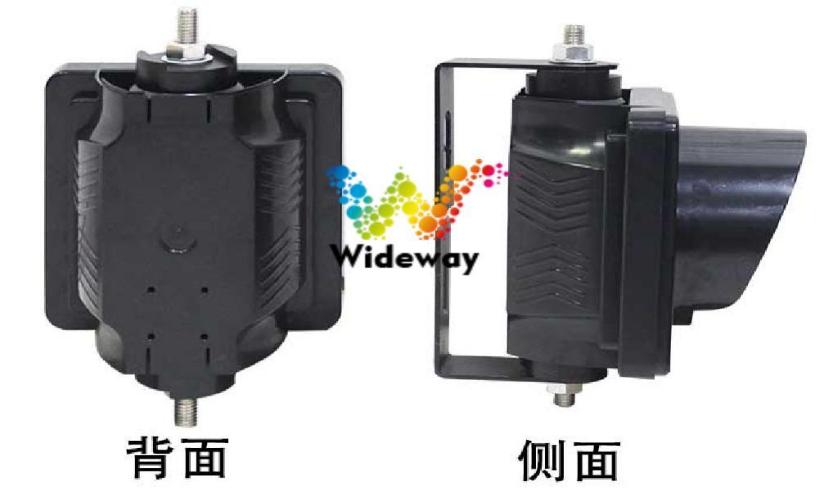

Simple Power Connection & Control:
Simply connect the live and neutral wires to illuminate the 100MM traffic light one aspectt. An external switch or controller can be added for ON/OFF control, making it easy to integrate with complete traffic signal systems for coordinated operation.

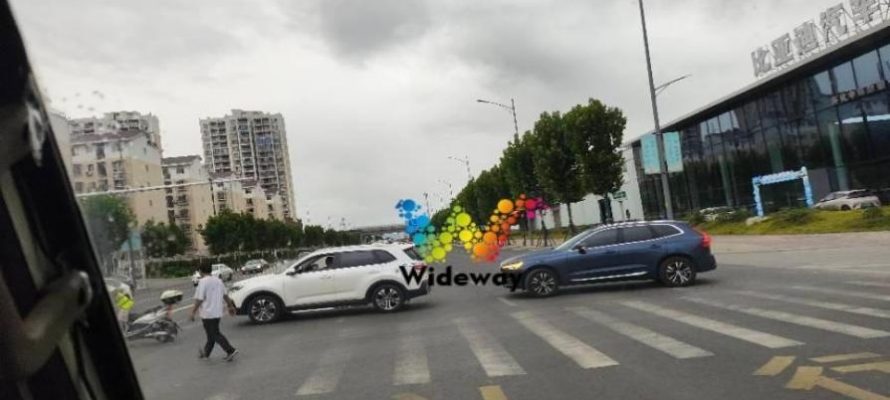

Core Customer Pain Points We Can Solve
On-Site Traffic Control Challenges
Solve the Lack of Passage Indicators at Simple Intersections:
Small entrances and exits in factories, parking garages, driving schools, and construction sites may lack dedicated traffic signals, leading to disorganized vehicle and pedestrian movement. Manual traffic control increases labor costs and cannot provide continuous guidance. The 100MM traffic light one aspectcan be used as a green passage indicator and combined with red and yellow lights to create a simple traffic signal system, enabling automated traffic control and reducing the need for dedicated personnel.
Solve the Lack of Visual Equipment Status Indicators:
Production lines, turnstiles, and lifting equipment may lack long-distance status indicators, making it difficult for operators to quickly determine whether equipment is operating normally or ready for use. The 100MM traffic light one aspectprovides a clear, steady green signal to indicate normal operation or authorization to operate, helping reduce the risk of incorrect operation.

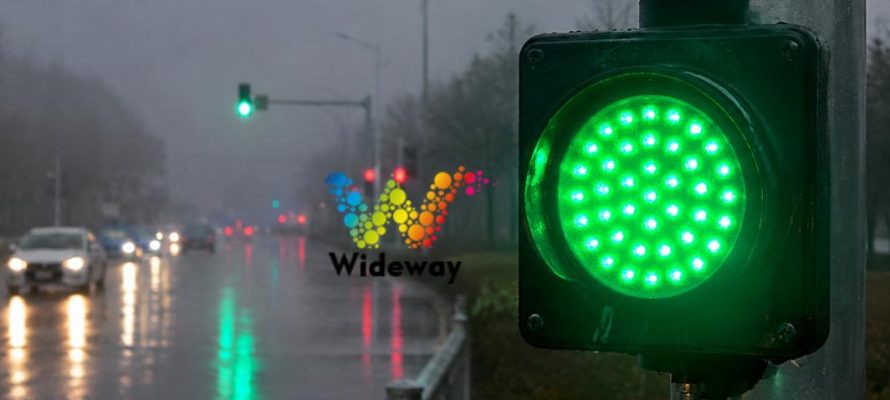

Environmental Adaptation Challenges
Solve the Poor Outdoor Durability of Conventional Indicator Lights:
Conventional indicator lights may experience failures under extreme temperatures, such as -40°C low-temperature conditions or high summer temperatures, while exposure to rainwater in outdoor environments may also cause water ingress and damage. The 100MM traffic light one aspectfeatures an IP53 protection rating and a wide operating temperature range of -40°C to 80°C, making it suitable for long-term outdoor use with protection against dust and water splashes.
Solve Poor Visibility in Low-Light or Long-Distance Conditions:
Small indicator lights with insufficient brightness can be difficult to recognize from a distance or in low-light environments. Equipped with high-brightness DIP LED chips, the 100MM traffic light one aspectprovides an effective visibility range of 1–800 meters, enabling clear signal recognition during both daytime and nighttime.

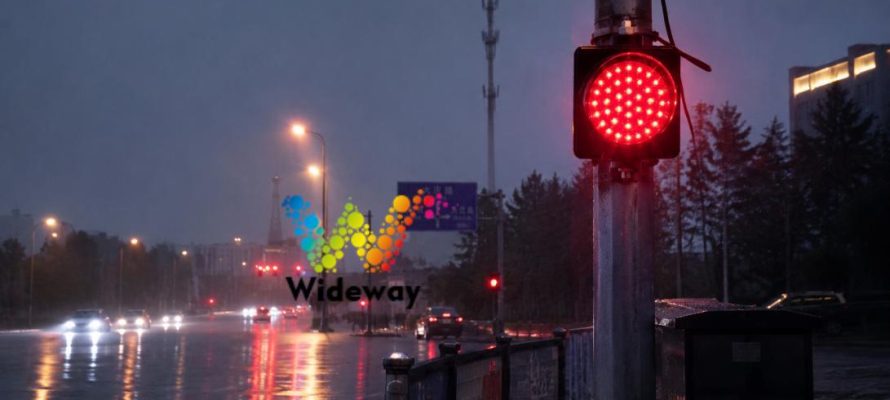

Power Supply & Installation Challenges
Solve Damage Caused by Unstable Power Supply Voltage:
Power voltage fluctuations in factories and other facilities can easily damage conventional lighting equipment. The 100MM traffic light one aspectsupports a wide AC voltage range of 85–265V, providing better adaptability to unstable power grids and improving operational reliability.
Solve Installation Limitations on Poles and Structural Members:
Some installation sites have special pole or structural configurations that may only allow horizontal or vertical installation. The 100MM traffic light one aspectsupports both horizontal and vertical installation, and can be equipped with an L-shaped mounting bracket to accommodate various pole and structural configurations, making installation and retrofit projects more convenient.
Operation & Maintenance Challenges
Solve Short Service Life and Frequent Replacement Issues:
Traditional indicator lights often have a short service life, requiring frequent replacement and increasing maintenance workload. The 100MM traffic light one aspecthas a theoretical service life of up to 100,000 hours, providing stable long-term operation while reducing replacement frequency and maintenance costs.
Solve Complex Wiring and Difficult Installation:
The product uses a simple two-wire connection—red (live) and black (neutral). Simply connect the power supply to illuminate the 100MM traffic light one aspectt. An external switch or controller can also be connected for coordinated control, simplifying installation and making it easy to integrate into complete signal control systems.

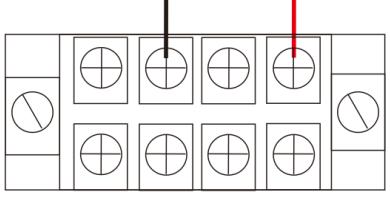

Wiring Instructions
Red line
Red Light Live Wire: Provides power input to the red LED module,ensuring normal illumination of the red light.
Black line
Common Neutral Wire: Serves as the common terminal of the circuit and must be reliably connected to the power supply neutral wire.
Wide voltage range
Supports a wide AC 85–265V input voltage range, making it compatible with power grid voltage standards in different countries and regions worldwide.
Product Installation (Vertical Installation Example)
Remove the Nuts
The 100MM traffic light one aspectis equipped with threaded rods on both ends. First, unscrew and remove the nuts from the threaded rods.
Secure the L-Shaped Brackets
Align the flat ends of the two L-shaped brackets with the mounting holes on the 100MM traffic light one aspectt, fit the slots over the threaded rods, and tighten the nuts securely.
Install the 100MM traffic light one aspecton the Pole
Drill mounting holes in the traffic signal pole. Insert the supplied threaded rods through the pole and secure the assembled L-shaped brackets to the pole. Tighten the nuts securely to complete the installation.
Precautions for Use
The housing of the 100MM traffic light one aspectis made of PC plastic. Do not apply excessive pressure or heavy loads to prevent damage to the housing.
The product must be connected to power and operated under the guidance of qualified professionals. Do not disassemble or modify the 100MM traffic light one aspectwithout authorization.

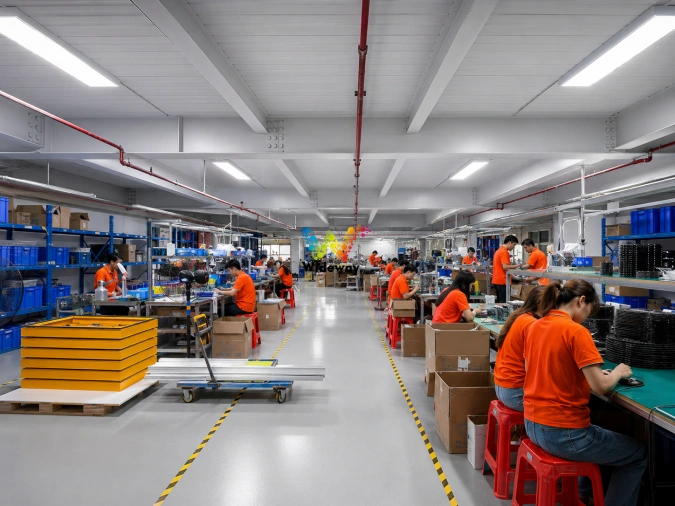

After-Sales Warranty Policy
• Warranty Period:3 years. The warranty covers the 100MM traffic light one aspectmain unit only. Accessories are not covered. Customized products are excluded from the standard warranty.
• Repair Method:Customers are responsible for sending the product back for repair.
• Warranty Exclusions:Failures caused by human damage, misuse, or natural disasters are not covered under the warranty.
• Shipping Costs:Return shipping costs for warranty repairs shall be borne one way by the sender.
| Product Dimensions | 150 × 150 × 85 mm |
|---|---|
| LED Configuration | 25 red, 25 yellow, and 25 green LEDs |
| LED Type | Taiwan Epistar LED chips |
| Red Wavelength | 620–625 nm |
| Yellow Wavelength | 590–595 nm |
| Green Wavelength | 500–505 nm (Blue-Green); 520–525 nm (Emerald Green) |
| Service Life | 100,000 hours |
| Housing Material | PC plastic housing |
| Operating Temperature | -40°C to 80°C, suitable for high-and low-temperature outdoor environments |
| Protection Rating | IP53, providing dust and splash water protection |
| Operating Voltage | AC 85-265V, wide-voltage AC power supply |
| Visibility Distance | ≥1–800 m |
| Installation Method | Horizontal or vertical installation |
| Warranty | 3 years |
| Accessory | Quantity | Remarks |
| 100MM traffic light one aspectt | 1 unit | Red, yellow, or green light options available to meet different warning and indication requirements |
| L-Shaped Bracket | 2 pcs | Made of high-strength cold-rolled steel plate for secure mounting of the 100MM traffic light one aspectt |
| M10×25 Threaded Rod | 2 pcs | Used to connect the brackets to external poles and suitable for various pole diameters |
| Certificate of Conformity | 1 pc | Serves as proof that the product has passed quality inspection |
| Product Manual | 1 pc | Includes product specifications, illustrated installation instructions, and safety and maintenance guidelines |
