Underground Pile Light

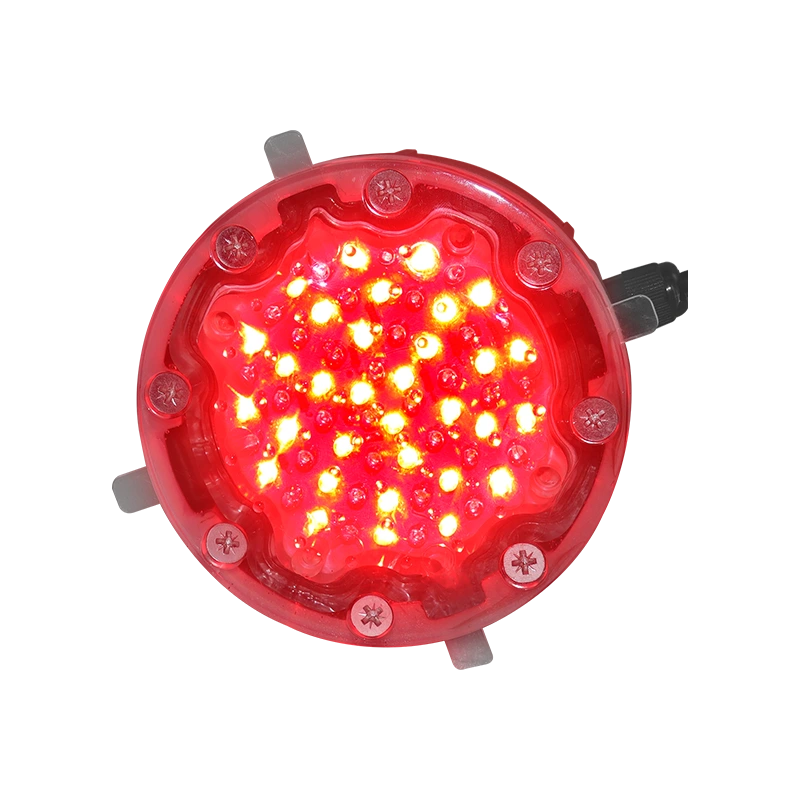

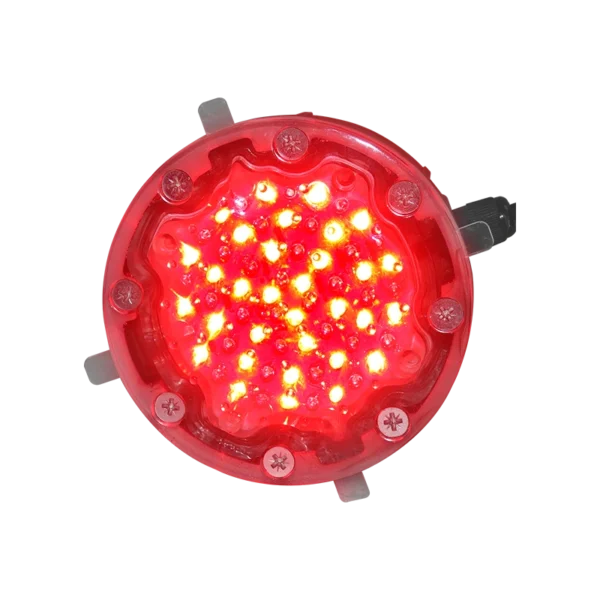

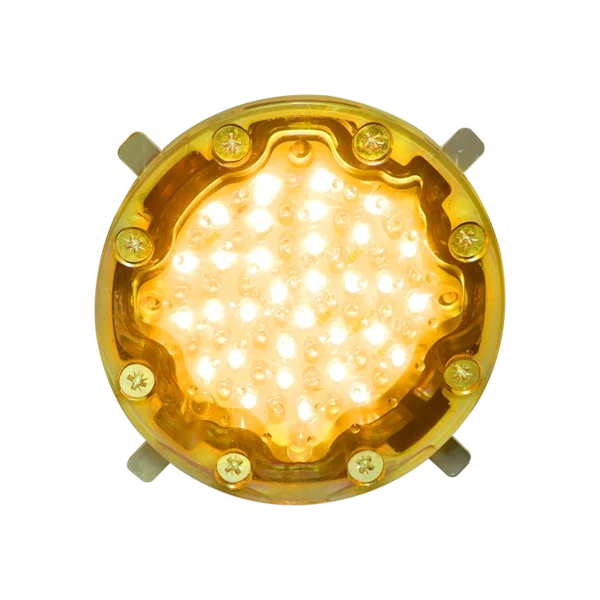

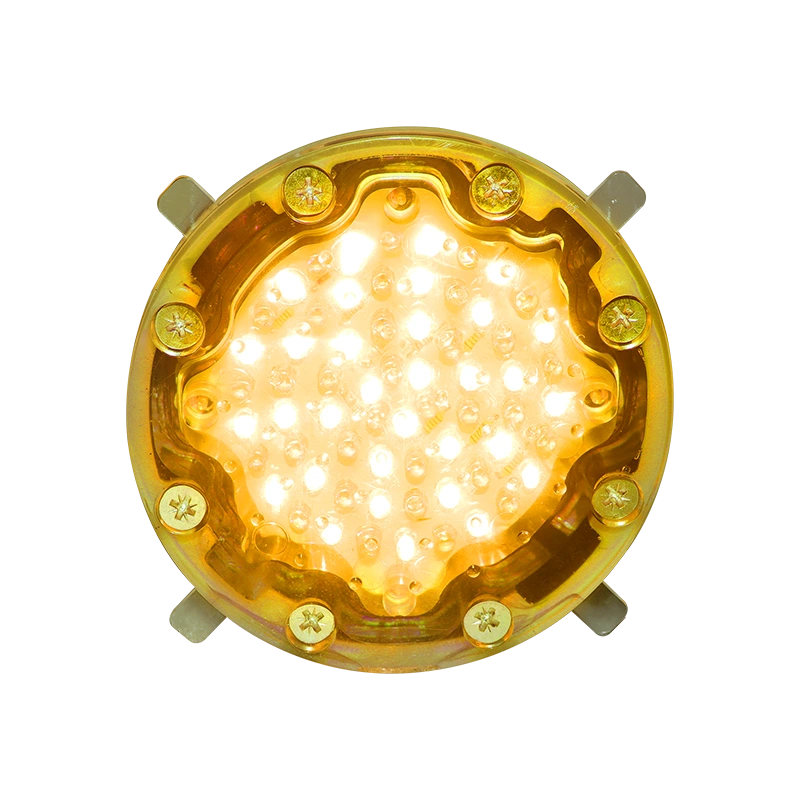

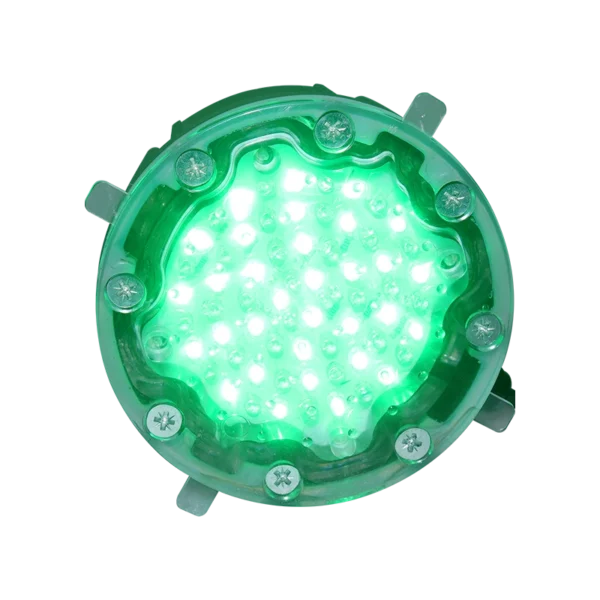

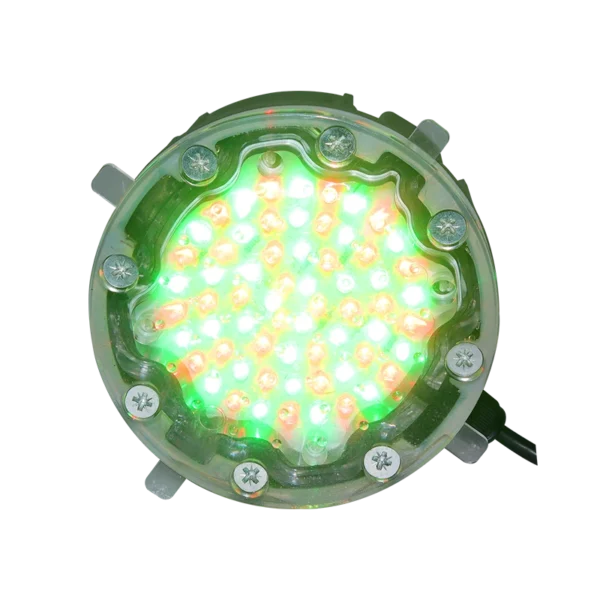

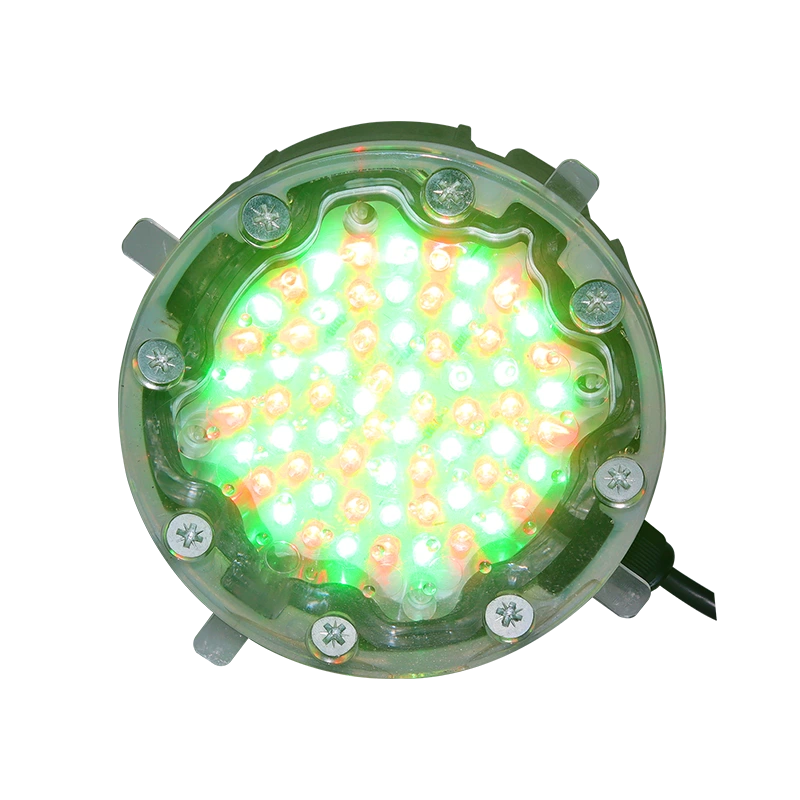

The buried road spike lamp is composed of the light bulbs of the traffic signal and cast aluminum material. The front surface is made of transparent acrylic material, and the bottom shell is cast aluminum. The back of the internal lamp board is filled with transparent soft glue, so rainwater cannot enter the product interior and it is absolutely sealed and waterproof. The front surface is treated with anti-slip treatment. The LED is inserted directly, and its compressive strength is stronger than the surface mount light bulbs. Moreover, the light bulbs of the traffic signal are outdoor light bulbs, featuring high brightness, resistance to high temperatures, and extended service life.

The buried single red light refers to a type of signal indication when passing through a red-green traffic light intersection. It is displayed in red and its display position is on the ground surface. The main installation positions are on the zebra crossing or in front of the first zebra crossing, that is, on the safety island. The buried red light is installed at both ends of the zebra crossing, usually for drivers to see, and on the safety island, usually for pedestrians to see, so that people who are walking with their heads down can also see the traffic status at any time, thereby reducing the occurrence of traffic accidents! The illuminated state should be consistent with the pedestrian light.

  • The buried single red light is an auxiliary device for the human-friendly design facilities of Weide Mei for pedestrian crossing. It visually reminds pedestrians not to run the red light and to cross the road safely according to the pedestrian light signal; it helps them develop good civilized travel habits and ensures traffic safety; it reflects humanistic care and enhances the image of urban roads.
  • The buried single red light is resistant to pressure, shock and slip. The shell is made of die-cast aluminum, and the surface is treated with sandblasting to prevent slipping.
  • The buried single red light is generally installed at both ends of the zebra crossing on the sidewalk; it can also be installed on the safety island of the sidewalk, that is, in front of the first zebra crossing. Its load-bearing capacity exceeds 50t. It is mainly for people and drivers to see, to beautify the urban roads, to enhance the reminder, to make smartphone users notice the status of the red and green lights, and to help them cross the zebra crossing safely.
  • The buried single red light has a high safety coefficient. The working voltage is DC 24V. The buried lamp on the safety island of the sidewalk synchronizes with the voice prompt column or pedestrian light without delay.
  • The product is filled with soft rubber, has high heat resistance, and is completely waterproof.
  • The appearance is exquisite, with concave and convex designs.

Parameter

Product ModelWDM-DMDD-D125-RG
Product NameUnderground Pile Light
Product Dimensions125*125*60mm
Shell MaterialCast Aluminum
LED Composition60° LED
Face ShieldTransparent
Single Brick Load CapacityMore than 20t
Working VoltageDC24V
Average Luminous Intensity≥5000cd/㎡
Visibility Distance20 – 300m
Operating Temperature-40℃ ~ +65℃
Relative Humidity10% – 95%
Insulation Index>1500V
Ground Current≤3mA
Average Fault-Free Time≥10,000 hours
Service Life≥100,000 hours
UniformityBrightness Uniformity
Protection GradeIP65
Installation MethodUnderground
