Pharmacy Cross Display
This is a cross-shaped LED advertising display designed specifically for outdoor pharmacies. Industry-standard names include: Pharmacy Cross Display and Medical Cross Illuminated Sign.

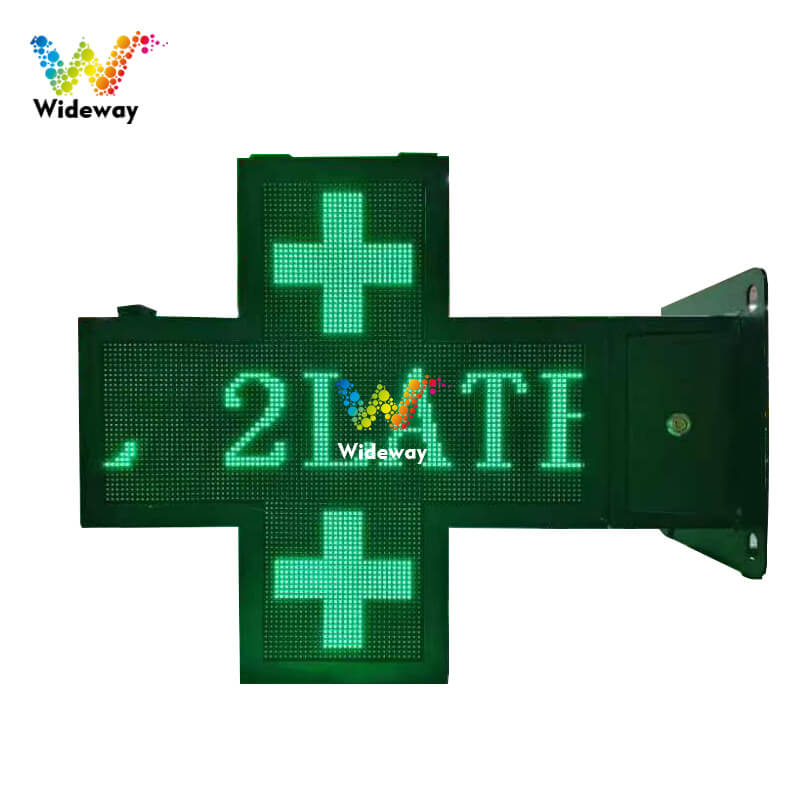

Standard dimensions: total width 800 mm, total height 640 mm; features an overall cross design, with the top and bottom sections displaying a fixed medical green cross symbol, while the left and right horizontal bars serve as full-color, variable text/graphic display areas. It comes with a matching external power control box on the side and is mounted using a wall-mounted bracket, specifically designed for outdoor storefront lighting and business information display at pharmacies, clinics, and drugstores.
Features of the Pharmacy Cross Display include:
1. Professional medical cross design with extremely high recognizability:
① The cross is an internationally recognized symbol for the pharmaceutical industry. The fixed, high-brightness green cross pattern in the upper and lower sections allows for quick identification of the pharmacy from a distance;
② The large horizontal screen can scroll through custom text and graphics, such as business hours, contact numbers, medication promotions, 24-hour operation indicators, temperature, and discount notices;
③ The one-piece design, with no visible seams, ensures a visually cohesive and unified storefront, replacing traditional printed light boxes.
2. High-brightness outdoor LED display, visible around the clock:
① Equipped with high-brightness LED chips specifically designed for outdoor use, with a maximum brightness of up to 6,000 cd/m², ensuring clear visibility whether under the midday sun, on cloudy days, or in fog;
② The full-color model can display dynamic color images and animations, while the monochrome green-light model complies with the visual standards of the pharmacy industry.
3. Highly Protected Outdoor Unit, Durable and Resistant to Harsh Environments:
① The entire unit meets the IP65 standard for water and dust resistance; the enclosure is fully sealed with silicone to protect against rain, dust, and condensation;
② The electrostatic-spray-coated sheet metal housing is UV-resistant, rust-proof, and corrosion-resistant, ensuring it will not fade even after long-term use in coastal or rainy regions;
③ Wide operating temperature range of -40°C to +70°C, ensuring stable operation in both the severe cold of the north and the intense heat and sunlight of the south;
④ Internal heat dissipation ducts prevent heat buildup and protect the LED chips from burnout during prolonged 24-hour operation.
Parameter
| Product size | 800*640*180mm |
|---|---|
| Pixel spacing | 6MM |
| Display size | 576mm * 576mm |
| Unit board module size | 192mm *192mm |
| Working voltage | AC85V -265V |
| Box dimensions | 800mm 640mm |
| Box door opening | side door opening |

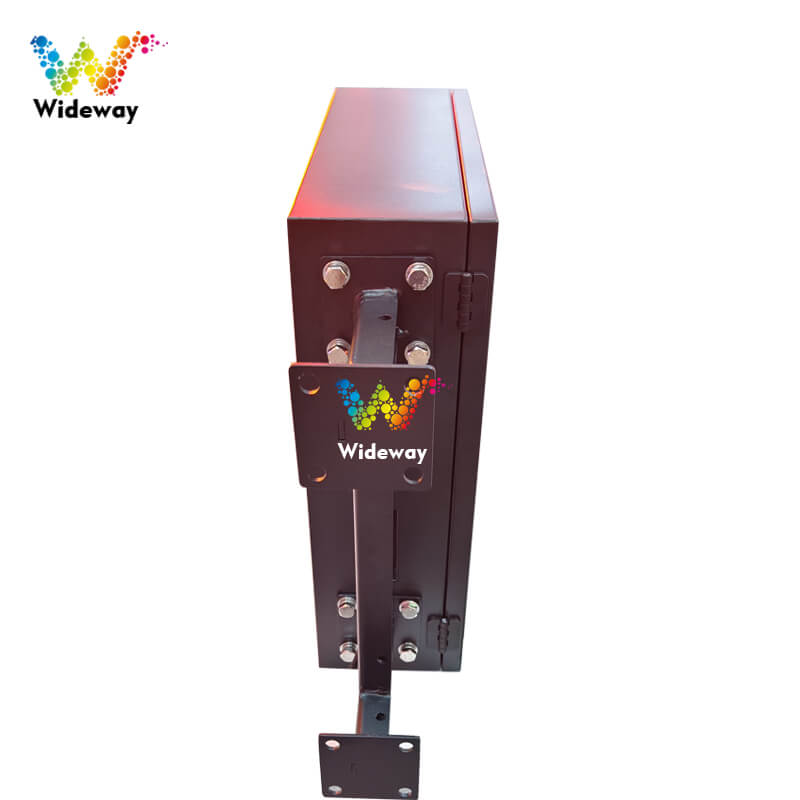

| Installation method | Side wall installation |

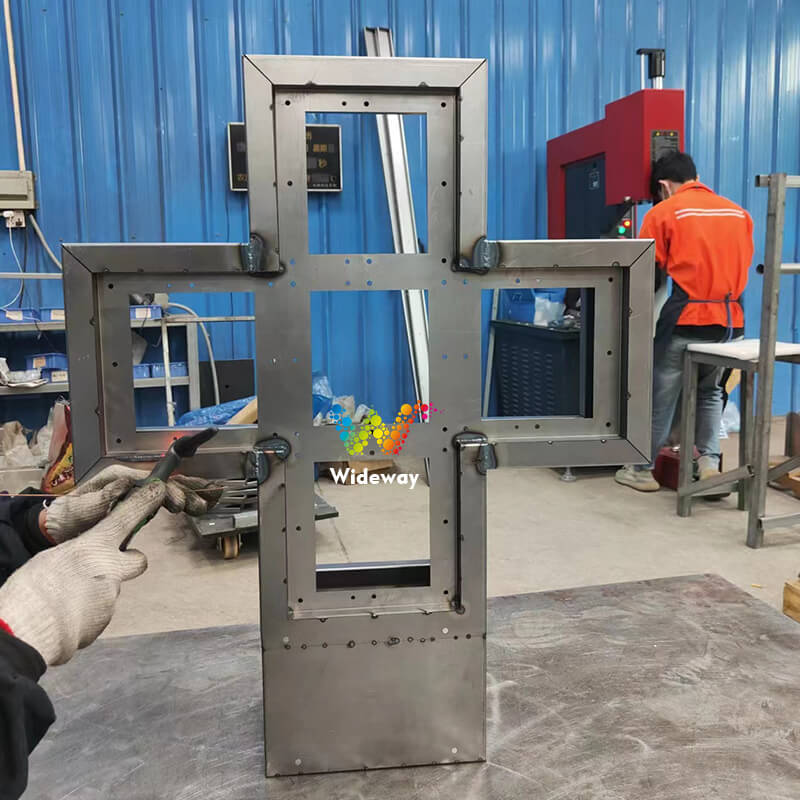

| Box material | cold-rolled sheet |
| Control method | control box control |
| Display content | picture/text/animation |
| Reading method | from left to right |
