Model 125 Solar Street Studs
Introduction to Model 125 Solar Street Studs:

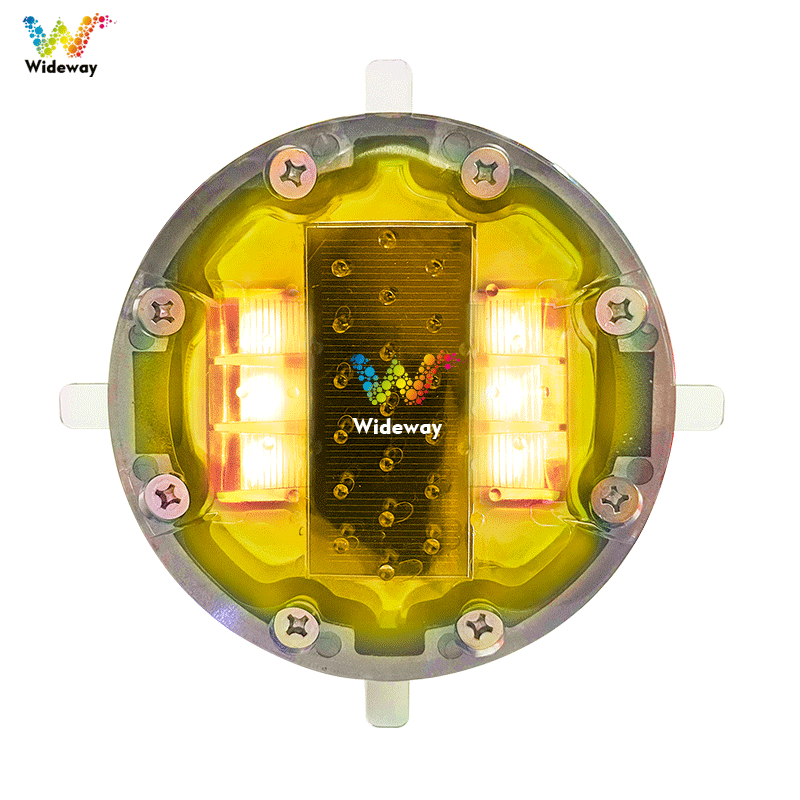

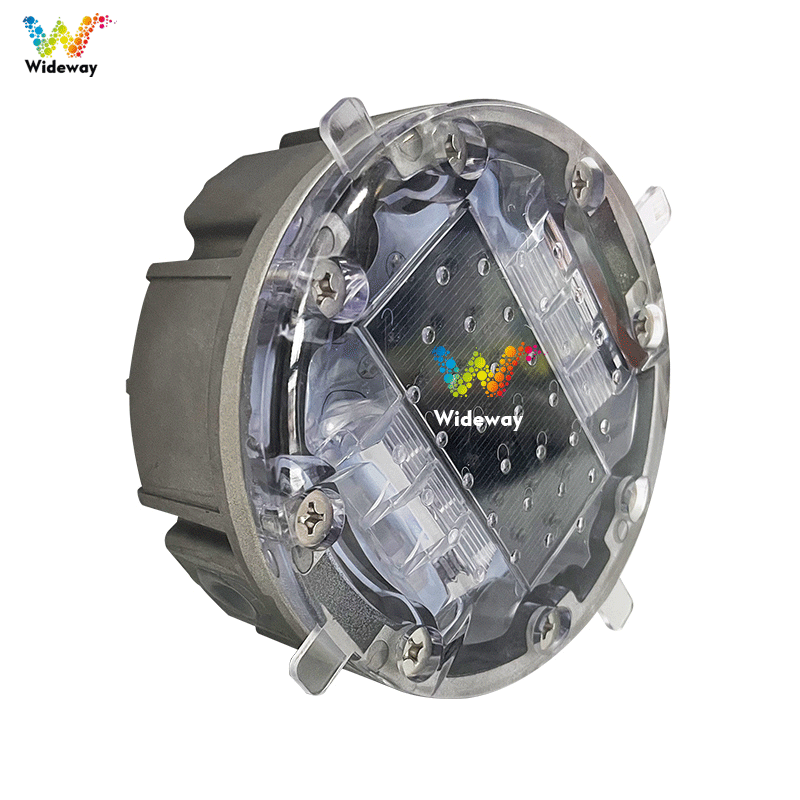

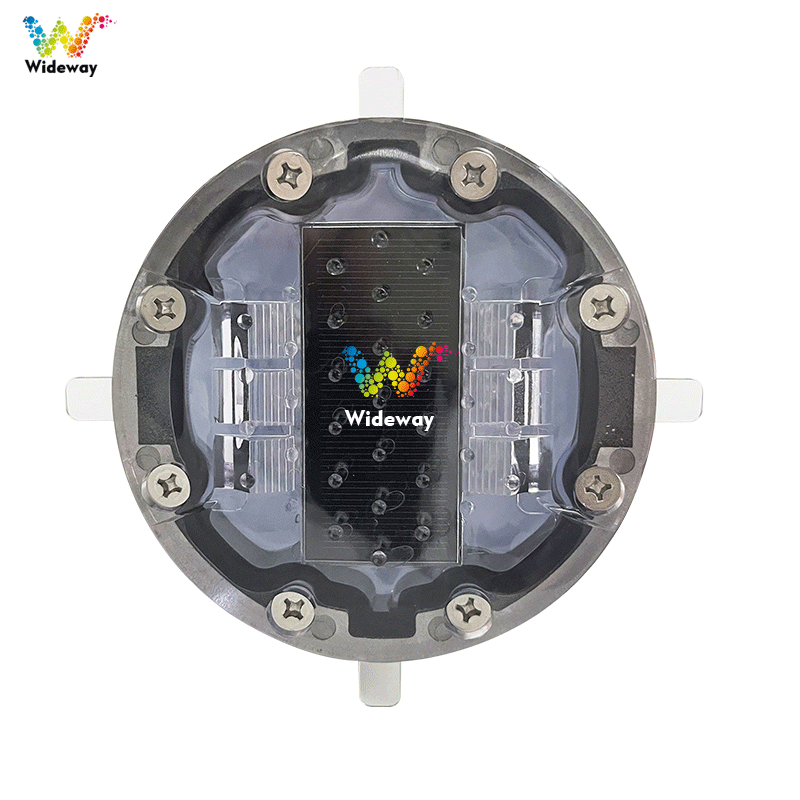

Model 125 Solar Street Studs are constructed from traffic signal LEDs and die-cast aluminum. The front face is made of off-white polymer composite material, while the base is die-cast aluminum. The back of the internal light board is filled with transparent flexible adhesive, preventing rainwater from entering the product and ensuring an absolutely sealed, waterproof design; The front surface features a slip-resistant finish, and the LEDs are installed using a through-hole mounting method, providing greater compression resistance than surface-mount LEDs. Additionally, the traffic signal LEDs are designed for outdoor use, offering high brightness, high-temperature resistance, and an extended service life.
Model 125 Solar Street Studs refer to a type of traffic signal indicator used at intersections with traffic lights. They display red and green signals and are mounted on the ground surface, primarily on crosswalks or on the traffic island in front of the first crosswalk. Underground traffic lights installed at both ends of a crosswalk are generally intended for drivers, while those on traffic islands are generally intended for pedestrians, allowing people who are looking down while walking to see the traffic conditions at any time, thereby reducing traffic accidents! The lighting patterns must be synchronized with the pedestrian signals.
Features of the Model 125 Solar Street Studs:
1. The Model 125 Solar Street Studs are auxiliary devices in Weimei’s line of pedestrian-friendly crossing facilities. They serve as visual reminders to pedestrians to avoid jaywalking and to cross the street safely in accordance with pedestrian traffic signals; they help foster good, civilized travel habits and ensure road traffic safety; and they embody a commitment to human-centered design while enhancing the image of urban roads.

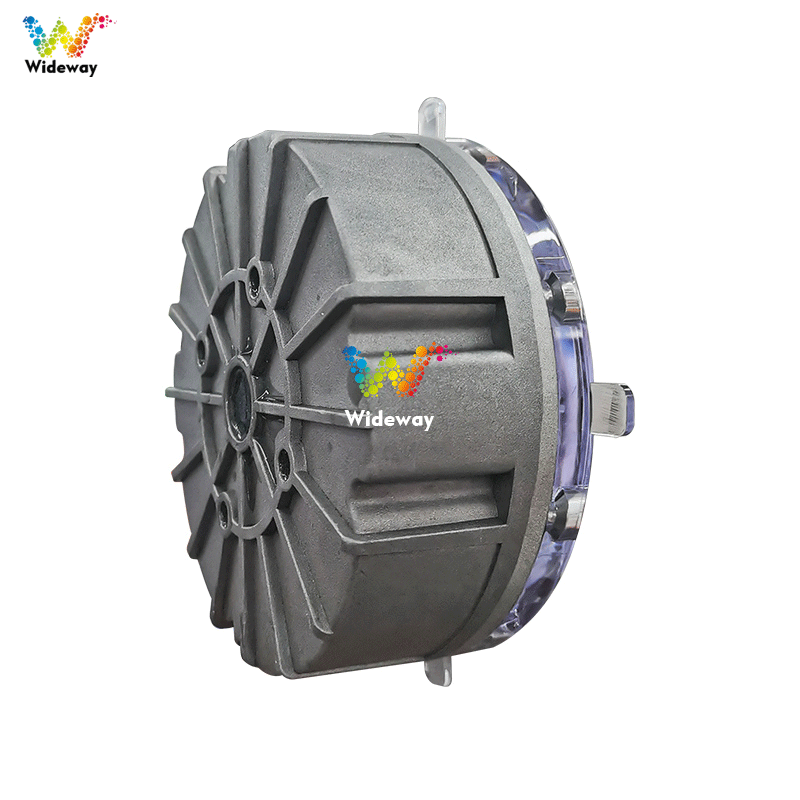

2. Model 125 Solar Street Studs are pressure-resistant, shock-resistant, and slip-resistant. The housing is made of die-cast aluminum with a matte finish on the surface for enhanced slip resistance.
3. Model 125 Solar Street Studs are typically installed at both ends of crosswalks; they can also be installed on pedestrian safety islands, specifically in front of the first crosswalk. With a load-bearing capacity exceeding 50 metric tons, they are primarily intended for the visibility of pedestrians and drivers. They beautify urban roads, reinforce safety reminders, alert “phone-zombies” to the status of traffic lights, and help them cross the crosswalk safely.
4. Model 125 Solar Street Studs offer a high safety factor and operate at a DC 24V voltage. When installed on pedestrian safety islands, the ground-mounted lights synchronize with voice prompt columns or pedestrian traffic lights without any delay.
5. The product is filled with soft rubber, offering high heat resistance and complete waterproofing.
6. The product features an elegant appearance with a textured design on the surface.
Parameter

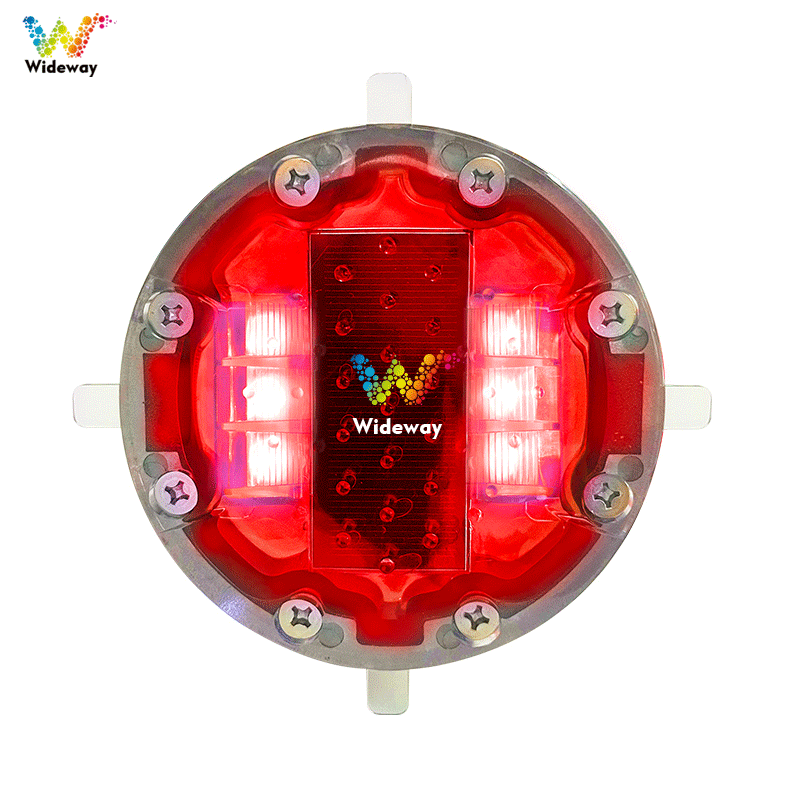

| Name | Red Tube LED Chip Model: Jingyuan Chip Wavelength: 625±2 nm Luminous Intensity: 4500 mcd Quantity: 20 |
|---|---|

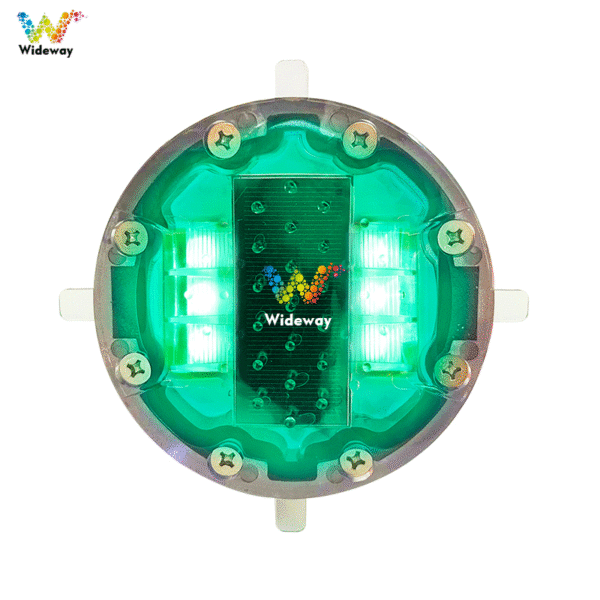

| Name | Green Tube LED Chip Model: Jingyuan Chip Wavelength: 525±2 nm Luminous Intensity: 10000 mcd Quantity: 20 |
| LED Configuration | 60° LED |
| Lens | Milky White |
| Load Capacity per Tile | Greater than 20 t |
| Product Dimensions | 125 × 125 × 60 mm |
| Housing Material | Die-cast Aluminum |
| Rated Power | R: 0.75 W, G: 0.75 W |
| Operating Voltage | DC 24 V |
| Average Luminous Intensity | ≥5,000 cd/m² |
| Visibility Distance 20–300 m | |
| Operating Temperature –40°C to +65°C | |
| Relative Humidity 10%–95% | |
| Insulation Rating >1,500 V | |
| Leakage Current ≤3 mA | |
| Mean Time Between Failures ≥10,000 hours | |
| Service Life ≥100,000 hours | |
| Uniformity Uniform brightness | |
| Protection Rating IP65 | |
| Installation Method In-ground | |
