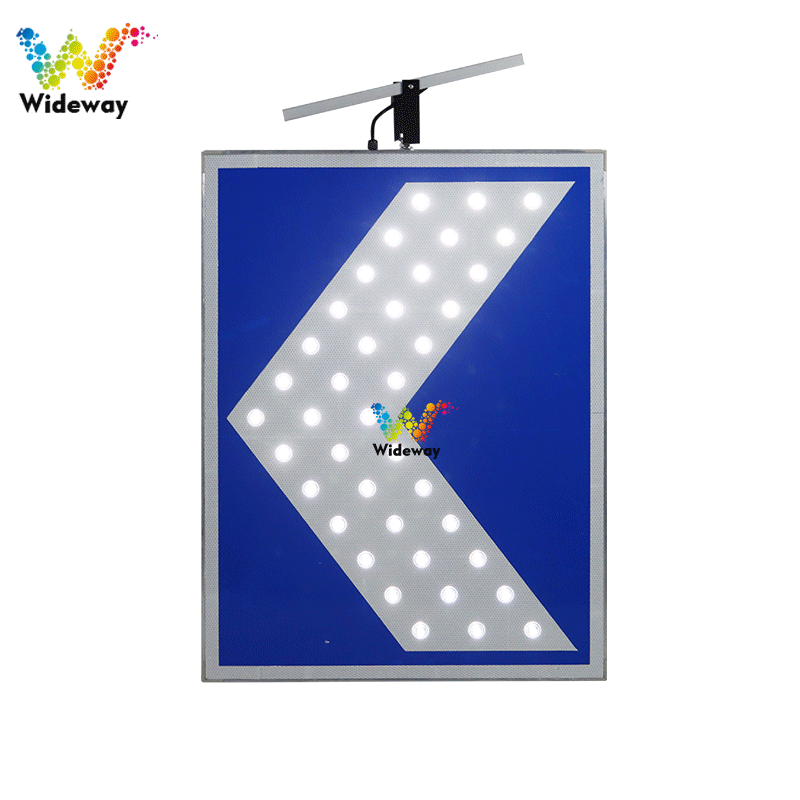

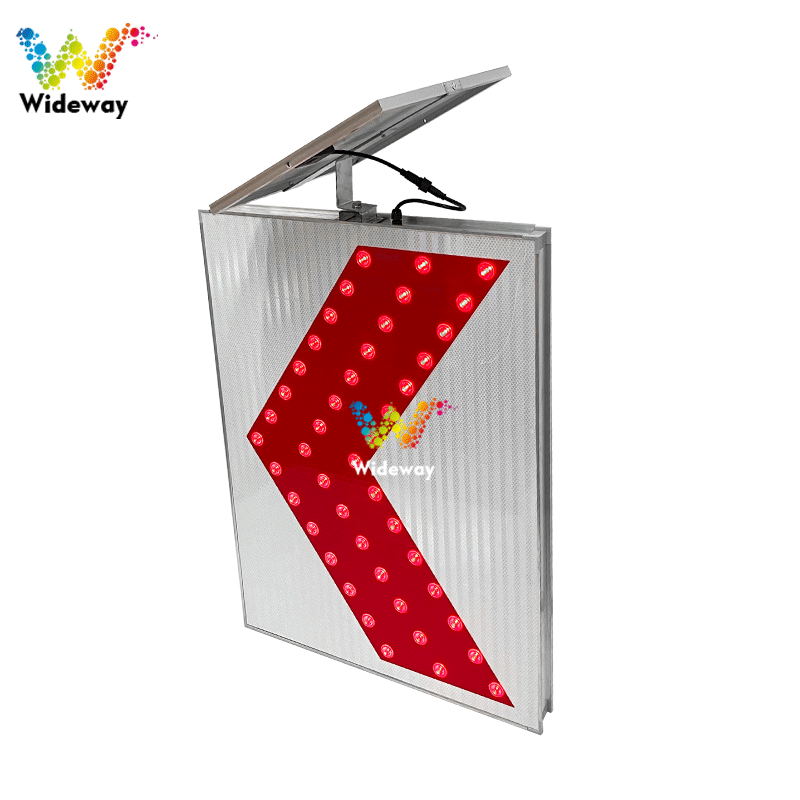

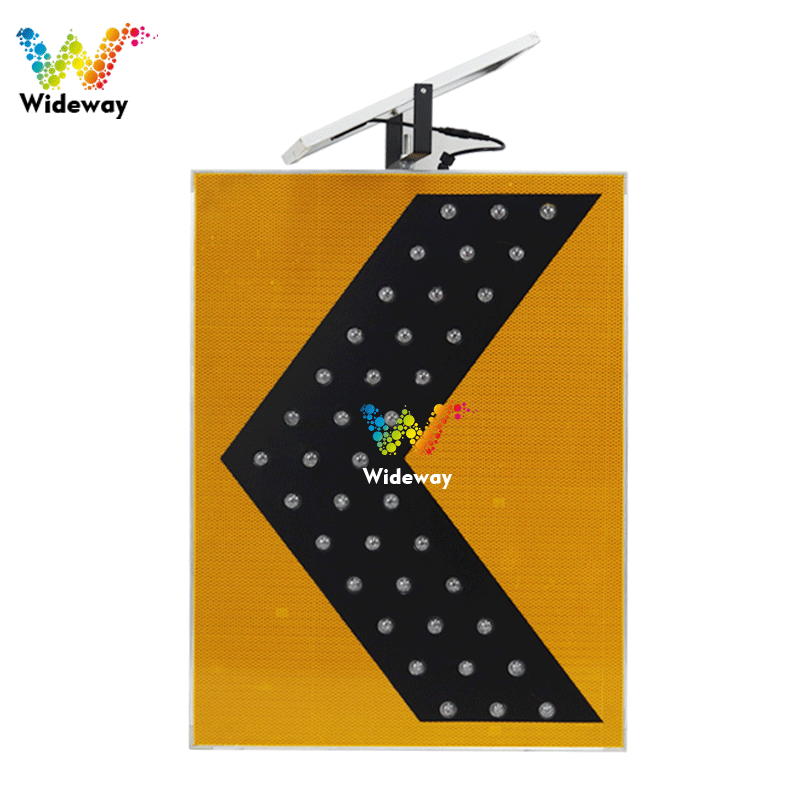

600 x 800 MM Arrow Solar Traffic Signs
1. Product Specifications: The 600 x 800 MM Arrow Solar Traffic Signs are powered by DC or AC voltage, typically AC 85–265 V or DC 12 V/DC 24 V.
2. Product Structure: The dimensions of the 600 x 800 mm Arrow Solar Traffic Signs can be customized according to customer requirements. Custom manufacturing is available.
3. Primarily Used on Urban Roads: The 600 x 800 mm Arrow Solar Traffic Signs utilize Epistar chips from Taiwan. The LEDs are densely arranged, offering ultra-high brightness, concentrated light, a very wide viewing angle, and excellent visual effects.
4. Housing Material: The 600 x 800 mm Arrow Solar Traffic Signs are made of aluminum. They feature a fully enclosed, all-weather, weatherproof design with excellent oxidation resistance, ensuring the equipment will not fade or rust throughout its service life.
5. Reflective Film: The front of the 600 x 800 mm Arrow Solar Traffic Signs is equipped with 3M reflective film combined with the LED array to enhance visual impact.
6. Low Power Consumption: The 600 x 800 mm Arrow Solar Traffic Signs feature low-power LED products; the company prioritizes low-carbon, eco-friendly, and energy-efficient design principles.
7. Uniform Brightness: The 600 x 800 mm Arrow Solar Traffic Signs are equipped with a current-balancing circuit and specially designed optical components, ensuring exceptionally uniform light distribution.
8. Rigorous Aging Testing: 600 x 800 mm Arrow Solar Traffic Signs undergo 24-hour aging verification before shipment, ensuring superior performance!
600 x 800 mm Arrow Solar Traffic Signs are powered by solar energy and feature built-in energy storage. The arrow symbols are illuminated by high-brightness LEDs, eliminating the need for external 220V municipal power lines. During the day, they are visible thanks to reflective film; at night, they automatically flash to warn drivers. These signs are used for lane separation, curve guidance, construction detours, and directional guidance at intersections.
Parameter
| Product model | WDM-DK600*800-Y-01 |
|---|---|
| Product size | 600*800*70MM |
| Lithium battery | 8AH/3.7V |
| Solar panel | 10W/6V |
| Lamp beads | 45 (yellow) |
| Power supply method | solar power |
| Material | aluminum |
| Voltage | DC3.7V |
| Working mode | flashing |
| Reflective film color | customizable |
| Size | can be customized |
| Lamp beads | high brightness lens beads |
